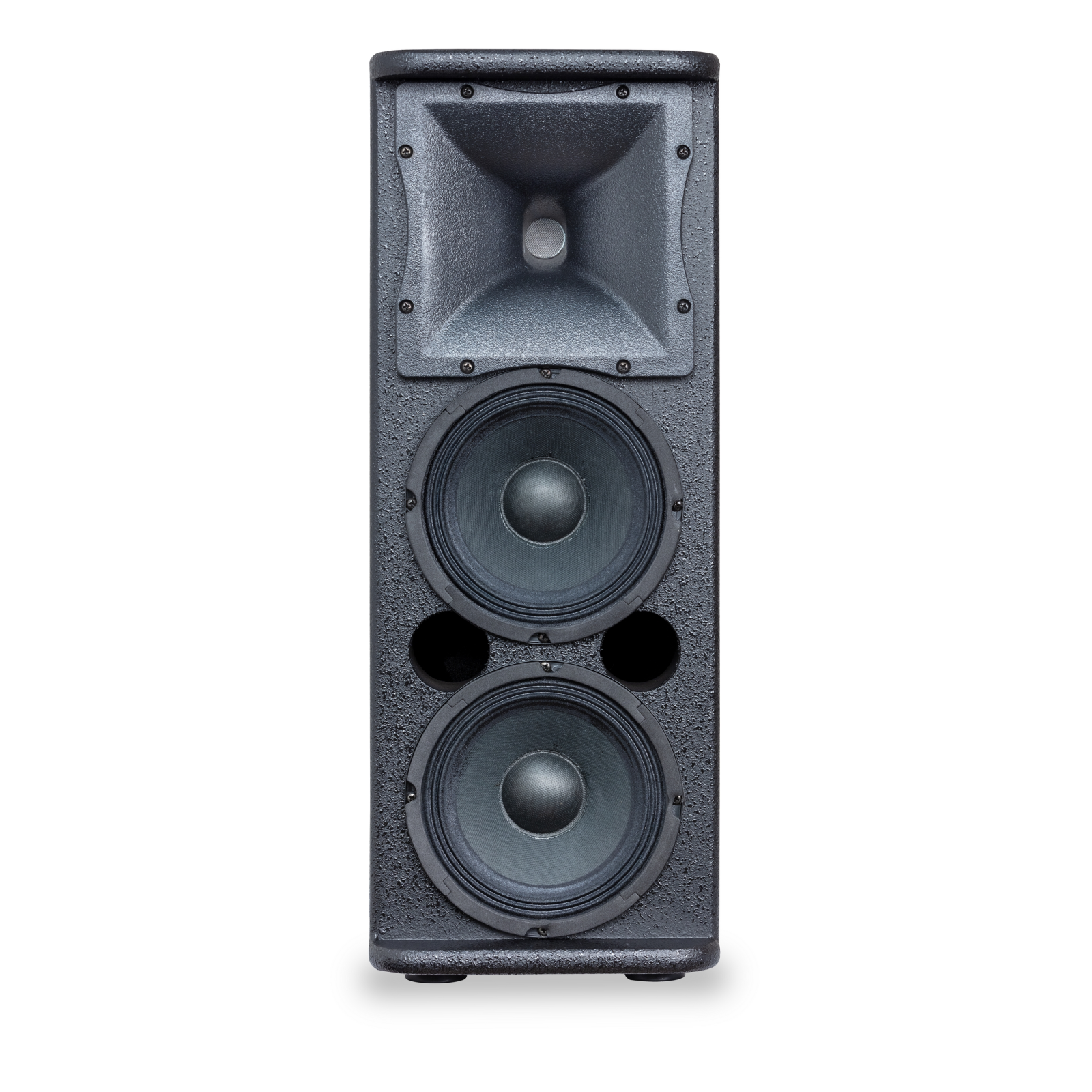

HYLE 62P 2x6.5” 2-Way Passive Speaker

Download product sheet

When Audio-Video system integration goes through delivering premium sound quality throughout the entire audio spectrum and high sound pressure, it can only look at speakers with plywood housing, low-impedance systems, and selected transducers and crossovers. HELVIA knows very well what system integration professionals and users require: the answer is the new H... Read more

When Audio-Video system integration goes through delivering premium sound quality throughout the entire audio spectrum and high sound pressure, it can only look at speakers with plywood housing, low-impedance systems, and selected transducers and crossovers. HELVIA knows very well what system integration professionals and users require: the answer is the new HYLE series, with passive 2-way vented speakers and power ratings from 360W to 1200W.

It features five models with woofers from 2x6.5" to 15". Compression drivers have voice coils from 1.35" to 1.75" and are mounted on symmetrical horns with constant directivity H90° x V60°. All models are made of eucalyptus plywood, a strong, durable and sustainable material. All are equipped with pole or tripod stand adapters with single 0° or double 0°-7° angle and have different handle arrangements as well as M6 or M8 mounting points, depending on size and weight.

We are essentially talking about speakers with established and functional architecture and technology, where only attention to details, reliability and durability can make a difference.

Collapse text

Product downloads

2-Way Speaker
Crossover
Low Impedance

Product details

Key features

  • 2-Way speaker, vented
  • 360W Rated Power
  • 4 ohm Impedance
  • 117 dB Maximum Sound Pressure
  • Frequency Response 75 Hz-20 kHz
  • 2x 6.5” – 1.5” v.c. Woofer
  • 1.35” v.c. Compression Driver
  • Crossover Frequency 3.0 kHz

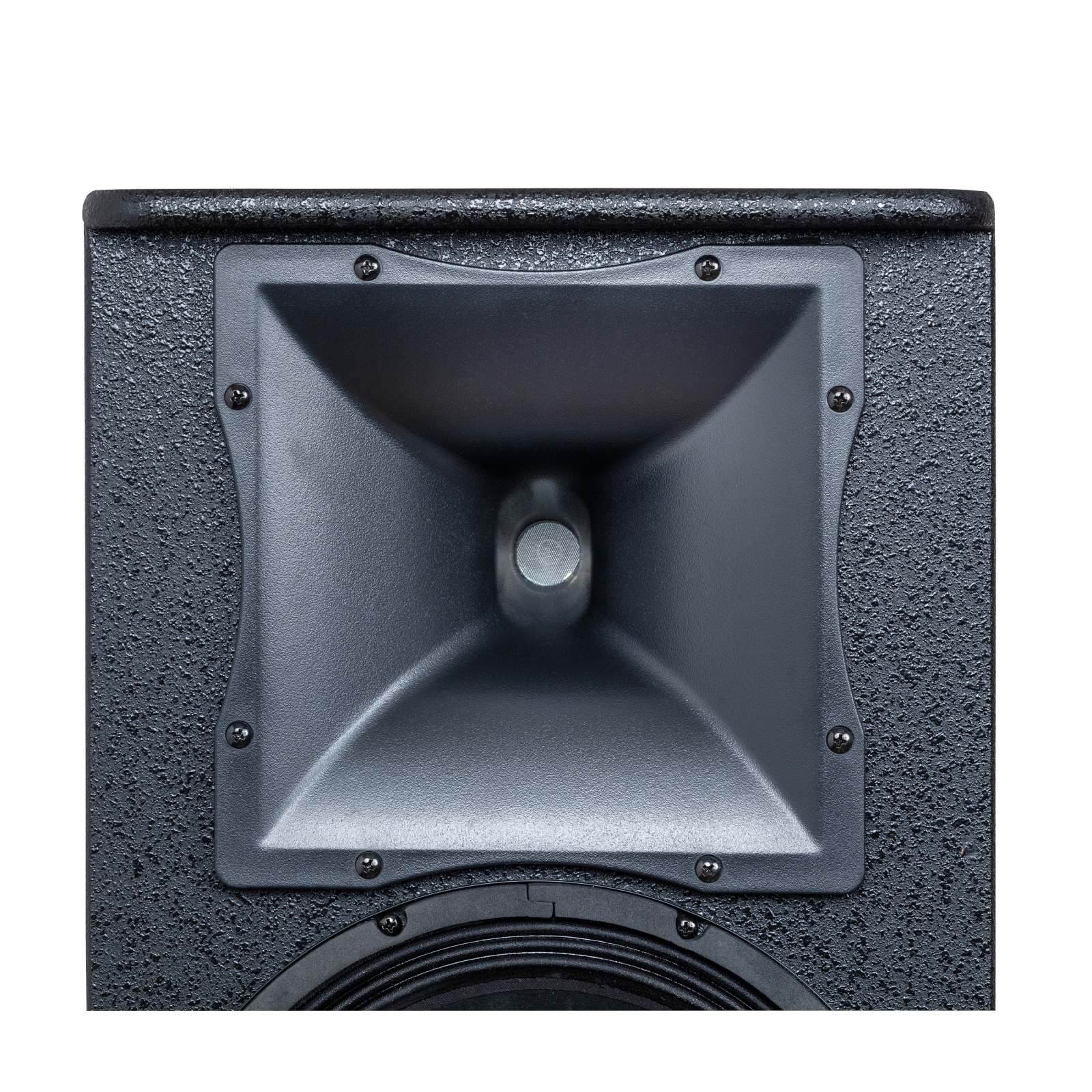

  • H90° x V60° Symmetric Waveguide (rotatable)
  • Eucalyptus Plywood Housing
  • Speakon & Euroblock In/Link Out Connectors
  • 8x M8 Fly points

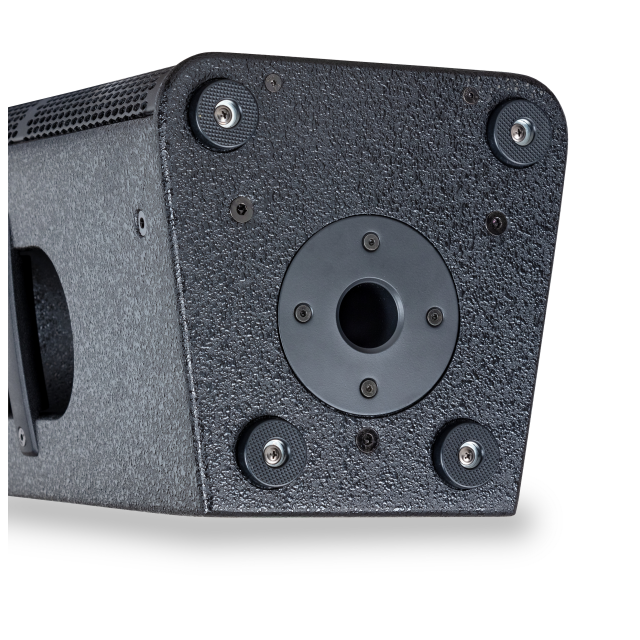

  • 36mm 0° Pole Mount Adapter
  • 1 handle on the back
  • More Less

Specifications

  • Speaker Type
    2-Way Passive Speaker
  • Frequency Response [- 10dB]
    75 Hz-20 kHz
  • Sensitivity (1W @ 1m)
    95 dB
  • Max SPL (PEAK)
    117 dB
  • RMS Power
    180 W
  • Program Power
    360 W
  • Peak Power
    720 W
  • Impedance
    4 ohms
  • HF Type
    Compression Driver
  • HF voice coil
    1"Exit - 1.35" Compression Driver
  • HF RMS Power
    30W
  • AES / Program Power (see note)
    60 W
  • Impedance
    8 ohms
  • Crossover Frequency
    3.0 kHz
  • Horn Type
    Symmetric
  • Directivity (HxV)
    H90°x V60°constant directivity horn
  • LF Type
    Steel Frame / Ferrite Magnet Woofer
  • LF Diameter
    2x 6.5"
  • LF voice coil
    1.5"Voice coil
  • LF AES / Program Power
    300 W
  • Impedance
    4 ohms
  • Input Connector
    1 x 2-Poles Speakon connector
  • Output Connector
    1 x 2-Poles Speakon connector
  • Input/Output Connector
    1 x 4-Poles Phoenix connector
  • Housing material and thickness
    15 mm Plywood
  • Painting
    Anti-scratch painting, black
  • Grille material and thickness
    steel/1.2 mm
  • Flyable
    M6:4pcs M8: 8pcs
  • Handles
    one (on back)
  • Pole Mount
    36mm 0° angle pole mount adapter
  • Speaker Size (WxDxH)
    210 x 250 x 546 mm (8.27 x 9.84 x 21.50 in)
  • Packing Size (WxDxH)
    320 x 280 x 611 mm (12.60 x 11.02 x 24.05 in)
  • Speaker Weight
    11kg (24.25 lbs.)
  • Package Weight
    12kg (26.45 lbs.)
