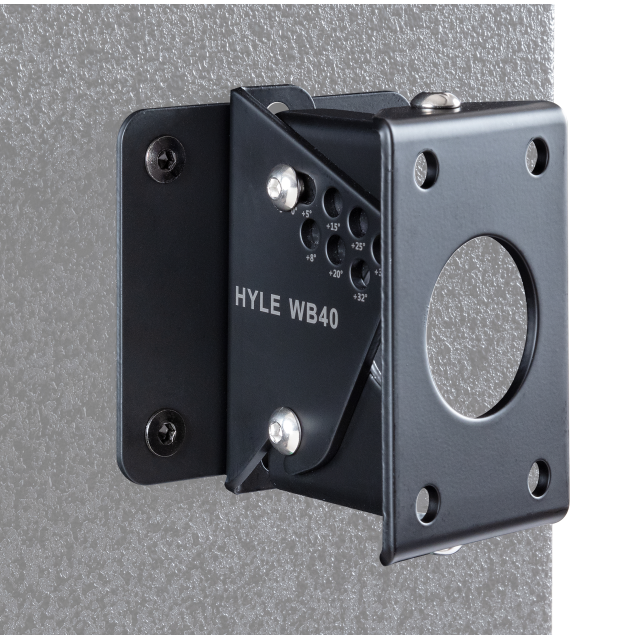

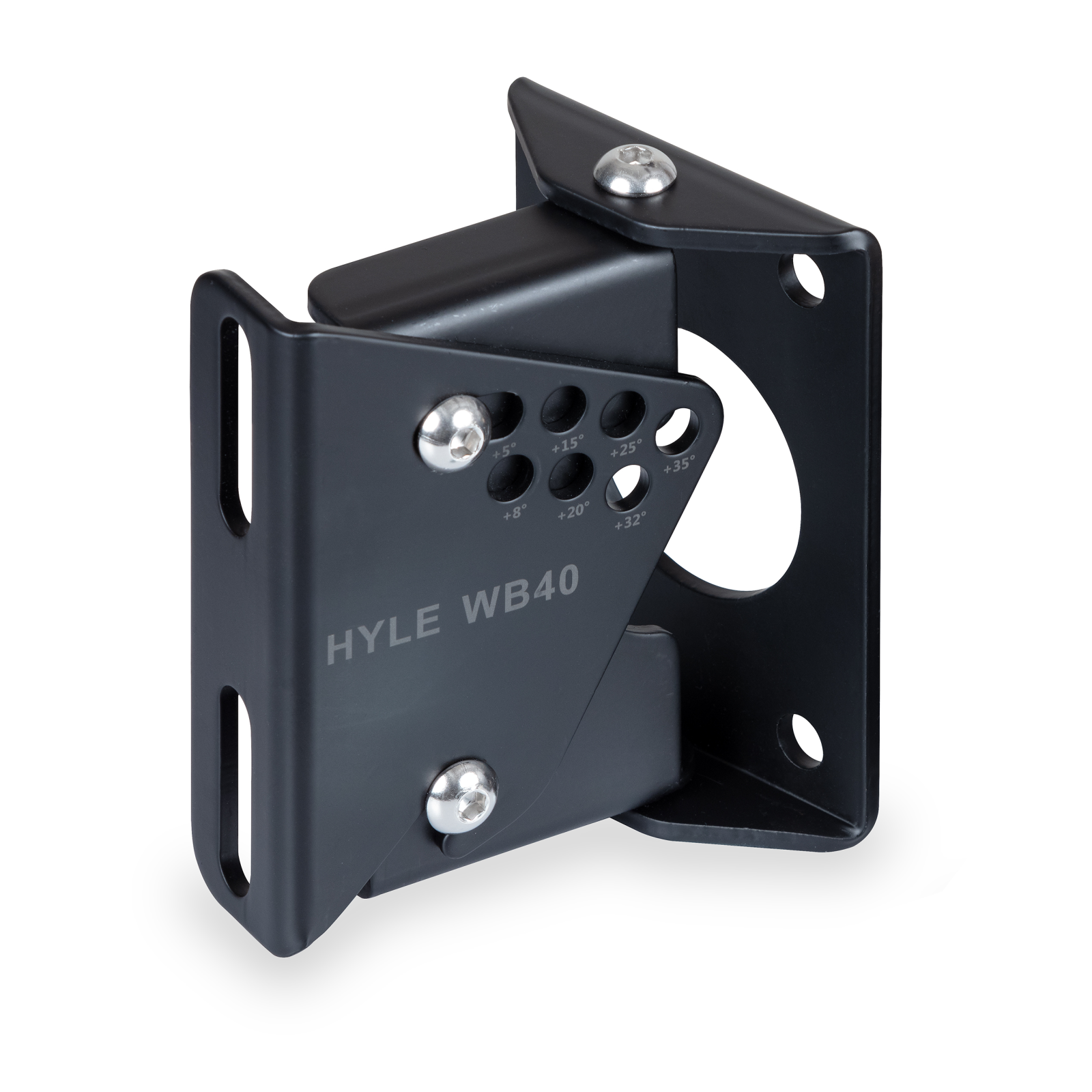

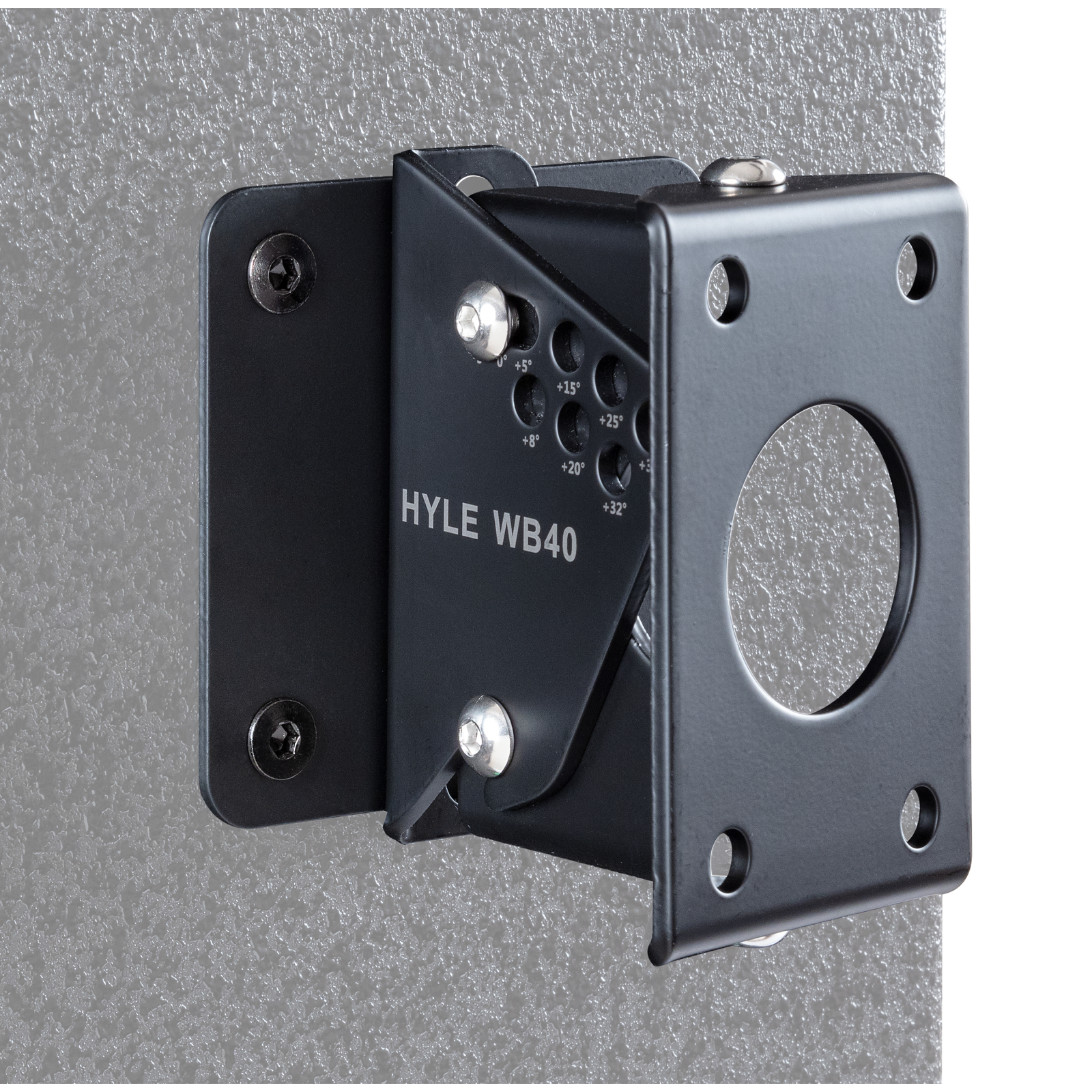

HYLE WB40 Professional Wall Mount Speaker Bracket (≤40 kg – 88 lbs.)
Download product sheetThe Hyle WB40 is a professional wall bracket for speakers weighing 40 kg (88 lbs.) or less. It is made of cold-rolled steel for maximum reliability and durability.
It allows for horizontal adjustment of +/- 40° and vertical adjustment of -5° to +35°; it is recommended for wall mounting HELVIA Hyle 12P and 15P speakers.
The Hyle WB40 is a professional wall bracket for speakers weighing 40 kg (88 lbs.) or less. It is made of cold-rolled steel for maximum reliability and durability.
It allows for horizontal adjustment of +/- 40° and vertical adjustment of -5° to +35°; it is recommended for wall mounting HELVIA Hyle 12P and 15P speakers.
Product downloads
Product details
Key features
- Usable for ≤40 kg Speakers
- Horizontal and vertical adjustable
- One-hung installation, free adjustment
- Simple and easy to install
- Cold-rolled steel plate for safe and fast wall hanging.
Specifications
-
Load bearing≤40 Kg
-
Horizontally Angle+40°~-40°
-
Vertical Angle-5°~+35°
-
Maximum distance148 mm (5.83”)
-
Finishblack
-
MaterialCold rolled steel
-

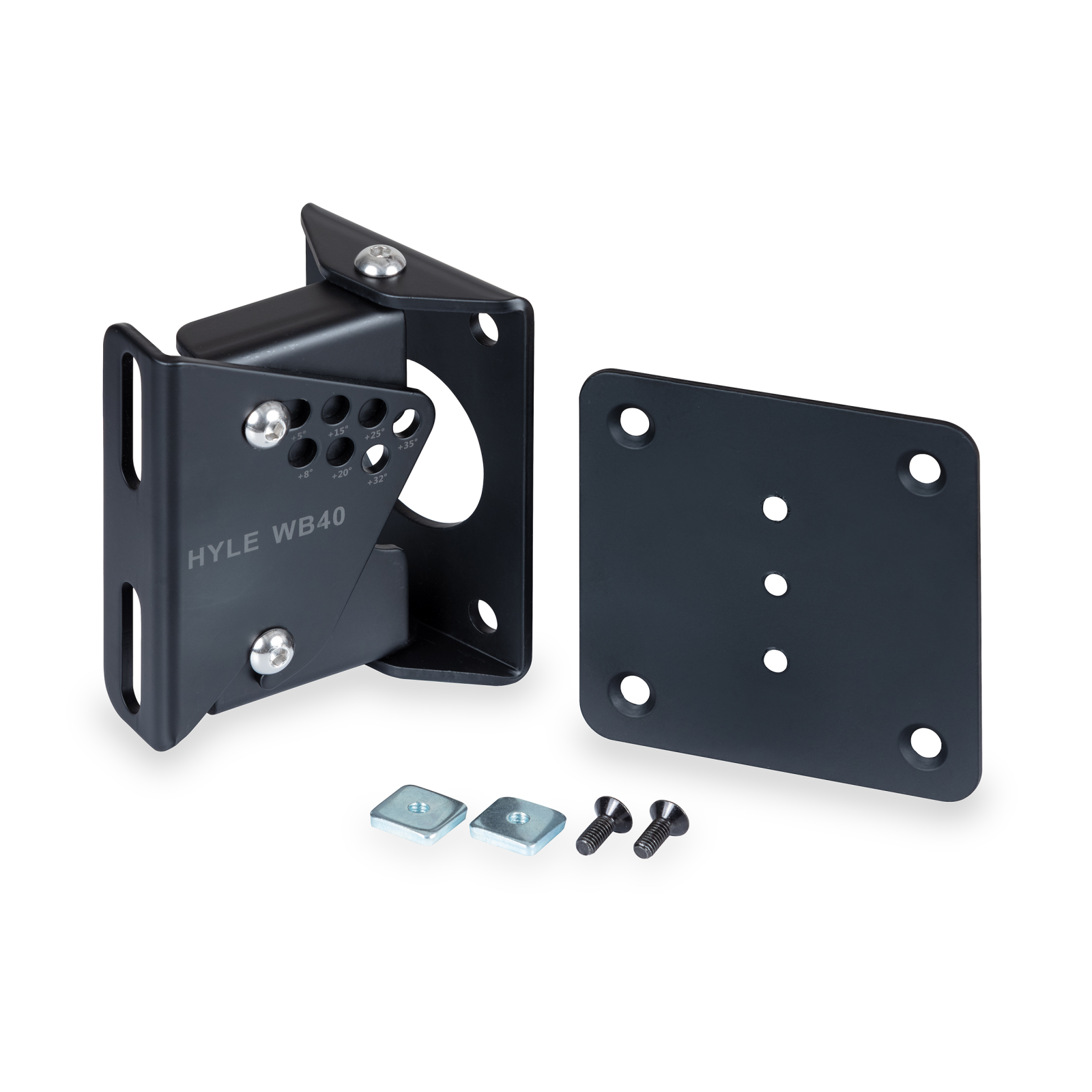

AccessoriesScrews and Plugs
-
Dimensions (WxHxD)115 x 95~148 x 130 mm (4.53 x 3.74~5.83 x 4.72”)
-
N.W.0.81 kg (0.73 lbs.)
-
Packing Size (LxWxH)132 x 124 x 44 mm (5.31 x 3.94 x 1.38”)
-
G.W.0.97 kg (1.87)
