HYLE 12P 12" 2-Way Passive Speaker

Download product sheet

When Audio-Video system integration goes through delivering premium sound quality throughout the entire audio spectrum and high sound pressure, it can only look at speakers with plywood housing, low-impedance systems, and selected transducers and crossovers. HELVIA knows very well what system integration professionals and users require: the answer is the new H... Read more

When Audio-Video system integration goes through delivering premium sound quality throughout the entire audio spectrum and high sound pressure, it can only look at speakers with plywood housing, low-impedance systems, and selected transducers and crossovers. HELVIA knows very well what system integration professionals and users require: the answer is the new HYLE series, with passive 2-way vented speakers and power ratings from 360W to 1200W.

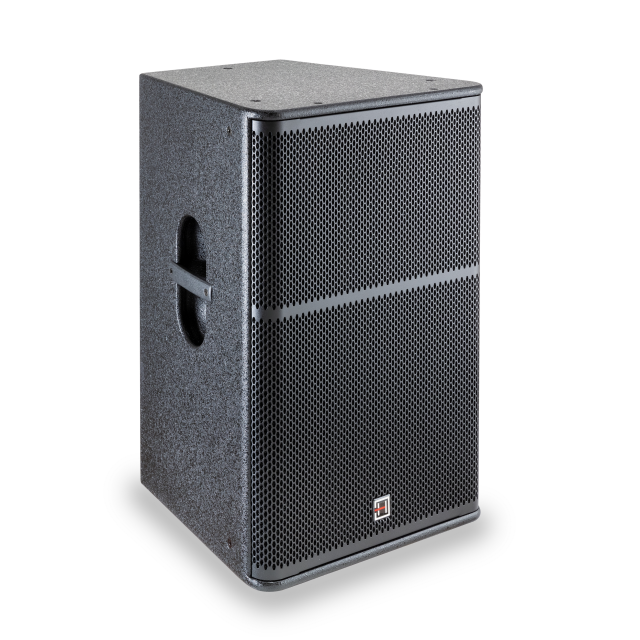

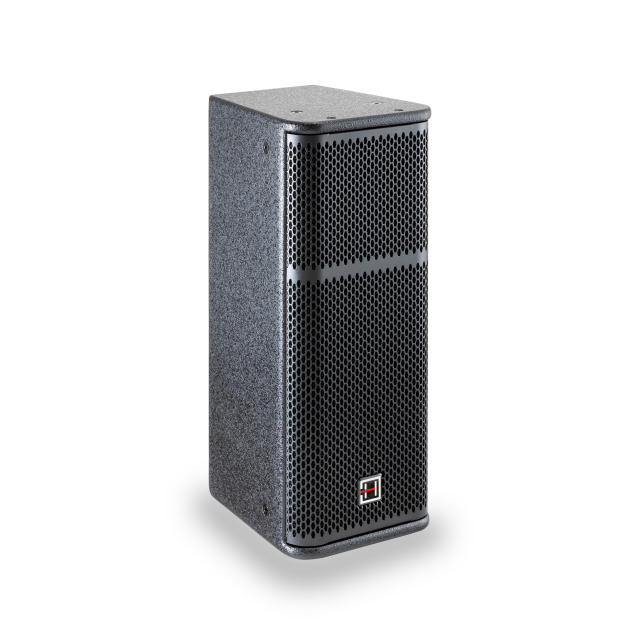

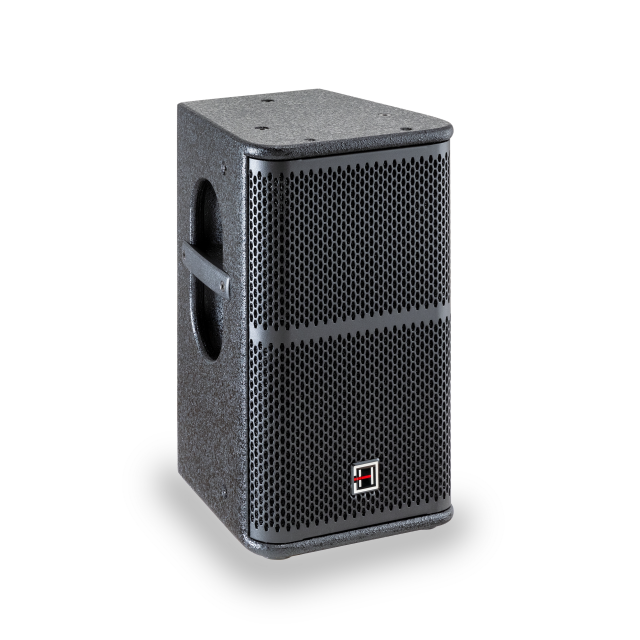

It features five models with woofers from 2x6.5" to 15". Compression drivers have voice coils from 1.35" to 1.75" and are mounted on symmetrical horns with constant directivity H90° x V60°. All models are made of eucalyptus plywood, a strong, durable and sustainable material. All are equipped with pole or tripod stand adapters with single 0° or double 0°-7° angle and have different handle arrangements as well as M6 or M8 mounting points, depending on size and weight.

We are essentially talking about speakers with established and functional architecture and technology, where only attention to details, reliability and durability can make a difference.

Collapse text

Product downloads

2-Way Speaker
Crossover
Low Impedance

Product details

Key features

  • 2-Way speaker, vented
  • 860W Rated Power
  • 8 ohm Impedance
  • 123 dB Maximum Sound Pressure
  • Frequency Response 48 Hz-20 kHz
  • 12” – 3.0” v.c. Woofer
  • 1.35” v.c. Compression Driver
  • Crossover Frequency 2.5 kHz
  • H90° x V60° Symmetric Waveguide (rotatable)
  • Eucalyptus Plywood Housing

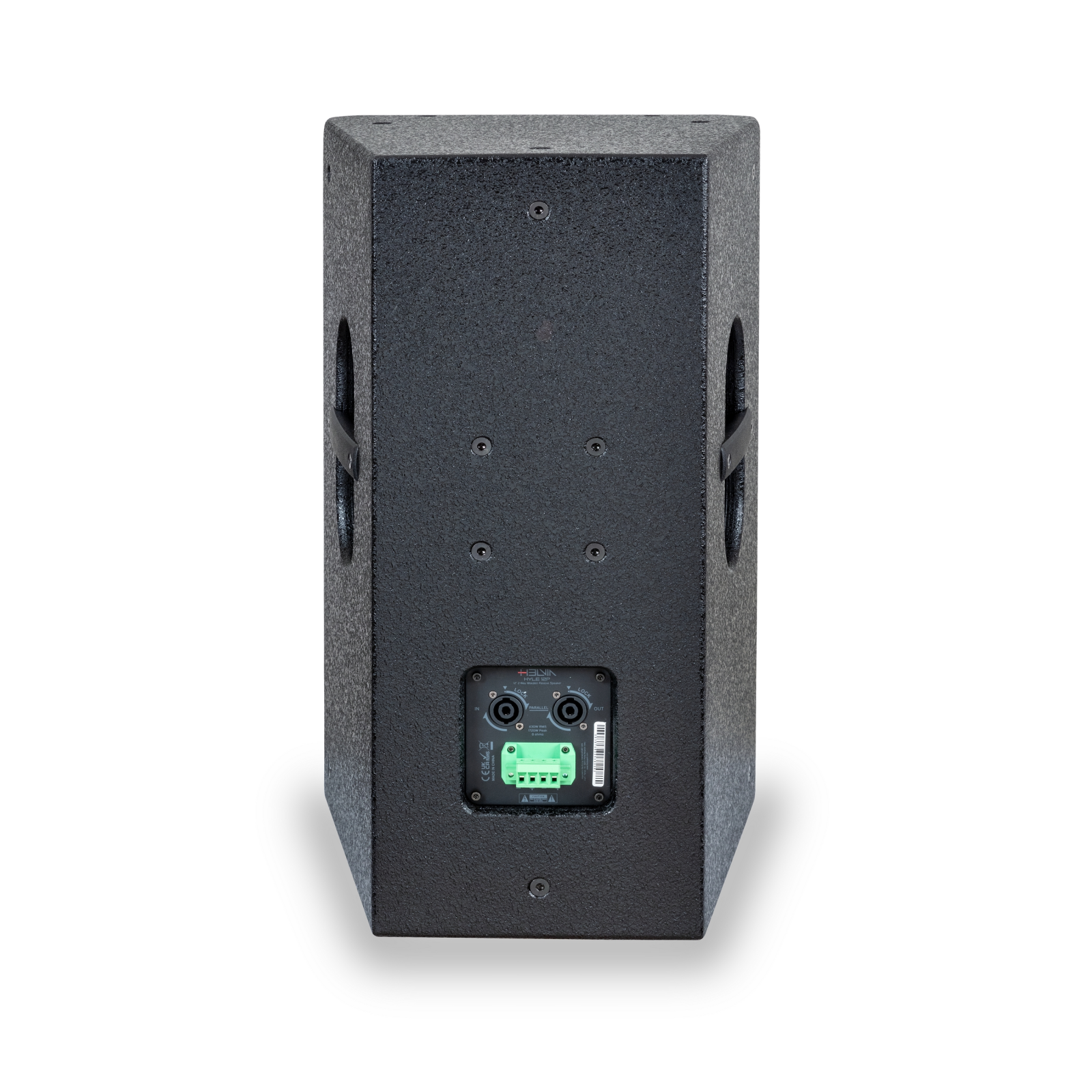

  • Speakon & Euroblock In/Link Out Connectors
  • 12x M8 Fly points
  • 36mm 0° -7° Pole Mount Adapter
  • 2 handles (one on each side)
  • More Less

Specifications

  • Speaker Type
    2-Way Passive Speaker
  • Frequency Response [- 10dB]
    48 Hz-20 kHz
  • Sensitivity (1W @ 1m)
    97 dB
  • Max SPL (PEAK)
    123 dB
  • RMS Power
    430 W
  • Program Power
    860 W
  • Peak Power
    1720 W
  • Impedance
    8 ohms
  • HF Type
    Compression Driver
  • HF voice coil
    1"Exit - 1.35" Compression Driver
  • HF RMS Power
    30W
  • AES / Program Power (see note)
    60 W
  • Impedance
    8 ohms
  • Crossover Frequency
    2.5 kHz

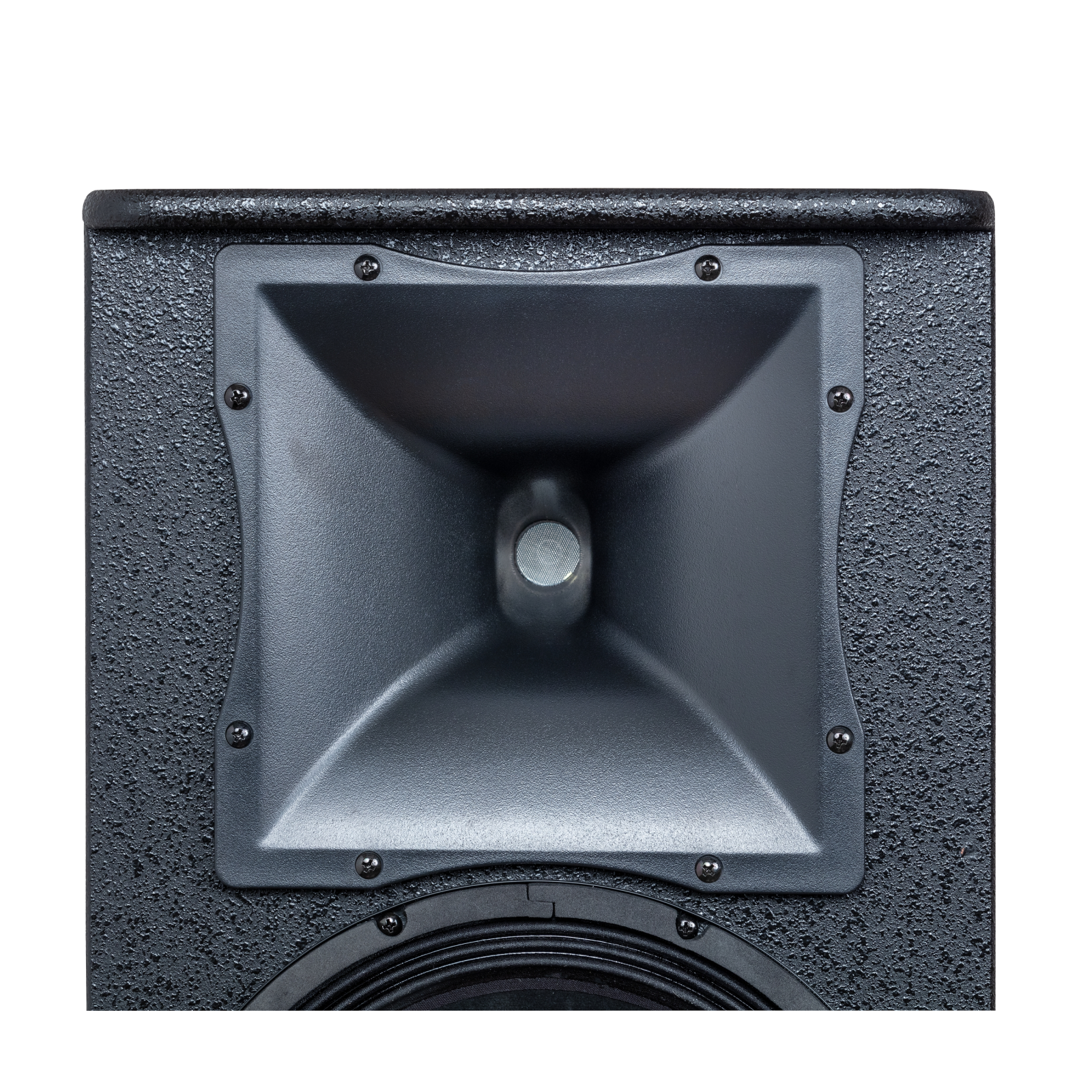

  • Horn Type
    Symmetric
  • Directivity (HxV)
    H90°x V60°constant directivity horn
  • LF Type
    Steel Frame / Ferrite Magnet Woofer
  • LF Diameter
    12"
  • LF voice coil
    3.0" Voice coil
  • LF AES / Program Power
    800 W
  • Impedance
    8 ohms

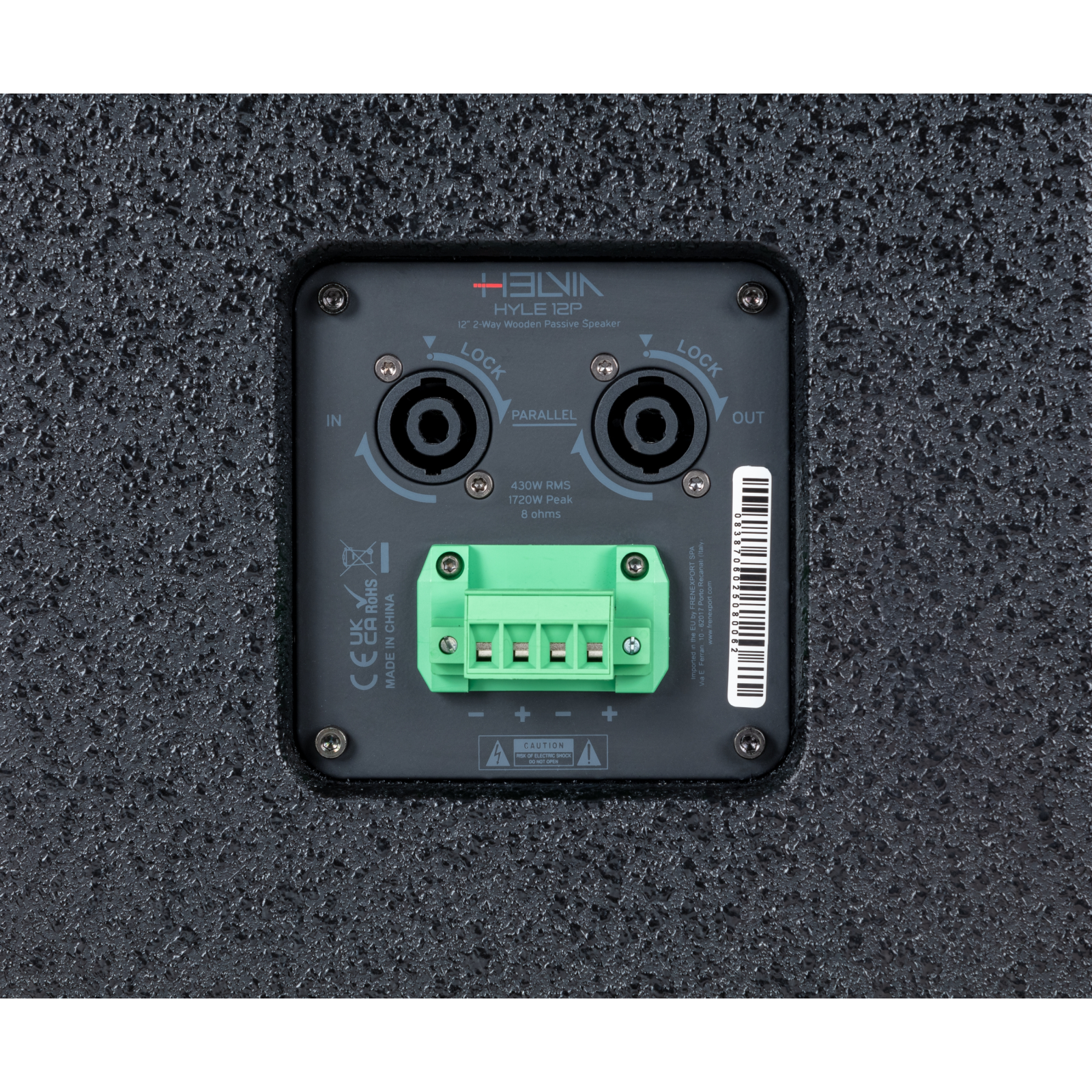

  • Input Connector
    1 x 2-Poles Speakon connector
  • Output Connector
    1 x 2-Poles Speakon connector
  • Input/Output Connector
    1 x 4-Poles Phoenix connector
  • Housing material and thickness
    15 mm Plywood
  • Painting
    Anti-scratch painting, black
  • Grille material and thickness
    steel/1.2 mm
  • Flyable
    M6:4pcs M8: 12pcs
  • Handles
    two (one on each side)
  • Pole Mount
    36mm 0° - 7° pole mount adapter
  • Speaker Size (WxDxH)
    350 x 330 x 607 mm (13.78 x 12.99 x 23.90 in)
  • Packing Size (WxDxH)
    420 x 400 x 665 mm (16.53 x 15.75 x 26.18 in)
  • Speaker Weight
    16.0 kg (35.27 lbs.)
  • Packing Weight
    17.5 kg (38.58 lbs.)
