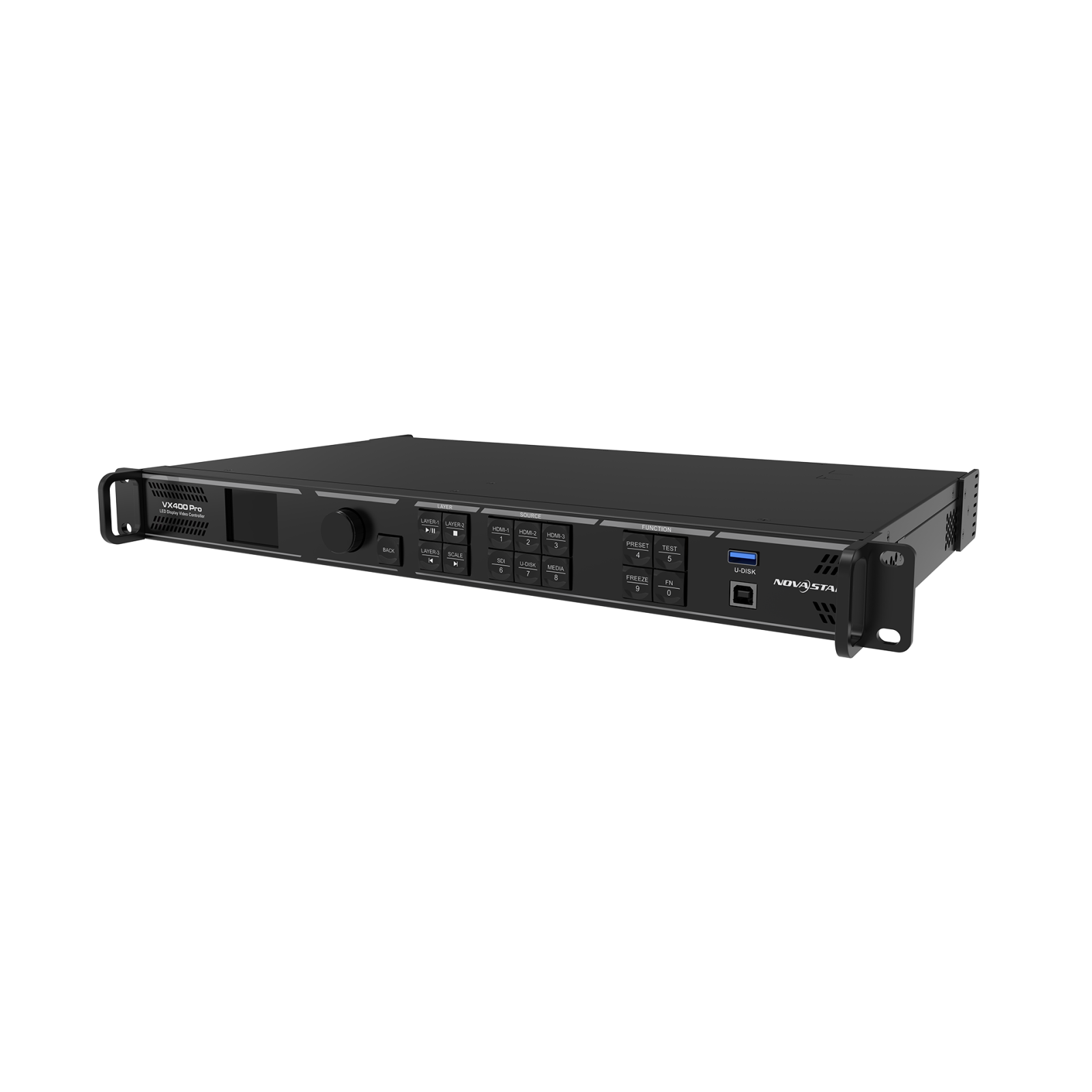

VX400PRO All-In-One Video Controller and Processor
Download product sheetThe VX400 Pro is an all-in-one controller combining video processing and video control functionalities into a single device. Equipped with 4 Ethernet ports, it supports three working modes: video controller, fiber converter, and ByPass. Capable of managing up to 2.6 million pixels, the VX400 Pro can output at a maximum width of 10,240 pixels and a height of 8,... Read more
The VX400 Pro is an all-in-one controller combining video processing and video control functionalities into a single device. Equipped with 4 Ethernet ports, it supports three working modes: video controller, fiber converter, and ByPass. Capable of managing up to 2.6 million pixels, the VX400 Pro can output at a maximum width of 10,240 pixels and a height of 8,192 pixels, making it perfectly suited for controlling ultra-wide and ultra-high LED screens on-site. The VX400 Pro boasts powerful video signal reception and processing capabilities, supporting a maximum resolution of 4K×2K@60Hz for video input. It can handle multiple video signal inputs and includes features like 6 layers, output scaling, low latency and pixel-level brightness and chroma calibration. These functions combine to deliver outstanding image display quality. With various control options available, the VX400 Pro can be operated via the front panel knob, NovaLCT, Unico and VICP app, providing you with a convenient and effortless control experience. The VX400 Pro is housed in an industrial-grade casing, which, combined with its powerful video processing and transmission capabilities, makes it robust and well-suited for complex operational environments. The VX400 Pro is a perfect fit for medium and high-end rental, stage control systems and fine-pitch LED screens.
Collapse textProduct downloads
Product details
Key features
- A comprehensive range of input and output connectors
- Self-adaptive OPT 1 for either video input or sending card output
- Audio input and output with adjustable volume
- Flexible screen configuration without rectangle restriction on a single Ethernet port
- Low latency and ByPass modes to eliminate latency
- Output synchronization
- Import and export EDID files
- Easy preset saving and loading
- Multiple layer display with adjustable size, position, priority and aspect ratio
- OSD function
- 3D function
- Supports three kinds of image scaling modes, including full screen, pixel to pixel and custom
- Powerful video processing based on SuperView III image quality processing technologies
- Supports USB playback for instant plug-and-play convenience
- Various working modes: Video controller, Fiber converter and ByPass
- Multiple Control Option (from front panel knob to web and App control)
- End-to-end backup
- Ethernet ports backup
- Data saving after power failure and backup design, stable and reliable
- 24/7 rigorous stability under extreme high and low temperatures
- More Less
Specifications
-
Maximum Loading Capacity2.6 million pixels
-
Max Width10,240 pixels
-
Max Height8,192 pixels
-
Maximum input resolution4K×2K@60Hz
-
1x HDMI 2.0: Resolution up to 4096×2160@60Hz; 8/10/12-bit signals; refresh rates up to 240 Hz
-
2x HDMI 1.3: Resolution up to 1920×1080@60Hz
-
1x 3G-SDISupports up to 1920×1080@60Hz with loop-through output and deinterlacing
-
2x 10G optical fibre (OPT 1, OPT 2)Self-adaptive port that can be used as either a video input or an output (OPT 1); port serving as a copy/backup (OPT 2)
-
4x Gigabit Ethernet portsFor direct control of the LED screen
-
Supported Layersup to 6 layers
-
Scaling modesfull screen / pixel-to-pixel / custom
-
Latency0 frames when ByPass mode and the Low Latency function are enabled
-
Calibrationbrightness and colour at the pixel level
-
1x 3D connectorfor third-party 3D emitters or a traditional solution via the Ethernet port with the EMT200 Pro
-
Control optionsfront-panel knob, NovaLCT software, Unico software/web interface, VICP app and remote control (optional)
-
1x Light Sensor Portfor automatic adjustment of ambient brightness
-
Audio1x audio input and 1x audio output with 3.5 mm jacks
-
1x RS232 portfor remote control via centralised systems
-
1x USB (Type B)for connection to the control PC
-
Power supply100–240 V AC, 50/60 Hz
-
Rated Power Consumption42 W
-
Noise Level45 dB (A)
-
Dimensions482.6 mm × 302.2 mm × 50.1 mm
-
Net Weight3.8 kg
-
Operating Environment Temperature0°C to 50°C
-
Operating Environment Humidity5% to 85% RH, non-condensing
-
Storage Environment Temperature-10°C to 60°C
-
Storage Environment Humidity5% to 95% RH, non-condensing
- More Less
