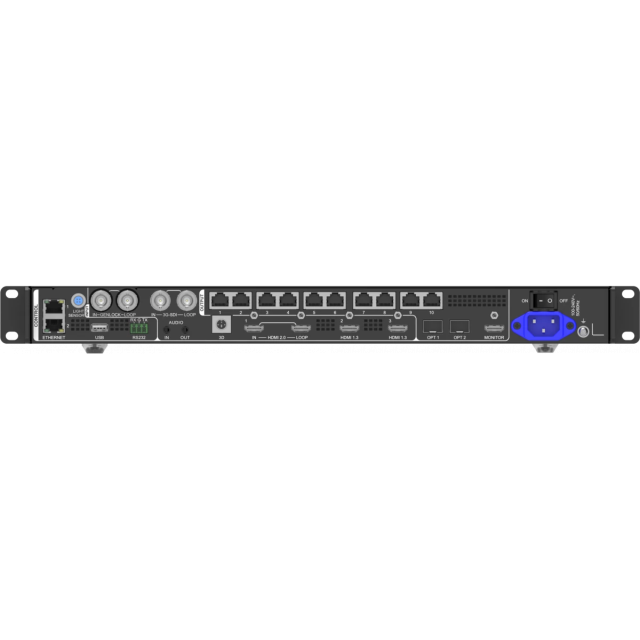

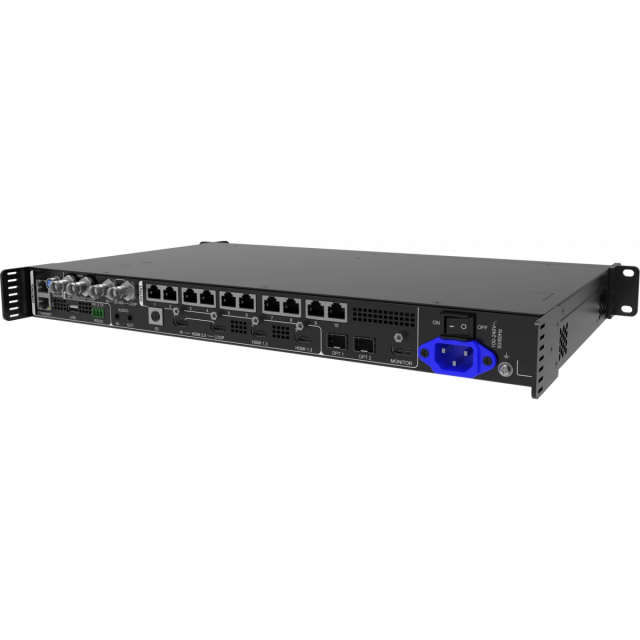

VX1000PRO All-In-One Video Controller and Processor
Download product sheetThe VX1000 Pro is an all-in-one controller combining video processing and video control functionalities into a single device. Equipped with 10 Ethernet ports, it supports three working modes: video controller, fiber converter, and ByPass. Capable of managing up to 6.5 million pixels, the VX1000 Pro can output at a maximum width of 10,240 pixels and a height of... Read more
The VX1000 Pro is an all-in-one controller combining video processing and video control functionalities into a single device. Equipped with 10 Ethernet ports, it supports three working modes: video controller, fiber converter, and ByPass. Capable of managing up to 6.5 million pixels, the VX1000 Pro can output at a maximum width of 10,240 pixels and a height of 8,192 pixels, making it perfectly suited for controlling ultra-wide and ultra-high LED screens on-site.
The VX1000 Pro boasts powerful video signal reception and processing capabilities, supporting a maximum resolution of 4K×2K@60Hz for video input. It can handle multiple video signal inputs and includes features like 6 layers, output scaling, low latency and pixel-level brightness and chroma calibration. These functions combine to deliver outstanding image display quality.
With various control options available, the VX1000 Pro can be operated via the front panel knob, NovaLCT, Unico and VICP app, providing you with a convenient and effortless control experience.
The VX1000 Pro is housed in an industrial-grade casing, which, combined with its powerful video processing and transmission capabilities, makes it robust and well-suited for complex operational environments. The VX1000 Pro is a perfect fit for medium and high-end rental, stage control systems and fine-pitch LED screens.
Collapse textProduct downloads
Product details
Key features
- A comprehensive range of input and output connectors
- Self-adaptive OPT 1 for either video input or sending card output
- Audio input and output with adjustable volume
- Flexible screen configuration without rectangle restriction on a single Ethernet port
- Low latency and ByPass modes to eliminate latency
- Output synchronization
- Import and export EDID files
- Easy preset saving and loading
- Multiple layer display with adjustable size, position, priority and aspect ratio
- OSD function
- 3D function
- Supports three kinds of image scaling modes, including full screen, pixel to pixel and custom
- Powerful video processing based on SuperView III image quality processing technologies
- Supports USB playback for instant plug-and-play convenience
- Various working modes: Video controller, Fiber converter and ByPass
- Multiple Control Option (from front panel knob to web and App control)
- End-to-end backup
- Ethernet port backup test
- Data saving after power failure
- 24/7 rigorous stability under extreme high and low temperatures
- More Less
Specifications
-
Max Loading Capacity6.5 million pixels
-
Max Width10,240 pixels
-
Max Height8,192 pixels
-
Capacity per Ethernet Port650,000 pixels (at 8-bit)
-
1x HDMI 2.0: Resolution up to 4096×2160@60Hz; loop-through supported
-
2x HDMI 1.3: Resolution up to 1920×1080@60Hz
-
1x 3G-SDIST-424, ST-292, and ST-259 standards; loop-through supported
-
1x OPT 1: 10G self-adaptive fiber port (Input or Output)
-
1x USB 3.0: Integrated media player for files up to 3840×2160
-
10x Gigabit Ethernet PortsMain outputs to the LED screen
-
2x 10G Fiber PortsOPT 1 (Main), OPT 2 (Copy or Backup)
-
1x HDMI 1.3 MonitoringFixed output at 1920×1080@60Hz
-
1x 3D ConnectorFor direct connection to 3D emitters
-
Layer ManagementUp to 6x 2K×1K layers; supports 4K×2K and 4K×1K layers
-
Latency0 frames in Bypass or Fiber Converter mode; 1-2 frames in Video Controller mode (with Low Latency enabled)
-
ScalingSuperView III technology for seamless scaling
-
CalibrationPixel-level brightness and chroma calibration
-
Control Interfaces2x Ethernet, 1x USB Type-B (for PC and cascading up to 5 units), Genlock IN/LOOP, RS232
-
Light Sensor PortFor automatic ambient brightness adjustment
-
AudioIndependent 3.5 mm Input/Output; sampling rate up to 48 kHz
-
Power Supply100-240V~, 50/60Hz, 2A-0.8A
-
Rated Power Consumption44 W
-
Noise Level45 dB (A) at 25°C
-
Dimensions482.6 mm × 302.2 mm × 50.1 mm
-
Net Weight3.9 kg
-
Operating Environment Temperature0°C to 50°C
-
Operating Environment Humidity5% to 85% RH, non-condensing
-
Storage Environment Temperature-10°C to 60°C
-
Storage Environment Humidity5% to 95% RH, non-condensing
- More Less
