42344 2 Port DisplayPort 1.2, USB 2.0 & Audio Cable KVM Switch

Download product sheet

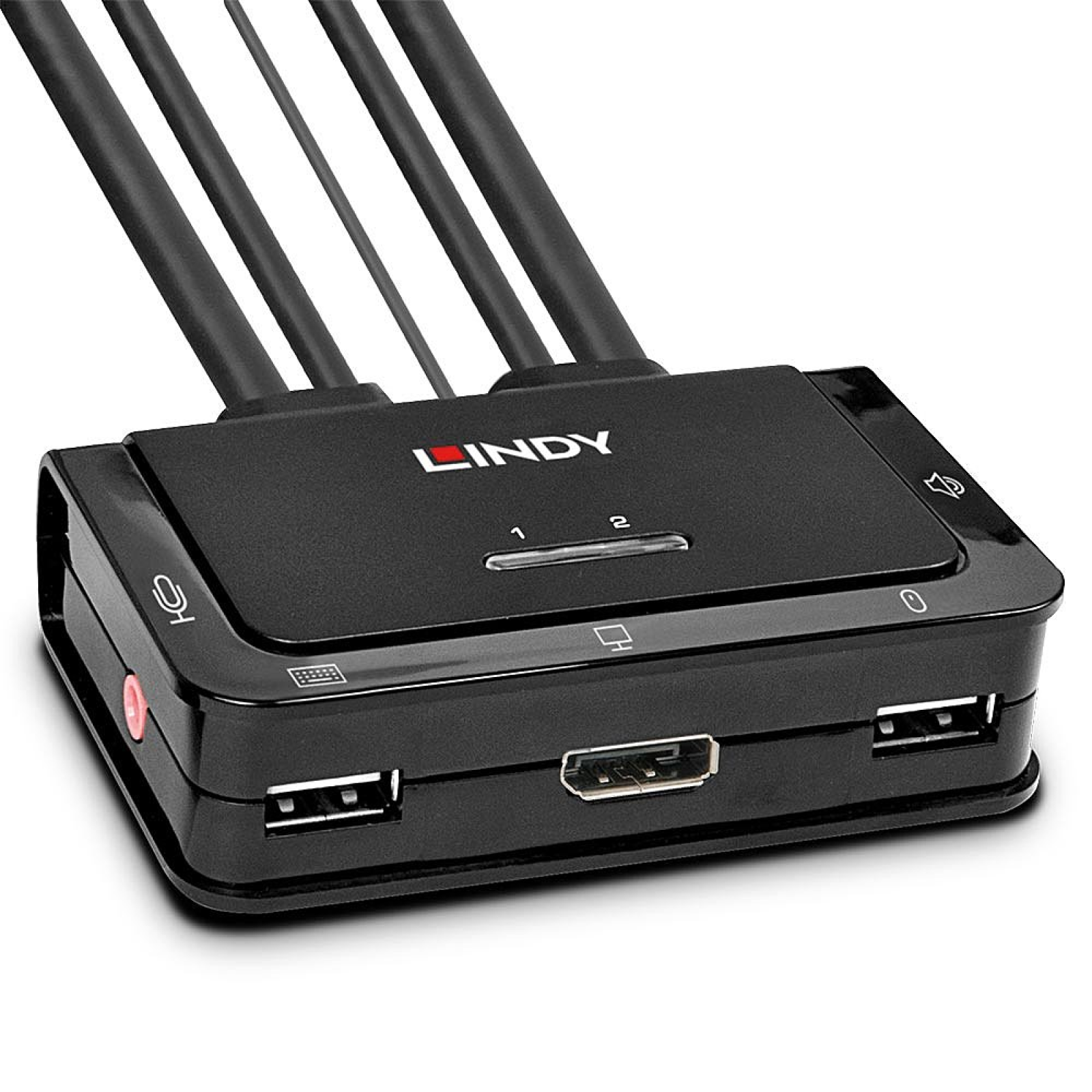

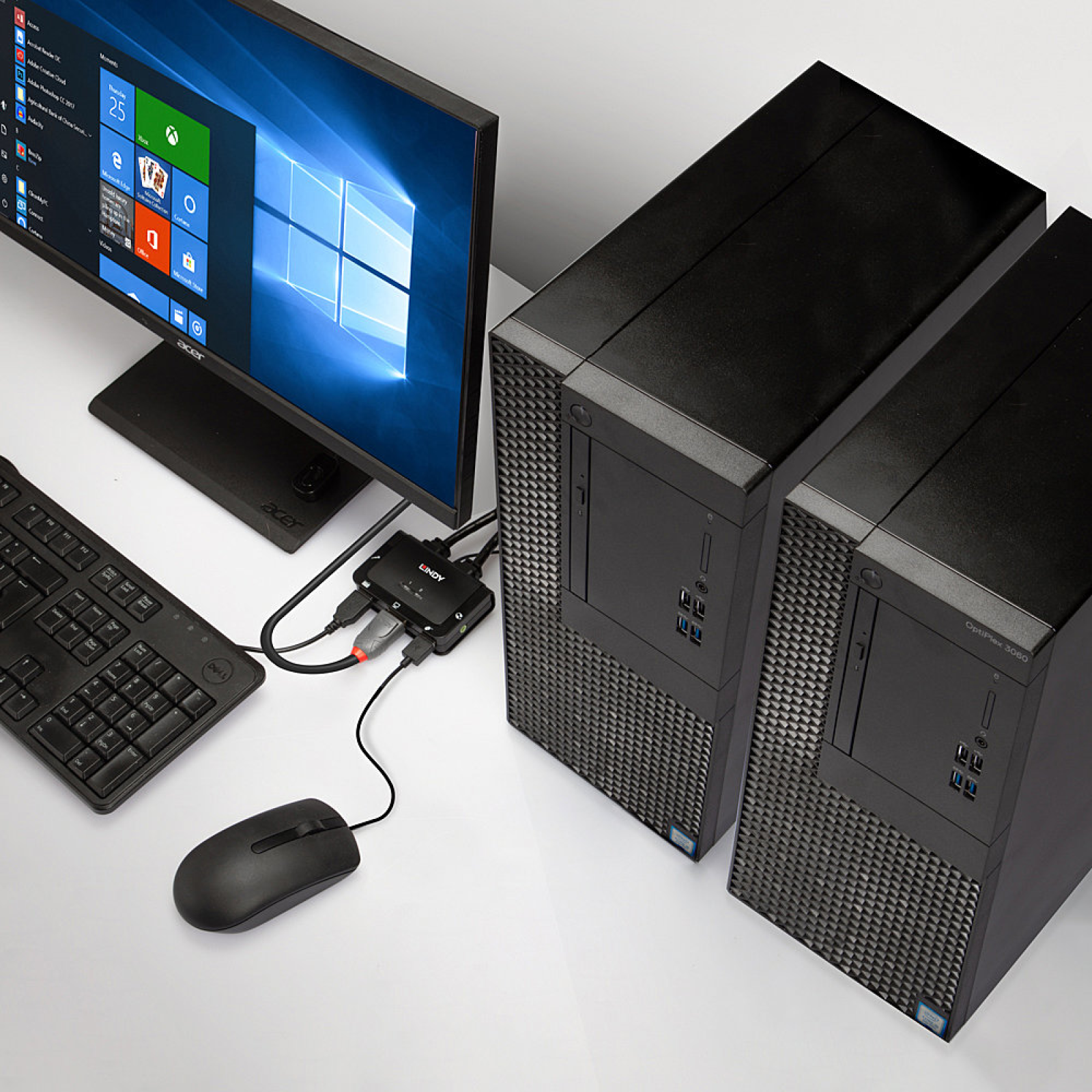

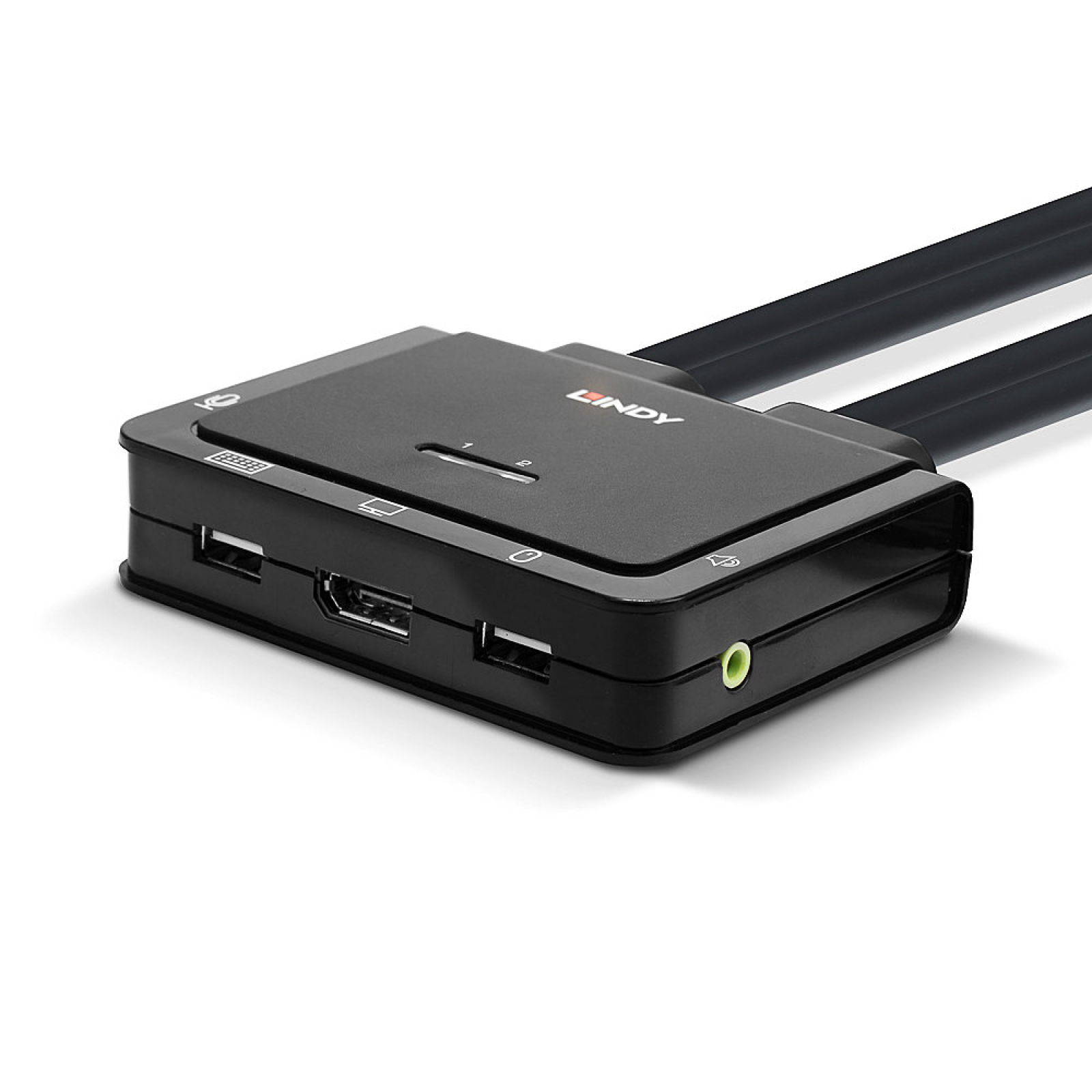

The Lindy 2 Port DisplayPort 1.2, USB 2.0 & Audio KVM Switch is a compact solution for providing access and control over two DP equipped PCs from a single keyboard, mouse and monitor. With integrated cables, this switch can be easily connected directly to the system, with no need for purchasing additional cables and saving time on the installation.

Support fo... Read more

The Lindy 2 Port DisplayPort 1.2, USB 2.0 & Audio KVM Switch is a compact solution for providing access and control over two DP equipped PCs from a single keyboard, mouse and monitor. With integrated cables, this switch can be easily connected directly to the system, with no need for purchasing additional cables and saving time on the installation.

Support for resolutions up to 4K Ultra HD 60Hz ensures the optimum image quality, perfect for high graphical content in gaming setups, video editing or dual system control workstations. The audio output port on the main unit also allow users to connect headphones or speaker to add immersive 2CH audio and a microphone, while additional USB peripherals can be integrated with a USB hub.

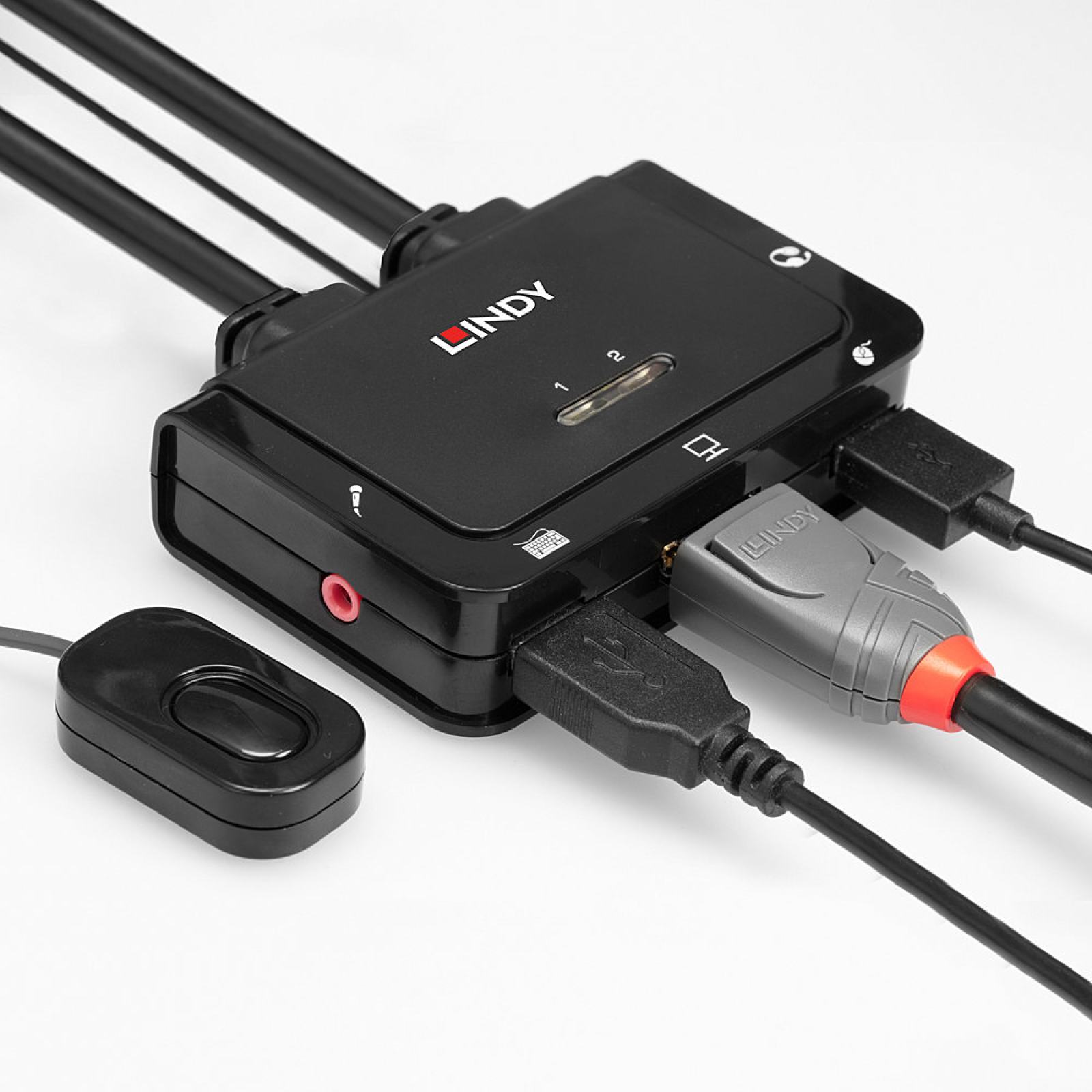

The KVM switch features multiple switching options including a push button control (with 1.5m cable), hotkey and software switching to provide simple, reliable control for the user, great for both professional and first time users.

Collapse text

Product downloads

Product details

Key features

  • Control two DisplayPort equipped PCs from a single keyboard, mouse and monitor
  • Switch via the unit's push button control, software or keyboard hot keys
  • Supports DisplayPort 1.2 signals, up to 4K 60Hz

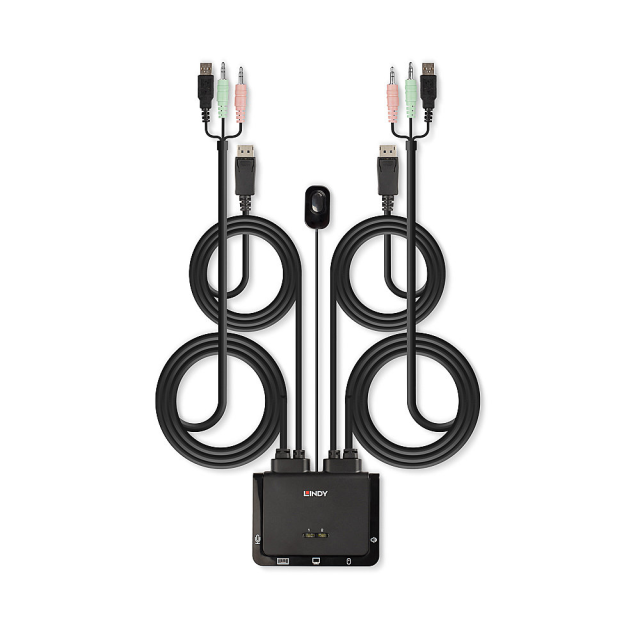

  • Integrated cables for quick, hassle-free installation
  • 2 Year Warranty

Specifications

  • AV Interface
    DisplayPort
  • Console Interfaces
    USB
  • Interface Standard
    DisplayPort 1.2, USB 2.0
  • Maximum Resolution
    4096x2160@60Hz 4:4:4 8bit
  • HDCP Support
    HDCP 1.4
  • Supported Audio
    Analogue Stereo
  • Separate Audio Ports
    2 x 3.5mm (Female)
  • Console Number
    1
  • Max Number PC/Server
    2
  • Switching Method
    Push Button, Hotkey Switching & Software
  • Special Features
    Supports USB 2.0 Hubs And Device Sharing, Active LED Indicators
  • Console Interfaces
    DisplayPort (Female), USB 2.0 Type A (Female), 2 x 3.5mm (Female)
  • PC/Server Interfaces
    2 x DisplayPort (Male), USB 2.0 Type A (Male), 2 x 3.5mm (Male) 1.2m Integrated Cables
  • Dimensions (approx.) WxDxH
    97x25x82.18mm (3.82x0.98x3.24in)
  • Housing Material
    Plastic
  • Net Weight
    0.433kg (0.95lb)
  • Operating Temperature
    0°C - 40°C (32°F - 104°F)
  • Storage Temperature
    -20°C - 60°C (-4°F - 140°F)
  • Humidity
    0 - 90% RH (non-condensing)
  • Power Requirements
    5V
  • Colour
    Black
