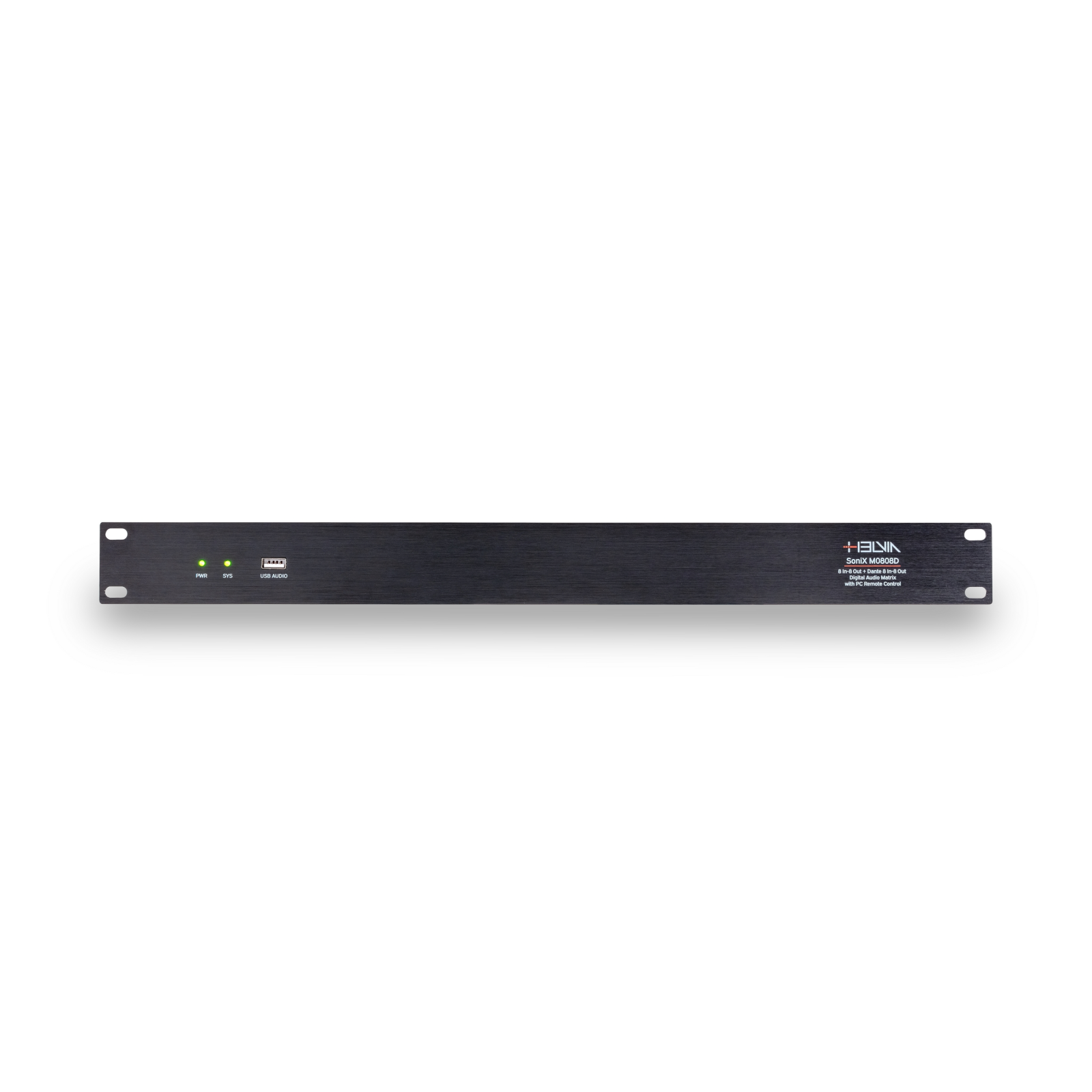

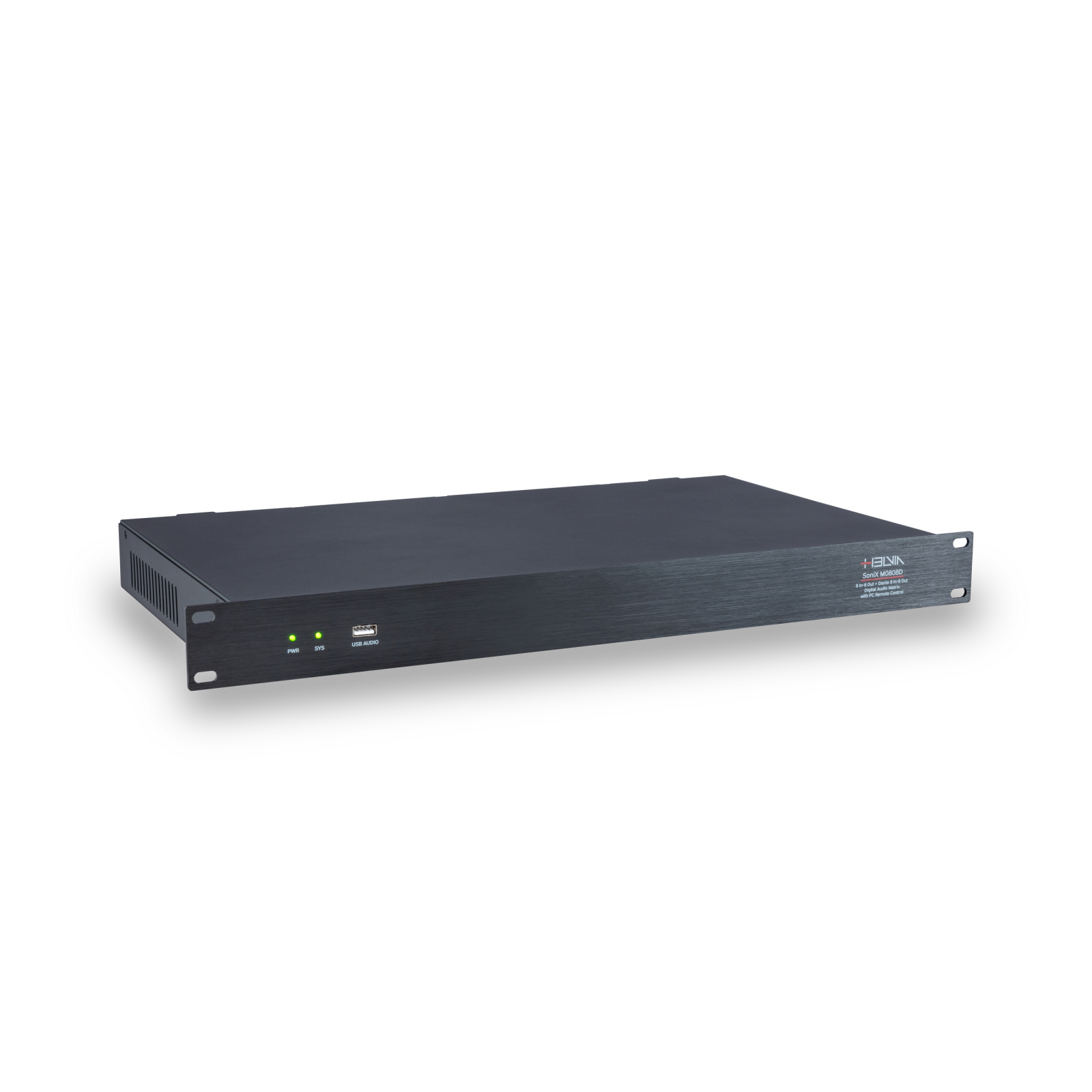

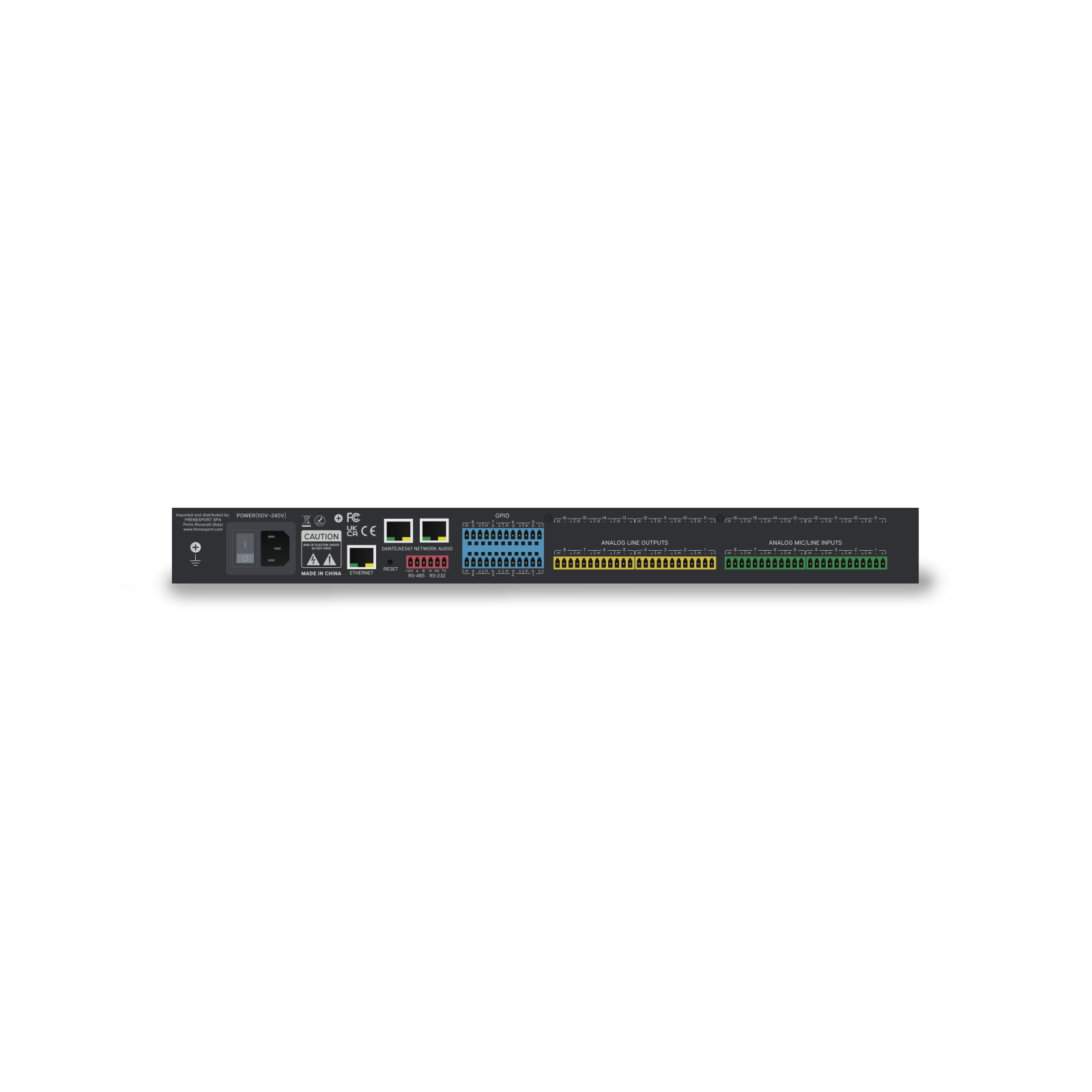

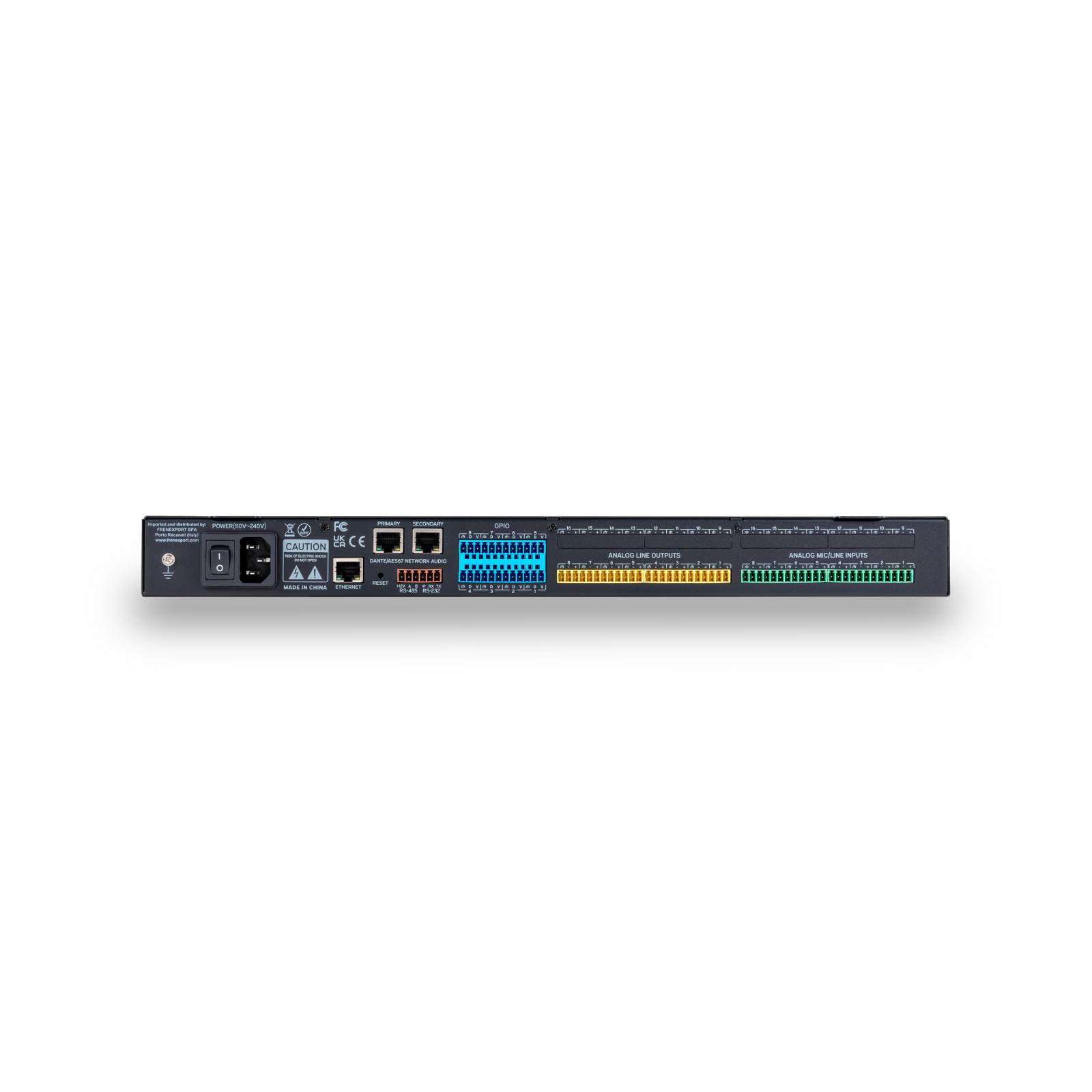

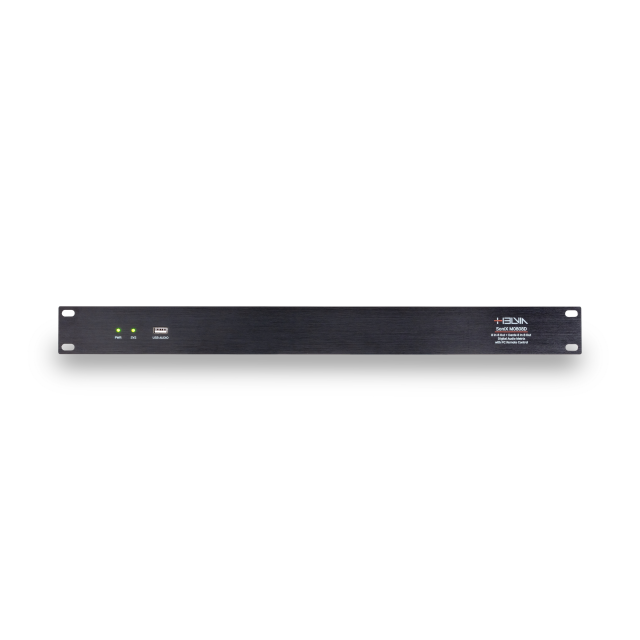

SONIX M0808D 8In-8Out DSP Audio Matrix with built-in 8x8 Dante™ Channels
Download product sheetThe SoniX M0808D digital matrix, thanks to its powerful and flexible hardware and software architecture, is designed to be the heart of multi-zone audio systems for various types of installations. Its sophisticated processing, the quality of the AD and DA converters, the presence of a built-in card with 8 additional DANTE™ digital inputs and outputs, the advan... Read more
The SoniX M0808D digital matrix, thanks to its powerful and flexible hardware and software architecture, is designed to be the heart of multi-zone audio systems for various types of installations. Its sophisticated processing, the quality of the AD and DA converters, the presence of a built-in card with 8 additional DANTE™ digital inputs and outputs, the advanced audio processing features with patented algorithms including Echo Cancellation, Feedback Suppression, Noise Suppression, and Automatic Gain, the 8 GPIO ports for integration with other equipment, and the powerful PC control software make it suitable for both conference solutions and multi-zone systems with up to 16 sources and 16 outputs.
Collapse textProduct downloads
Highlights
Total Control, Maximum Flexibility

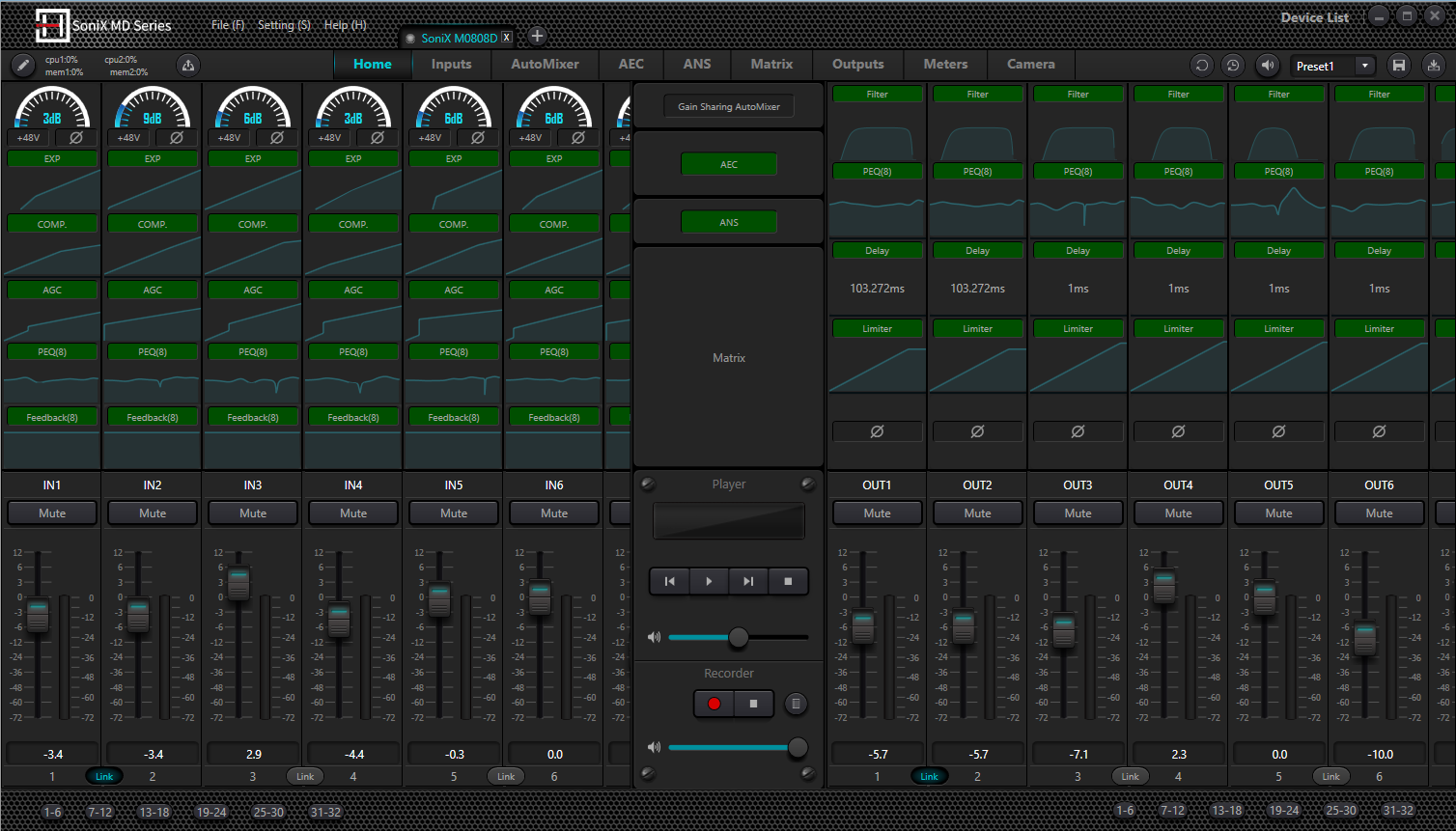

Versatility is at the heart of the control experience. All functions can be managed through dedicated Windows® software featuring a clean, intuitive interface that makes programming every processing parameter fast and straightforward. The design is professional and highly functional: anyone familiar with audio processors and digital control systems can create and customize presets in just minutes, seamlessly integrating analog inputs/outputs, Dante networking, and a full suite of advanced processing tools.
Product details
Key features
- Analog Device SHARC® chipset
- Capacity up to 400MIPS, 1600MFLOPS
- 32-bit and 40-bit Floting-Point Processing
- Full Channel Audio Signal Matrix
- 8 Line/Mic Inputs x 8 Analog Outputs
- Built-in Dante™ 8x8 Channels
- AEC (Echo Cancellation), AFS (Feedback Suppression)
- ANS (Noise Suppression), AGC (Automatic Gain),
- Auto Mixer, Ducker function
- 12 band PEQ, 1200ms Delay & Limiter on Outputs
- 8x GPIO ports
- 16 Presets for recall
- USB Audio Player/Recorder
- Support Camera Tracking
- More Less
