SONIX WP-BT2 Bluetooth Audio to Dante® 2x2 Wall Plate with PoE (EU/UK 1-Gang)

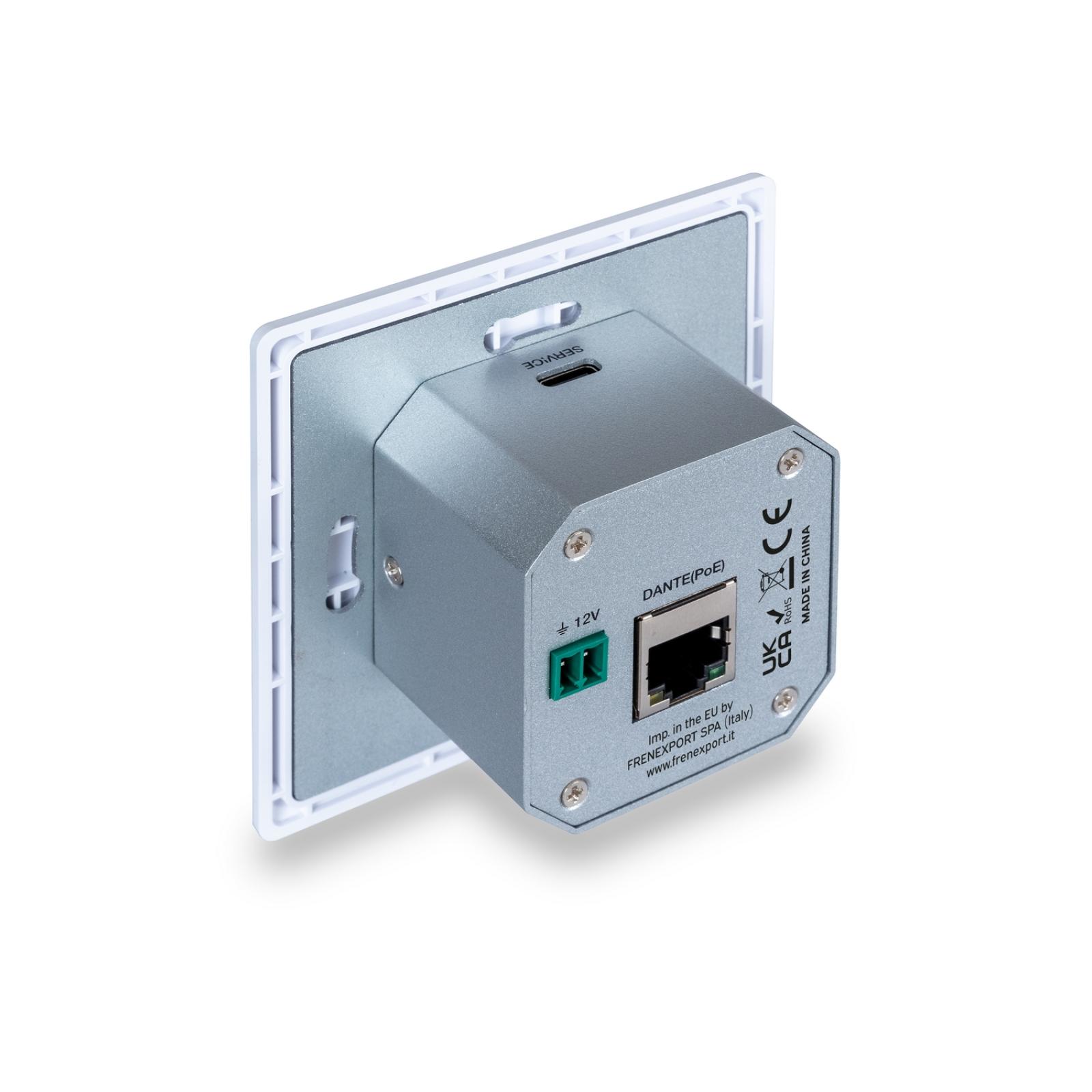

The Bluetooth Audio to Dante® 2x2 Wall Plate is a high-performance, professional-grade interface housed in a compact and robust metallic chassis designed for seamless integration of wireless Bluetooth sources into IP-based Dante® digital audio networks. Built in a standard EU/UK 1-Gang form factor with an elegant aluminum alloy frame and protective iron housin... Read more

Buy this product online

Search Google Shopping

Product downloads

» 01M2G0XCHHSSW1YD54DHAQX2BE.pdf

Highlights

Advanced High-Resolution Bluetooth Audio Converter

Featuring advanced Bluetooth V5.1 supporting high-definition audio codecs (SBC, AAC, aptX, aptX-LL, aptX-HD) at sampling rates up to 192kHz/24-bit, it ensures pristine, ultra-low-latency stereo audio transmission. The unit can be conveniently powered via Class 0 IEEE 802.3af Power over Ethernet (PoE) or an optional local 12V DC terminal.

For complete out-of-the-box installation flexibility, the converter comes complete with a dedicated surface-mount plastic wall box in addition to its standard wall plate mounting hardware. Full control is supported via front-panel hardware pairing buttons, Web GUI, and TCP/IP API commands.

Bluetooth

Dante™ Digital Audio

Product details

Key features

High-Definition Wireless Audio: Features Bluetooth V5.1 with full support for SBC, AAC, aptX, aptX-LL, and aptX-HD codecs up to 192kHz@24-bit for uncompromised sound quality.
Simultaneous Dual-Device Connection: Supports up to 2 active Bluetooth connections with seamless audio switching.
Flexible Power Options: Powered via standard IEEE 802.3af Class 0 PoE or an external local 12V DC power supply.
Rugged & Compact Metallic Build: Engineered with an aluminum alloy frame and iron chassis in a standard EU/UK 1-Gang footprint for heavy-duty live rental and permanent install use.

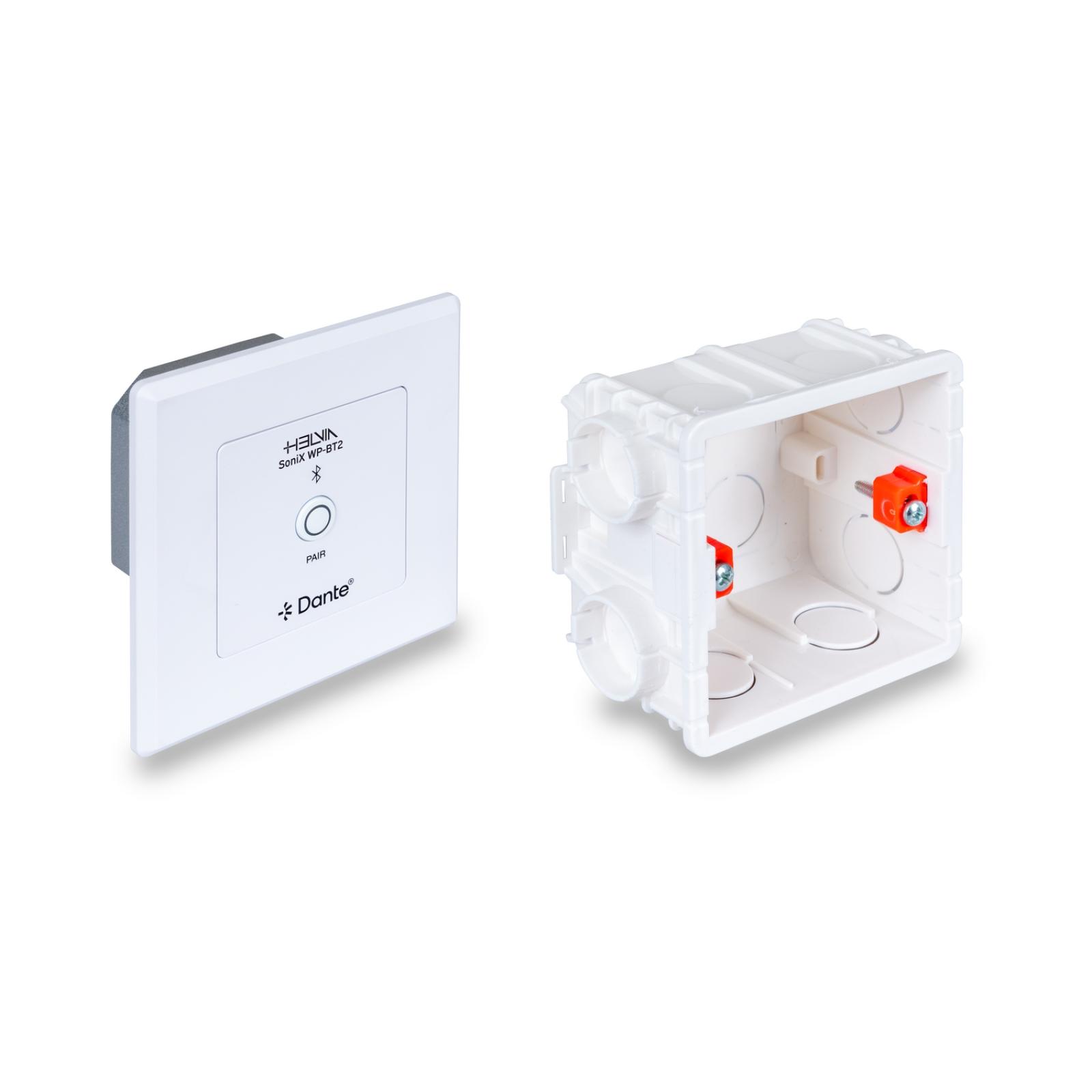

Complete Mounting Solution: Comes complete with an included heavy-duty plastic wall box (83×83×52" mm" ) for easy flush or surface-mount installation.
Advanced DSP & Control: Integrated Web GUI featuring 8-band parametric EQ (PEQ), gain adjustments, customizable Bluetooth naming, and TCP/IP API command control.
Broad Audio Transport Compatibility: Supports Dante® sample rates (44.1/48/88.2/96" kHz" at 16/24/32" Bit" ) and AES67 RTP audio transport protocols.

Specifications

Inputs

1x Bluetooth digital audio input (internal antenna, V5.1, SBC/AAC/aptX/aptX-LL/aptX-HD, 44.1k-48kHz 16/24-Bit)
Outputs

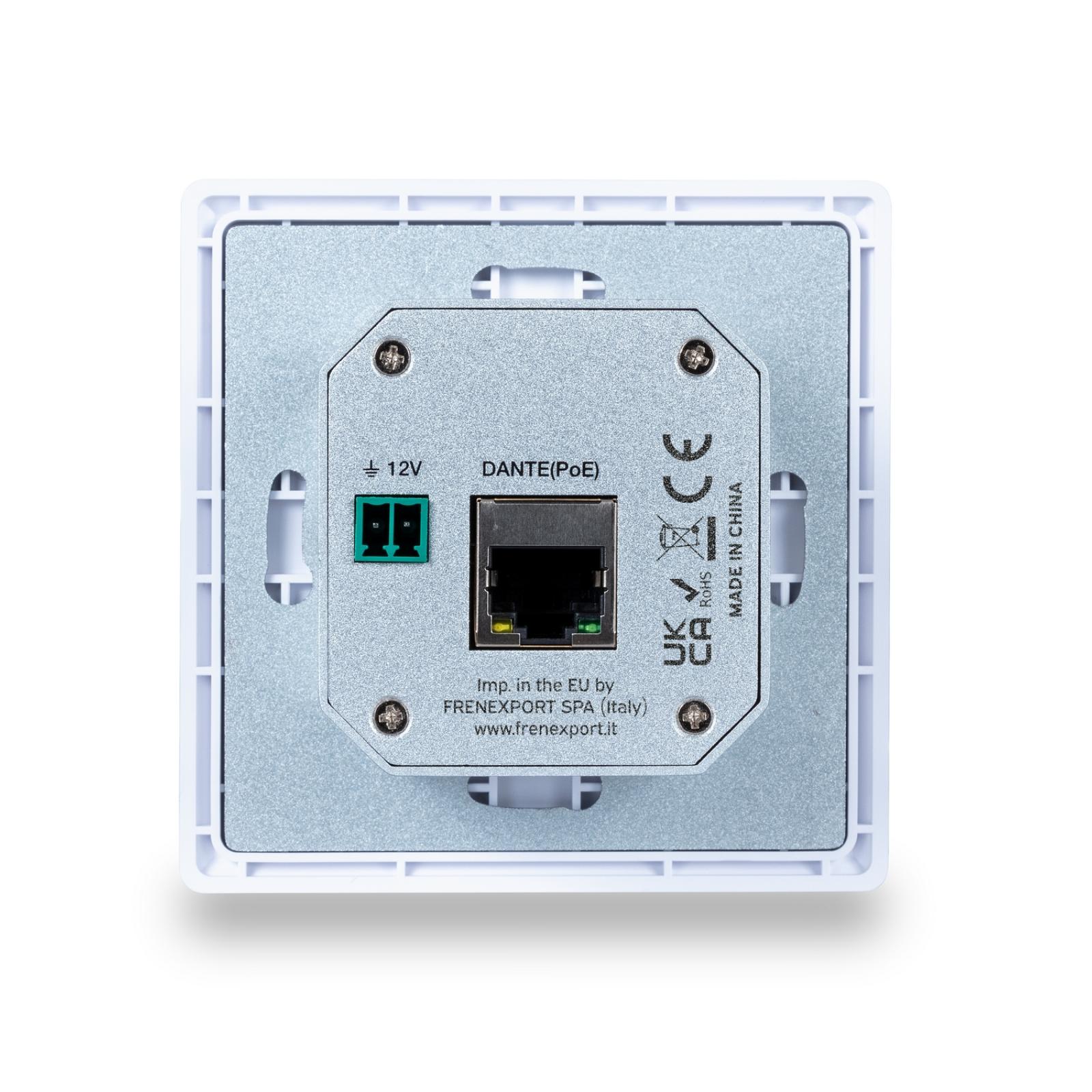

1x DANTE (PoE) RJ45 connector (Digital audio output 44.1k-96kHz 16/24-Bit, supporting PoE)
Control Methods

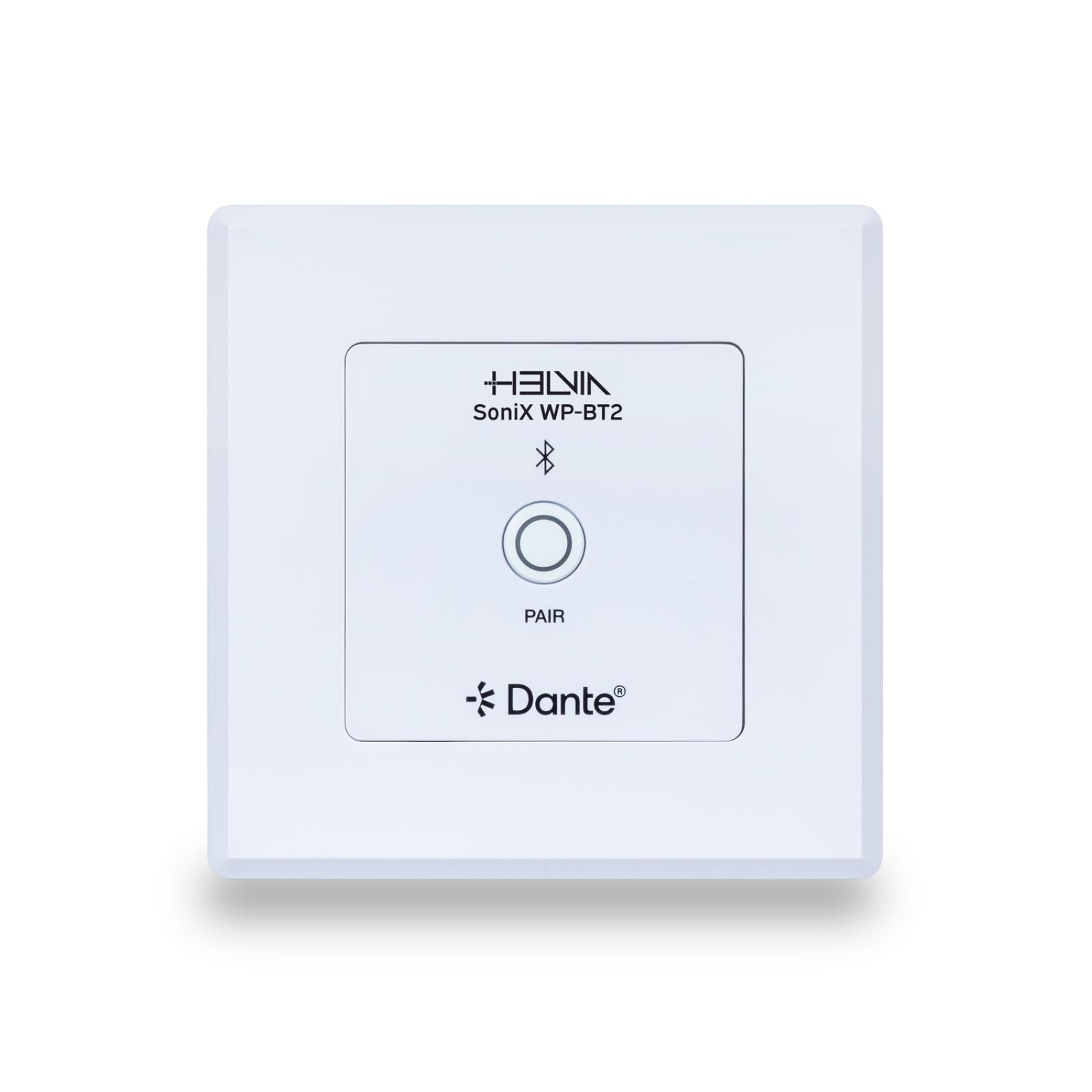

Front panel PAIR button, TCP/IP, Web GUI, Dante® Controller
Network Bandwidth

100 Mbps
Dante Audio Formats

Digital audio 4CH, 44.1k-96kHz 16/24-Bit
Audio Latency

Configurable Dante® device latency (2, 3, 4, 5, or 10 ms via Dante® Controller)
Frequency Response

20 Hz to 20 kHz
Audio Signal-to-Noise Ratio (S/N)

≥100" dB"
Audio THD+N

≤0.1%
Transmission Distance

100 m / 328 ft (CAT6/6A/7)
Auxiliary Connections

1x SERVICE (USB-C port, 12-pin female for firmware update), 1x DC 12V (2-pin 3.5 mm Phoenix connector)
Power Supply

DC 12V/1A or PoE IEEE 802.3af Class 0
Power Consumption

1.8 W Max
Housing Material

Plastic panel + Aluminum alloy frame + Iron chassis
Color

White panel + Silver chassis
Included Accessories

1x Surface-mount plastic wall box, 1x Decorative panel, 1x 2pin-3.5mm Phoenix male connector, 1x user manual
Device Dimensions (W x D x H)

85×40×85" mm" / 3.35×1.57×3.35" in"
Included Plastic Wall Box Dimensions (W x D x H)

83×52×83" mm" / 3.27×2.05×3.27" in"
Weight

0.145kg / 0.32lbs
