GA201 Ultra-compact stereo Class D amplifier, 2x125 W @ 2Ω, linkable, for fixed installations

Download product sheet
The KGEAR GA201 is a compact and powerful Class D stereo amplifier, delivering up to 2x125 W at 2Ω loads in a remarkably small footprint. Designed for space-sensitive installations, the GA201 is perfect for retail, hospitality, and residential environments where performance and discretion are both essential.

Its modular design allows up to 6 units (12 channel... Read more

The KGEAR GA201 is a compact and powerful Class D stereo amplifier, delivering up to 2x125 W at 2Ω loads in a remarkably small footprint. Designed for space-sensitive installations, the GA201 is perfect for retail, hospitality, and residential environments where performance and discretion are both essential.

Its modular design allows up to 6 units (12 channels) to be mounted in just 1RU with the G-RACKMINI accessory, while the 3.5 mm link-through jack makes system expansion seamless.

Ideal for use with GF series loudspeakers and the GS6 subwoofer, the GA201 provides an efficient and flexible distributed audio solution for small-scale applications.

Collapse text

Buy this product online

Search Google Shopping

Product downloads

Highlights

Stereo power of 2x125 W at 2Ω in just 72 mm width

A compact yet high-performance solution, ideal for efficient distributed systems in space-constrained environments.

Modular configuration linkable up to 6 units (12 channels) in 1U

Designed for expandable and space-saving installations, perfect for multi-zone projects and flexible integrations.
Class-D

Product details

Key features

  • Two Channel Amplifier
  • Compact and modular design
  • Fits high-end fixed installations
  • Use G-RACKMINI to fit 6 GA201 in a 1U Rack

Specifications

  • Type
    2-ch Class D power amplifier
  • Output Channels
    2x 125 W @4Ω
  • Minimum Impedance
    4Ω (2Ω for background music use)
  • Operating Voltage
    12-24 VDC 4A
  • Power Supply Operating Voltage
    Dedicated AC/DC | power adapter
  • AC Current
    1A Nominal
  • Dimensions WxHxD
    72mm x 43mm x 134mm
  • Input connectors
    Analog Unbalanced 3.5mm Jack, Stereo
  • Output connectors

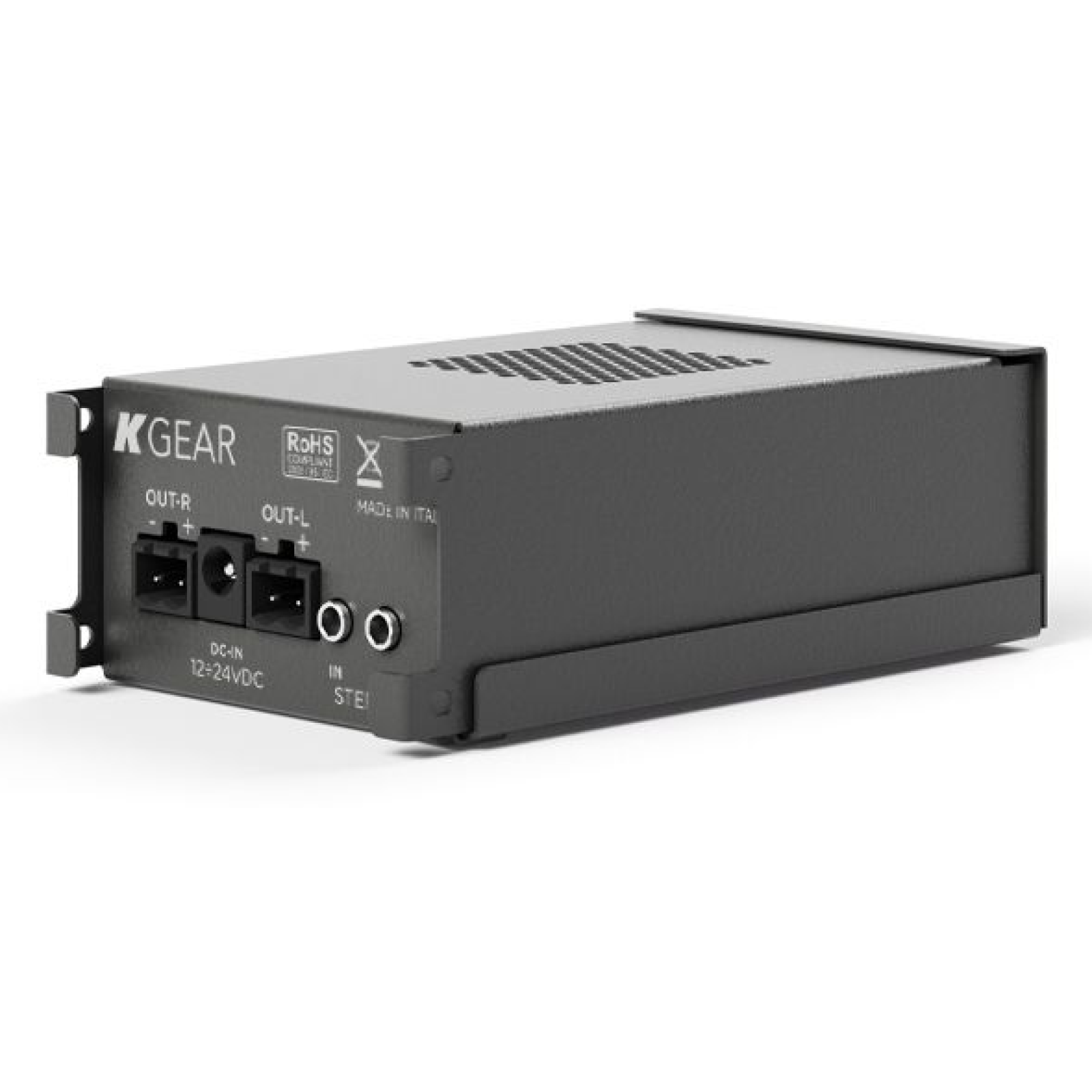

    2x Speaker Output Euroblock (Phoenix MSTB 2,5/ 2-ST-5,08 plug) 1x Line Link Output 3,5mm Mini Jack stereo
  • Protections
    Thermal Protections (Power limiting - Thermal Shutdown), Shortcircuit/overload output protections, stationary high frequency protection, peak limiter, RMS limiter, frequency dependent RMS limiter, Clip limiter
  • Weight
    1 kg (2.2 lbs)
  • Material
    Stainless steel
  • Colors
    Black
  • More Less
