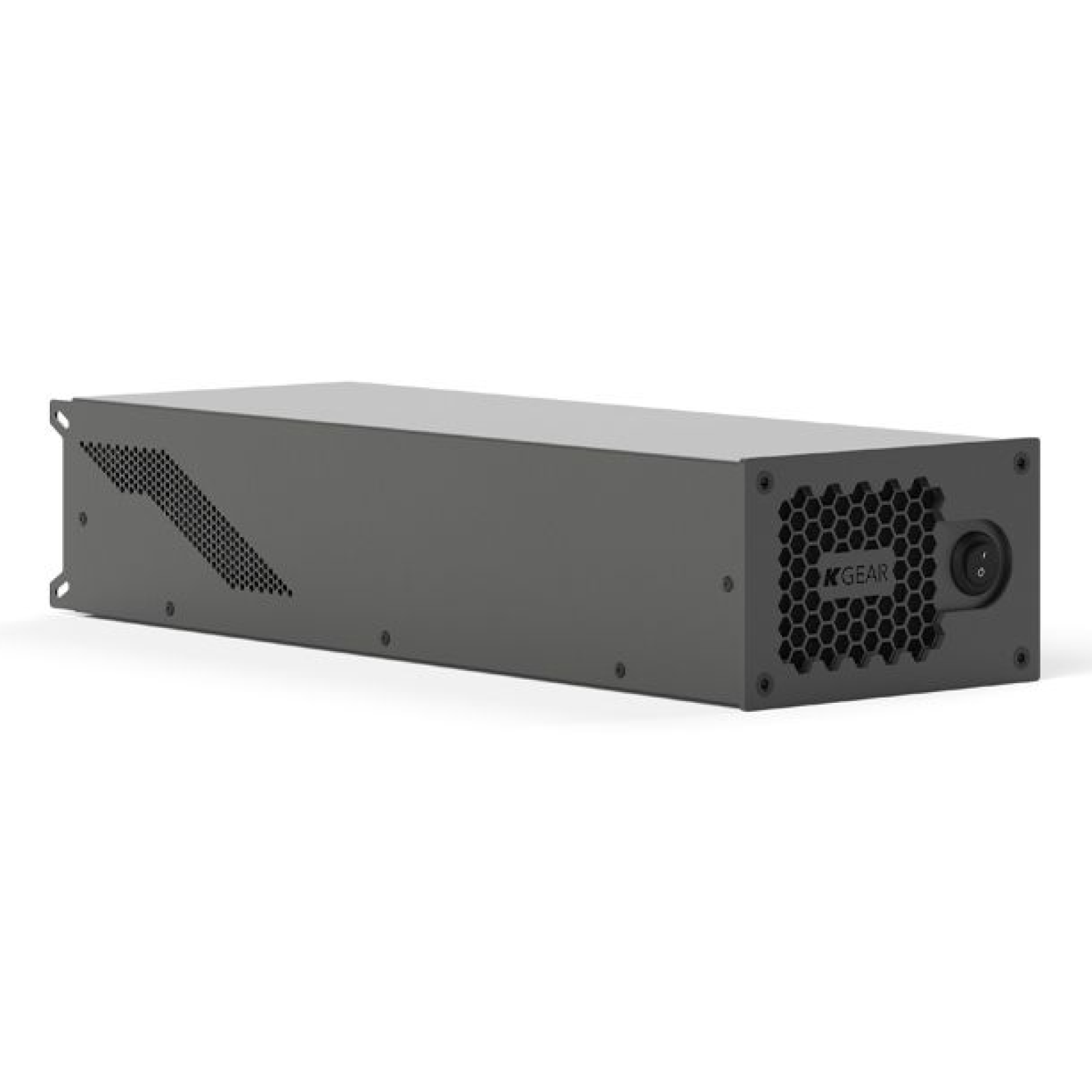

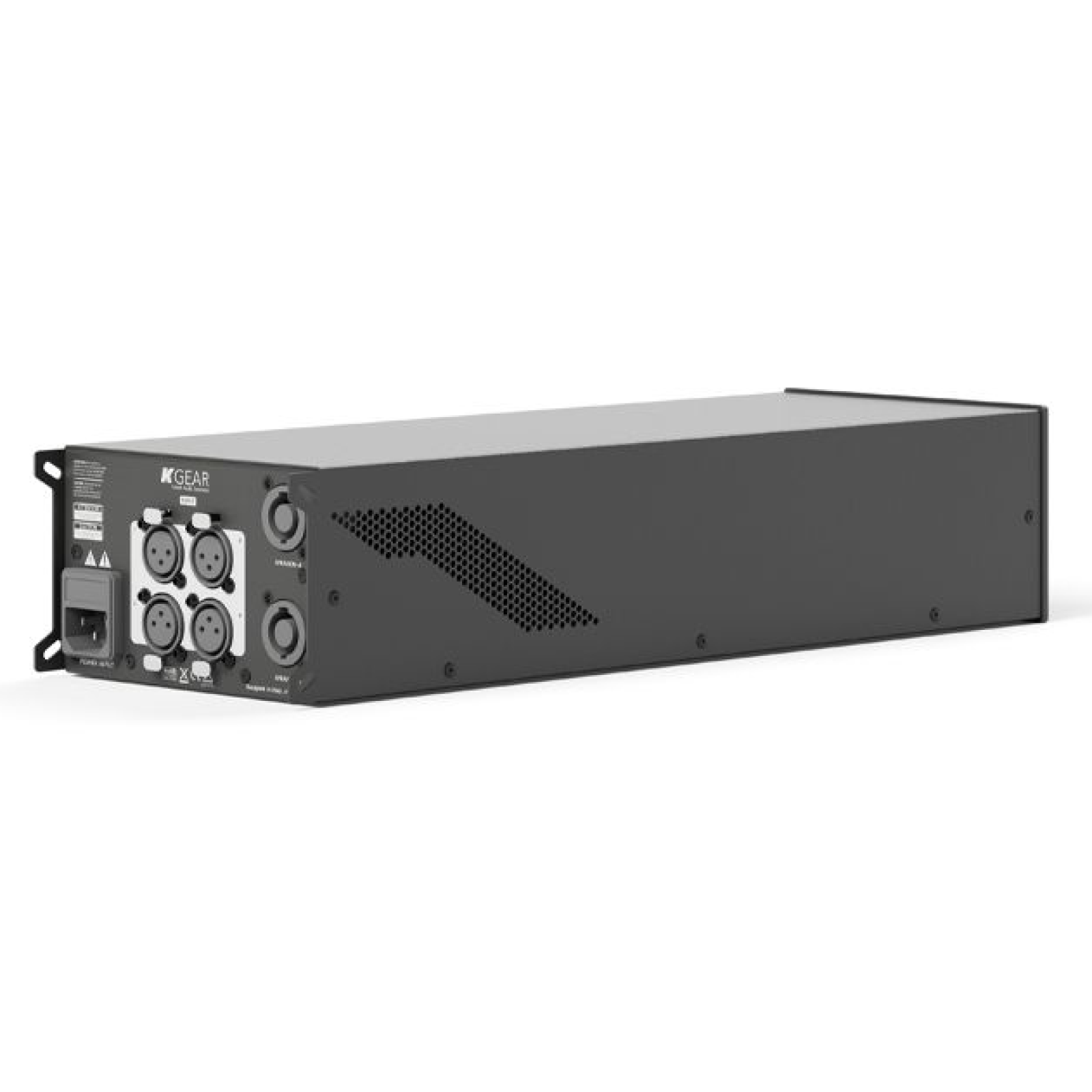

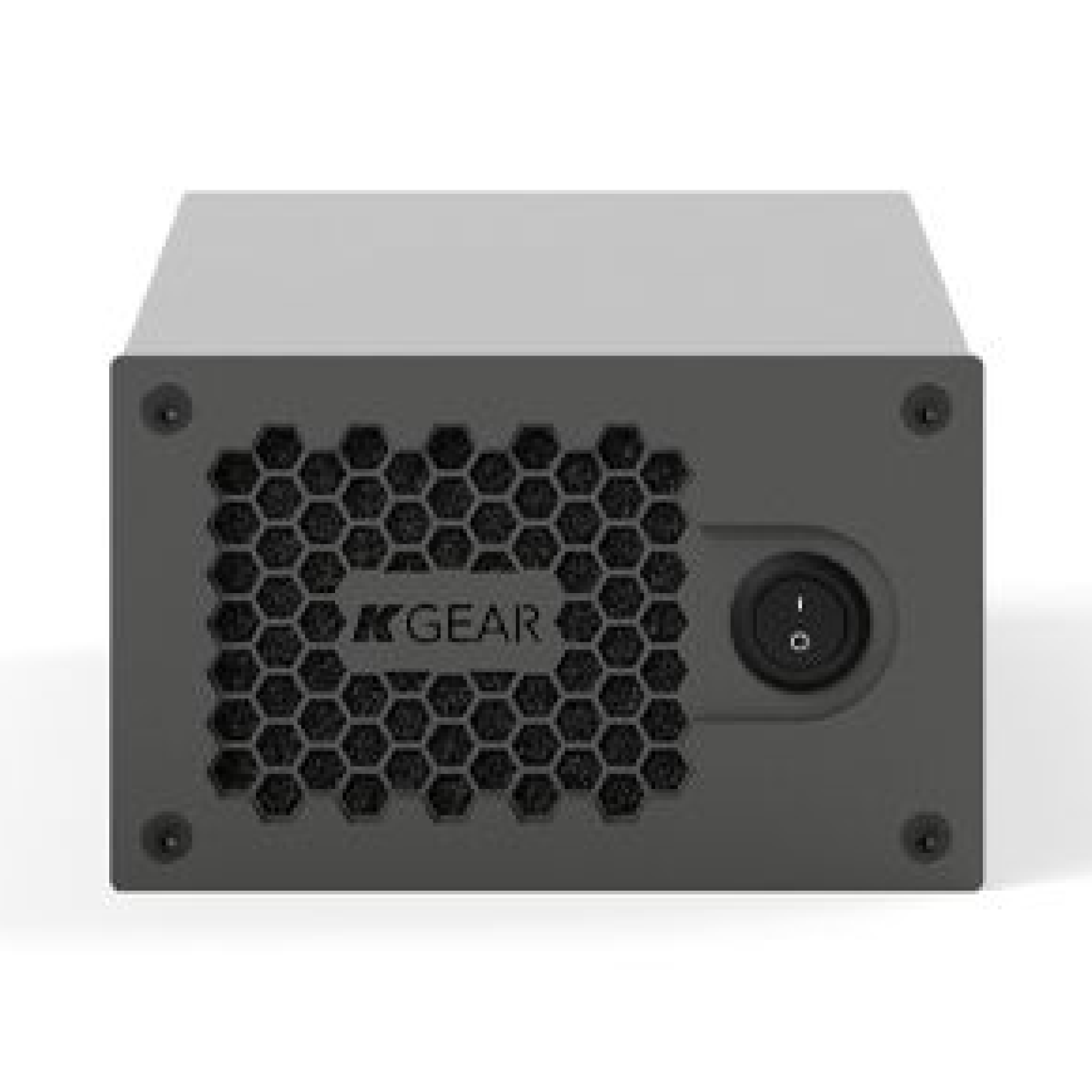

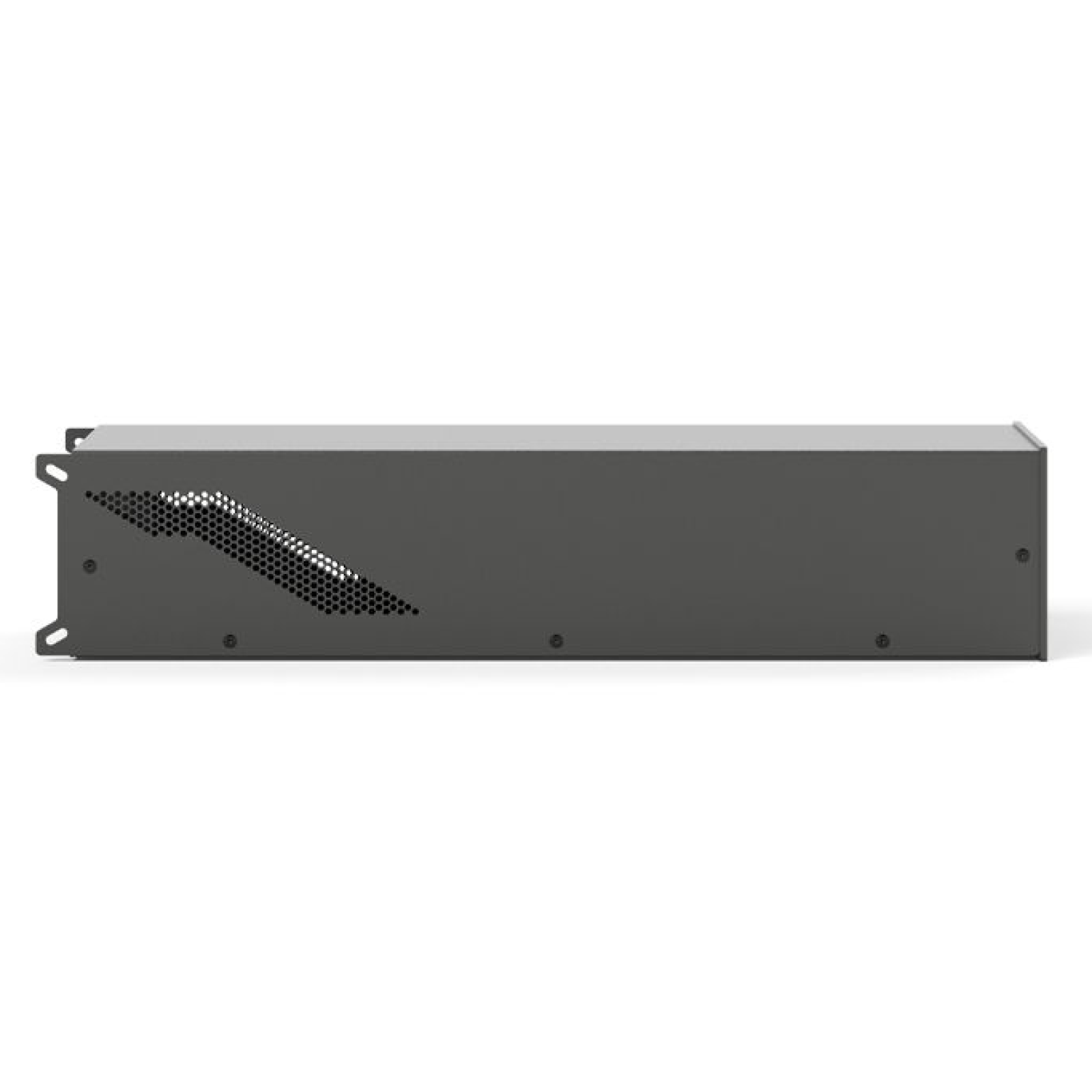

GA43L Compact 4-channel amplifier with 4x750 W RMS @4Ω and Powersoft™ module
Download product sheetThe KGEAR GA43L is a compact, high-efficiency 4-channel amplifier designed to deliver top-level performance in professional installations. Thanks to the integrated Powersoft™ module, the GA43L ensures power, control, and reliability in a modular, space-saving format. Each channel provides up to 750 W RMS at 4Ω, while in bridge mode it can deliver 2x1500 W on 7... Read more
The KGEAR GA43L is a compact, high-efficiency 4-channel amplifier designed to deliver top-level performance in professional installations. Thanks to the integrated Powersoft™ module, the GA43L ensures power, control, and reliability in a modular, space-saving format. Each channel provides up to 750 W RMS at 4Ω, while in bridge mode it can deliver 2x1500 W on 70/100V lines.
The modular design allows up to 3 units to be installed in just 2U, maximizing rack space and supporting multi-zone or distributed systems in complex environments.
Perfect for touring, events, fixed installations, auditoriums, transportation hubs, houses of worship, stadiums, theme parks, and clubs, the GA43L combines versatility and professional-grade power in one compact solution.
Collapse textProduct downloads
Highlights
Ensured power with Integrated Powersoft™ Module
Compact Modular Design for Flexible Installations
Product details
Key features
- Four Channel Amplifier
- Compact and modular design
- Fits both high-end fixed installations and rental
- Use G-RACK to fit in a 2U Rack
Specifications
-
Type4-ch Class D power amplifier
-
Output Channels4
-
Max Output Power per Channel750 Watt (RMS EIAJ Single Channel Driven @ 4 ohm)
-
Minimum Impedance4Ω (2Ω bgm use)
-
High Impedance Speaker Lines70V-100V
-
Operating Voltage100-240V AC, 50-60 Hz
-
Power consuption6 A @ 100 VAC, 2,5 A @ 240 VAC, 600 W
-

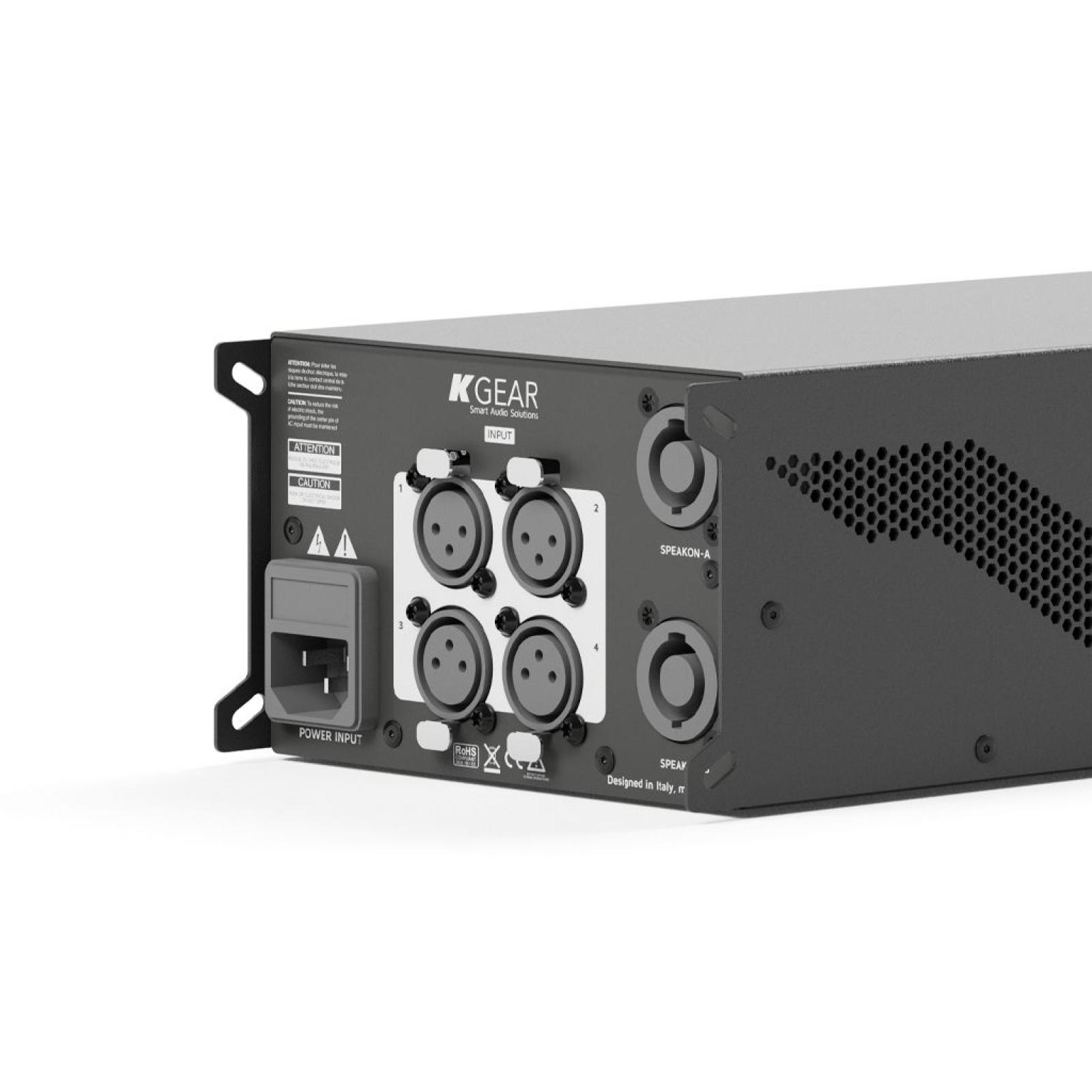

Connectors:4x XLR balanced Input 2x NL4 SpeakON Output 1x VDE (IEC C13) AC MAINS inlet
-
Dimensions (W x H x D)145mm x 90mm x 418mm
-
Weight3.6 kg (7.94 lbs)
-
ColorsBlack
-
Frequency Response20 Hz – 20 kHz (150 Hz High-Pass filter for 70/100V lines suggested)
-
ProtectionsThermal protections (power limiting - thermal shutdown), short-circuit overload output protections, stationary high frequency protection
- More Less
