GA43 Compact 4-channel amplifier with 4x750 W RMS @4Ω, built-in DSP and Powersoft™ module
Download product sheetThe KGEAR GA43 is a high-efficiency 4-channel amplifier designed to deliver professional-grade performance in compact form. Powered by a built-in Powersoft™ module and DSP, the GA43 offers outstanding control and audio fidelity, with 4x750 W RMS at 4Ω and bridge mode output up to 2x1500 W at 8Ω or 100V (dedicated presets available).
Remote configuration is ma... Read more
The KGEAR GA43 is a high-efficiency 4-channel amplifier designed to deliver professional-grade performance in compact form. Powered by a built-in Powersoft™ module and DSP, the GA43 offers outstanding control and audio fidelity, with 4x750 W RMS at 4Ω and bridge mode output up to 2x1500 W at 8Ω or 100V (dedicated presets available).

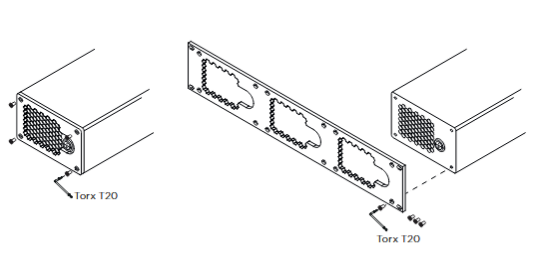

Remote configuration is made easy through ArmoníaPlus software via Ethernet, with 4 user-definable presets accessible via a rear-panel button. Its modular design allows up to 3 units to fit in just 2U, making it ideal for space-efficient, multi-zone or distributed installations.
Tailored for touring, events, fixed installations, auditoriums, transport hubs, houses of worship, stadiums, theme parks, and clubs, the GA43 combines versatility, power, and compact design in a single robust package.
Collapse textProduct downloads
Highlights
Power and DSP Control with Integrated Powersoft™ Module
Compact Modular Design for Flexible Installations
Product details
Key features
- Four Channel Amplifier
- Compact and modular design
- Fits both high-end fixed installations and rental
- Use G-RACK to fit in a 2U Rack
- Ethernet Port for control via Armonia Plus software
Specifications
-
Type4-ch Class D power amplifier
-
Output Channels4
-
Max Output Power per Channel750 Watt (RMS EIAJ Single Channel Driven @ 4 ohm)
-
Minimum Impedance4Ω (2Ω bgm use)
-
High Impedance Speaker Lines70V-100V
-
Internal DSPRemote control and tuning, Input and Output Delay Parametric input EQ, Output parametric filters
-
Operating Voltage100-240V AC, 50-60 Hz
-
Power consuption6 A @ 100 VAC, 2,5 A @ 240 VAC, 600 W
-

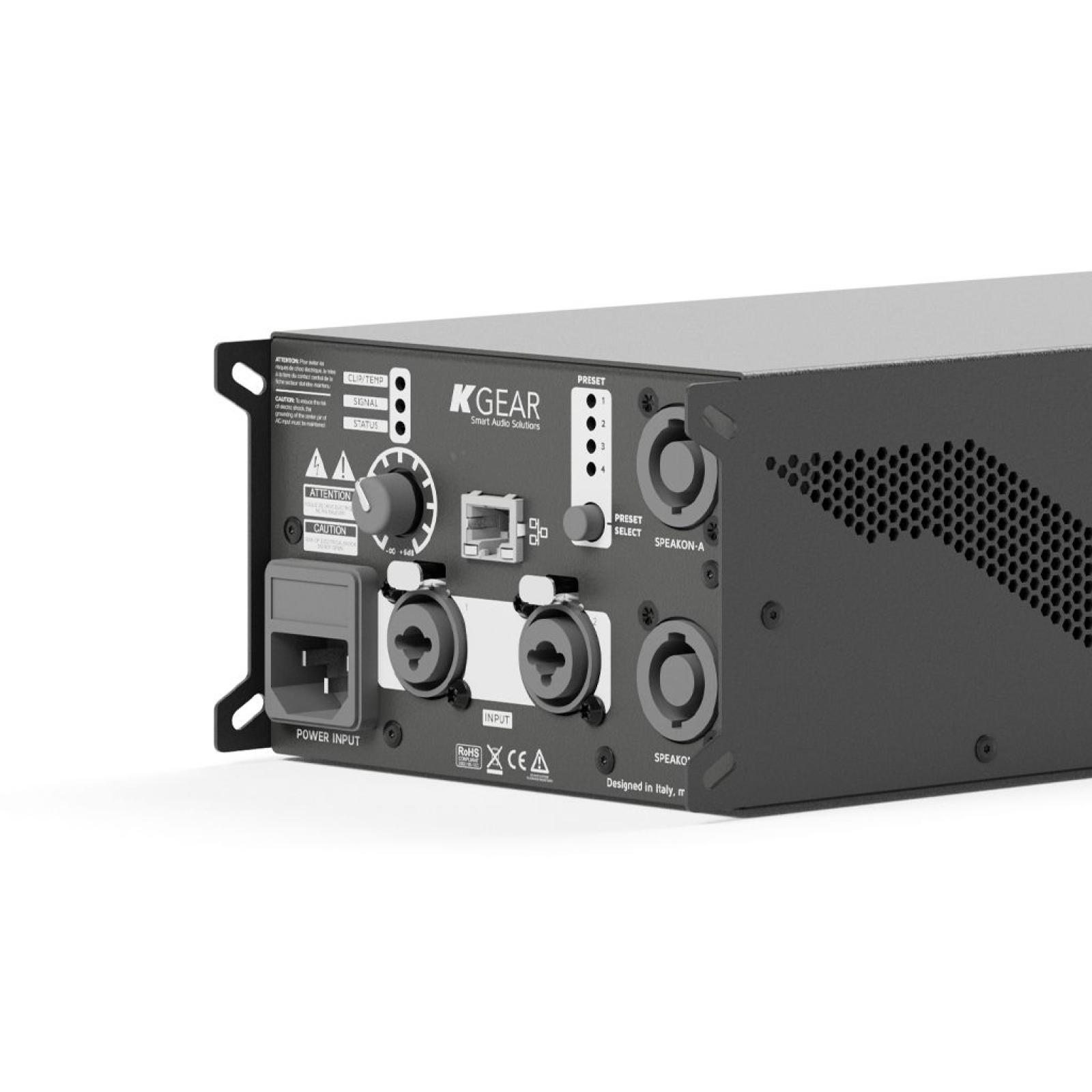

ConnectorsRJ45 for remote control 2x Combo XLR Input 2x SpeakON Output 1x VDE (IEC C13) AC MAINS inlet
-
Dimensions (W x H x D)145mm x 90mm x 418mm
-
Weight3.6 kg (7.94 lbs)
-
Local and remote controlsVolume potentiometer, Preset selector, Remote control through Powersoft ArmoniaPlus Software
-
ColorsBlack
-
Frequency Response20 Hz – 20 kHz (150 Hz High-Pass filter for 70/100V lines suggested)
-
ProtectionsThermal protections (power limiting - thermal shutdown), short-circuit overload output protections, stationary high frequency protection
- More Less
