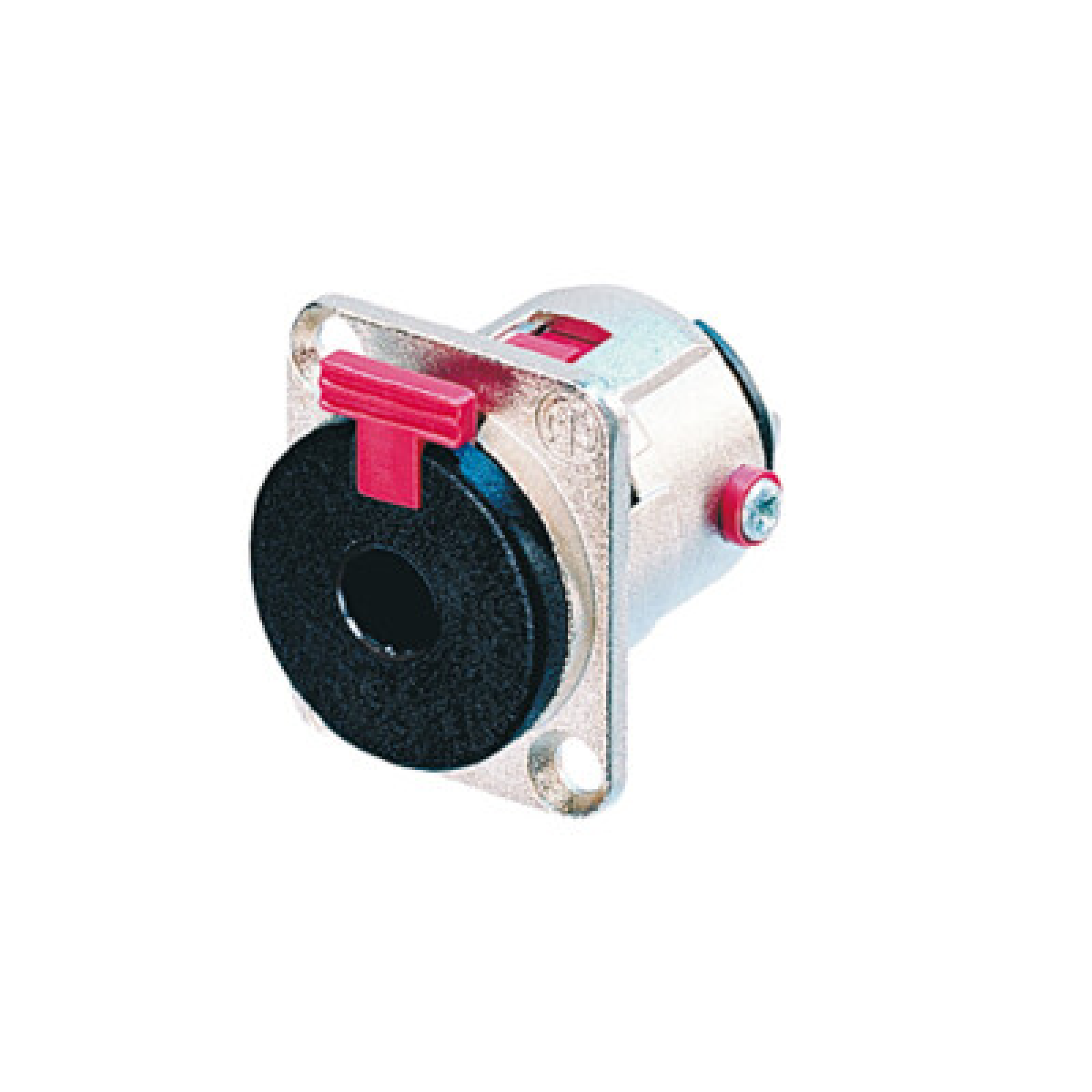

NJ3FP6C Locking 1/4" phone jack, D-size shell, nickel
Download product sheetLocking 1/4" phone jack, D-size shell, nickel metal housing and silver contacts
The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab... Read more
Locking 1/4" phone jack, D-size shell, nickel metal housing and silver contacts
The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance.
Collapse textProduct downloads
Product details
Key features
- Securely locking chassis jack
- Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
- Dimensionally compatible with D Series (31 x 26 mm)
- Solder terminals
Specifications
-
Connection TypeJack
-
Genderfemale
-
Contact resistance< 6 mΩ (initial)
-
Dielectric strength1 kVdc
-
Insulation resistance≥ 1 GΩ @ 500 V dc
-
Rated current per contact10 A
-
Insertion force< 30 N
-
Withdrawal force< 20 N
-
Lifetime> 10000 mating cycles
-
Locking force> 80 N
-
Wiresize1 mm²
-
Wiresize18 AWG
-
WiringSolder contacts
-
Locking deviceLatch lock
-
Mounting directionFront mounting
-
Chassis shapeD
-
Contact plating2 µm Ag
-
ContactsCopper alloy (CuSn6) (Ground)
-
InsertPolyamide (PA 6.6 30 % GR) UL94 V-0
-
ShellZinc diecast (ZnAl4Cu1)
-
Shell platingNickel
-
Strain reliefPolyacetal (POM)
-
Standard complianceEIA RS 453, IEC 60603-11
-
SolderabilityComplies with IEC 60068-2-20
-
Temperature range-25 °C to +70 °C
