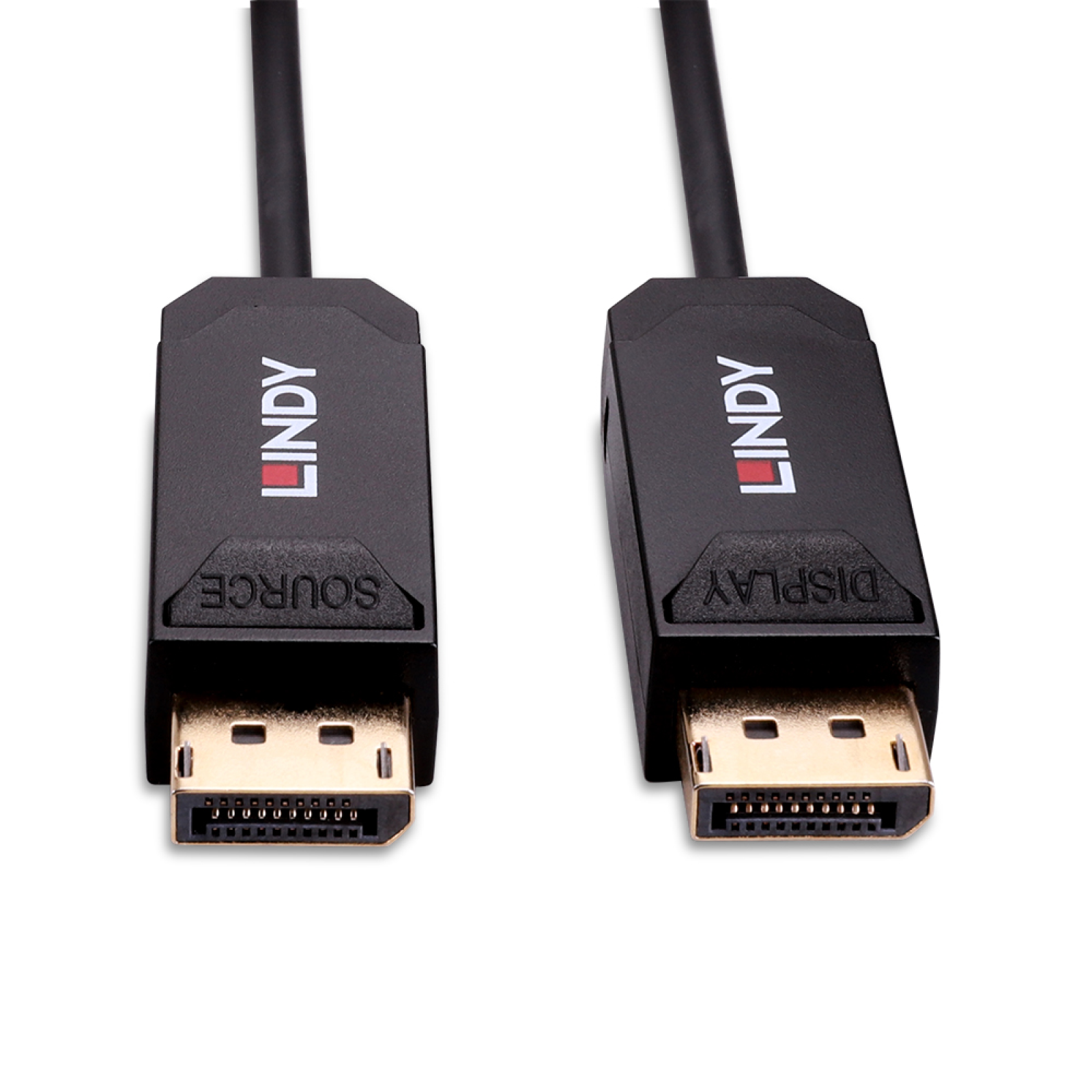

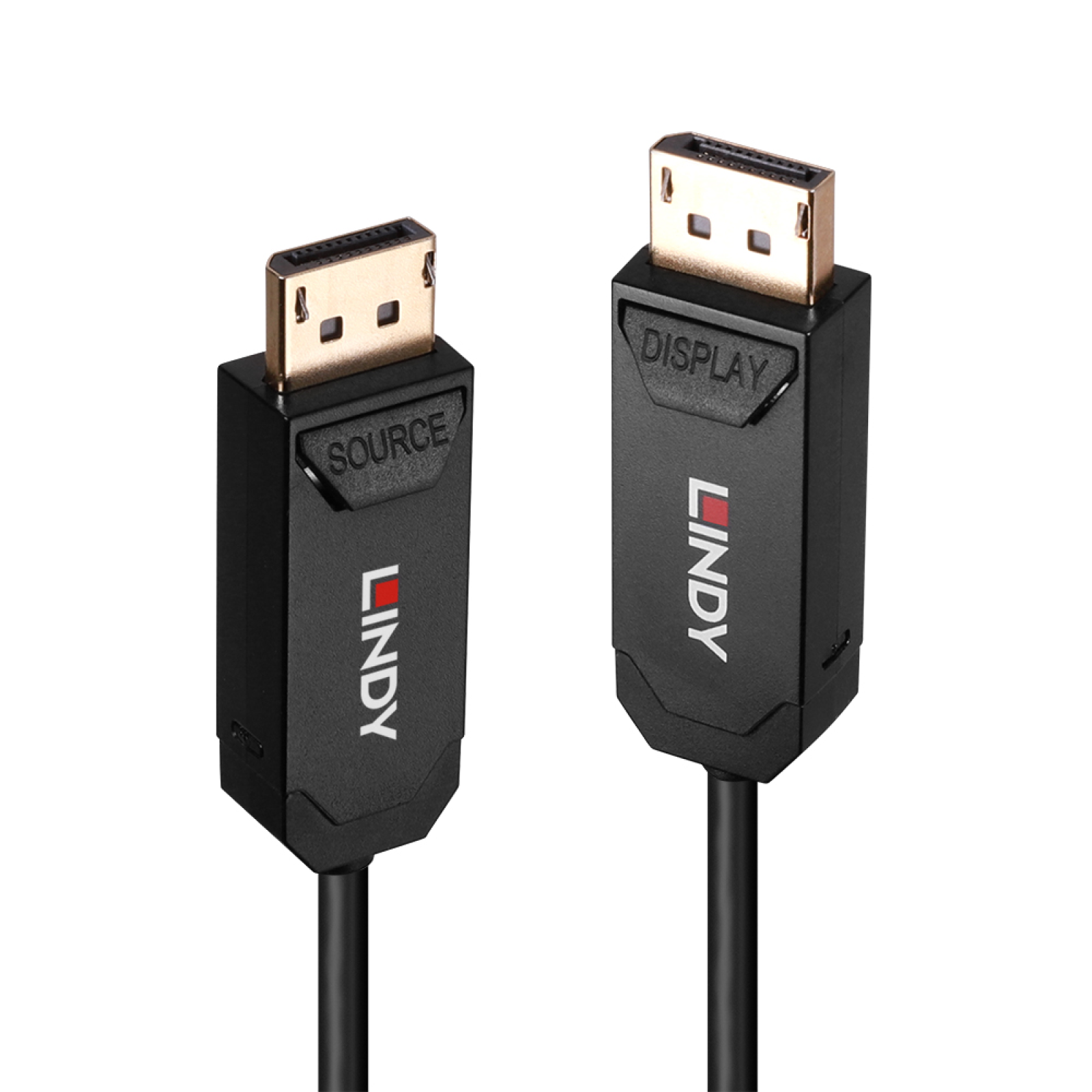

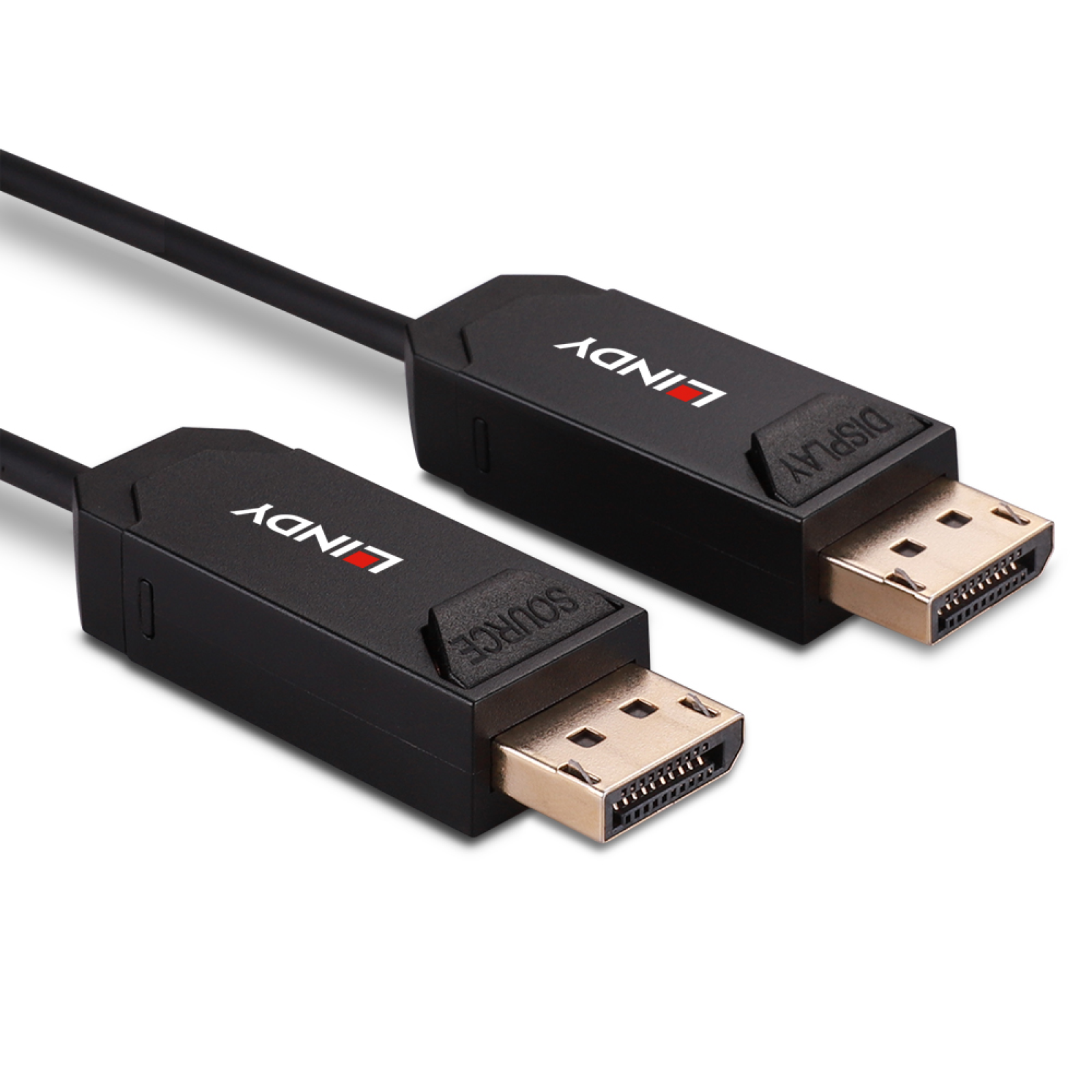

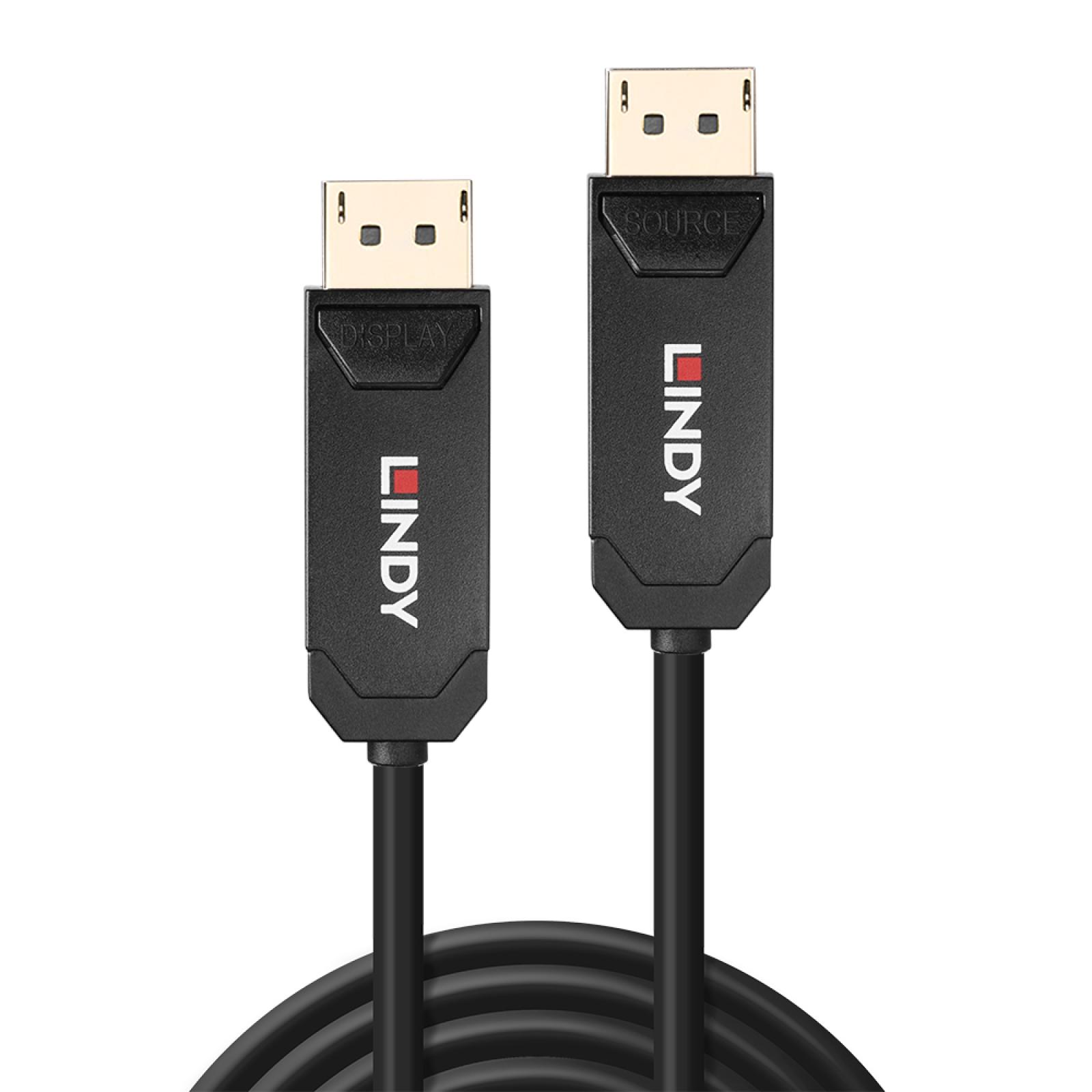

38522 20m Fibre Optic Hybrid DisplayPort 2.0 UHBR10 Cable

Download product sheet

Lindy_s range of Fibre Optic Hybrid cables are a professional solution for extending DP signals over longer distances.

Combining the flexibility and high EMI & RFI resistance of fibre optic cable with standard copper cabling, these hybrid cables are ideal for use in critical AV setups, commercial displays or high-performance residential installations.

The in... Read more

Lindy_s range of Fibre Optic Hybrid cables are a professional solution for extending DP signals over longer distances.

Combining the flexibility and high EMI & RFI resistance of fibre optic cable with standard copper cabling, these hybrid cables are ideal for use in critical AV setups, commercial displays or high-performance residential installations.

The internal technology provides uncompressed amplification of the DP signal, allowing long distance extension of DP 8K content that is simply not possible with passive cables.

With 40Gbps bandwidth (UHBR10), these cables support DisplayPort 2.0 resolutions up to 3840x2160@144Hz, and 7680x4320 / 10240x4320@60Hz. Content can be viewed with incredible detail and clarity at higher refresh rates and supporting static and dynamic HDR for optimum viewing of movies, graphics or imagery.

Collapse text

Product downloads

Product details

Key features

  • Combines copper and fibre optic cable for a hybrid, long distance DisplayPort connectivity solution
  • Supports resolutions up to 4K@144Hz, 8K@60Hz
  • DP2.0 standard with UHBR10 support, 40Gbps bandwidth (4 lanes, 10Gbps per channel)
  • Flexible and robust cable structure for any kind of installations
  • 2-Year Warranty

Specifications

  • Connector A
    DisplayPort (Male)
  • Connector B
    DisplayPort (Male)
  • Housing Material
    PVC
  • Connector Plating
    Gold Plated
  • Pin Construction
    Gold Plated
  • Pin Plating
    Gold Plated
  • Dimensions (approx.) WxDxH
    DP Connector
  • Length
    20m (65.62ft)
  • Standard
    DisplayPort 2.0
  • Colour
    Black
  • Type
    Round
  • Jacket Diameter
    4.0mm (0.16in)
  • Jacket Material
    PVC
  • Conductor Material
    Fiber and Copper
  • Conductor Gauge
    24AWG
  • Supported Bandwidth
    40Gbps
  • Maximum Resolution
    7680x4320@60Hz 4:2:0 10bit, 3840x2160@144Hz 4:4:4 10bit
  • Nominal Attenuation
    10dB/km@850nm, 8dB/km@1300nm
  • Minimum Bend Radius
    50mm (1.97in)
  • Operating Temperature
    -10°C - 60°C (14°F - 140°F)
  • Storage Temperature
    -20°C - 70°C (-4°F - 158°F)
