39337 4 Port DVI-I Single Link, USB 2.0 & Audio KVM Switch

Download product sheet

A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.

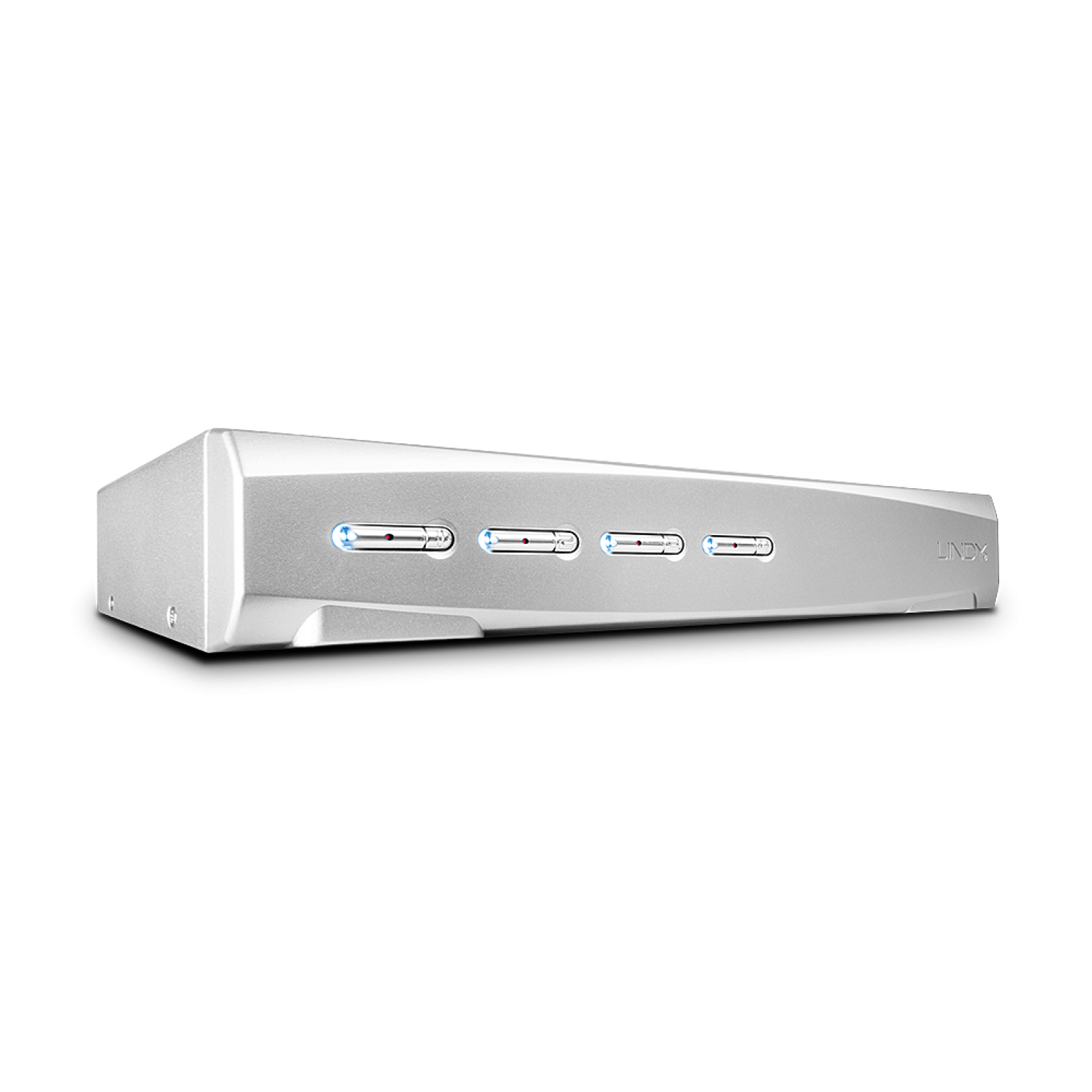

The Lindy 4 Port DVI-I Single Link, USB 2.0 & Audio KVM Switch is a compact solution for providing access and control over four DVI equipped PCs from a single keyboard, mouse and monitor.

Supports si... Read more

A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.

The Lindy 4 Port DVI-I Single Link, USB 2.0 & Audio KVM Switch is a compact solution for providing access and control over four DVI equipped PCs from a single keyboard, mouse and monitor.

Supports single link resolutions up to 1920x1200, it can also be used with analogue VGA PCs using adapter cables with support for analogue resolutions up to 2048x1536. The audio output ports on the main unit also allow users to connect headphones or speaker to add immersive 2CH audio and a microphone, while additional USB peripherals can be integrated with the 2 ports USB 2.0 hub. Both audio and USB hubs can be switched independently of the computers allowing you to print from one PC whilst working on another for example.

It supports True Transparent USB switching, an advanced USB emulation technology that allows the KVM to recognise specific keyboard & mouse models and emulate any of their associated special key and function information. This also provides enhanced support for combined use with KVM extenders.

The KVM switch features multiple switching options including push buttons on the unit and configurable hotkeys that provide simple, reliable control for the user, great for both professional and first time users.

Collapse text

Product downloads

Product details

Key features

  • Controls four DVI equipped PCs from a single keyboard, mouse and monitor
  • Switch via the unit_s push buttons or keyboard hot keys
  • Supports DVI-I single link signals, up to 1920x1200
  • Independent audio switching and 2 ports USB 2.0 Hub for sharing additional USB peripherials
  • 2 year warranty

Specifications

  • AV Interface
    DVI-I
  • Console Interfaces
    USB
  • Interface Standard
    DVI-I Single Link, USB 2.0
  • Maximum Resolution
    DVI
  • Supported Audio
    Analogue Stereo
  • Separate Audio Ports
    2 x 3.5mm (Female)
  • Console Number
    1
  • Max Number PC/Server
    4
  • Switching Method
    Push Buttons & Hotkey Switching
  • Special Features
    USB 2.0 Hub, Independent audio and Hub switching, Active LED Indicators
  • Console Interfaces
    DVI-I (Female), USB 2.0 Type A (Female), 2 x 3.5mm (Female)

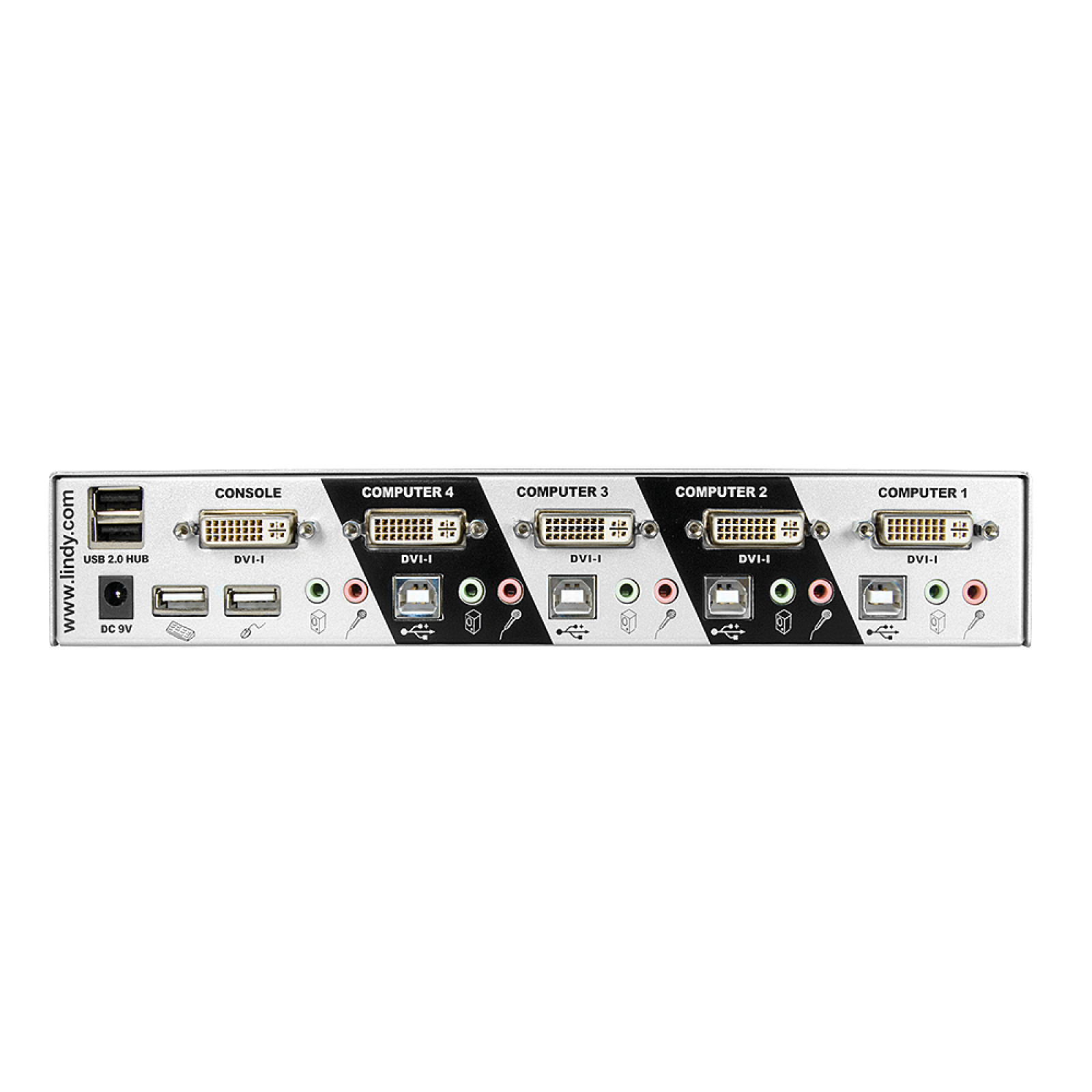

  • PC/Server Interfaces
    4 x DVI-I (Female), USB 2.0 Type B (Female), 2 x 3.5mm (Female)
  • Other Interfaces
    2 x USB 2.0 Type A (Female) Shared Ports
  • Power
    5.5/2.1mm DC socket
  • Dimensions WxDxH
    255x45x120mm (10.04x1.77x4.72in)
  • Housing Material
    Metal
  • Net Weight
    1kg (2.2lb)
  • Operating Temperature
    0°C - 50°C (32°F - 122°F)
  • Storage Temperature
    -20°C - 60°C (-4°F - 140°F)
  • Humidity
    0~90% RH (non-condensing)
  • Power Requirements
    9VDC 1.1A
  • Colour
    Silver
  • More Less
