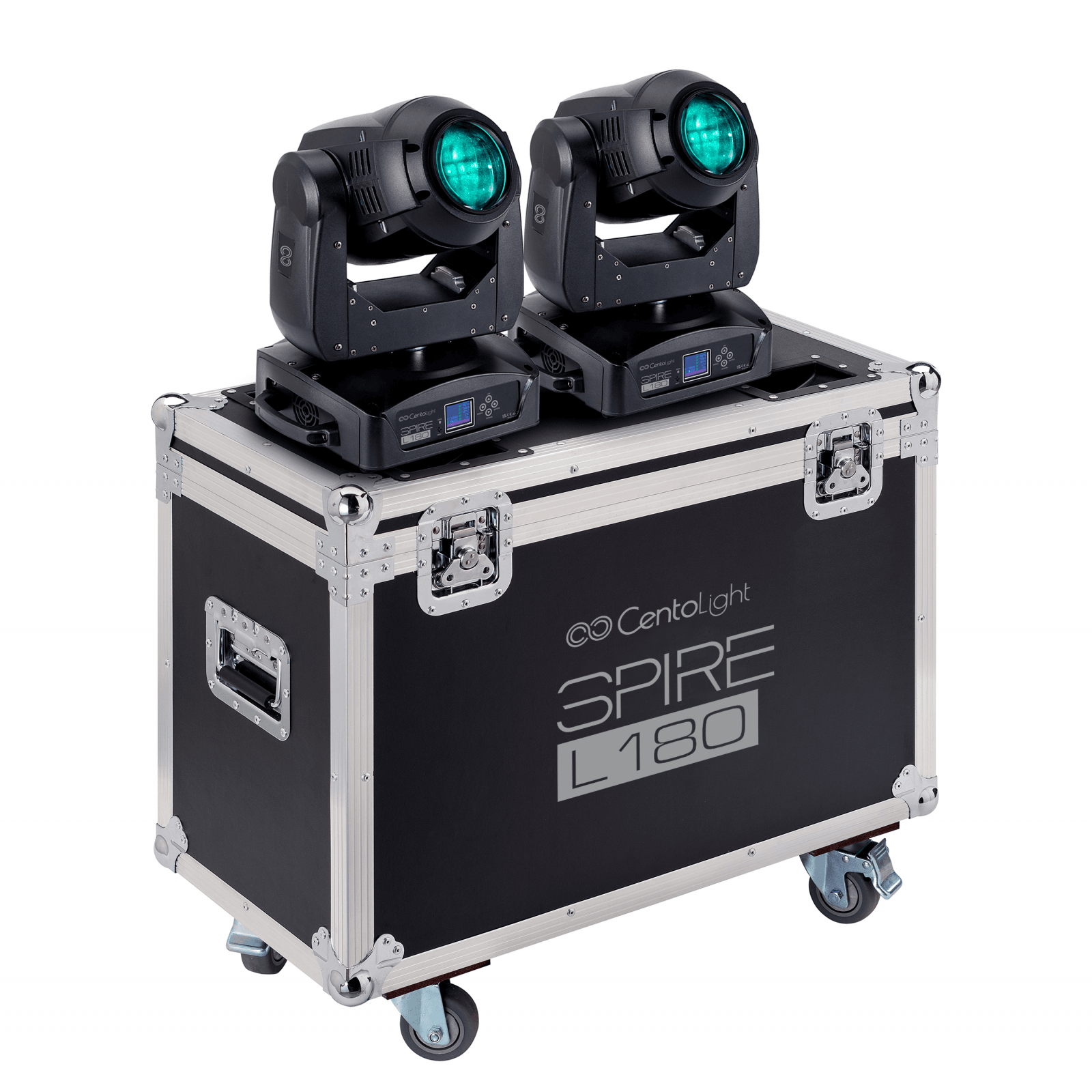

SPIRE L180 SET 2 x Led Beam moving head 180 w with flight case

Download product sheet

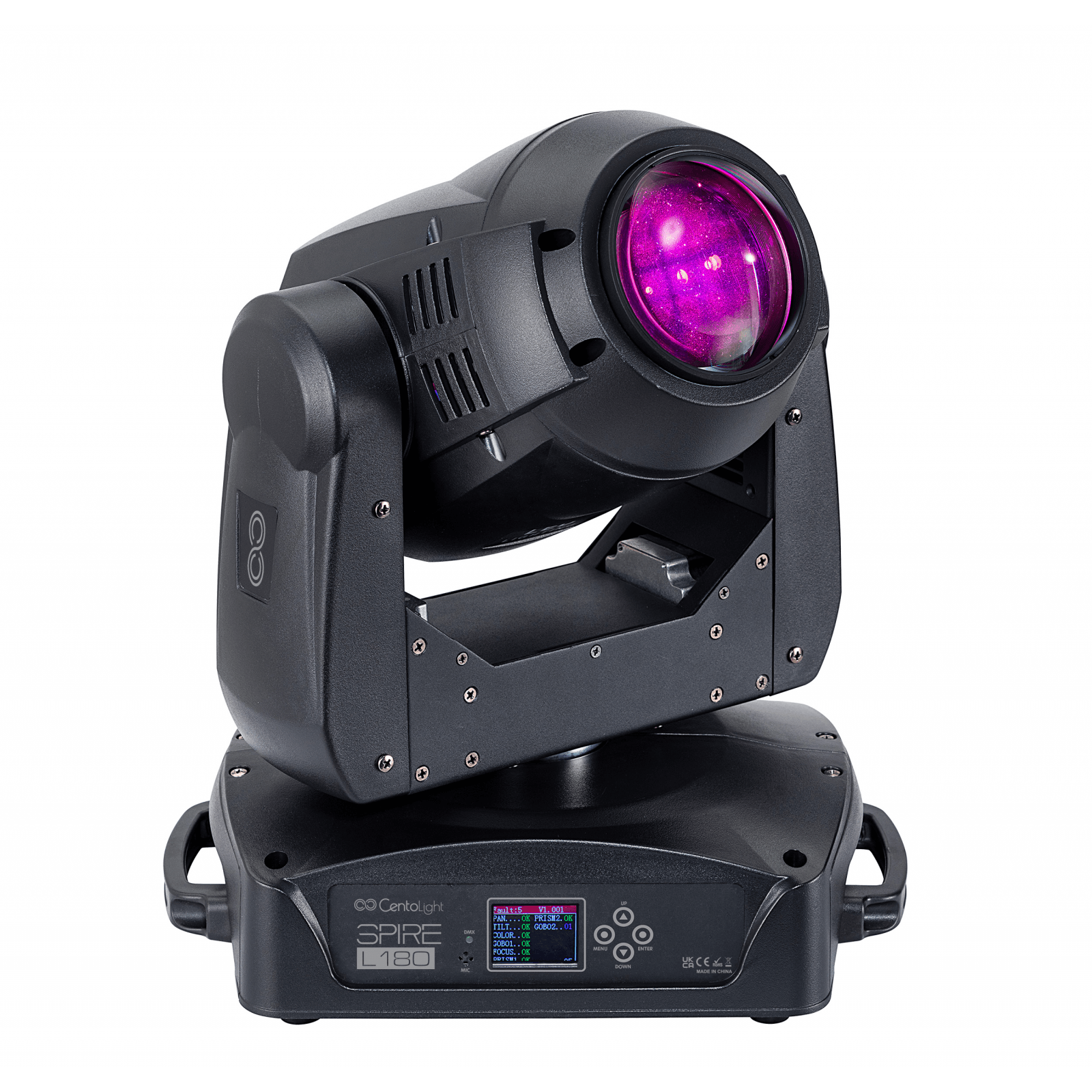

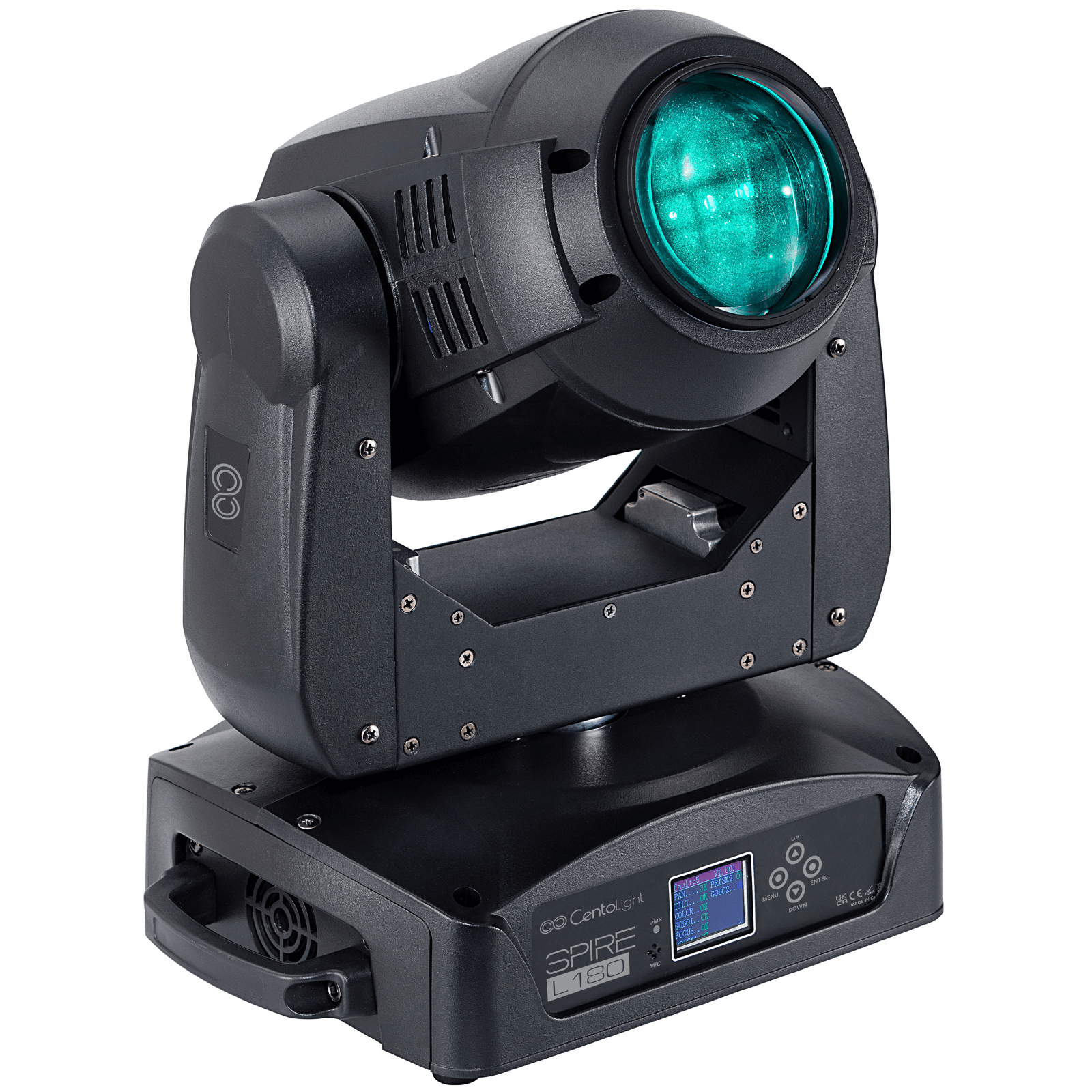

This LED beam moving-head of SPIRE Series combines the benefits of LED technology (energy saving, low heat emission, increased reliability and durability over time) with the quality of digital control systems and the accuracy of its optical system. The SPIRE L 180 BEAM is, therefore, a tool suitable for professionals of entertainment, both in touring and fixed... Read more

This LED beam moving-head of SPIRE Series combines the benefits of LED technology (energy saving, low heat emission, increased reliability and durability over time) with the quality of digital control systems and the accuracy of its optical system. The SPIRE L 180 BEAM is, therefore, a tool suitable for professionals of entertainment, both in touring and fixed installations.The optical system is able to emit a beam of 69.000 Lux @ 2m with 5° angle. The focus is motorized; dimmer is linear with a 0-20Hz frequency for strobe effects. The SPIRE L 180 BEAM offers a 7 + white color wheel with rainbow effect, a first gobo wheel with 6 rotating gobos (3 metal + 3 glass) and a second wheel with 8 fixed gobos + open. Both gobo wheels have rainbow and shake effects. Finally, two prisms (one 8-facet, one 16-facet) with controllable rotation and direction, allow creating rich and varied light effects thanks to the overlapping feature. The chassis is largely made up of aluminum and allows to reduce the final weight in just 10kg. The fixture is available both in single carton and in two-unit professional flight case.

Collapse text

Product downloads

DMX-512 Control
Flicker-Free Operation
Fan Controlled by Processor
8 Facet prism with variable speed and direction

Product details

Key features

  • LED Ultra-bright 180W LED
  • 69.000 Lux @ 2m
  • Beam angle of 5°
  • Motorized Focus
  • 1 Color wheel and 2 Rotating Gobo wheels
  • 2 prisms (8-facet + 16 facet) with overlap function
  • Stand-alone, DMX, Master/Slave modes
  • 13CH / 17CH DMX modes
  • Lightweight yet tough housing

Specifications

  • Light emitting source
    1pc Ultra-bright 180W LED
  • Beam intensity
    69.000 Lux @ 2m
  • Beam angle
  • Focus
    Variable motorized focus
  • Color wheel
    7 colors + white, split colors, rainbow effect
  • Rotating Gobo wheel
    3 glass gobos + 3 metal gobos + open, gobo flow effect, gobo shake
  • Static gobo wheel
    8 static gobos + open, gobo flow effect
  • Effect wheel
    8 facet prism and 16 facet prism, adjustable rotating speed and direction. The two prisms can be overlapped
  • Dimmer/Strobe
    Dimmer variable electronic dimmer (0-100%), 0-20Hz
  • PAN/TILT
    Pan
  • Working modes
    Stand-alone mode, DMX mode, Master/Slave synchronization mode
  • DMX Control
    13CH / 17CH modes
  • Housing
    High temperature resistant engineering plastic + aluminum alloy
  • Voltage
    100-240V,50-60Hz
  • Power consumption
    250W
  • Fixture Size (LxHxD)
    328 x 352min/406max x 328 mm
  • Fixture Weight
    10.6kg
  • Carton Size (LxHxD)
    350 x 415 x 350mm
  • Carton Weight
    12.6kg
  • More Less
