SPIRE X23 Discharge Beam moving head 230 w

Download product sheet

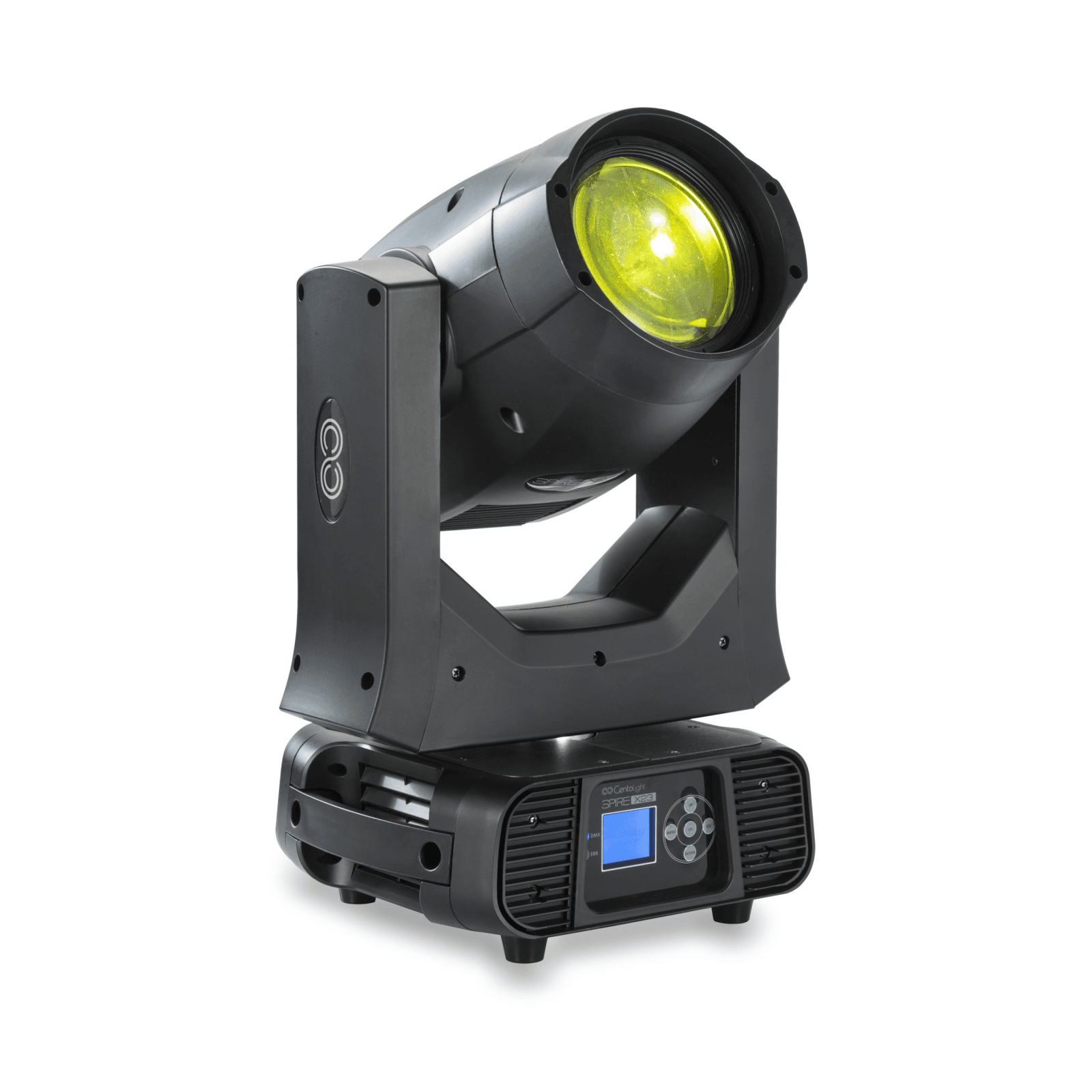

 The Spire X23 is a stylish moving head beam in a very compact and lightweight housing. It delivers high light output and even coverage field. It features an High quality 230W Lamp. The lamp equips with the reflector built-in, providing perfect lamp alignment. The moving head features ultra sharp beam effect with low consumption. The fixture is integrated with... Read more

 The Spire X23 is a stylish moving head beam in a very compact and lightweight housing. It delivers high light output and even coverage field. It features an High quality 230W Lamp. The lamp equips with the reflector built-in, providing perfect lamp alignment. The moving head features ultra sharp beam effect with low consumption. The fixture is integrated with a full complement of professional characteristics including a static gobo wheel, color wheel, 8-Facet prism, frost filter, motorized linear focus, variable speed shutter/strobe, linear dimmer, color time and gobo time controllable. The fixture supports DMX, RDM (Remote Device Management).

The fixture’s exterior housing is beautifully balanced basing on a modern design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the Spire X23 achieves more than just a striking look. The 2*1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy.It’s applicable for large scale live concerts, TV productions, road shows, clubs, etc.

Collapse text

Product downloads

Media

Media

Highlights

PAN and TILT with 8/16 bit scanning, photoelectric reset and automatic error correction

Anti-reflection 136mm front lenses with 2.5° Beam angle

2,5° Beam Angle
230w Lamp 7900°K Life span2000H
8 Facet prism with variable speed and direction
Frost filter system (Hybrid effect for wash)
DMX-512 Control
RDM Communication

Product details

Key features

  • 1 x 230 w Lamp 7900°K Life span2000H
  • 2,5° Beam Angle
  • Smooth linear mechanical dimming
  • 0-20Hz high speed strobe effect with variable speed
  • Color wheel with 14 dichroic colors plus open with half colour
  • Static gobo wheel with 17 gobos plus open
  • Frost filter system (Hybrid effect for wash)
  • 8 Facet prism with variable speed and direction
  • PAN and TILT with 8/16 bit scanning, photoelectric reset and automatic error correction
  • DMX512 with RDM / Master-Slave / Auto / Sound modes
  • High Efficient low noise self adjusting fan cooling system
  • 2.4" High resolution TFT LCD display with easy user-interface
  • More Less

Specifications

  • Lamp
    High quality 230W Discharge Lamp
  • Lamp life
    2000 hours
  • Input voltage
    AC100-240V 50/60Hz
  • Power consumption
    350W
  • Control Mode
    DMX512, Master/slave, Sound, Auto Mode, RDM
  • DMX Channel Modes
    16/20 Channel
  • Beam angle
    2,5°
  • Dimmer
    Dual flag mechanical dimming system
  • Focus
    High resolution motorized
  • X/Y Scan
    Smooth and precise 16 Bit 540°PAN and 270°TILT
  • Strobe
    0-20T/sec high speed

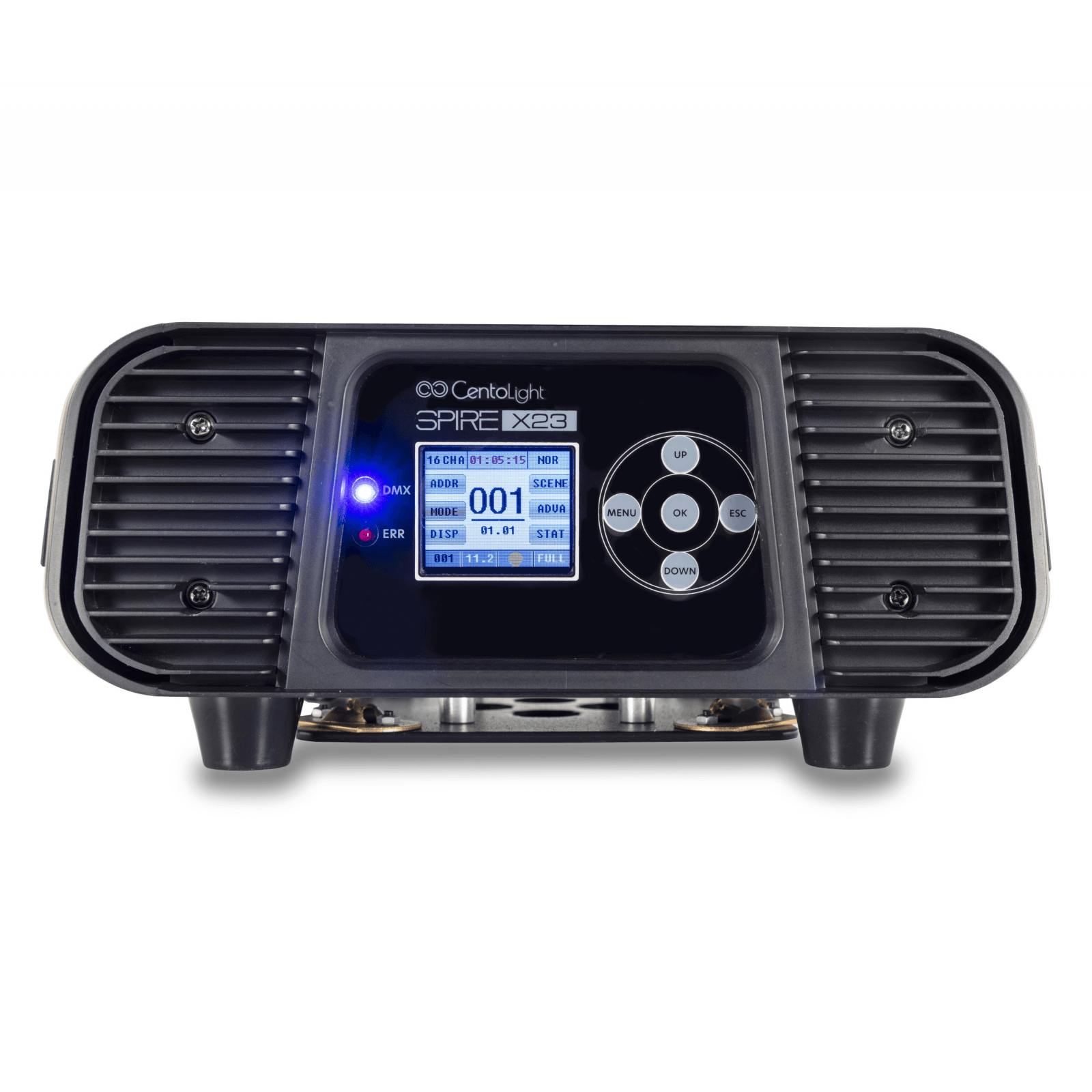

  • Display
    2.4" TFT LCD display with 4 control buttons
  • Colors
    Rotating wheel with 11 colors plus open
  • Gobos
    Static wheel with 17 Gobos plus open
  • Prism
    8-facet with variable speed and direction
  • Frost
    Wash filter with hybrid effect
  • Front lense
    Anti-reflection 136mm
  • Housing
    Flame-retardant plastic
  • Internal Running Temperature
    0 ÷ 40°C
  • Dimensions (WxDxH)
    310(W)*270(D)*495(H)mm
  • Weight
    11.92kg
  • Package Dimensions (WxDxH)
    360(W)*365(D)*520(H)mm
  • Package Weight
    14.26kg
  • More Less
