VENU 14 v2 Compact passive Two-Way 13.5" coaxial loudspeaker with rotatable waveguide and controlled dispersion (black)
Download product sheetThe Venu 14 V2 enhances the flexibility of the Venu V2 range by introducing a 13.5” coaxial driver, delivering true point source performance in an ultra-compact format. Featuring a FEM-optimised neodymium motor design, this loudspeaker combines high performance with low weight, making it ideal for installations requiring powerful sound in limited spaces.
Its ... Read more
The Venu 14 V2 enhances the flexibility of the Venu V2 range by introducing a 13.5” coaxial driver, delivering true point source performance in an ultra-compact format. Featuring a FEM-optimised neodymium motor design, this loudspeaker combines high performance with low weight, making it ideal for installations requiring powerful sound in limited spaces.
Its rotatable waveguide and controlled dispersion of 70° x 40° ensure precise coverage while minimising unwanted vertical reflections. The cabinet is built from 15 mm multi-laminate birch plywood, with M8 mounting points, Type 80 plate compatibility, and an optional 35 mm pole mount fixture, offering installation flexibility.
With a smooth frequency response from 65 Hz to 18 kHz, 400 W AES power handling, and a 130 dB peak SPL, the Venu 14 V2 delivers sonic reliability, crystal-clear detail, and high-output dynamics in any environment.
Collapse textProduct downloads
Highlights
True, consistent point source output across the range
Premium coaxial driver
High audio performance and long-term reliability thanks to the premium coaxial driver with neodymium magnet and FEM-optimized motor, designed to deliver high power, low distortion and efficient cooling.

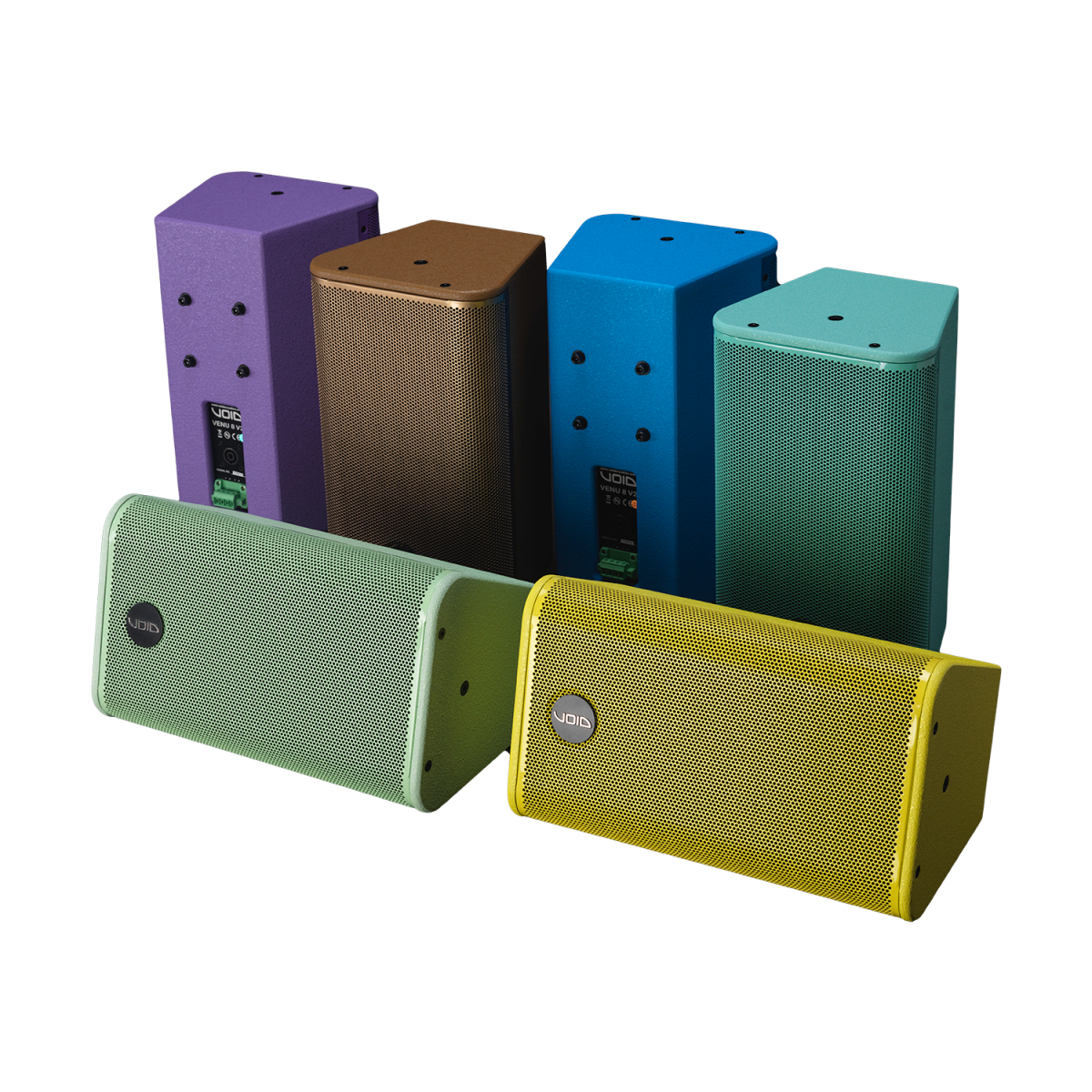

Custom colors available upon request
Product details
Key features

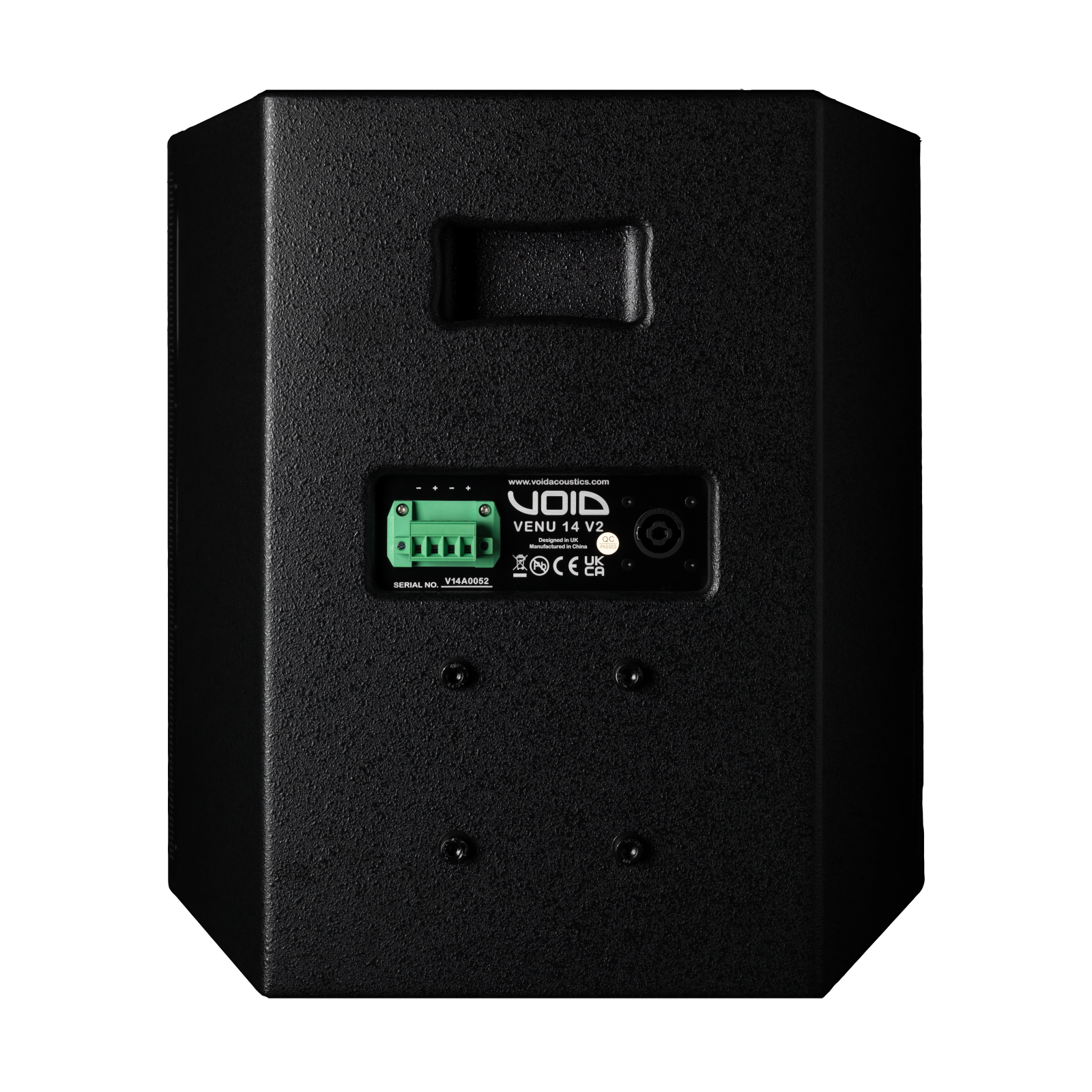

- SpeakON™ and Phoenix connectors with link-through for fast, reliable installation
- Electronic HF protection for increased long-term reliability
- Integrated M8 flying points for flexible and secure suspension
- Compact and lightweight design
- Durable 15 mm birch plywood enclosure with textured polyurethane finish
Specifications
-
Frequency Response65 Hz - 18 kHz ±3 dB
-
Efficiency99 dB 1W/1m
-
Nominal Impedance8 Ω
-
Power Handling400 W AES
-
Maximum Output124 dB cont, 130 dB peak
-
Driver Configuration1x 13.5” LF, 1x 1.4” HF coaxial
-
Dispersion70°H x 40°V nominal coverage
-
Connectors1x Phoenix with link out and 1x speakON™
-
Weight16,5 kg (36,37 lbs)
-
Dimensions (W x H x D)415mm x 418.5mm x 368.5mm
-
Enclosure15 mm birch plywood
-
FinishTextured polyurethane
-
GrillePerforated steel with foam filter
-
RiggingYoke bracket positions 4 x M8 fixing points for type 80 plate Optional top hat
-
ColorsBlack
- More Less
