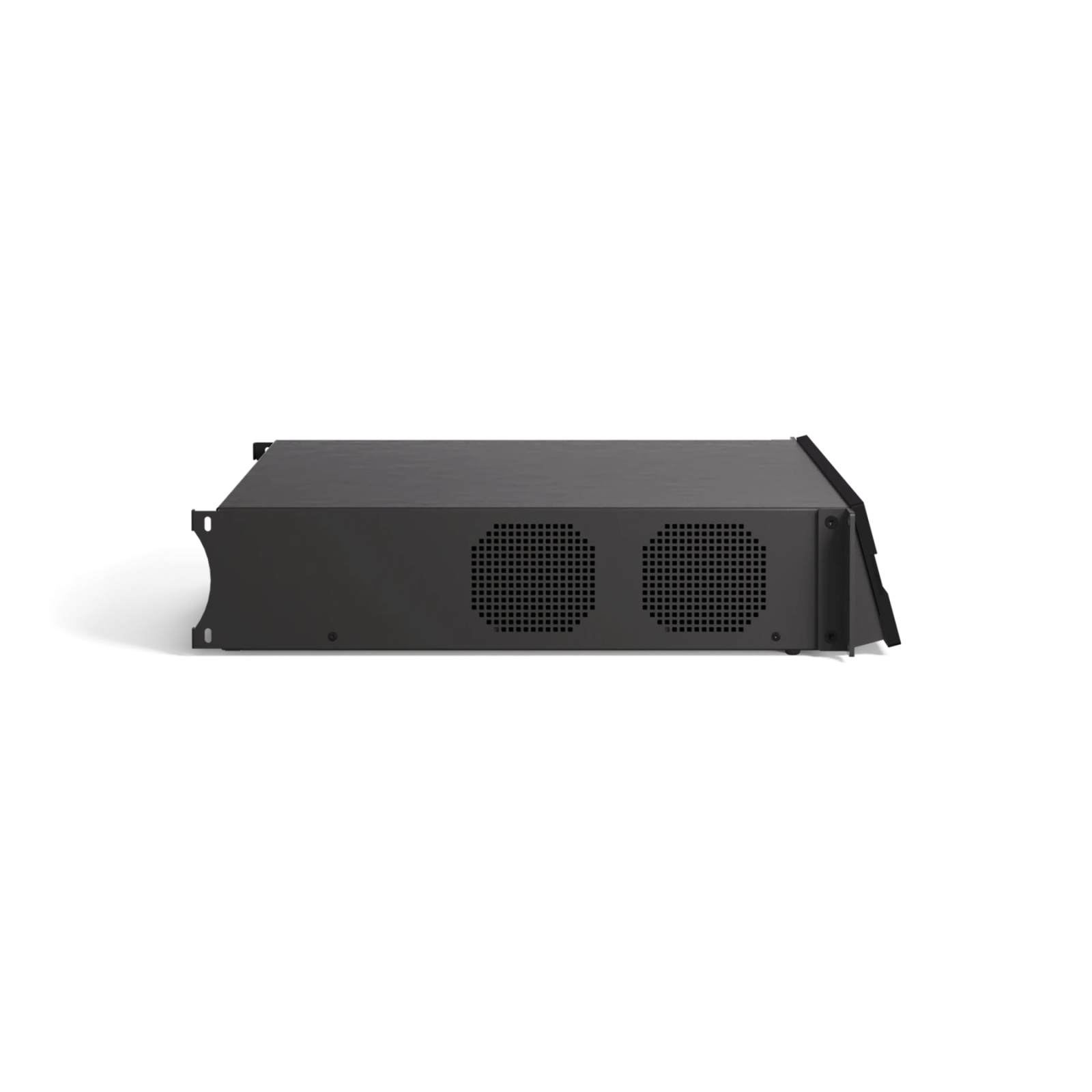

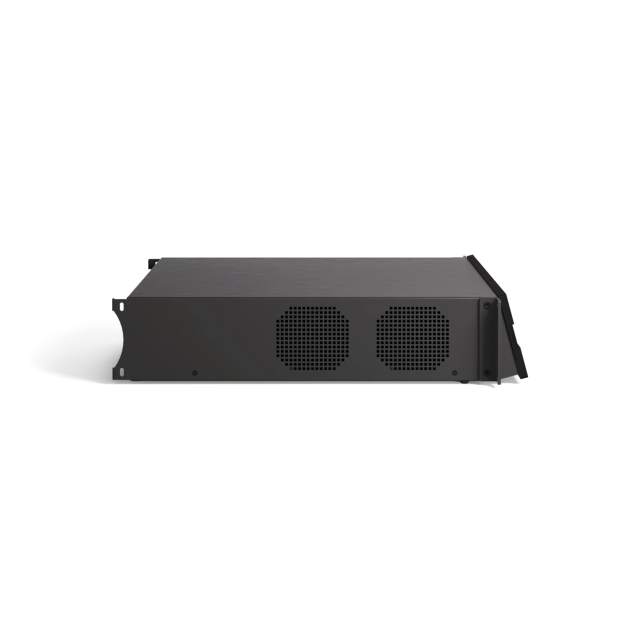

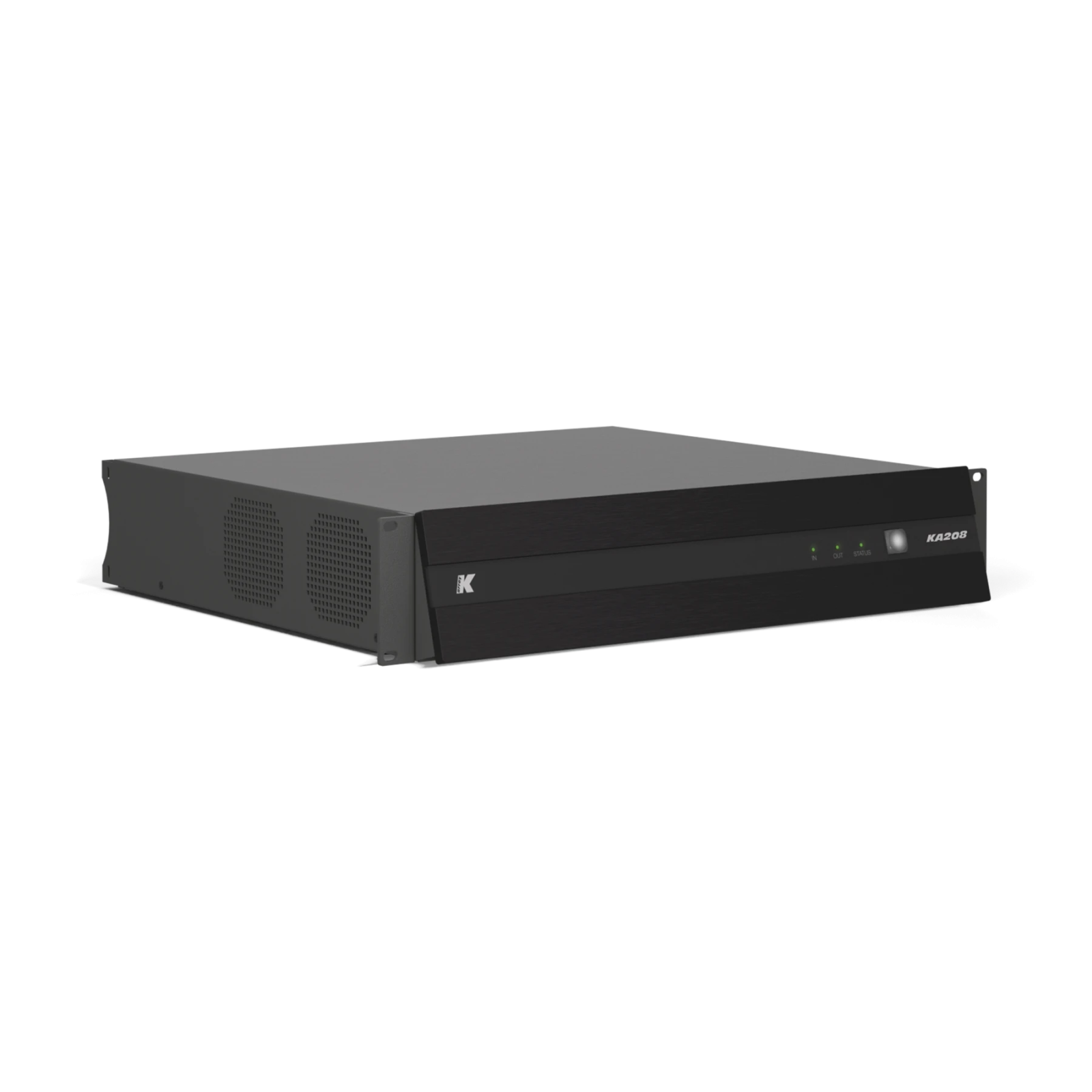

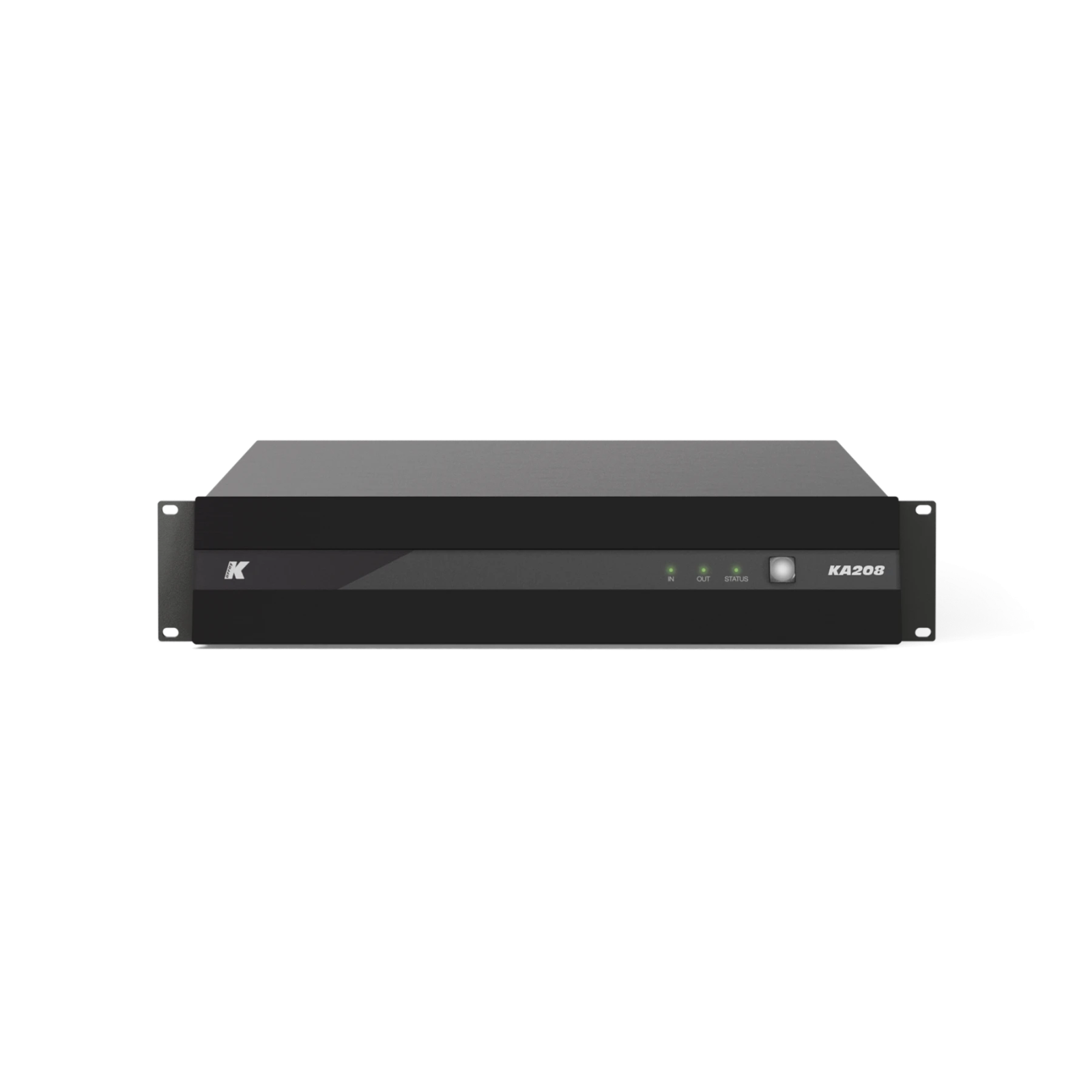

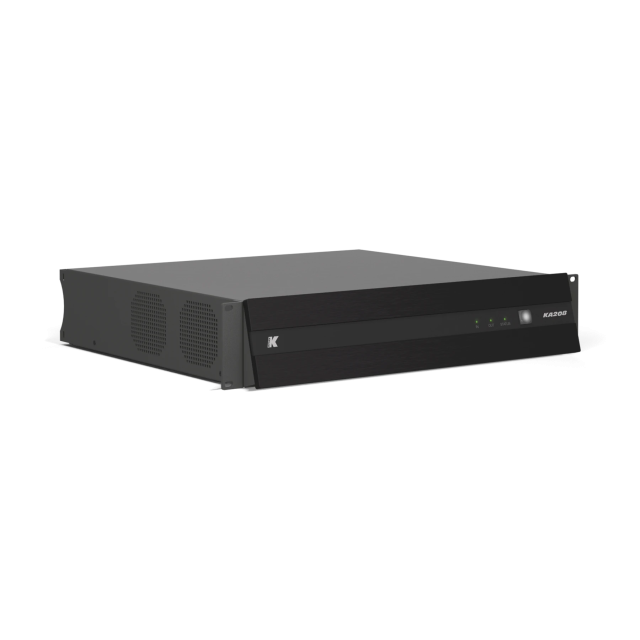

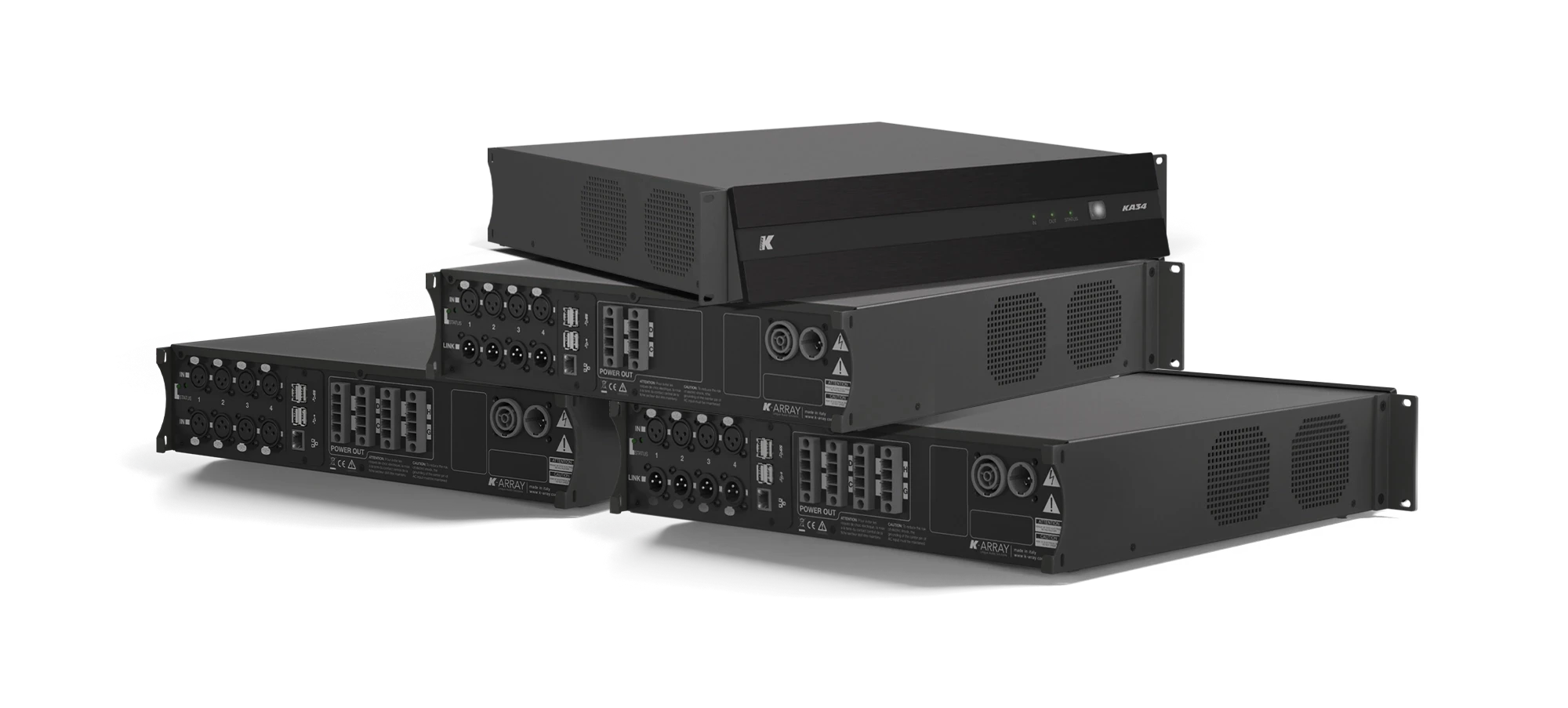

KA208 8-Channel Power Amplifier, 2500W @ 4Ω per Channel, DSP and osKar System
Download product sheetThe Kommander-KA208 is a fully featured, 8x 2500 W @ 4Ω amplifier platform with DSP highly integrated into the K-array collection ecosystem. The Kommander-KA208 offers pristine sound and complete control over the connected loudspeakers, either as a stand alone driving unit and in conjunction with other K-array amplifiers in complex and demanding applications.
... Read moreThe Kommander-KA208 is a fully featured, 8x 2500 W @ 4Ω amplifier platform with DSP highly integrated into the K-array collection ecosystem. The Kommander-KA208 offers pristine sound and complete control over the connected loudspeakers, either as a stand alone driving unit and in conjunction with other K-array amplifiers in complex and demanding applications.

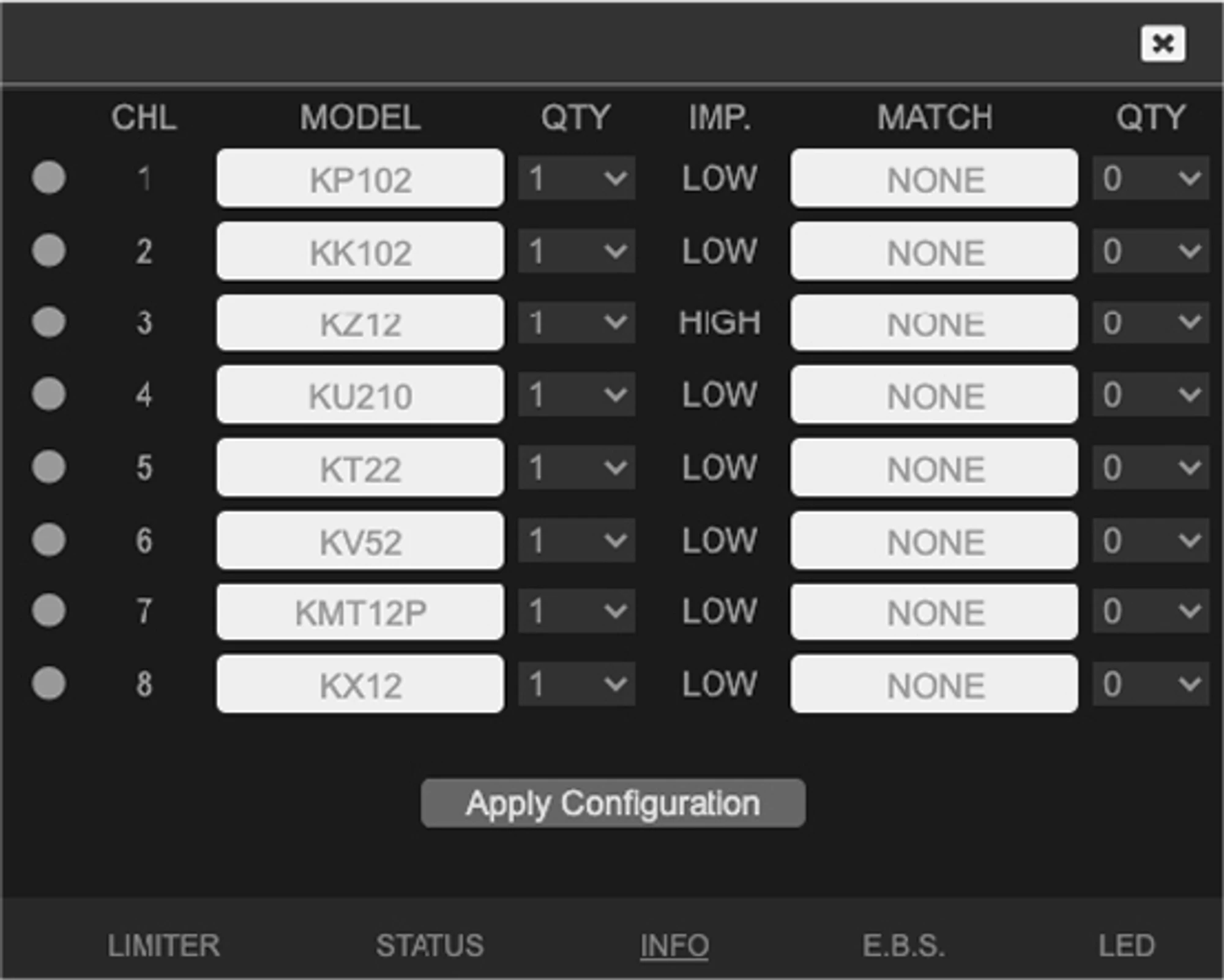

The dedicated K-array Connect mobile app provides a user-friendly interface for remote control of the DSP main parameters and easy configuration of the signal routing.

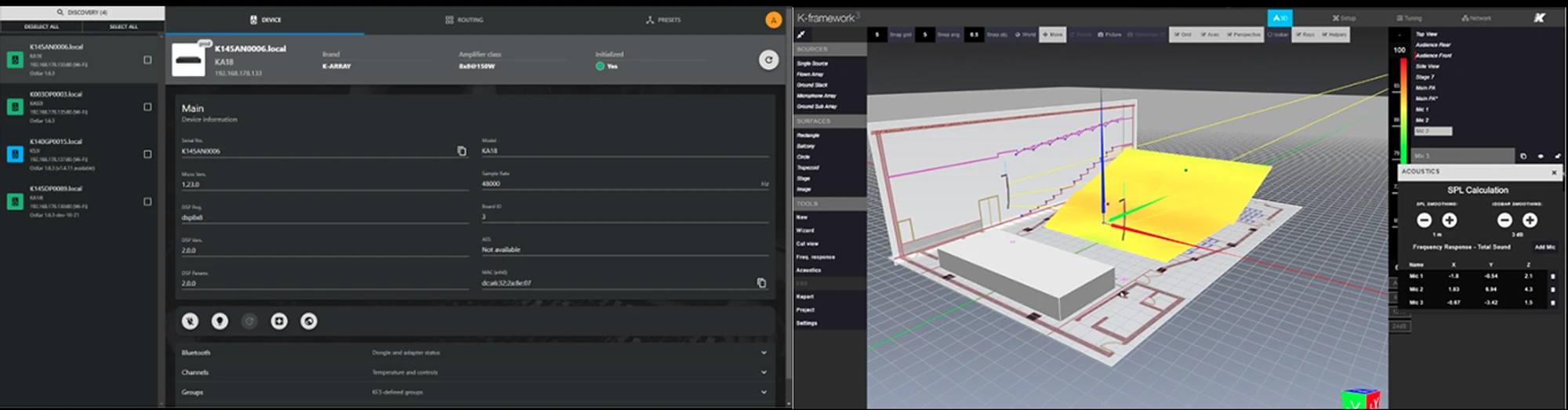

K-framework3 is the managing and control software dedicated to professionals and operators looking for a powerful tool for loudspeakers system design and tuning of a large number of units over a wired LAN.
Product downloads
Highlights
Intelligent sound
Maximum power, greater command
Managing of the entire ecosystem through various control platforms
Product details
Key features
- Class D audio amplifier
- Powerful integrated DSP featuring multi-channel parametric EQ, precision filters, limiters and customisable routing with built-in delay
- Integrated Electronic Brain (IEB) with osKar custom operating system
- REST API for easy integration with third-party remote control systems
- K-array Connect mobile app control
- K-framework3 multiplatform software for loudspeaker system design, managing, tuning and control of multiple units
Specifications
-
Type8ch switching mode, Class D Amplifier
-
Frequency Response20 Hz - 20 kHz (±1 dB)
-
Built-in DSPGrouping, Equalization, Limiters, Routing, Level, Loudspeaker presets
-
Remote ControlWi-Fi and Ethernet dedicated APP and Desktop software
-
Output Power8x 2500W @ 4Ω
-

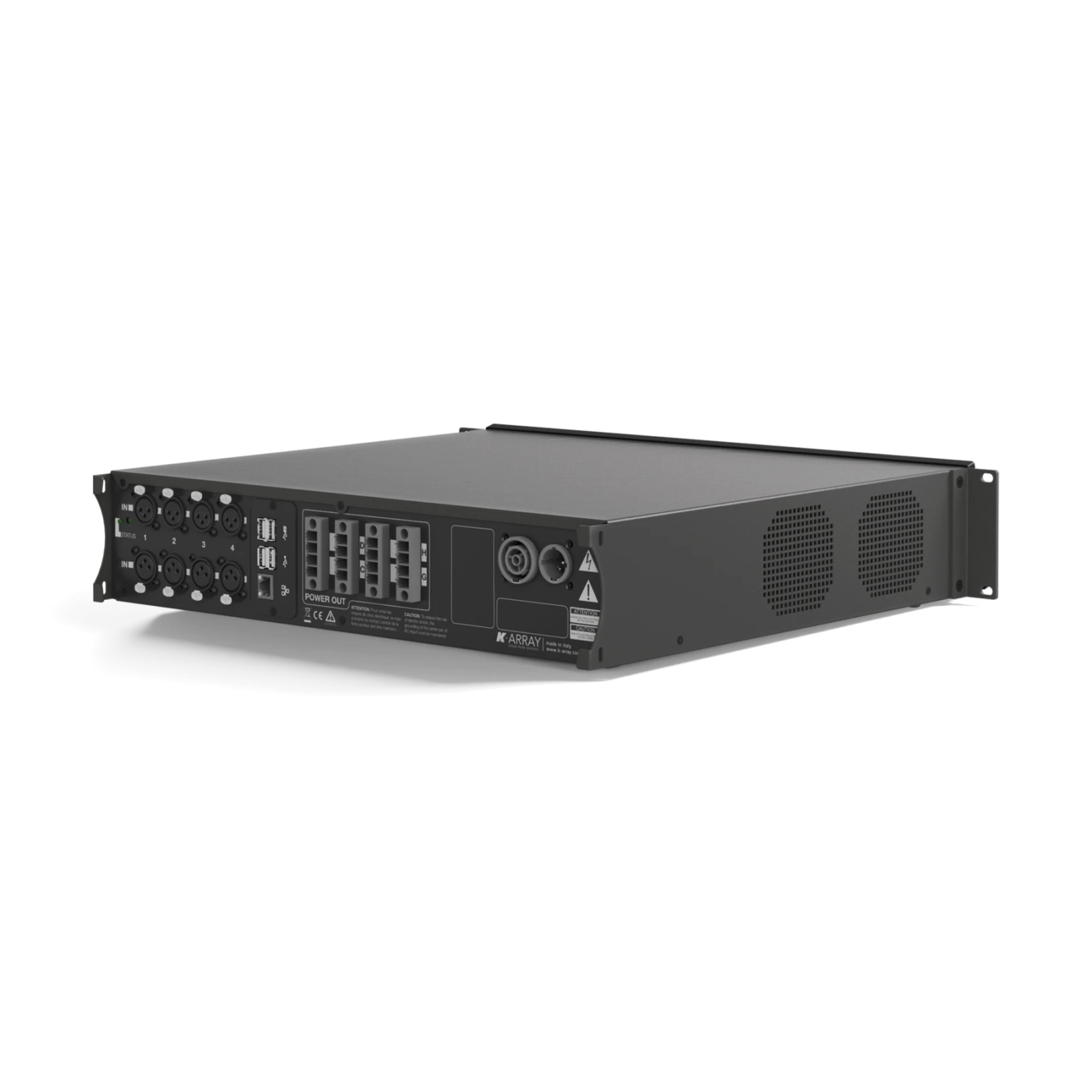

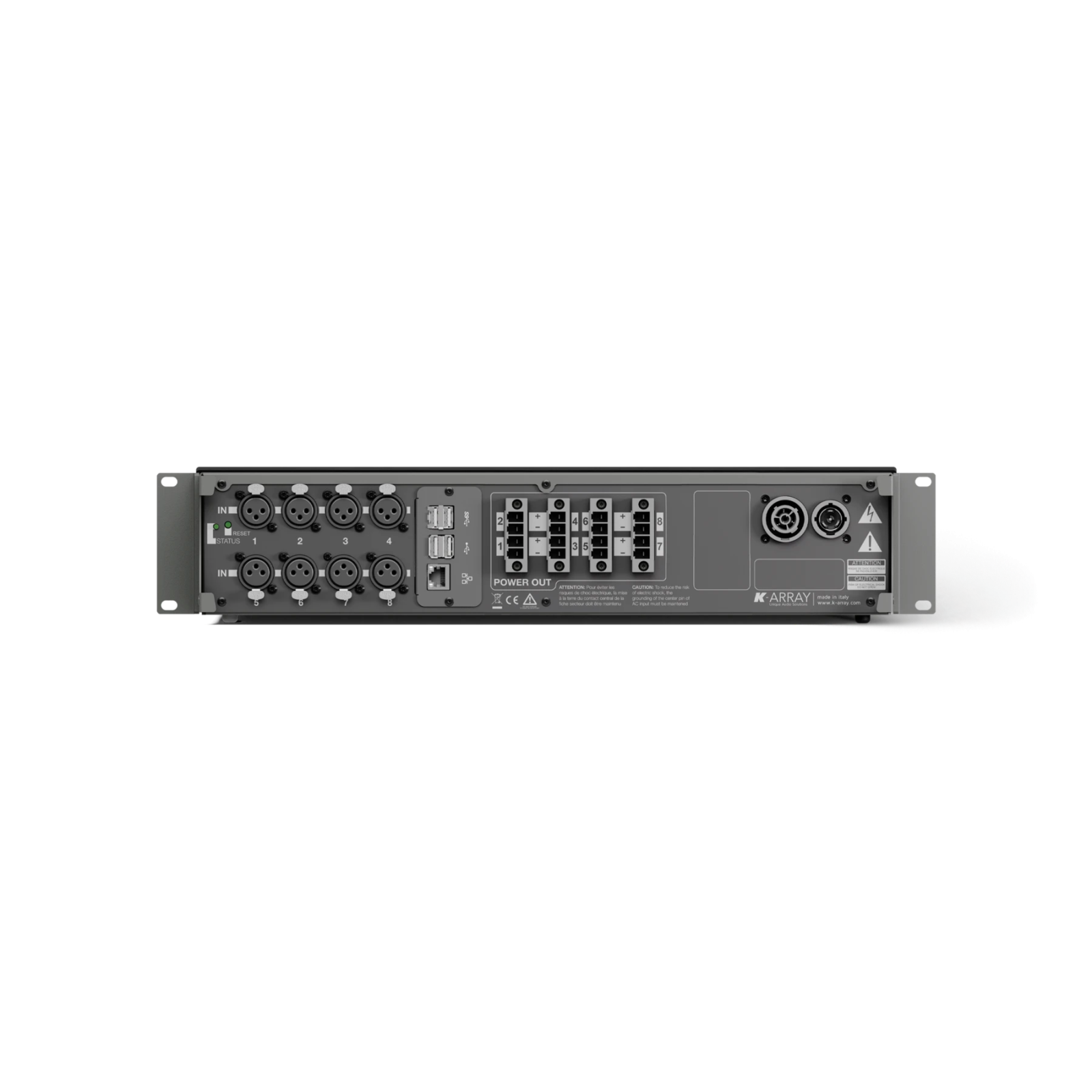

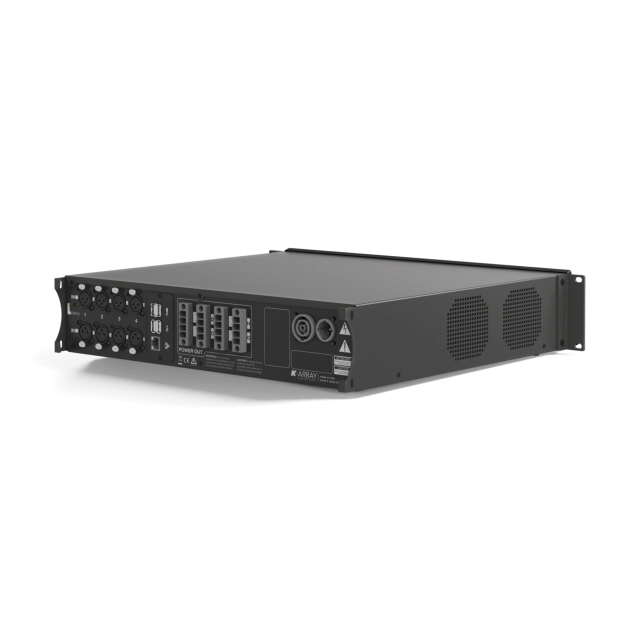

Connectors8x XLR-F bal INPUT | 4x PC 4/ 4-ST-7,62 speaker OUTPUT | 1x Ethernet RJ45 4x USB-A Wi-Fi IEEE 802.11 b/g/n REMOTE CONNECTIVITY | 1x PowerCon TRUE POWER INPUT | 1x PowerCon TRUE LINK
-
Nominal Impedanceminimum 4 Ω
-
MAIN Operating Range100-240V AC, 50-60 Hz with PFC
-
Power Consumption1200 W @ 4 Ω load, Pink noise, 1/8 rated power
-
ProtectionsThermal protection, output short circuit, RMS output current protection, high frequency protection, power limiter, clip limiter
-
Dimensions432 x 87 x 432 mm (16,99 x 3,4 x 16,99 in)
-
Weight10 kg (22 lb)
-
MaterialStainless Steel
-
IP RatingIP20
