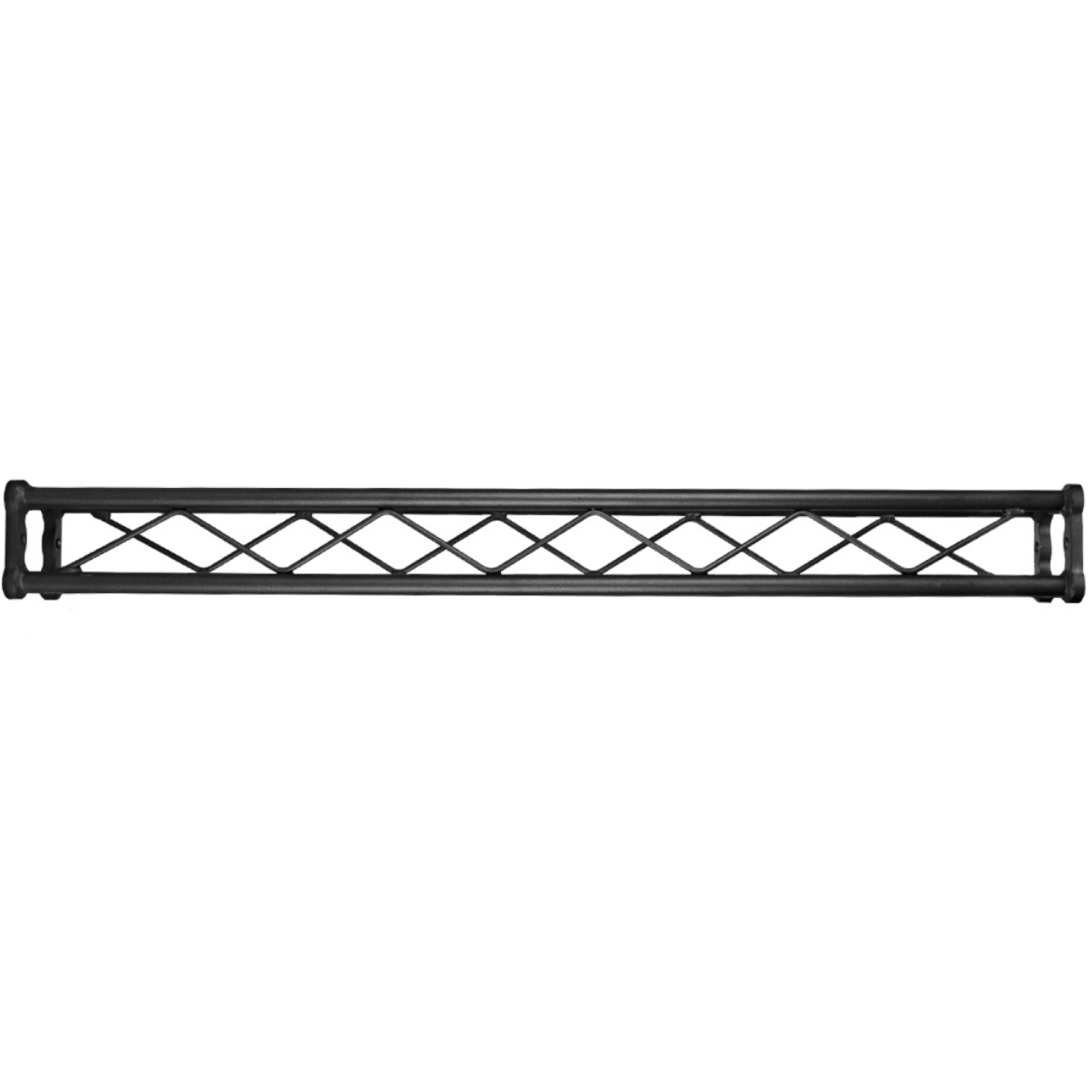

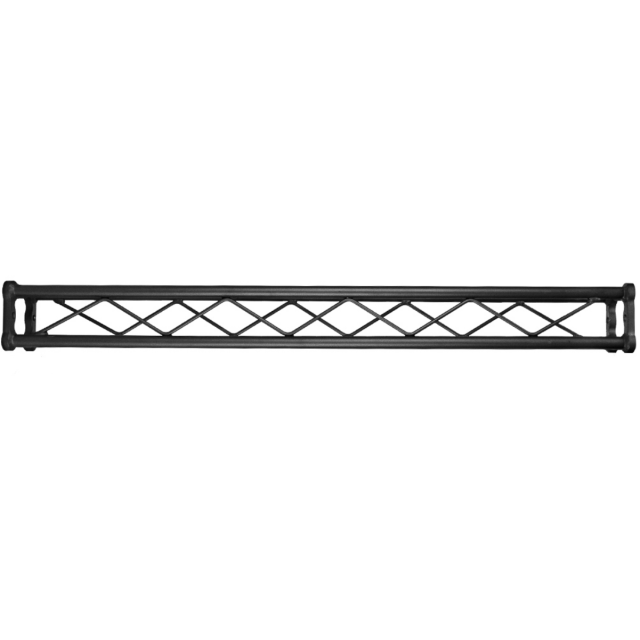

FK11 050B 0,5 Meters Mini Truss black (F70EST248)

Download product sheet

Structure designed for stands or exhibitors where it is not necessary to adapt large loads. Its dimensions of 112 x 112 mm allow to achieve a compact and very firm assembly. Made of aluminum, and available in sections of 0,50 / 1 / 2 / 3 meters To complete the structure, the series incorporates a square cube for the corners and a hinge adapter, in addition to ... Read more

Structure designed for stands or exhibitors where it is not necessary to adapt large loads. Its dimensions of 112 x 112 mm allow to achieve a compact and very firm assembly. Made of aluminum, and available in sections of 0,50 / 1 / 2 / 3 meters To complete the structure, the series incorporates a square cube for the corners and a hinge adapter, in addition to the fixing base for the vertical columns and the connecting connectors between sections.

Collapse text

Buy this product online

Search Google Shopping

Product downloads

Product details

Key features

  • Available in silver and black color.

Specifications

  • Main Tube Diameter
    21 mm / 0,82 in
  • Auxiliary Tube Diameter
    6 mm / 0,23 in
  • Aluminium Thickness
    2 mm / 0,07 in
  • Distribuited Load
    186 Kg / 410,05 lb (6 m section)
  • Deflection (distribuited)
    32 mm / 1,25 in (6 m section)
  • Point Load
    173 Kg / 381,39 lb (6 m section)
  • Deflection (point)
    46 mm / 1,81 in (6 m section)
  • Dimensions
    112 x 112 x 500 mm / 4,40 x 4,40 x 19,68 in
  • Weight
    0,7 Kg / 1,54 lbs
  • Material
    Aluminum
  • Color
    Black
  • More Less
