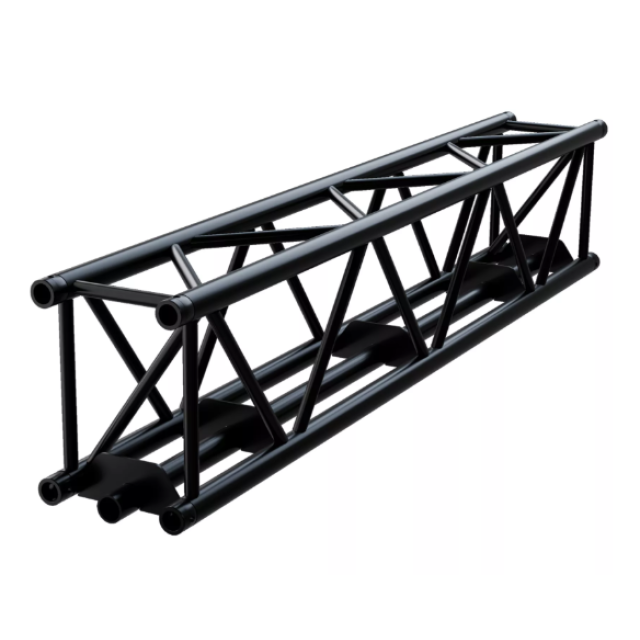

FK3040R 2m Black Rectangular R200 Truss, F SERIES (F70FKR200B)
Download product sheetSection of aluminium square truss structure measuring 400 mm high and 300 mm wide, manufactured with main tube of 50 mm in diameter and 4 mm thick, and auxiliary tube of 25 mm in diameter and 3 mm thick. Especially suitable for assemblies with led screens. CBC50 conical connection system. It is available in 0.5 m, 1 m, 2 m, and 3 m lengths, and in silver or bl... Read more
Section of aluminium square truss structure measuring 400 mm high and 300 mm wide, manufactured with main tube of 50 mm in diameter and 4 mm thick, and auxiliary tube of 25 mm in diameter and 3 mm thick. Especially suitable for assemblies with led screens. CBC50 conical connection system. It is available in 0.5 m, 1 m, 2 m, and 3 m lengths, and in silver or black. Includes 4 double cones, 4 pins, 4 threaded pins and 4 'R' safety clips. F SERIES compatible.
Collapse textProduct downloads
Product details
Key features
- Standard sizes: 0.5 / 1 / 2 / 3 m
- Other sizes available upon request
- Available in silver or black
- Other colours available upon request
Specifications
-
Main Tube Section50x4 mm/ 50x4 mm
-
Main Tube AlloyEN AW 6082T6
-
Braces Section25x3 mm/ 25x3 mm
-
Braces AlloyEN AW 6082T6
-
Weight12,05 kg/m
-
Surface Area Complete Truss28,9 cm²
-
Coupling SystemCBC50
-
1.64 feet (0.5m) - Weight7,26 kg
-
3.28 feet (1m) - Weight12,61 kg
-
6.56 feet (2m) - Weight22,16 kg
-
9.84 feet (3m) - Weight31,96 kg
-
1.64 feet (0.5m) - Volume0,06 m³
-
3.28 feet (1m) - Volume0,12 m³
-
6.56 feet (2m) - Volume0,24 m³
-
9.84 feet (3m) - Volume0,36 m³
-
ColourBlack
- More Less
