FP29P R200 2 Meters Parallel Truss Section (ES292P)

Download product sheet

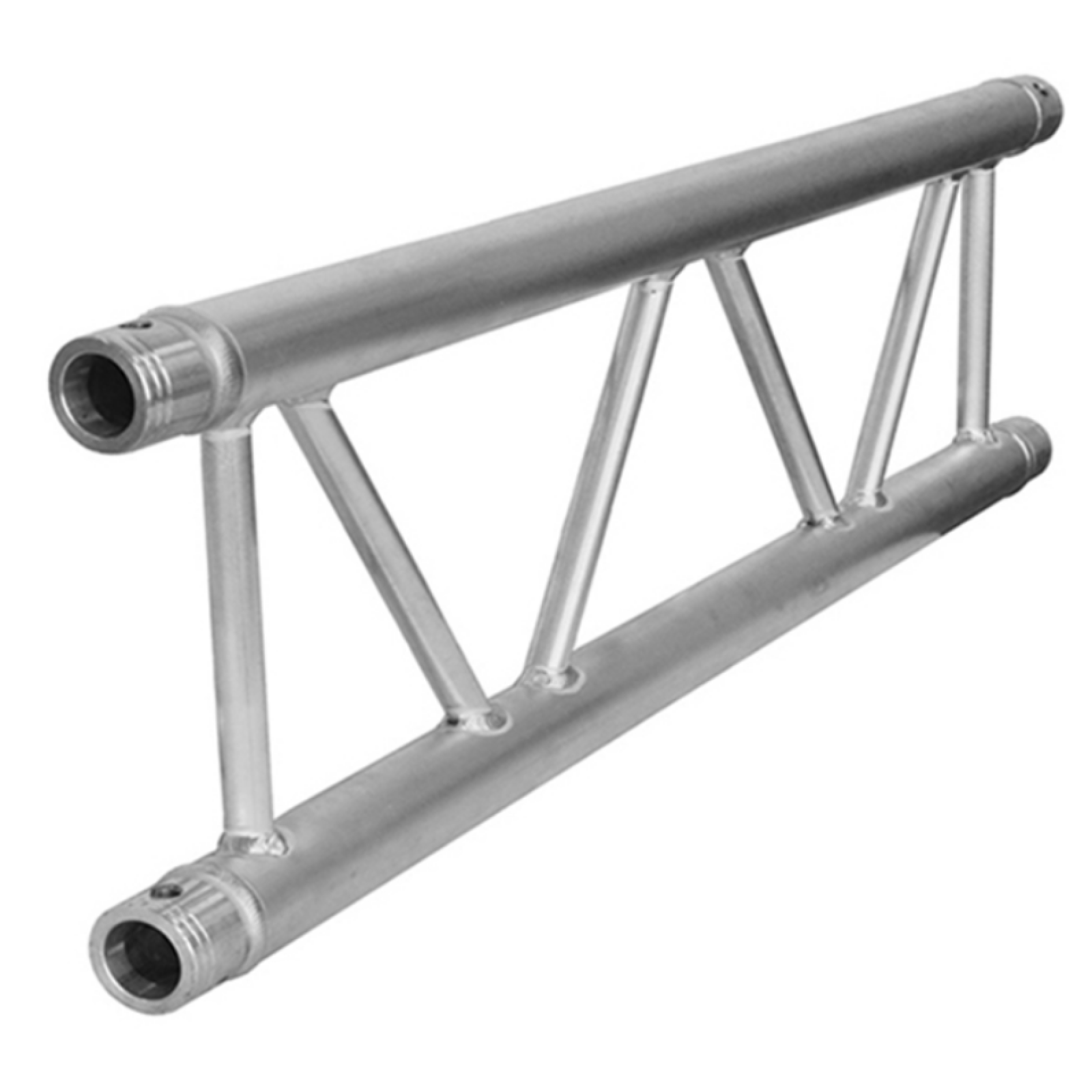

Parallel truss section with a 29 cm square profile, manufactured with a main tube of 50 mm diameter and 2 mm in thickness, and an auxiliary tube of 16 mm diameter and 2 mm in thickness. Available in different lengths. Supplied with 2 double-cone connectors, 2 pins, 2 threaded pins, and 2 “R” safety clips. Fully compatible with the FP SERIES.

Parallel truss section with a 29 cm square profile, manufactured with a main tube of 50 mm diameter and 2 mm in thickness, and an auxiliary tube of 16 mm diameter and 2 mm in thickness. Available in different lengths. Supplied with 2 double-cone connectors, 2 pins, 2 threaded pins, and 2 “R” safety clips. Fully compatible with the FP SERIES.

Buy this product online

Search Google Shopping

Product downloads

Product details

Key features

  • Standard dimensions: 0.5 - 1 - 2 - 3 Meters / 1,64 - 3,28 - 6,56 - 9,84 Feet
  • Other sizes available upon request.
  • Available in silver and black color.
  • Other colours available upon request.

Specifications

  • Main Tube Section
    50 x 2 mm / 1.97 x 0.079 in
  • Braces Section
    16 x 2 mm / 0.62 x 0.079 in
  • Braces Alloy
    EN AW 6082T6
  • Weight
    2,6 kg/m - 1.747 lb/ft
  • Complete Truss Surface Area
    6,03 cm² / 0,9347 in²
  • Coupling System
    CBC50P
  • Weight
    5,2 kg / 11,46 lb
  • Volume
    0,0290 m³ / 1,024 ft³
  • Material
    Aluminium
  • Color
    Silver
