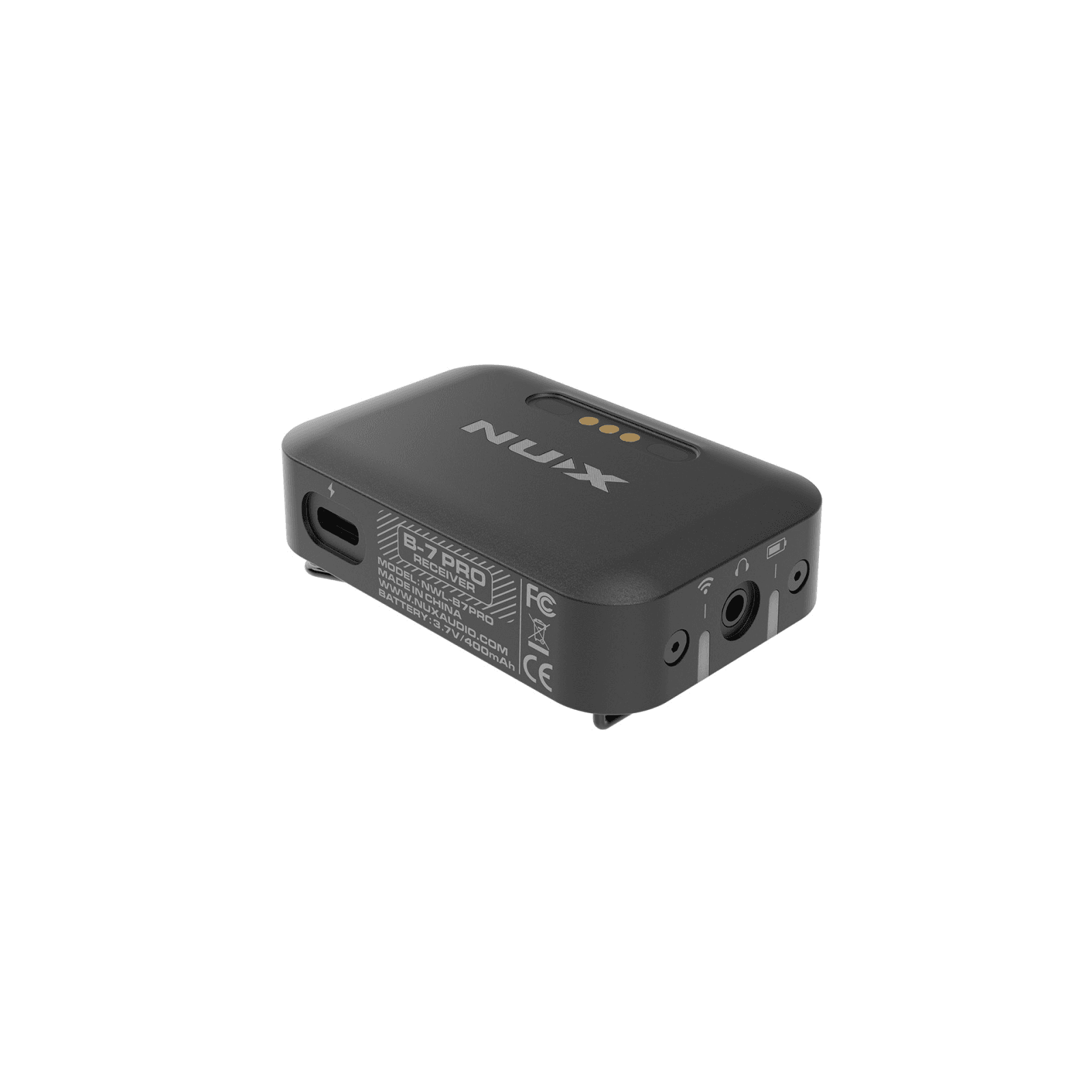

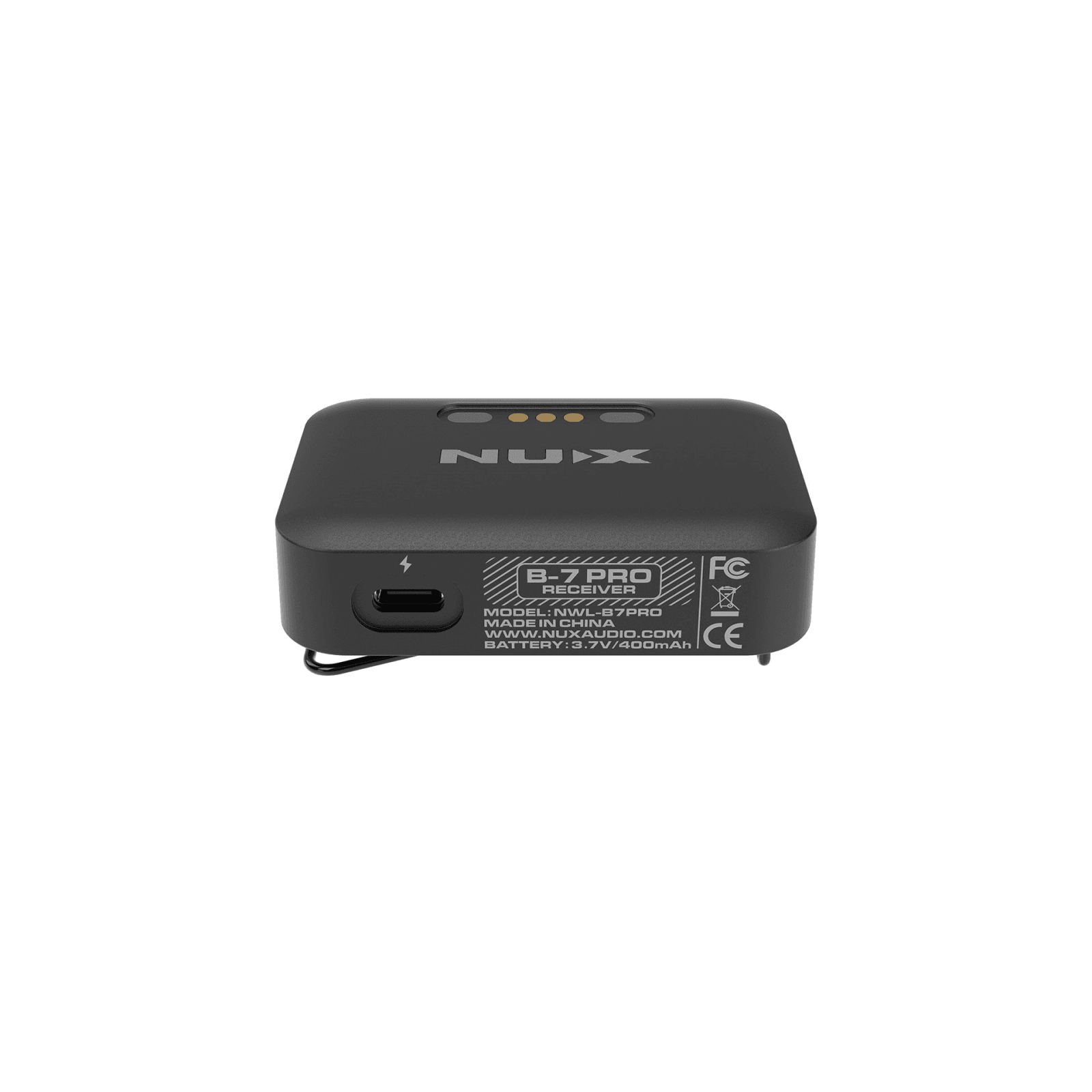

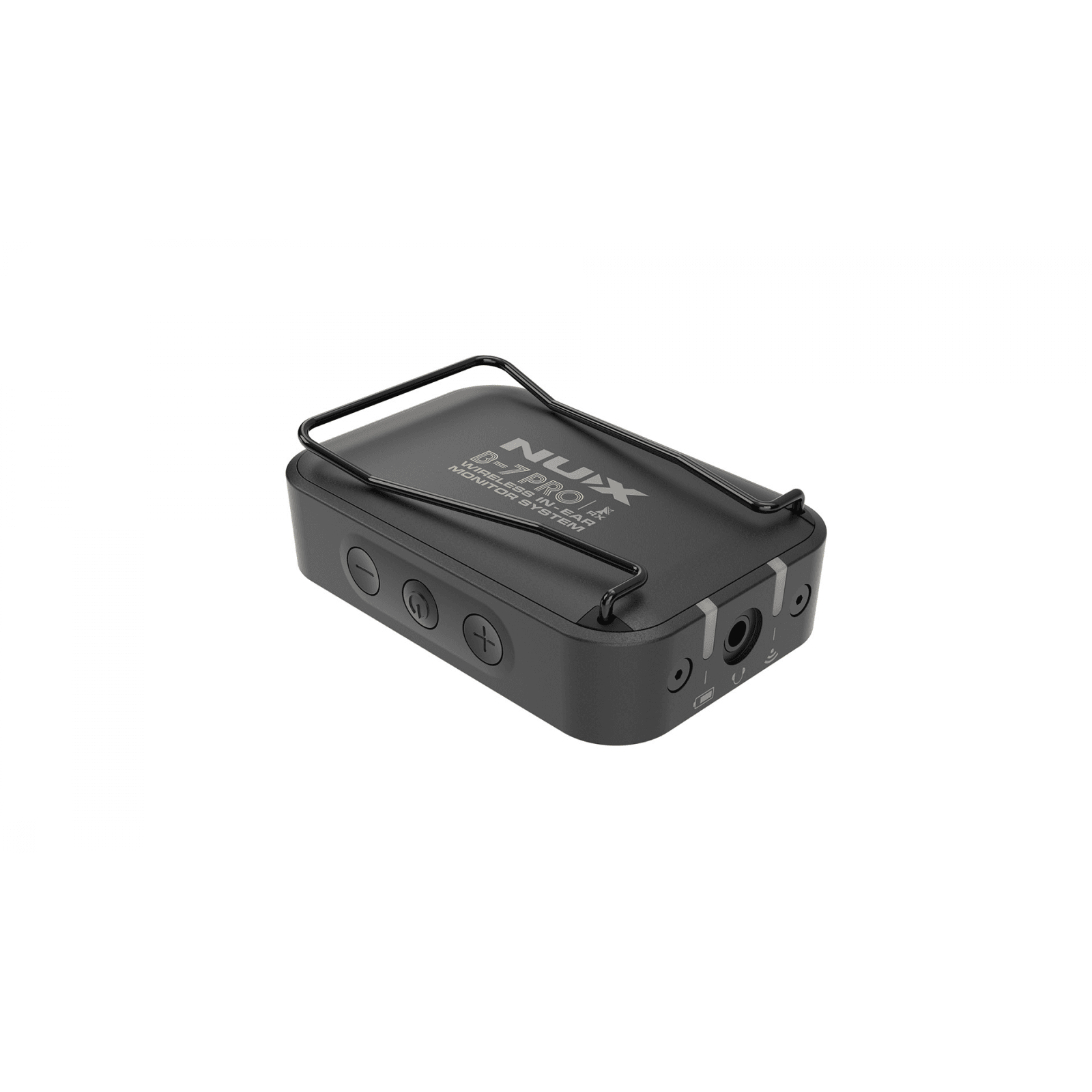

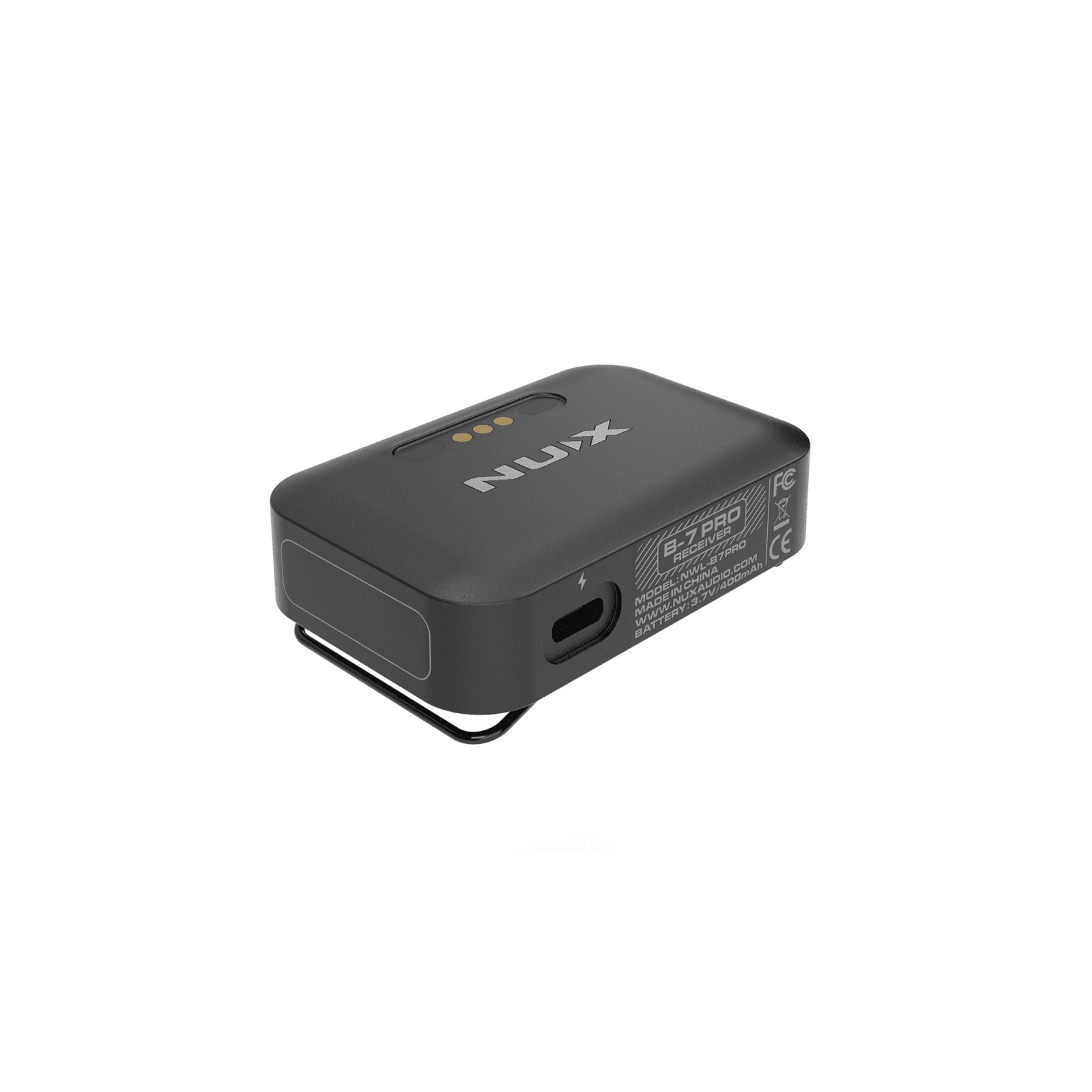

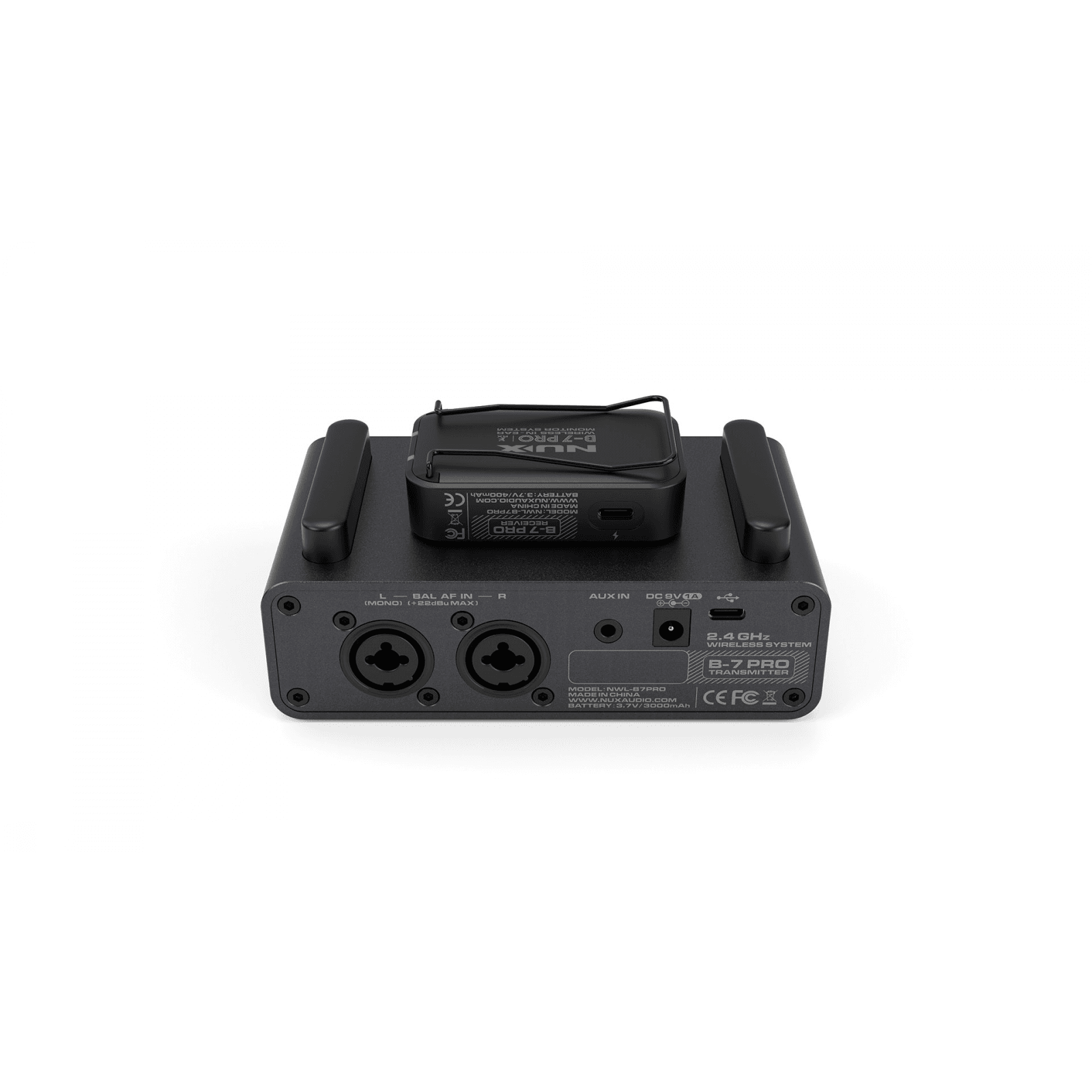

B-7 PRO Professional personal wireless In-Ear monitor system
Download product sheetThe NUX B-7 PRO is a personal wireless in-ear monitor system with automatic setup, 2.4 GHz interference-free broadcasting frequency, and 24-bit 48 kHz high-quality stereo audio. The signal transmitting latency is as low as 7.3ms at peak performance. The operation range is up to 50 meters (160-feet).
The NUX B-7 PRO is a personal wireless in-ear monitor system with automatic setup, 2.4 GHz interference-free broadcasting frequency, and 24-bit 48 kHz high-quality stereo audio. The signal transmitting latency is as low as 7.3ms at peak performance. The operation range is up to 50 meters (160-feet).
Media
Highlights
High quality stereo audio monitor
Automatic setup and friendly matching
High definition color-LCD display
Long distance, Low latency
With the latest transmitting technologies, the B-7 PRO wireless system has the best performance for musicians. The latency is as low as 7.3ms when you set the transmitting at LOW LATENCY. The operation range is up to 50 meters (160-feet).
Stable mode for anti-interference
To achieve the best performance, you can adjust the transmitting parameter between LOW LATENCY and STABLE. To avoid interference, please check if there is any Wi-Fi device around the TX&RX. It will be better for TX&RX to stay 0.8~1.0 meter away from any other 2.4GHz device to acheive the best performance.
Long battery lifetime with easy recharging system
The B-7 PRO features large Li-ion batteries inside the TX & RX. The battery lifetime is as long as 6 hours. You can easily put the RX on the top of the TX to recharge it. Super convenient for you to fully recharge it.
USB audio recording
Product details
Key features
- High quality stereo audio monitor with long distance and low latency
- Automatic setup and friendly matching
- High definition color-LCD display
- Stable mode for anti-interference
- Long battery lifetime with easy reacharging system
- USB audio recording
Specifications
-
Operating Frequency Band2400-2483.5MHz
-
Transmit ModeFrequency Hopping
-
Audio Quality24bit/48kHz
-
Frequency Response20Hz-20kHz
-
Latency7.33ms (low latency setting) - 10.85ms (default) -14.33ms (safe setting)
-
Unbalanced Input lmpedance10kΩ
-
Balanced Input lmpedance20kΩ
-
Dynamic Range110dB A-weighted
-
Built-in Battery CapacityRechargeable Li-polymer (Transmitter 3.7V/3000mAh, receiver 3.7V/400mAh)
-
Battery LifetimeTX
-
Power RequirementsDC 9V, 1A min, negative tip power supplies (Transmitter)
-
Operation RangeUp to 50 m
- More Less
