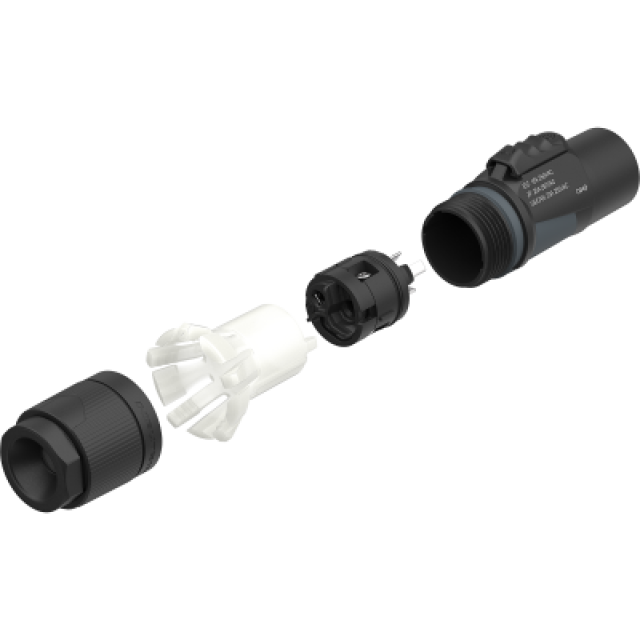

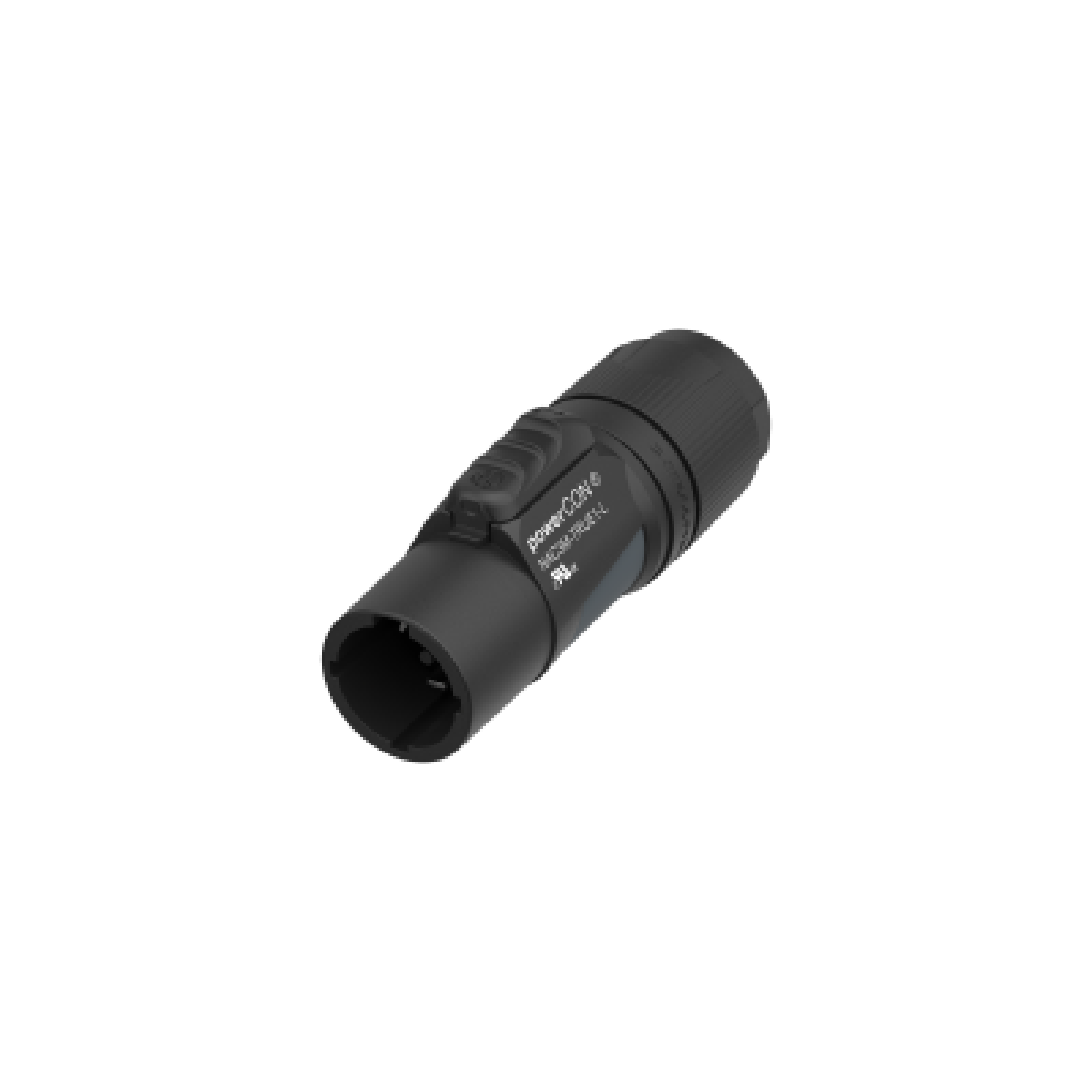

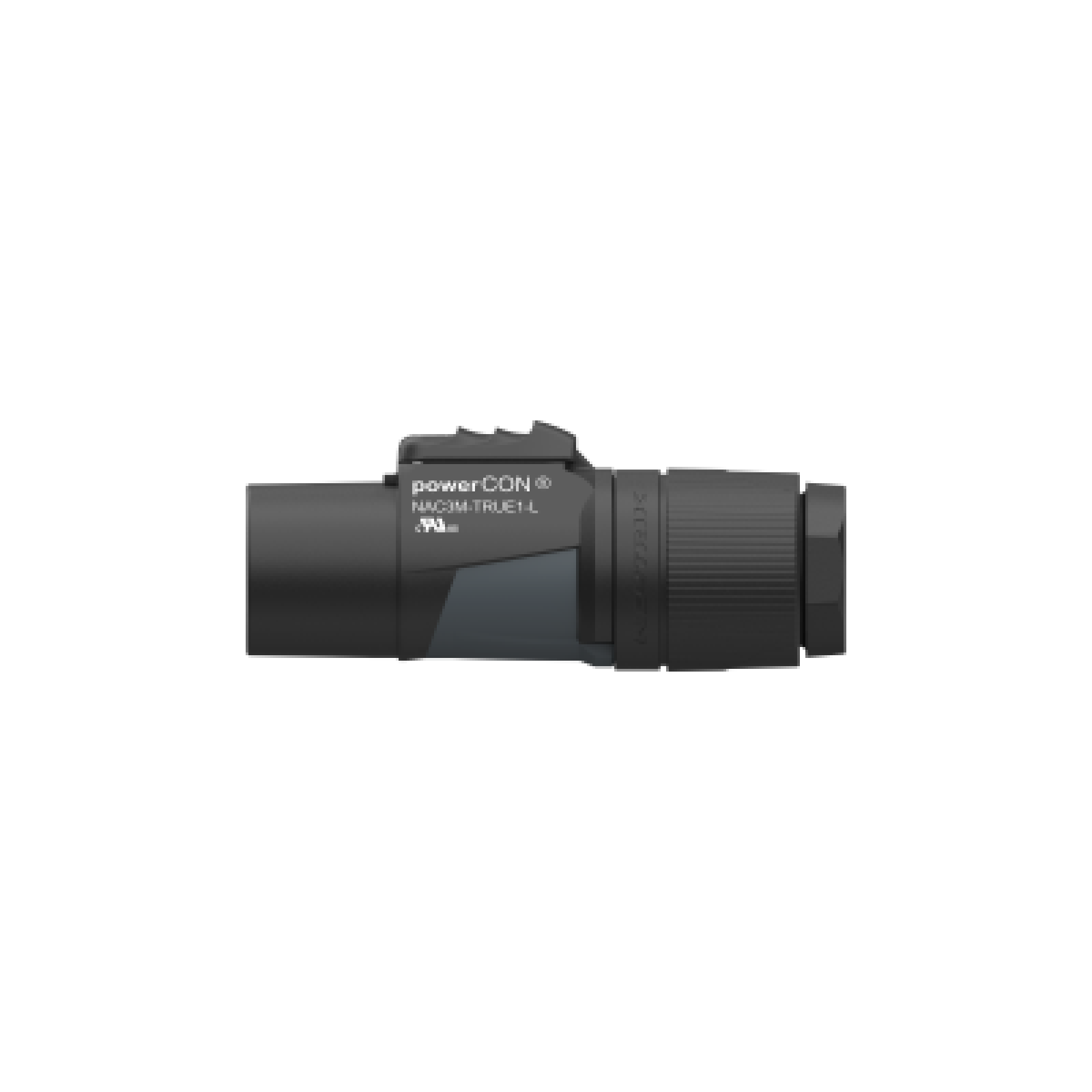

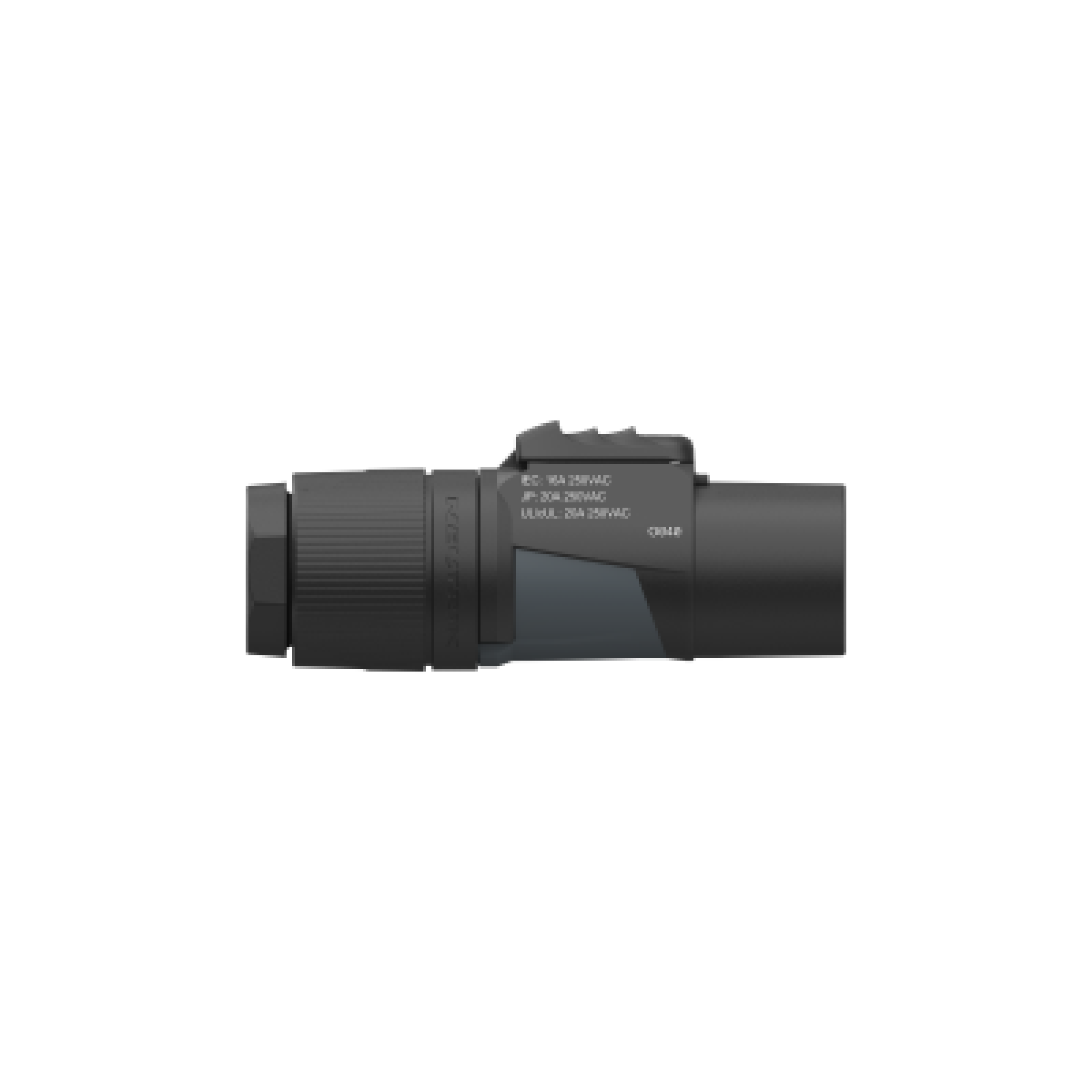

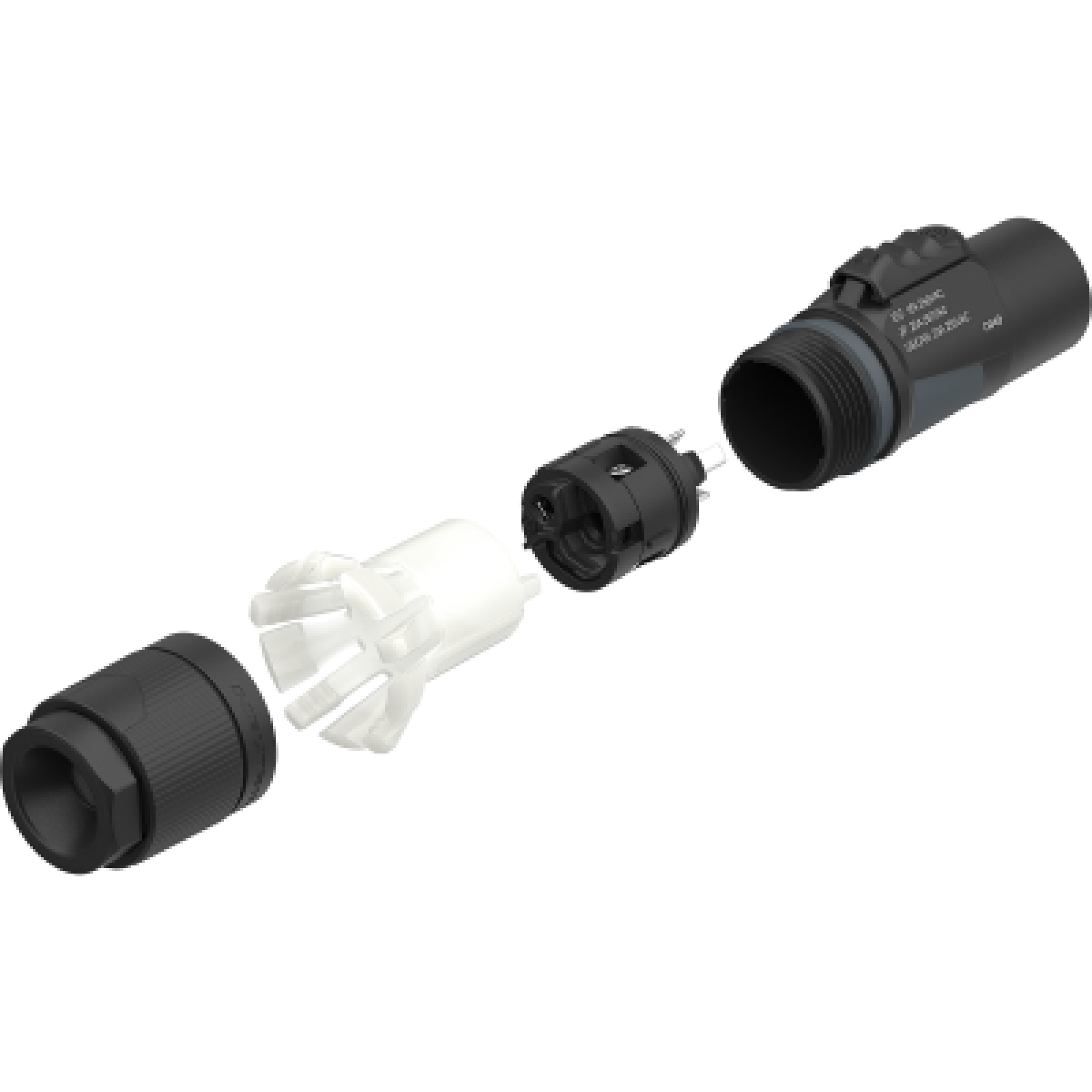

NAC3M-TRUE1-L powerCON TRUE1 Male Cable Connector - Cable diameters 10 mm to 16 mm
Download product sheetThe powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected und... Read more
The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. Collapse text
Product downloads
Product details
Key features
- Heavy duty sealed power connector for harsh and demanding environment
- Uses high impact UV-resistant materials
- Lockable single phase connector
- Extremely robust and reliable
- ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
- UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
- UL Certified According to UL 498
- IP65 and IP67 (mated or with closed cap)
- True mains connector with breaking capacity (CBC)
- Easy and reliable twist lock system
- Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm (0.39 – 0.63 inches)
- More Less
Specifications
-
Product familypowerCON TRUE1
-
Contact resistance; ≤ 2 mΩ
-
Dielectric strength4 kVdc / 2.8 kVac
-
Insulation resistance>0.1GΩ (after damp and heat test IEC 68-2-30)
-
Number of electrical contacts2 + PE
-
Rating Europe16 A / 250 V AC according to EN IEC 60320-1
-
Rating America20 A / 250 V AC according to UL 60320-1; 20 A / 250 V AC according to CSA C22.2 No. 60320-1; 20A/ 250 V AC according to UL 498
-
Cable O.D.10 - 16 mm (0.39 – 0.63 inches)
-
Lifetime> 5000 mating cycles
-
Wiresize (mm²)1.5 – 2.5mm²
-
Wiresize (AWG)14 - 12 AWG
-
Contact plating2 μm Ag
-
Locking elementPolyamide (PA 66)
-
ContactsCopper Alloy
-
InsertPolyamide (PA 66)
-
ShellPolyamide (PA 66)
-
Strain reliefPolyketon
-
FlammabilityUL 94 V-0
-
Protection classIP 65 / 67 (mated or with closed caps)
-
UV resistanceF1 rated material withstands UV exposure
-
Temperature range-30°C to +80°C according to IEC 61984; -5°C to +40°C according to IEC 60320-1
- More Less
