38535 4 Port HDMI 8K60 Splitter with Audio & Downscaling

Download product sheet

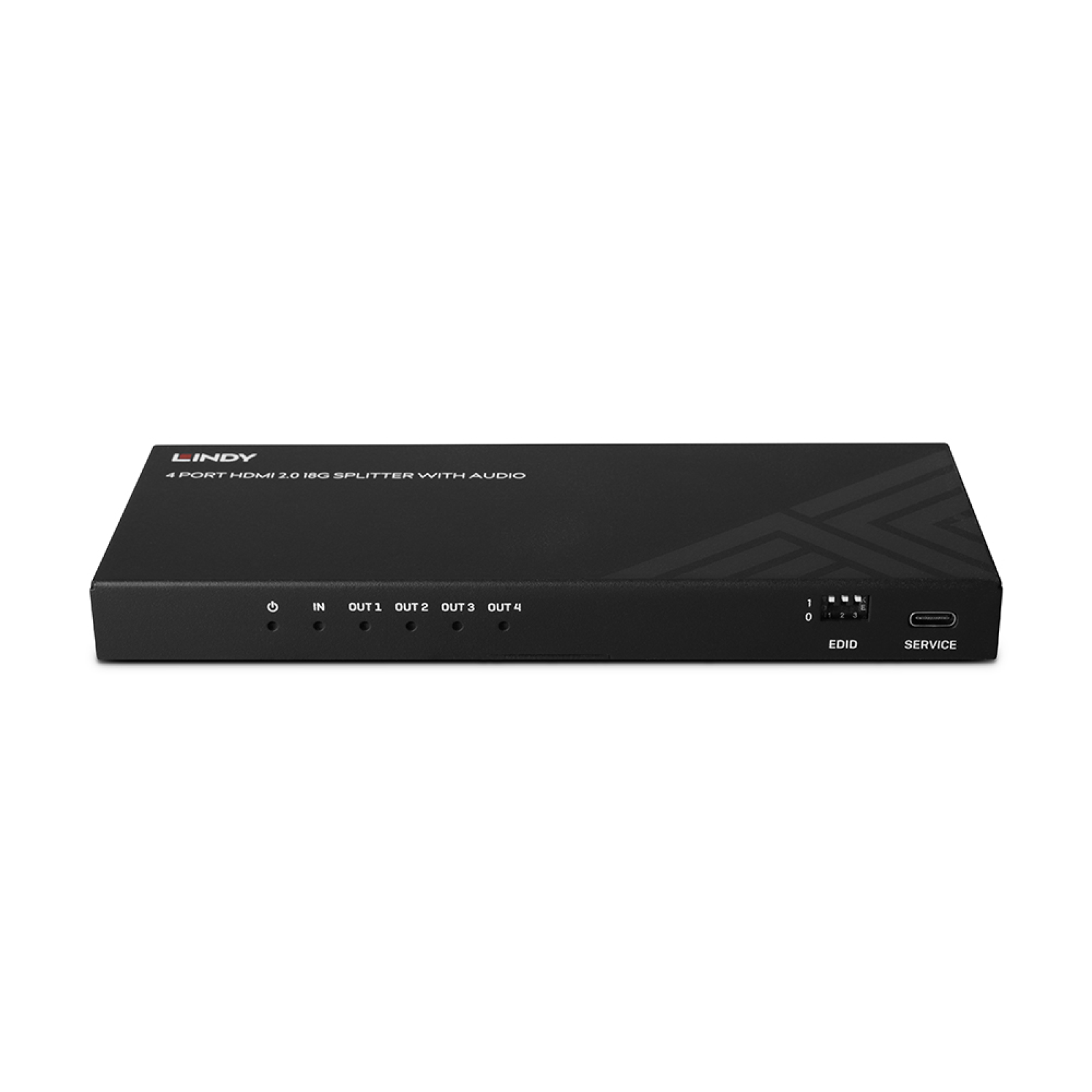

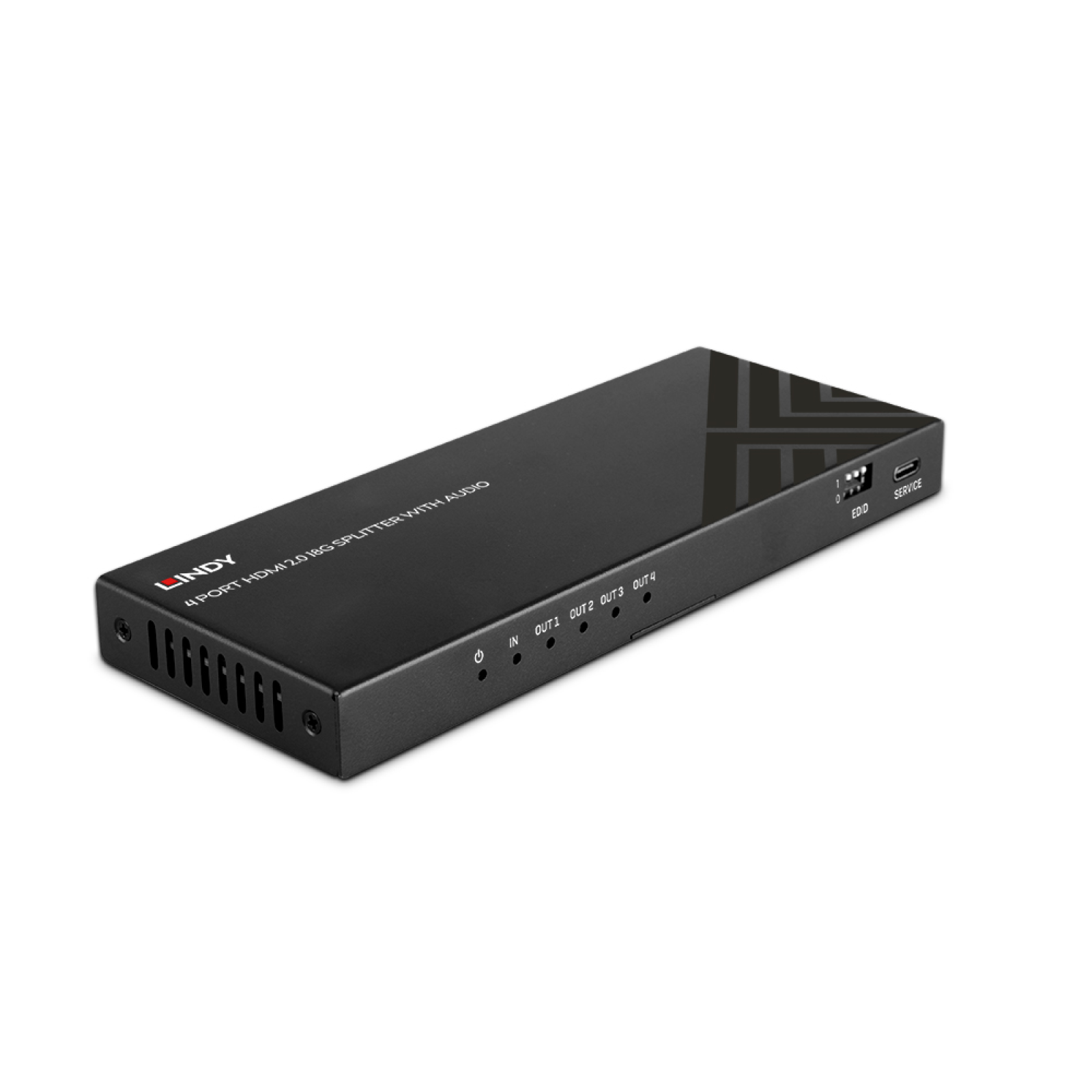

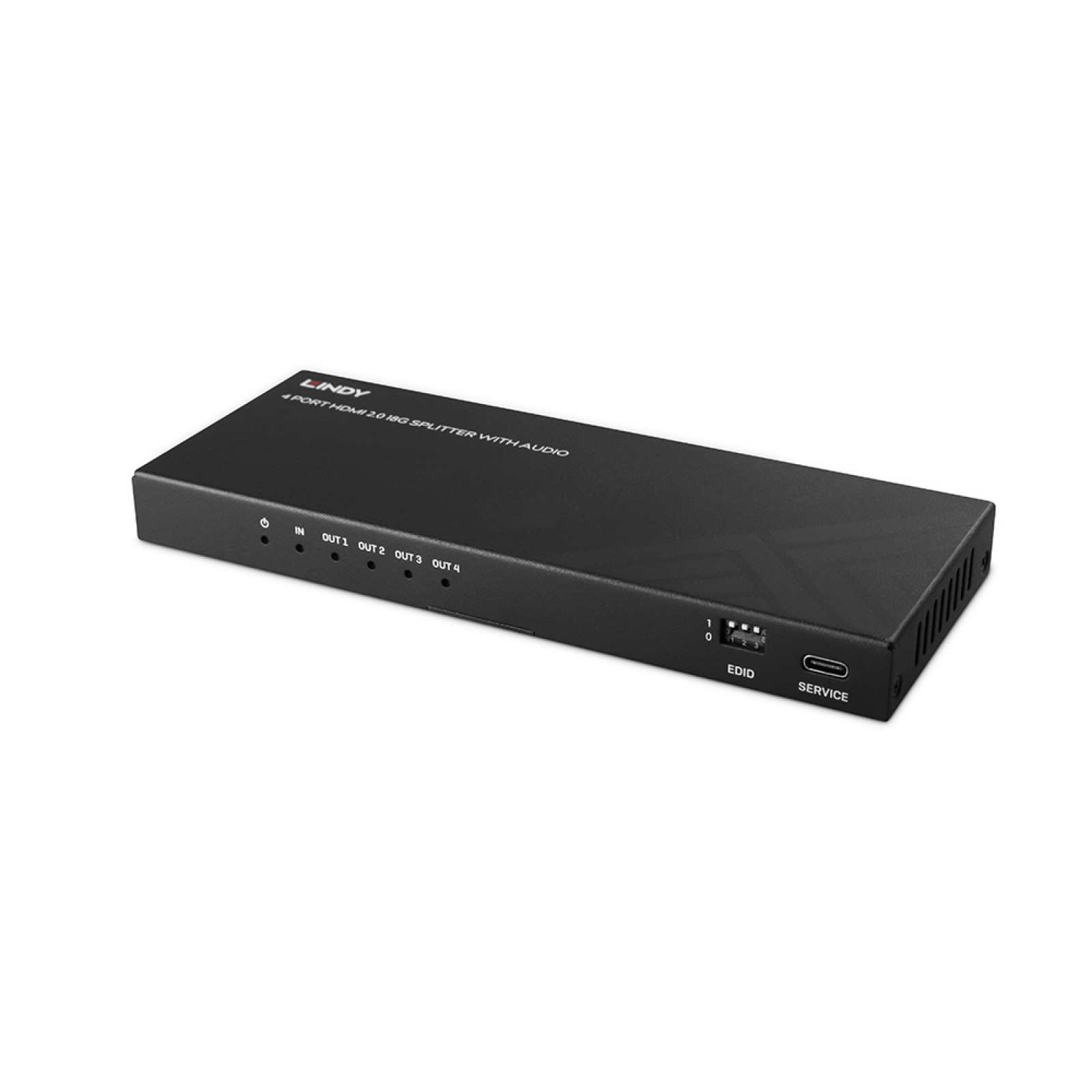

The Lindy 4 Port HDMI® 8K60 Splitter with Audio is a multi-function solution for distributing high quality HDMI® signals across 4 displays simultaneously from one source device, while extracting digital or analogue audio separately.

With support for resolutions up to 8K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching quad display digital sig... Read more

The Lindy 4 Port HDMI® 8K60 Splitter with Audio is a multi-function solution for distributing high quality HDMI® signals across 4 displays simultaneously from one source device, while extracting digital or analogue audio separately.

With support for resolutions up to 8K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching quad display digital signage in retail scenarios, displaying live video across four screens at event venues or distributing engaging multiscreen educational presentations at tradeshows.

The splitter also has separate optical and 3.5mm audio ports to easily extract audio from HDMI® to connect non-HDMI® amplifiers or soundbars, ideal for supporting video with immersive multichannel audio.

The splitters also features an integrated switch to downscale the input signal to 4K or Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Collapse text

Product downloads

Product details

Key features

  • Displays HDMI® signals across 4 displays simultaneously from one source device
  • Supports resolutions up to 8K 60Hz 4:4:4, with additional support for HDR
  • Extract digital and analogue audio from HDMI® for non-HDMI® amplifiers
  • DIP Switches for output EDID adjustment
  • 2 year warranty

Specifications

  • AV Interface
    HDMI®
  • Supports Bandwidth
    48Gbps as specified in HDMI® 2.1
  • Maximum Resolution
    7680x4320@60 Hz 4:4:4 8bit
  • HDCP Support
    2.3
  • Supported Audio
    Audio Pass-through; LPCM 2CH; Up to 7.1CH (Optical)
  • Separate Audio Ports
    3.5mm (Female); Toslink (Optical)
  • Special Features
    Downscaler Function
  • Input
    HDMI® Type A (Female)
  • Output

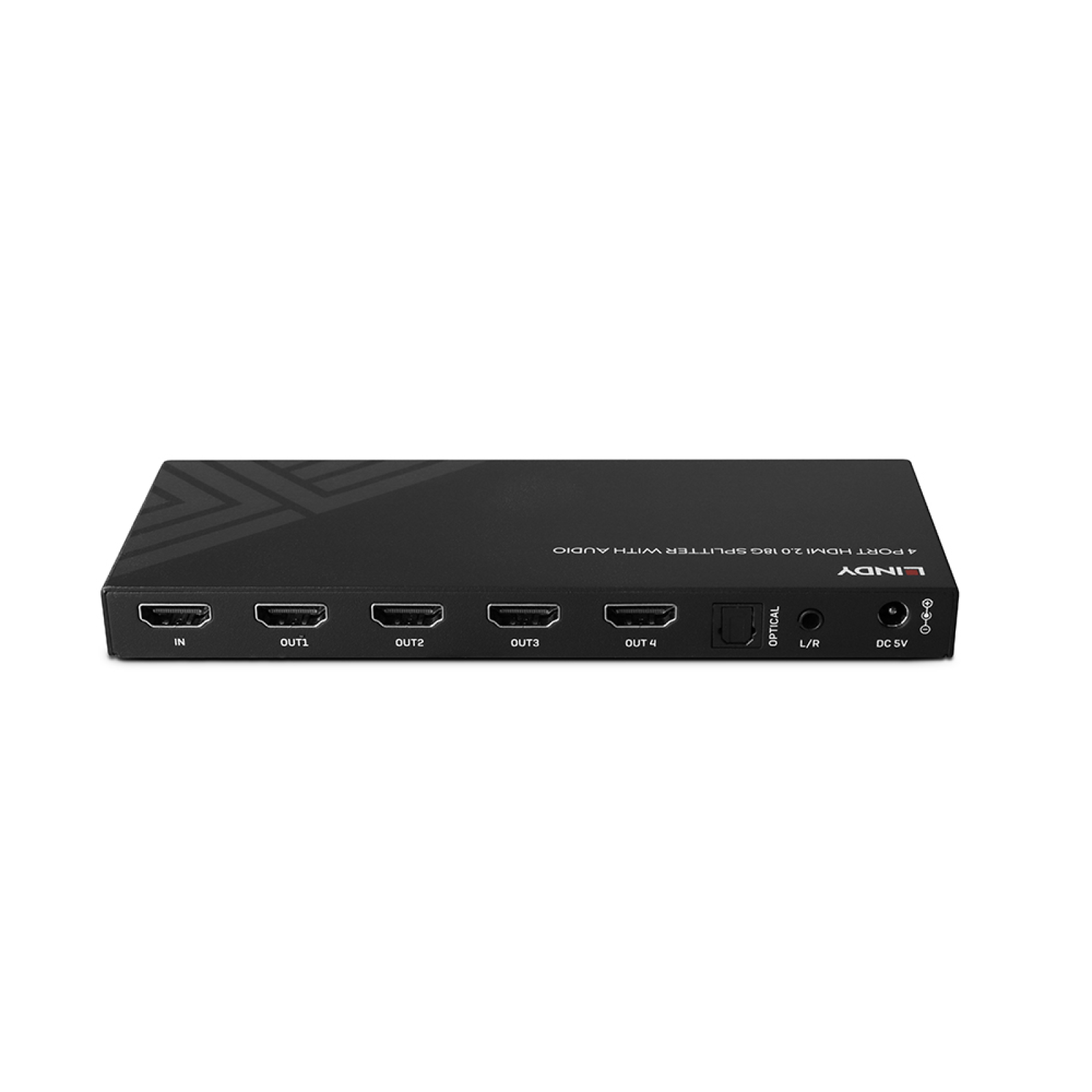

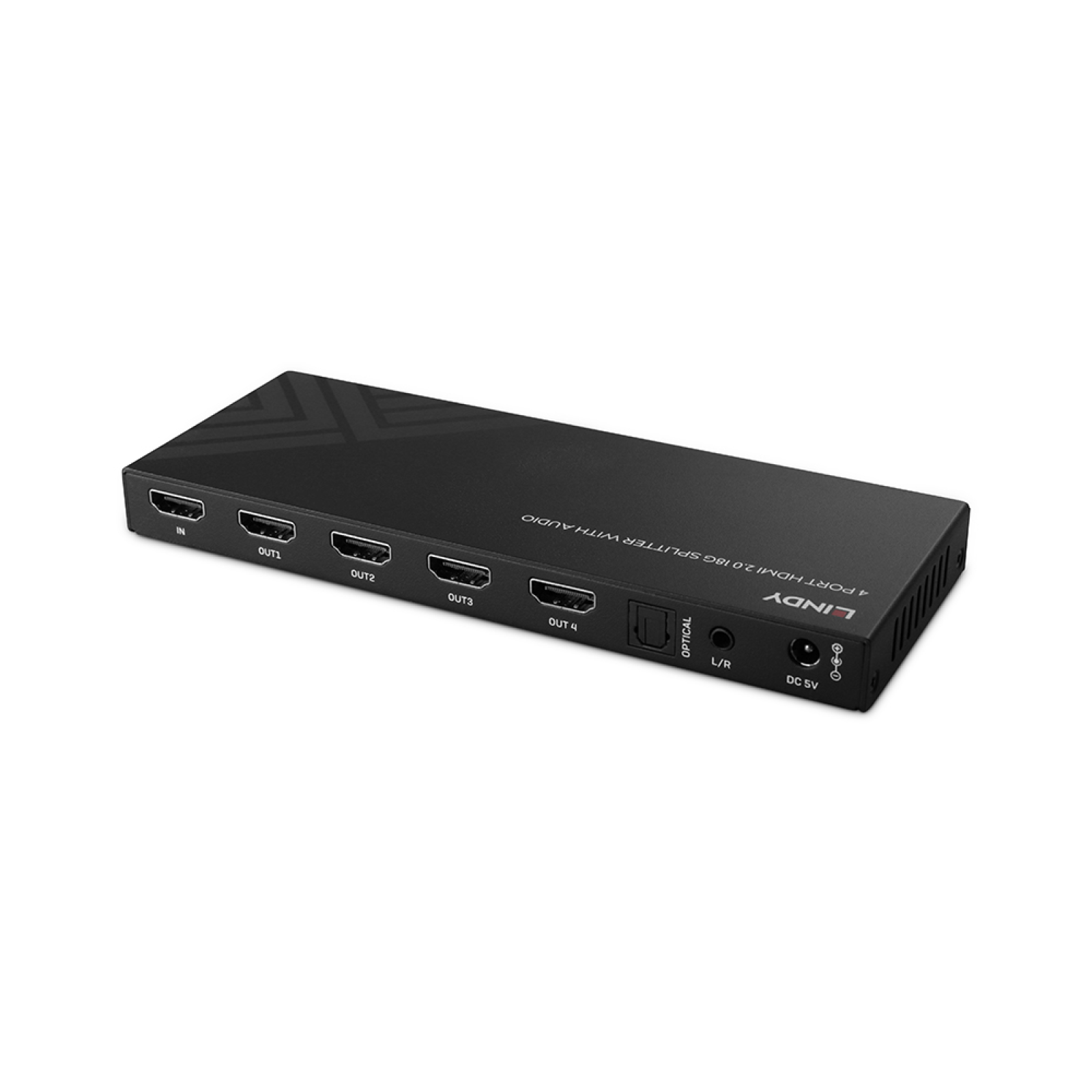

    4 x HDMI® Type A (Female), Toslink (Optical), 3.5mm (Female)
  • Power
    5.5/2.5mm
  • Dimensions (approx.) WxDxH
    176x17x68mm (6.93x0.67x2.68in)
  • Housing Material
    Metal
  • Net Weight
    0.375kg (0.83lb)
  • Operating Temperature
    0°C - 40°C (32°F - 104°F)
  • Storage Temperature
    -20°C - 60°C (-4°F - 140°F)
  • Humidity
    20 - 90% RH (Non condensing)
  • Power Requirements
    5VDC 2A
  • Colour
    Black
  • More Less
