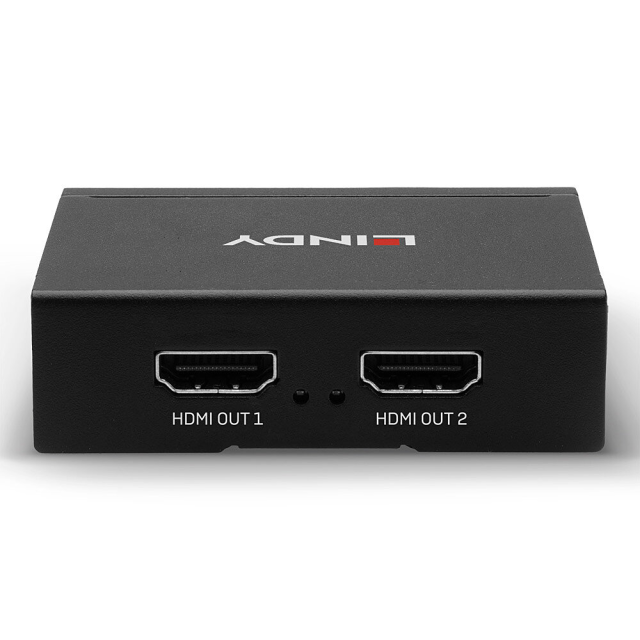

38158 4K HDMI 2-Port 3D Splitter, 2160p30
Download product sheet10.2G HDMI® Splitter for distributing 4K Ultra HD signals from a single source to two screens. It supports resolutions up to 3840×2160 @60Hz, 4:2:0, making it ideal for small to medium installations in shops, bars, or conference rooms. The EDID management feature simplifies installation by optimizing compatibility with different displays and can be connected t... Read more
10.2G HDMI® Splitter for distributing 4K Ultra HD signals from a single source to two screens. It supports resolutions up to 3840×2160 @60Hz, 4:2:0, making it ideal for small to medium installations in shops, bars, or conference rooms. The EDID management feature simplifies installation by optimizing compatibility with different displays and can be connected to any HDMI® source such as media players, satellite receivers, consoles, etc.
Its compact metal design allows easy installation even in tight spaces, for example behind a screen.
HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress, and the HDMI logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Collapse textProduct downloads
Product details
Key features
- Sends an HDMI® signal to 2 screens
- Supports resolutions up to 4K 60Hz, 4:2:0
- EDID management
- Compact design
- 2-year warranty
Specifications
-
AV InterfacesHDMI®
-
Interface StandardHDMI® 1.4
-
Supported Bandwidth10.2 Gbps
-
Maximum Resolution3840×2160 @60Hz, 4:2:0, 8-bit
-
HDCP Support1.4
-
Audio SupportPass-through
-
InputsHDMI® Type-A (Female)
-
Outputs2 × HDMI® Type-A (Female)
-
Power Supply Connector5.5/2.1 mm
-
Dimensions (approx. W×D×H)70 × 60 × 20 mm (2.76 × 2.36 × 0.79 in)
-
MaterialMetal
-
Net Weight0.238 kg (0.52 lb)
-
Operating Temperature0°C – 40°C (32°F – 104°F)
-
Storage Temperature-20°C – 60°C (-4°F – 140°F)
-
Humidity20–90% RH (non-condensing)
-
Power Supply5V DC, 1A
-
ColorBlack
-
