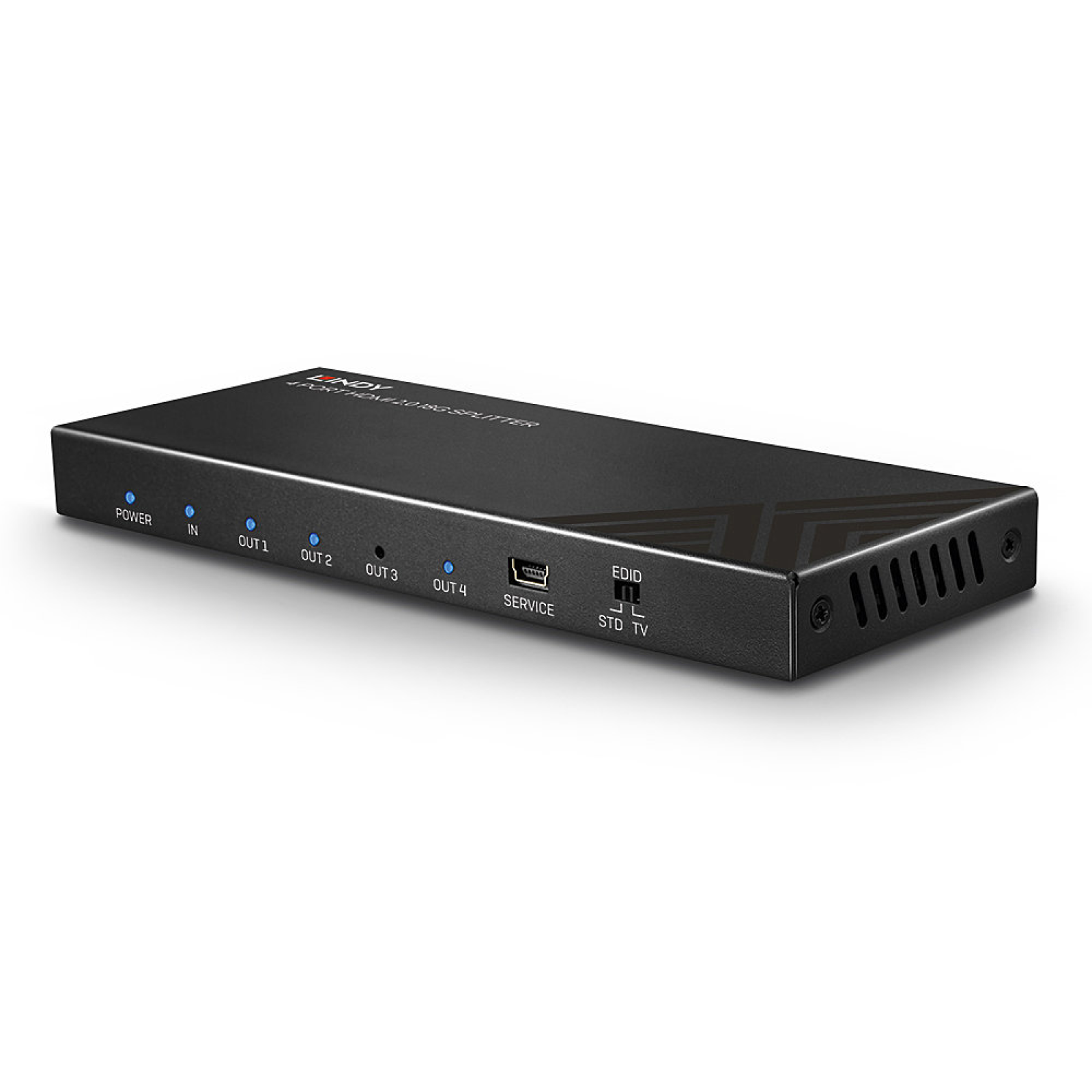

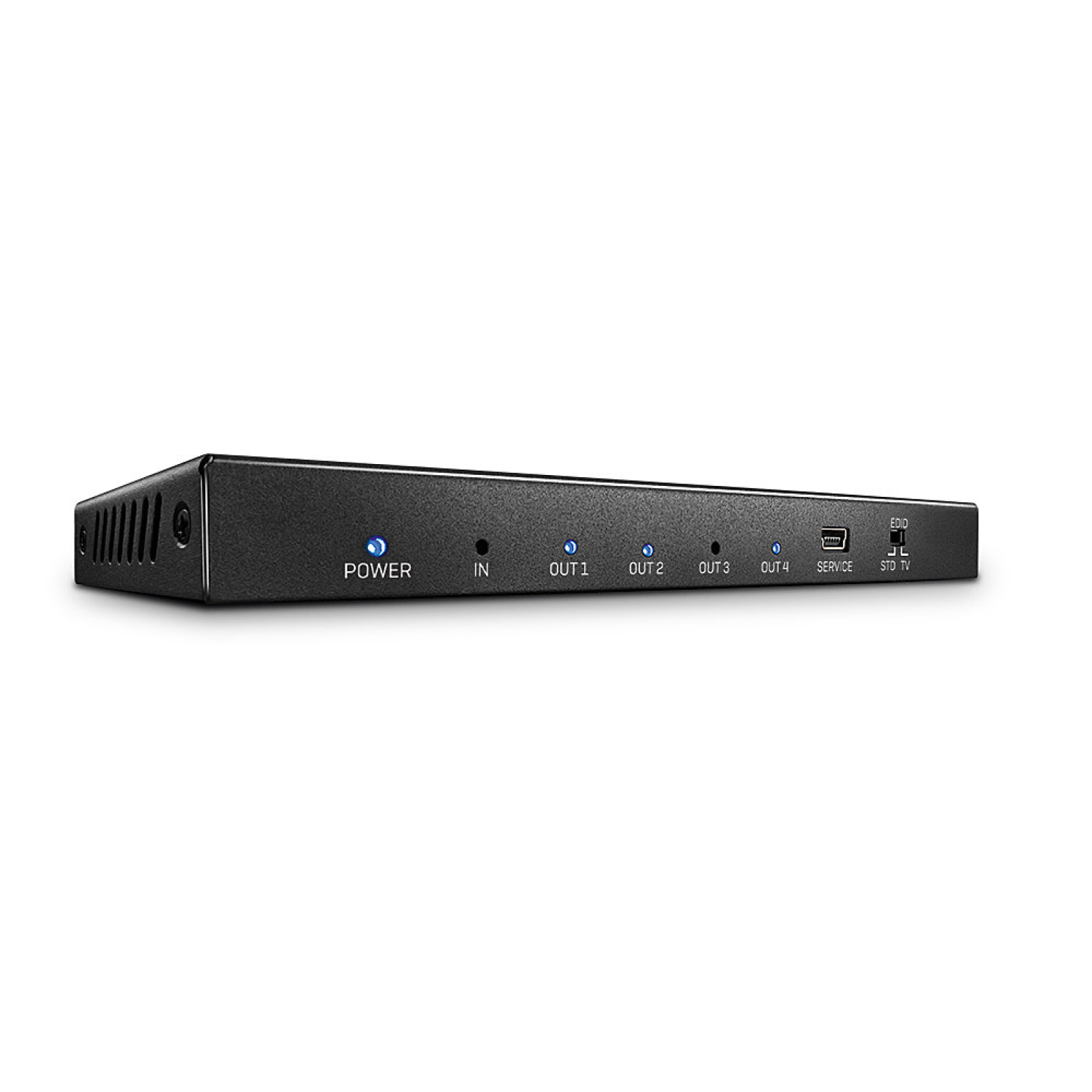

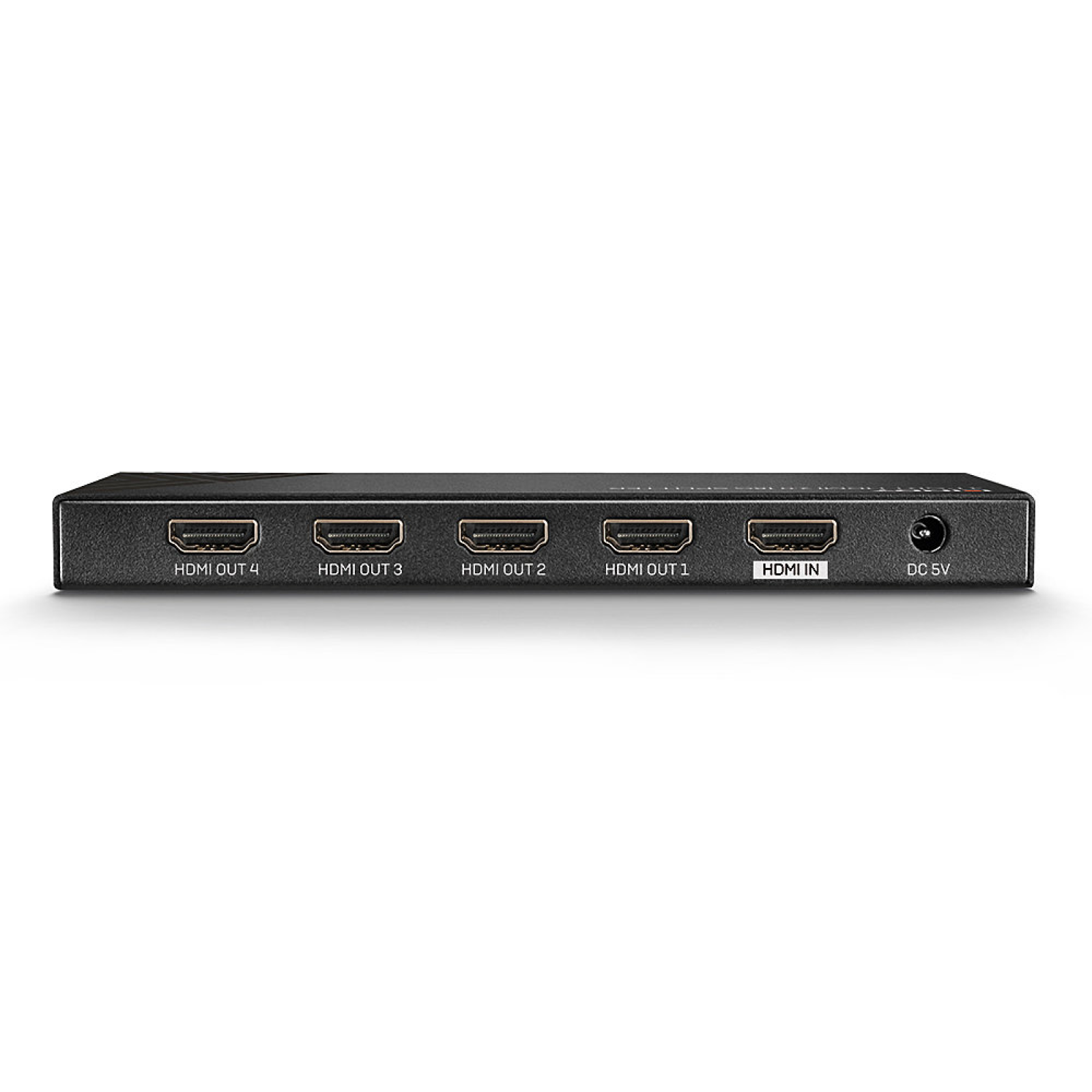

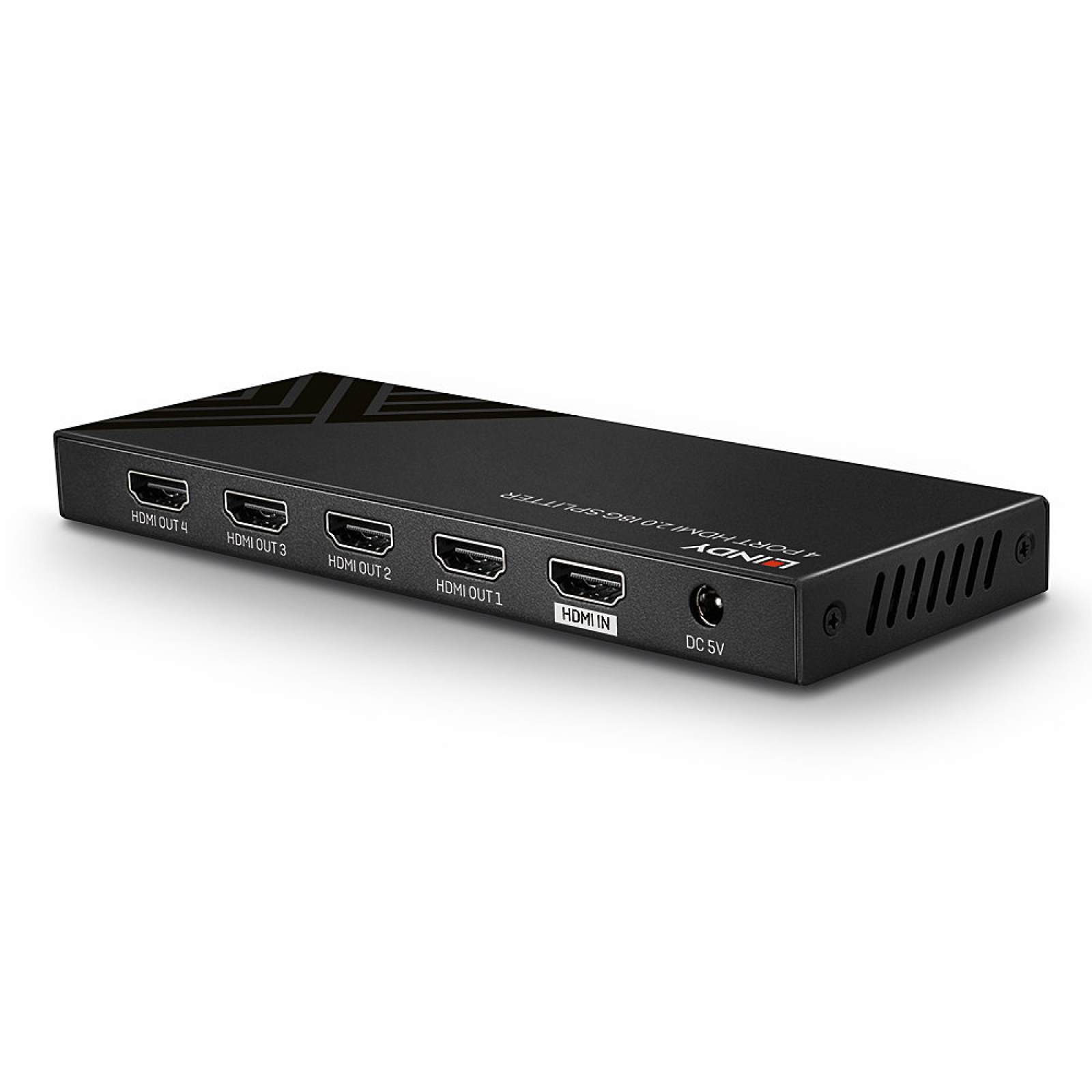

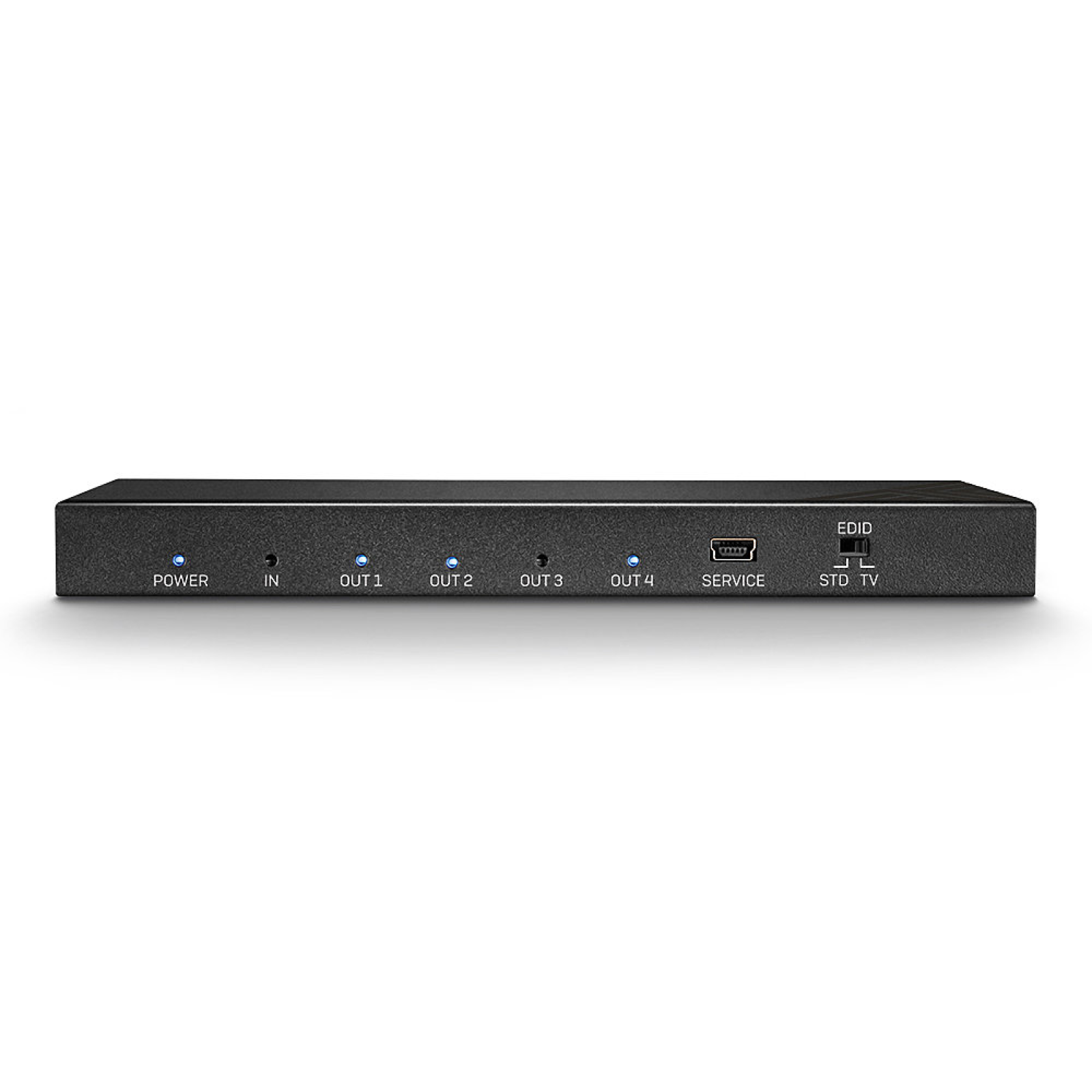

38236 4 port 18G HDMI 2.0 Splitter

Download product sheet

The Lindy 4 Port HDMI® 18G Splitter is a compact, high quality solution for distributing HDMI® 2.0 18G signals across multiple displays from one source device. With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching digital signage in retail scenarios, showing high quality video in different rooms in medical faci... Read more

The Lindy 4 Port HDMI® 18G Splitter is a compact, high quality solution for distributing HDMI® 2.0 18G signals across multiple displays from one source device. With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching digital signage in retail scenarios, showing high quality video in different rooms in medical facilities or ensuring audiences do not miss any of the action in dual display sports bars. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, superior contrasts and a much wider colour gamut, for more lifelike colour.

The additional ability to cascade this splitter up to three further levels allows for an extended HDMI® splitting experience, ideal for multi-screen situations such as informational broadcasting in airports, train stations or stock exchange offices.

HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players, while a smart EDID management switch on the unit provides maximum compatibility with the display. The splitters durable, compact design also ensures the unit can be installed discreetly, ensuring there is no distraction from the content on screen.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Collapse text

Product downloads

Product details

Key features

  • Split a single HDMI® 2.0 source across 4 HDMI® displays
  • Supports resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
  • HDCP 2.2 support for enhanced compatibility
  • EDID Management for hassle free installation
  • 2 Year Warranty

Specifications

  • AV Interface
    HDMI®
  • Interface Standard
    HDMI® 2.0
  • Supports Bandwidth
    18Gbps
  • Maximum Resolution
    3840x2160@60Hz 4:4:4 8bit
  • HDCP Support
    2.2
  • Supported Audio
    Audio Pass-through
  • Special Features
    EDID emulation
  • Input
    1 x HDMI® (Female)
  • Output
    4 x HDMI® (Female)
  • Power
    5.5/2.1mm DC socket
  • Dimensions (approx.) WxDxH
    163x63x16mm (6.42x2.48x0.63in)
  • Housing Material
    Metal
  • Net Weight
    0.373kg (0.82lb)
  • Operating Temperature
    0°C - 40°C (32°F - 104°F)
  • Storage Temperature
    -20°C - 60°C (-4°F - 140°F)
  • Humidity
    20 - 90% RH (Non-condensing)
  • Power Requirements
    5VDC 1A
  • Colour
    Black
  • More Less
