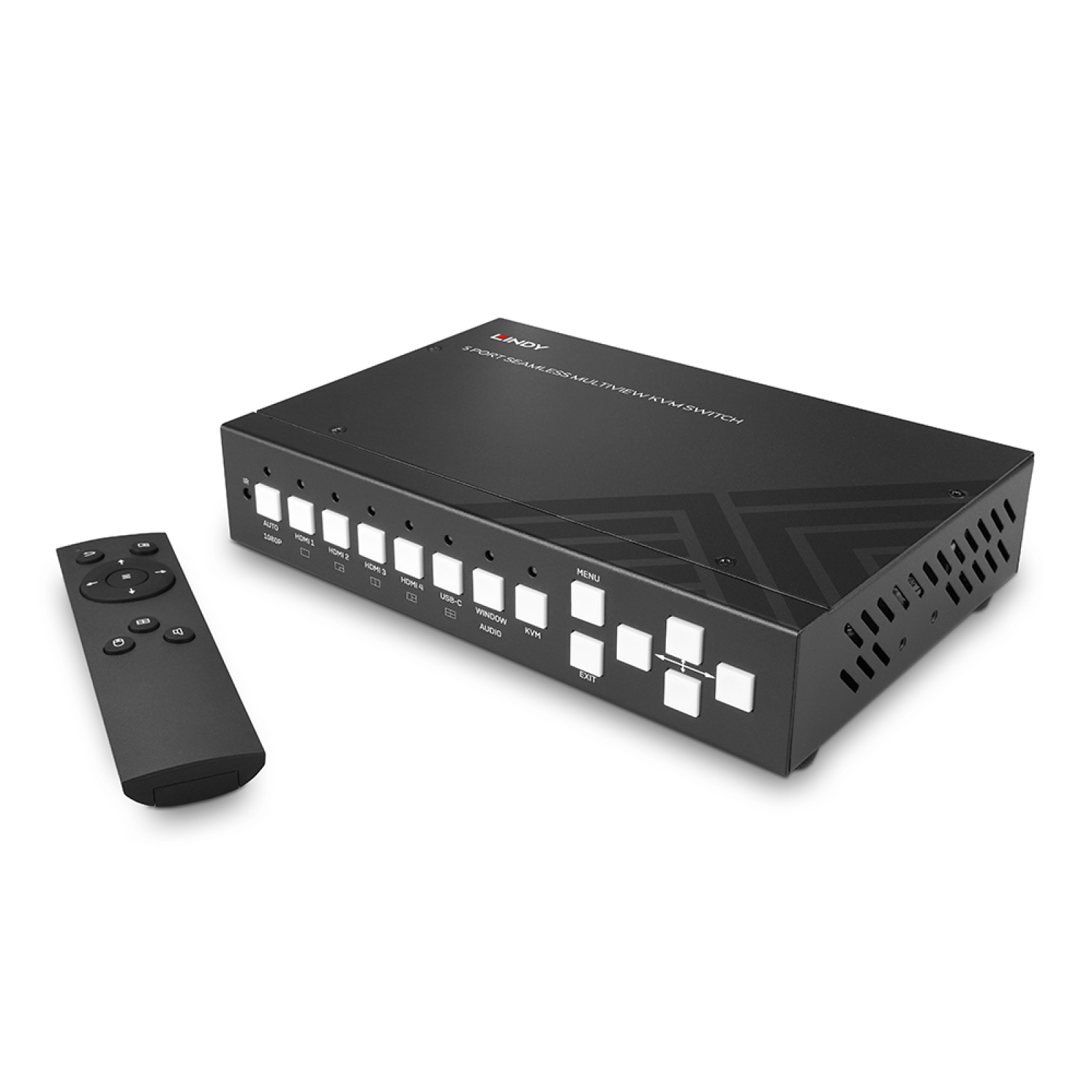

32330 5 Port HDMI 4K60 Seamless Multiview KVM Switch

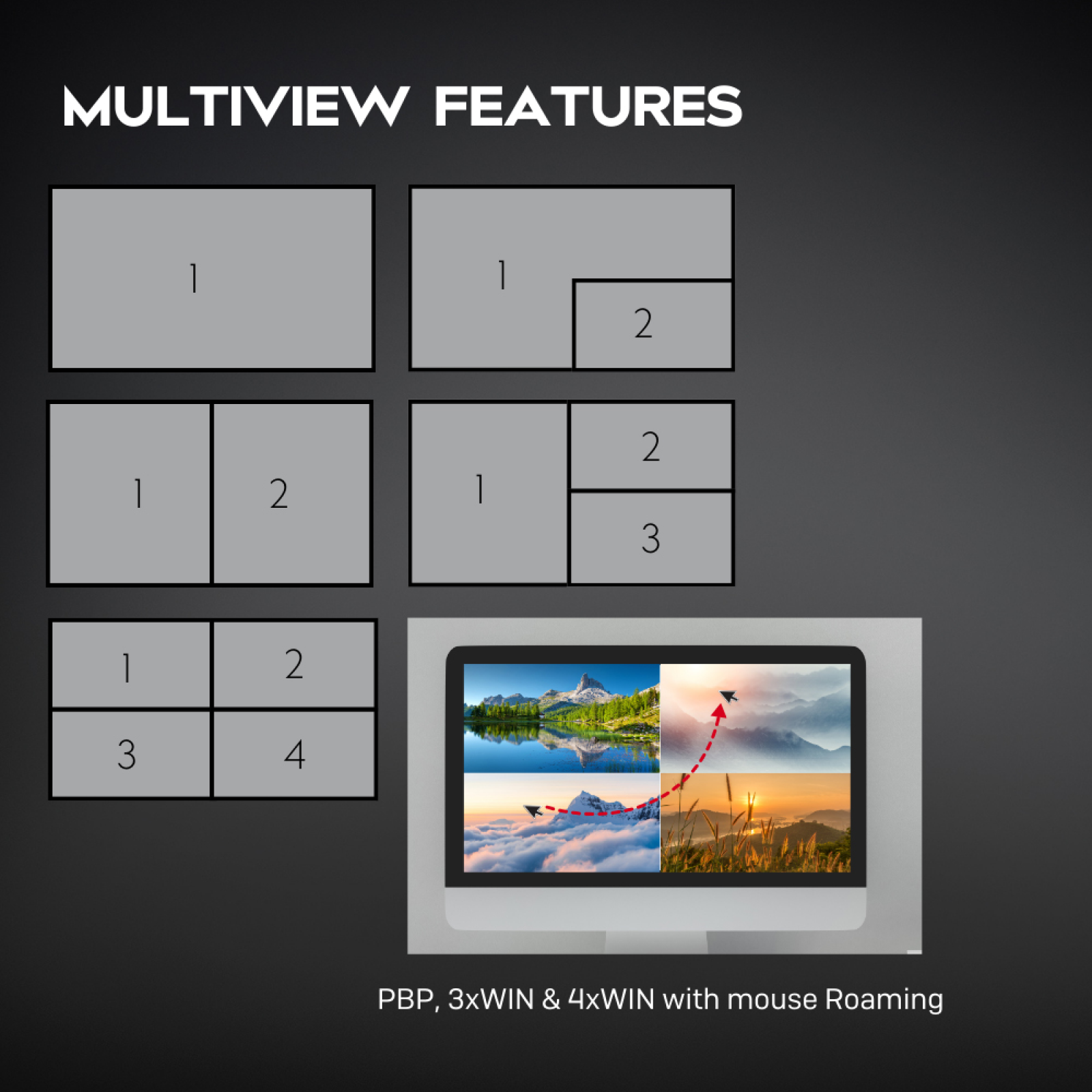

This advanced HDMI® 4K60 switch is capable of displaying up to four sources simultaneously on a single 4K screen, with KVM control via USB Type-B ports. It offers five different multiview modes: Single, PIP, PBP, 3xWIN, and 4xWIN. With the USB roaming function, you can control different sources via KVM simply by moving the mouse pointer from one window to another.

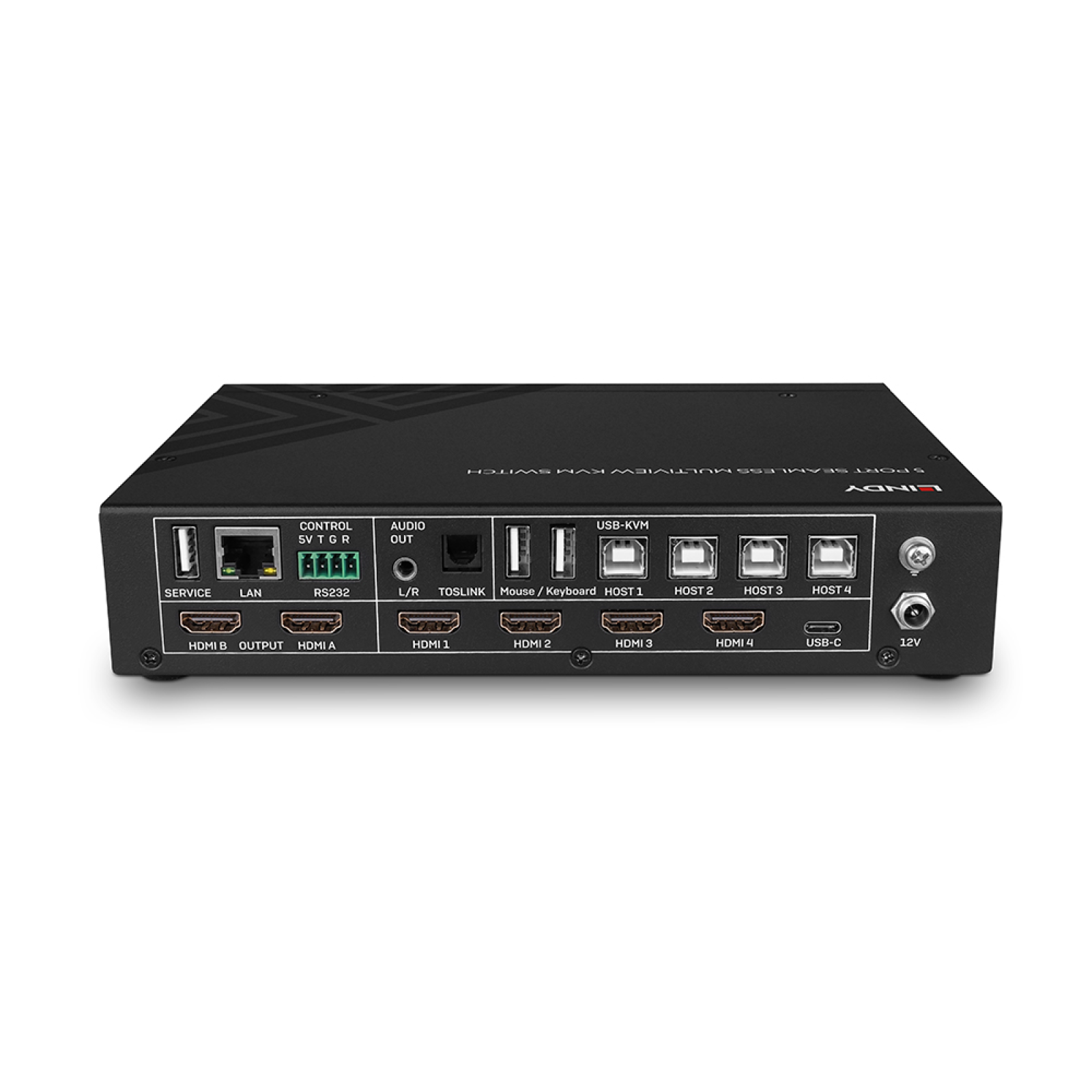

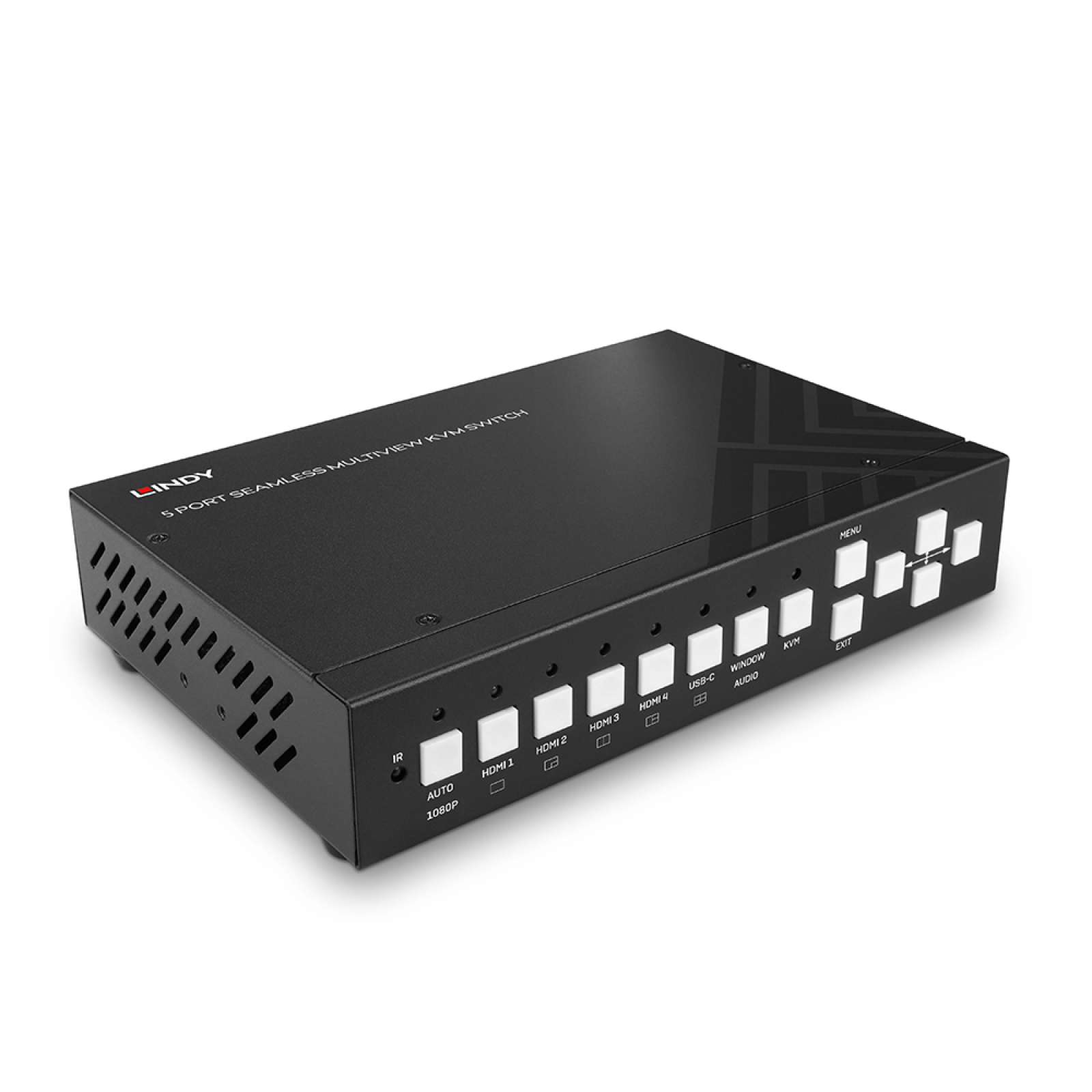

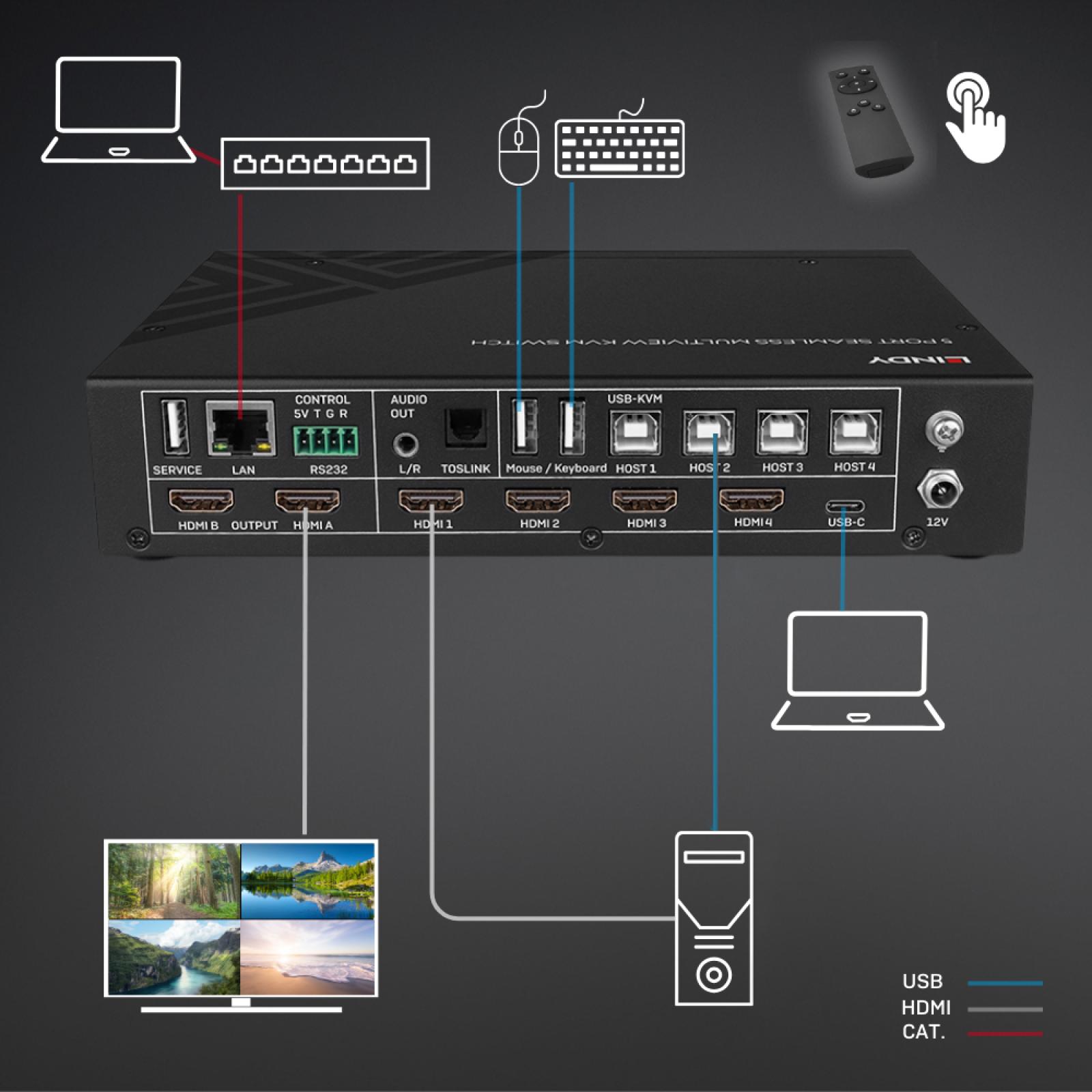

The unit features four HDMI® inputs and one USB Type-C video input. Seamless switching prevents black screens or display interruptions. All functions can be controlled in multiple ways: using the front panel buttons via the OSD menu, the included IR remote control, keyboard hotkeys for KVM selection, the graphical user interface, or via TCP/IP and RS-232 software commands. These versatile features make the switch ideal for a wide range of installations, from professional AV solutions to mission-critical control rooms, including broadcasting, e-sports, and security applications.

It also provides an additional HDMI® output for local monitoring or video capture when paired with an HDMI®-to-USB capture device. The 3.5mm analog and optical TosLink digital audio outputs allow independent audio switching and support multiple audio formats; with LPCM 2.0, volume control is also available.
