TK 5322 Top-Load Lifter 5,3M 225kg Black (T105D)

Download product sheet

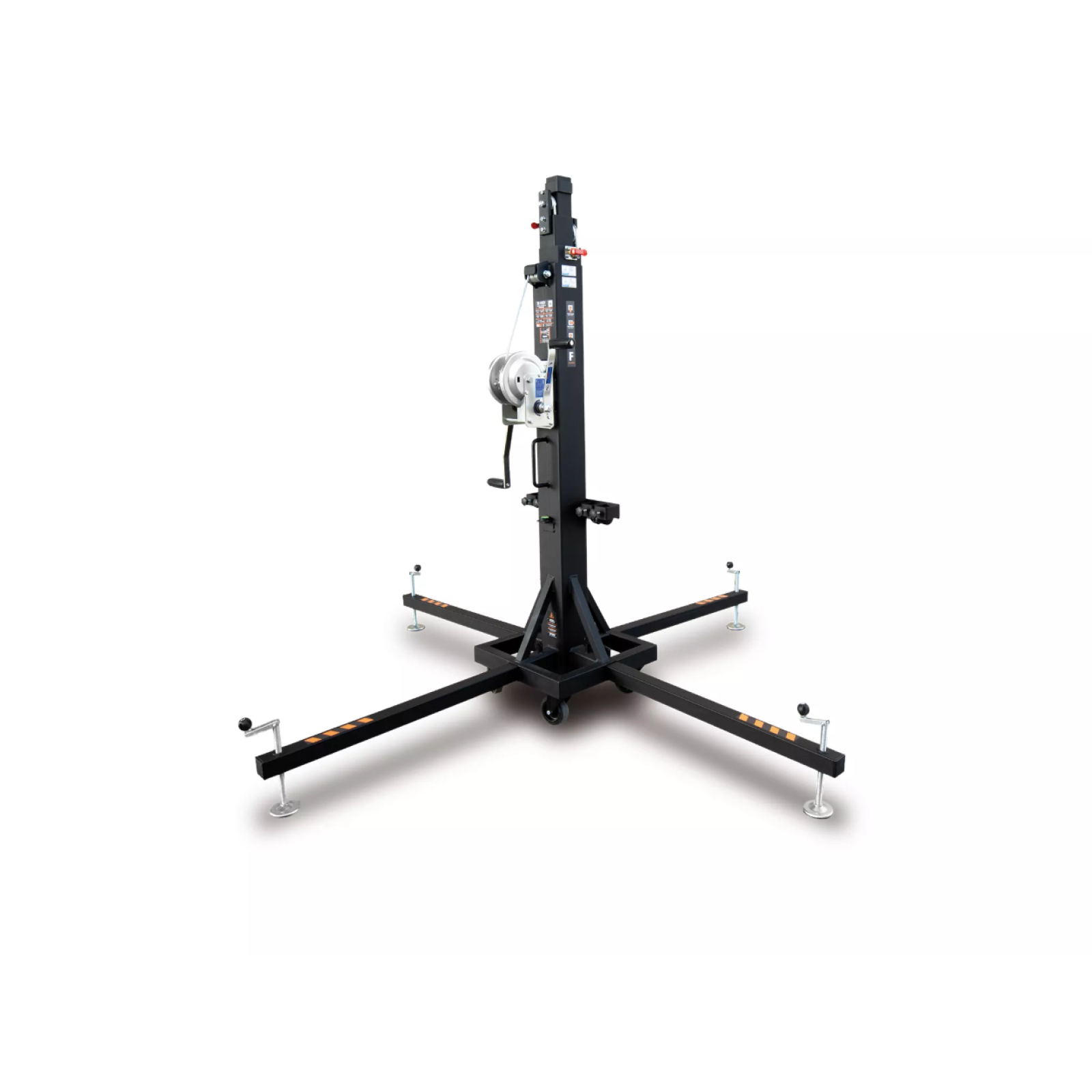

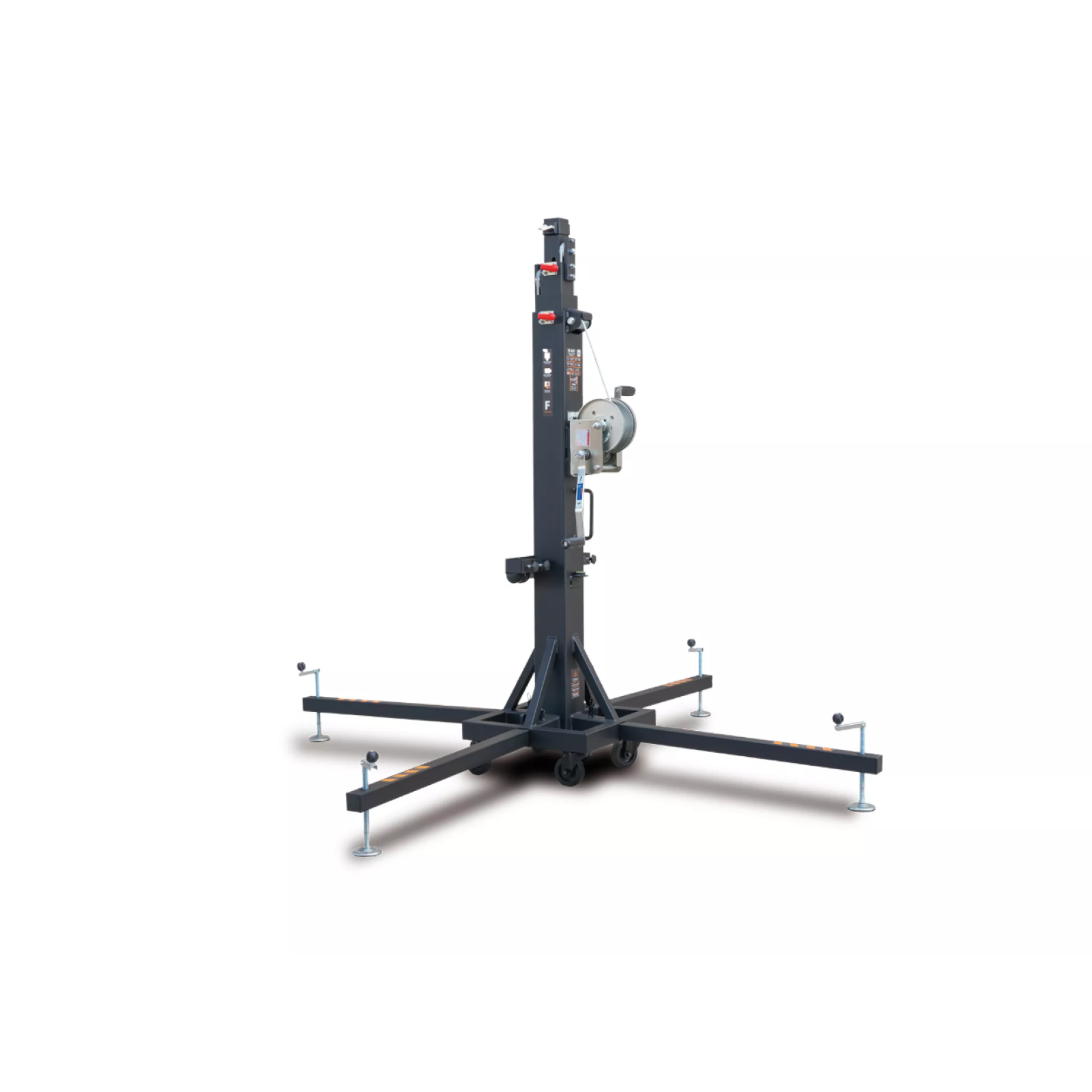

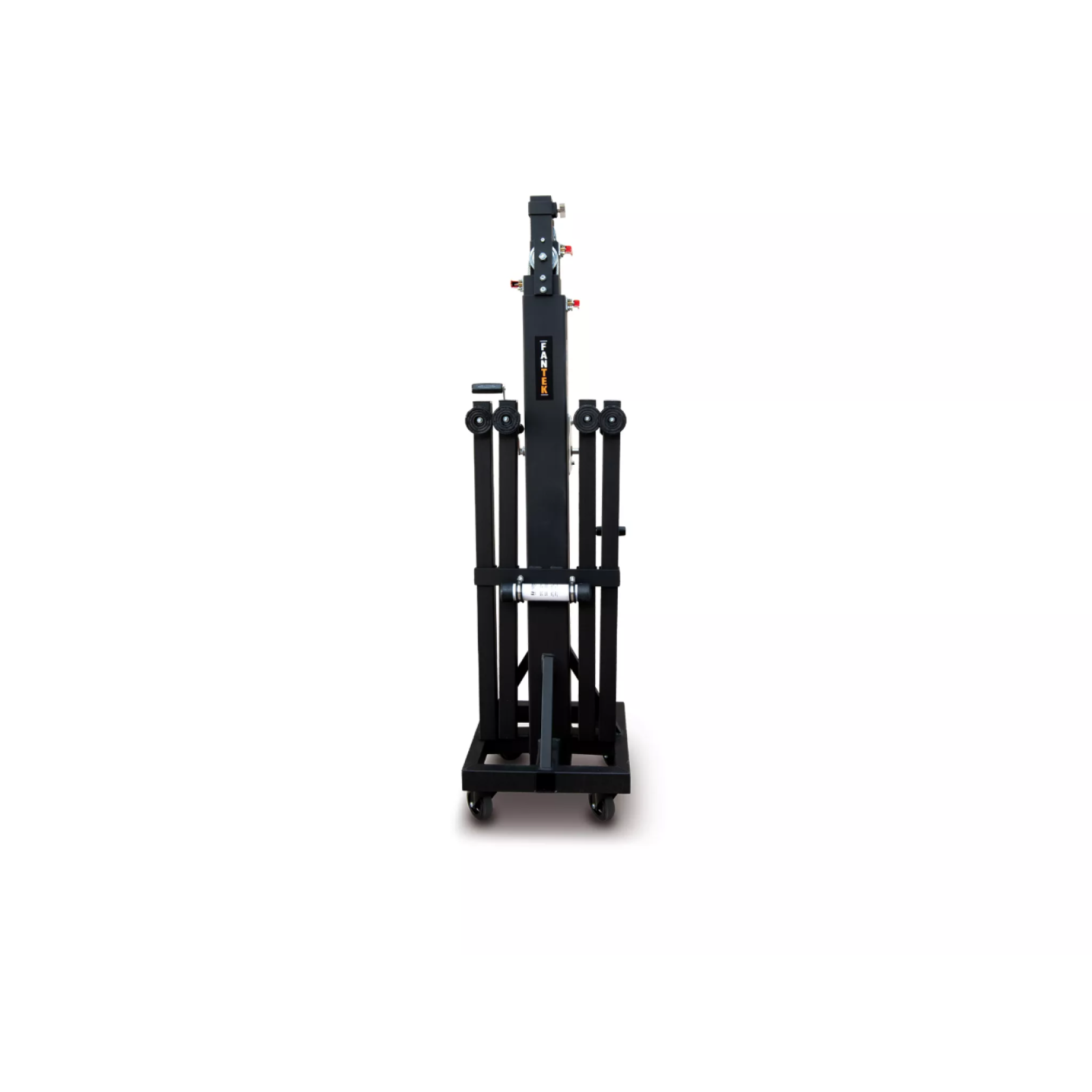

The lifting tower T 105 is designed to lift vertical loads up to 225 Kg and 5,3 m. Comprised of 4 extensible steel profiles lifted by a high strength steel cable. Safety mechanism based on steel pins that lock the tower into the desired height automatically. Legs equipped with non-slip rubber plates. The entire system is operated with a manual winch.
The lifting tower T 105 is designed to lift vertical loads up to 225 Kg and 5,3 m. Comprised of 4 extensible steel profiles lifted by a high strength steel cable. Safety mechanism based on steel pins that lock the tower into the desired height automatically. Legs equipped with non-slip rubber plates. The entire system is operated with a manual winch.

Buy this product online

Search Google Shopping

Product downloads

Product details

Key features

  • Wire Drive
  • Levelable leg system
  • High load capacity

Specifications

  • Material
    Steel
  • Folded Height
    1,8 m/ 5,91 ft
  • Extended base dimensions
    2,15 x 2,15 m / 7,05 x 7,05 ft
  • Folded base dimensions
    0,46 x 0,46 m / 1,51 x 1,51 ft
  • Maximum height
    5,3 m/ 17,39 ft
  • Minimun height
    1,8 m / 5,91 ft
  • No. of sections
    4
  • Minimum Load
    25 Kg / 55,12 lbs
  • Max load (mechanism mode)
    225 Kg/ 496,04 lbs

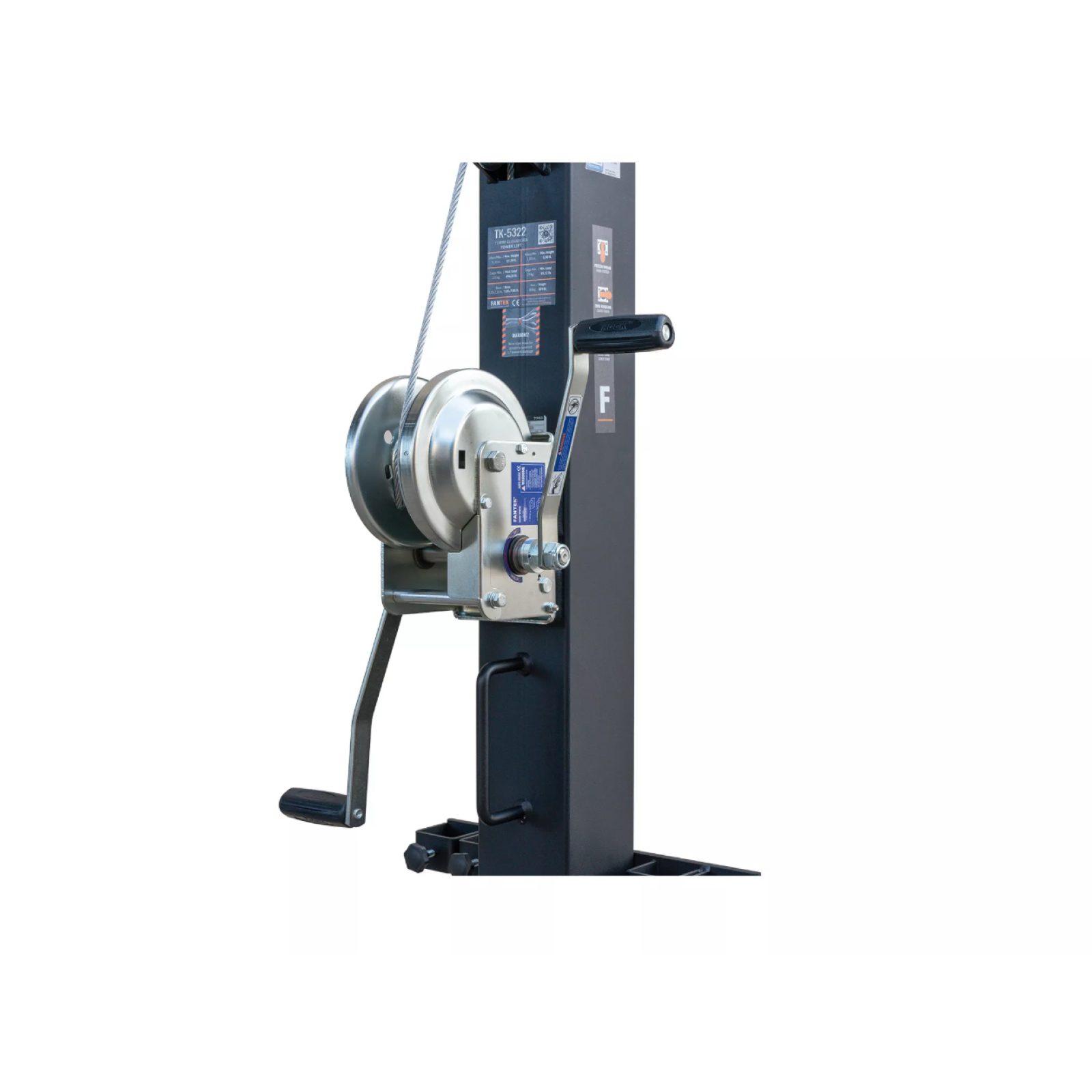

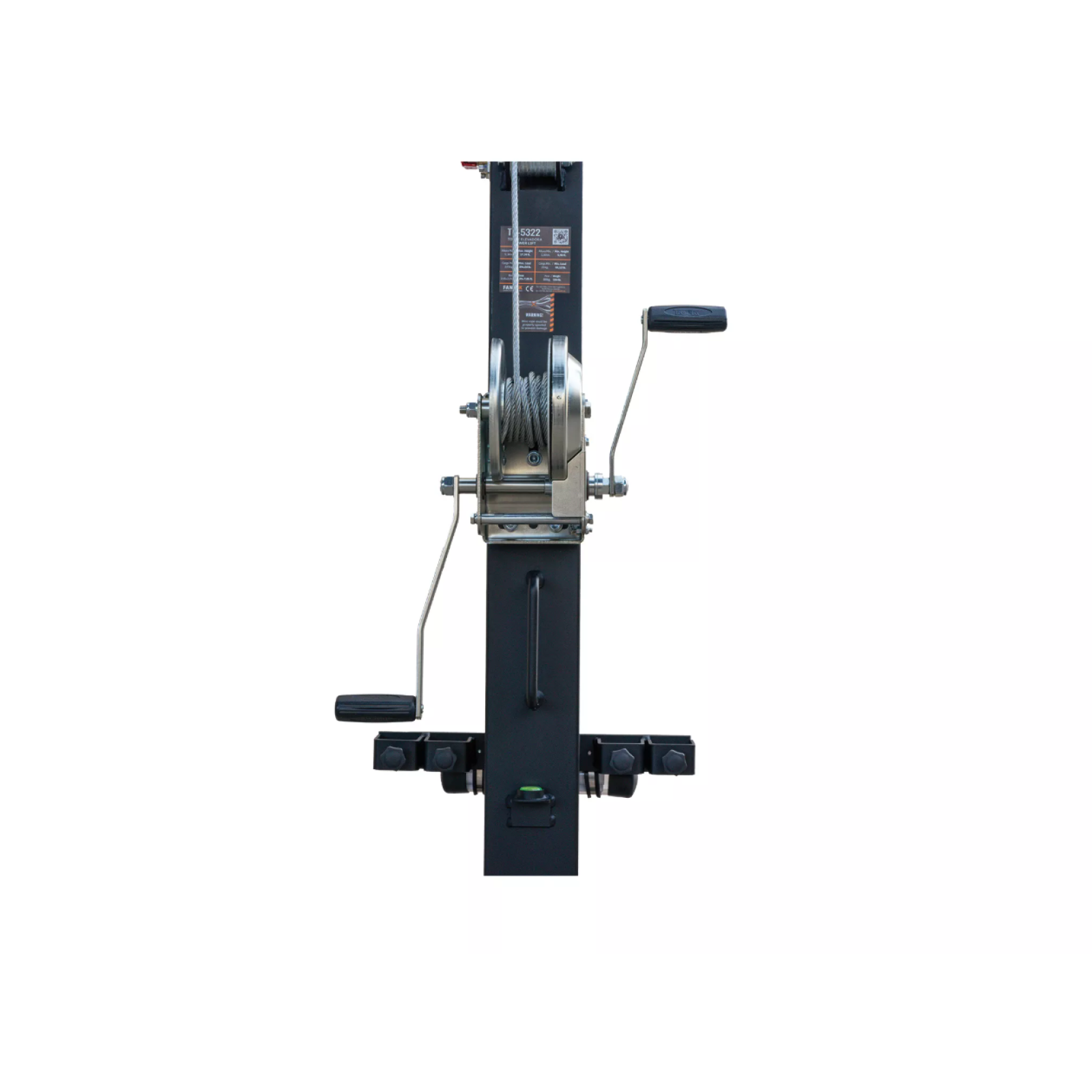

  • Winch
    900 Kg / 1984,16 lbs
  • Cable diameter
    7 mm / 0,28 in
  • Noise Emission
    75 dB
  • Compatible accessories
    ATCMOS / ATCMOB / ATCLTS / ATC6FS / ATC29S / ATCBAS
  • Security systems
    Self locking safety pins
  • Standards and Certifications
    CE, DGUV, BGV C1, BGG 912
  • Weight
    88 Kg / 194 lbs
  • Unfolded base diameter
    2,2 m / 7,22 ft
  • More Less
