GS 230 7m Structural Tower 30X30, Max Load 750kg (F70TTT112)
Download product sheetOur GS 230 Ground Support structural tower has been designed for lifting loads up to 750 kg at a maximum working height of 7 m (extendable up to 8 m). Made of aluminium and steel, it can be used with an ER30, EC30 or EC40 truss bolted directly to the trolley and lifted with a self-braking winch fitted with a crank (optional motor). Designed and manufactured fo... Read more

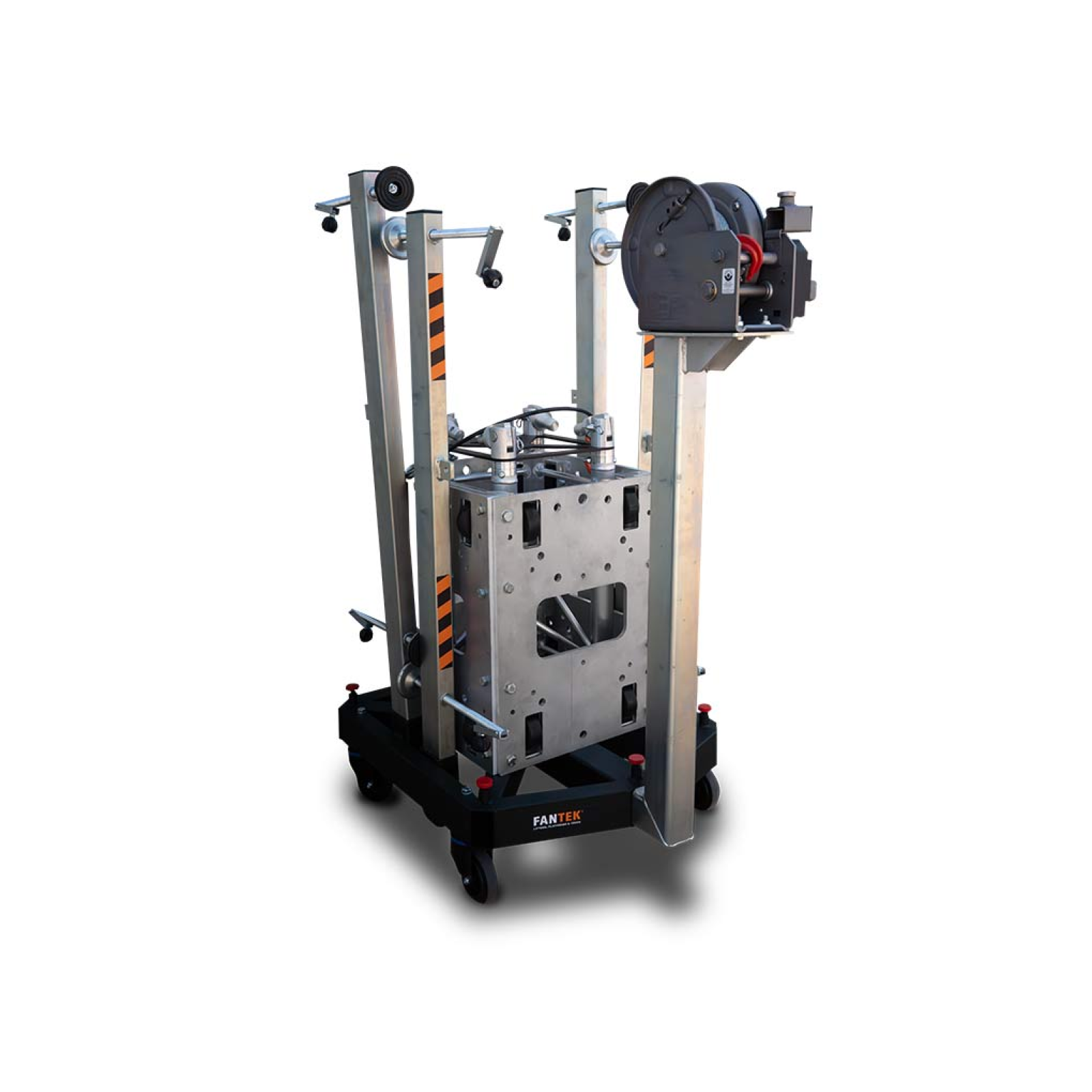

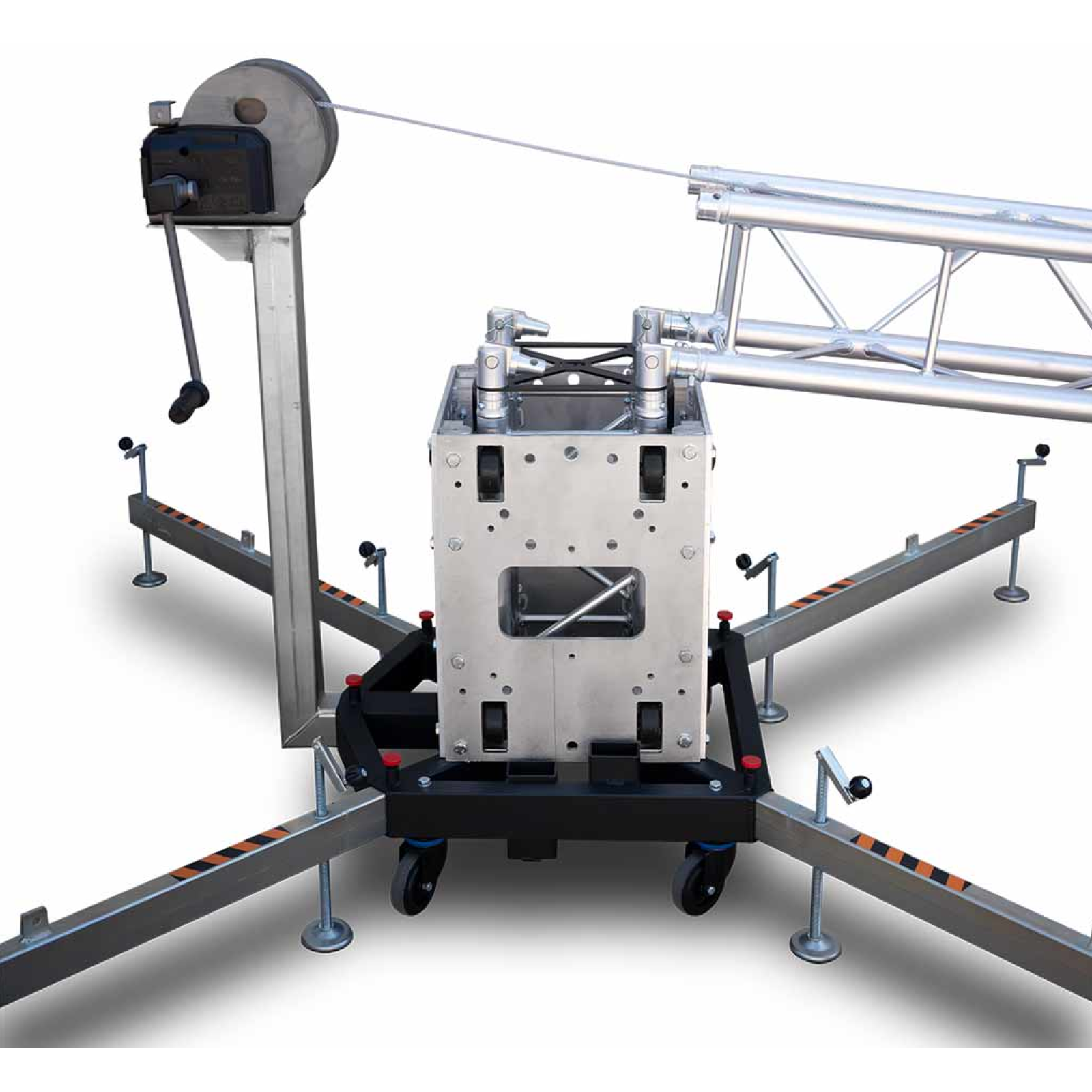

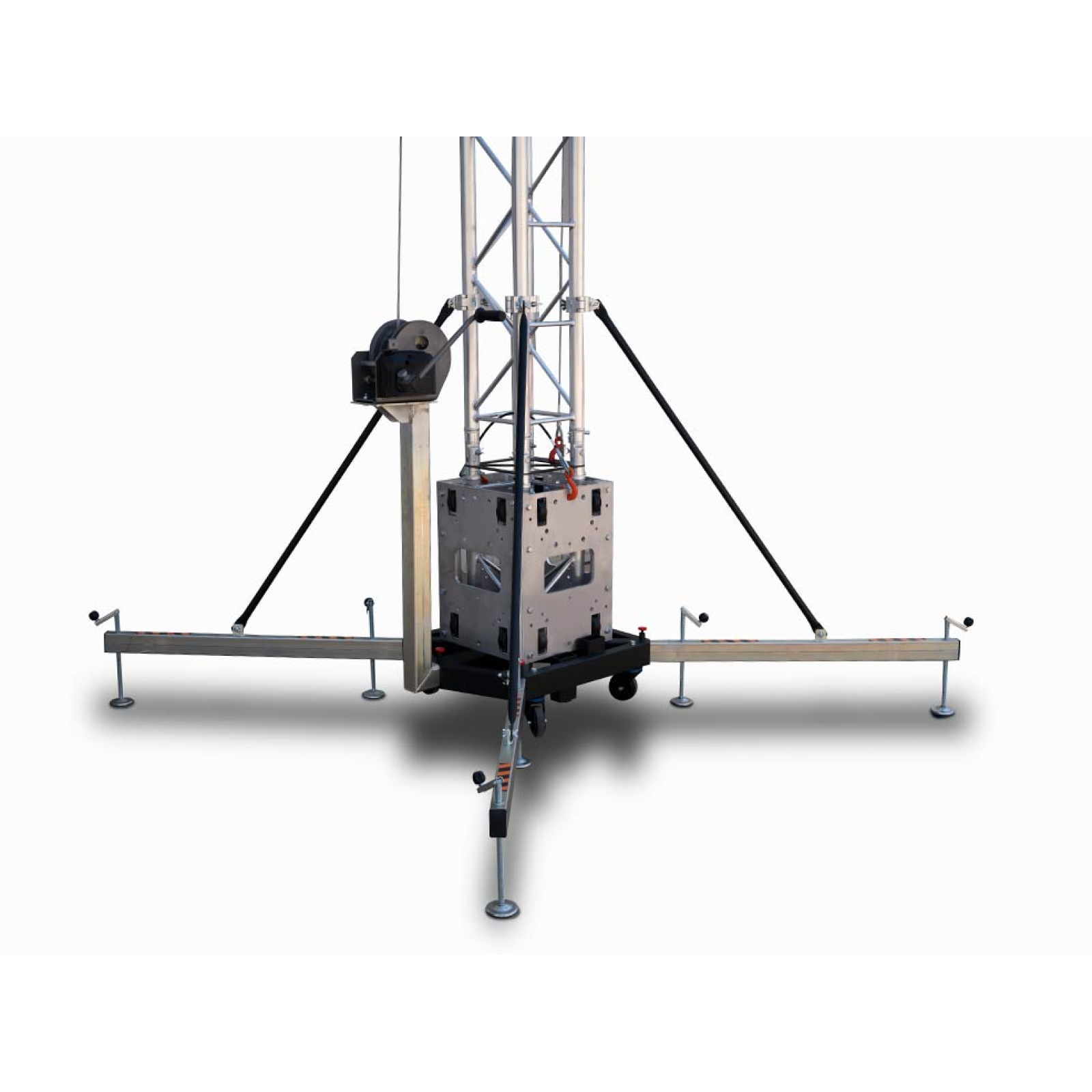

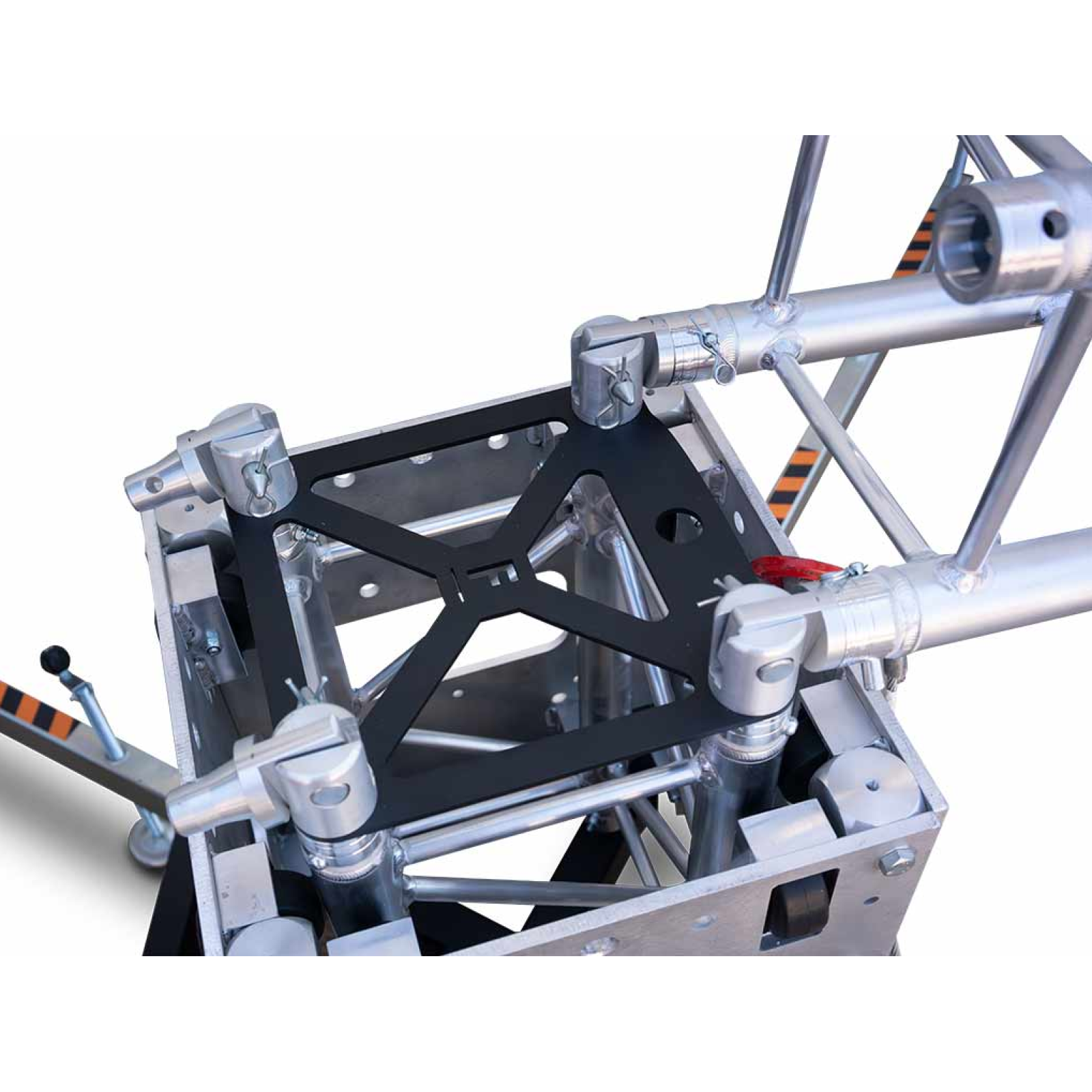

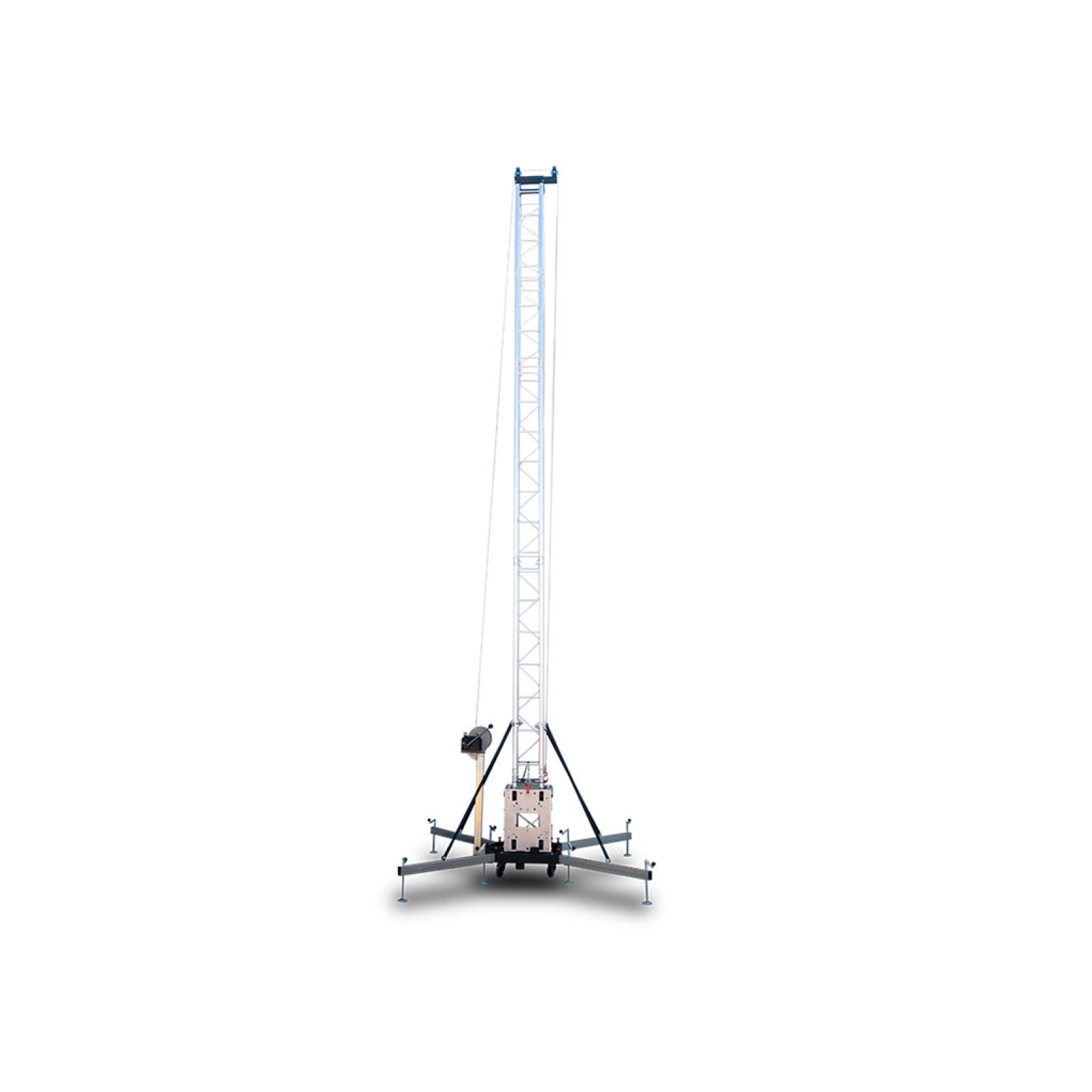

Our GS 230 Ground Support structural tower has been designed for lifting loads up to 750 kg at a maximum working height of 7 m (extendable up to 8 m). Made of aluminium and steel, it can be used with an ER30, EC30 or EC40 truss bolted directly to the trolley and lifted with a self-braking winch fitted with a crank (optional motor). Designed and manufactured for indoor and outdoor use. Available in Silver and Black. Connection set no included. Collapse text
Product details
Key features

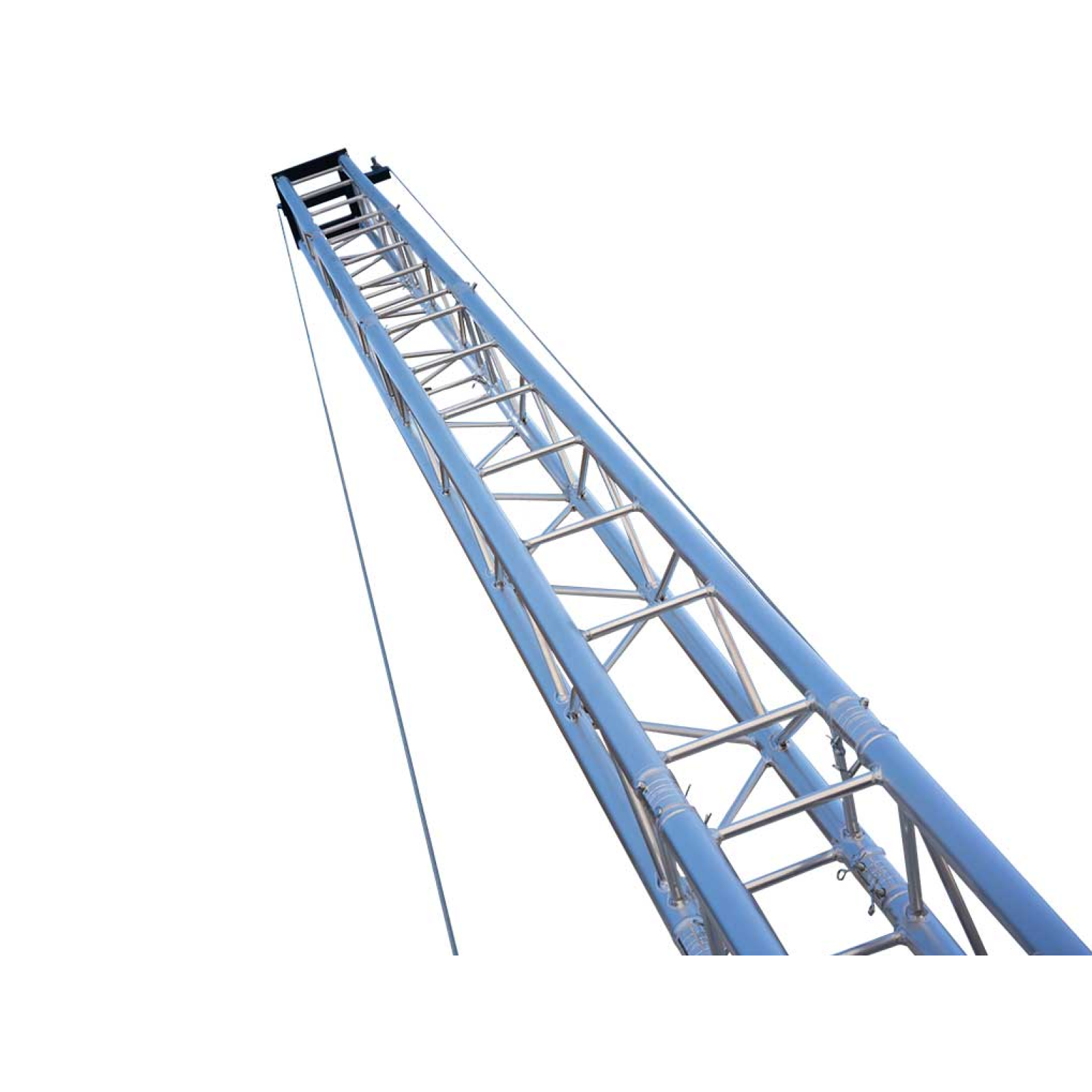

- EC30 L truss mast
- Compatible with ER30, EC30 and EC40 trusses

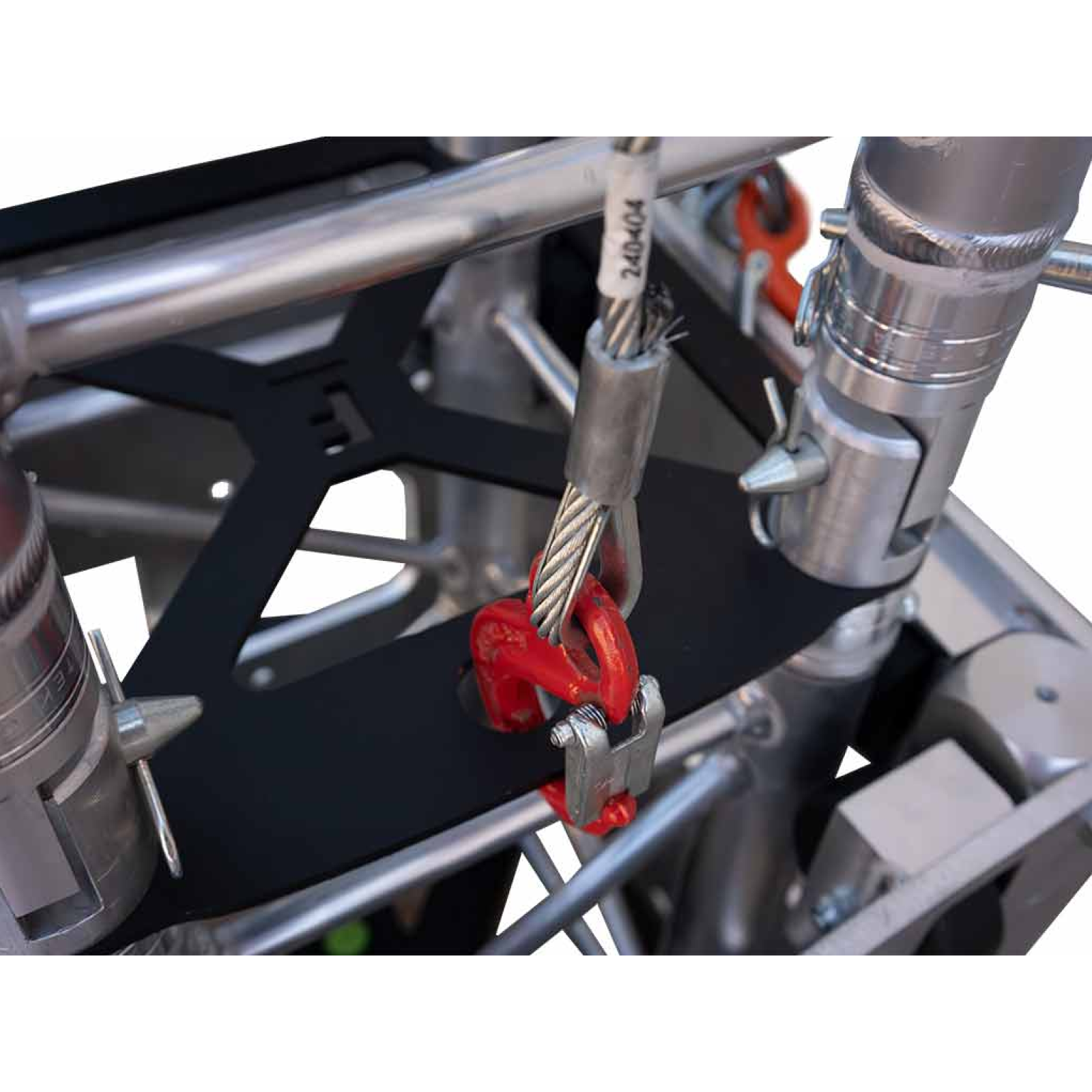

- Safety system with locking sling. Easy assembly
Specifications
-
MaterialAluminum and steel
-
Maximum height7 m / 22,96 ft
-
No. of sections5 sections
-
Maximum Load750 kg / 1653,47 lbs
-
Elevation systemManual drive (winch) as standard, motor as option
-
Cable diameter6 mm / 0,28 in
-
Unfolded base2,84 x 2,84 m / 9.32 x 9.32 ft
-
Folded Base0,72 x 0,64 m / 2.36 x 2,09 ft
-
Security systemsYes
-
Weight85 Kg / 187,39 lbs
-
Aluminum thickness2 mm / 0,078 in
-
Main tube diameter50 mm / 1,96 in
-
Down tube diameter16 mm / 0,63 in
-
ColourSilver
-
Section dimensions30 x 30 cm / 11,81 x 11,81 in
-
WinchALKO 1201 PLUS
- More Less
