FP29Q CT390 3-Ways "T" Junction Corner with 29 cm Side for Square Truss (29CTP)
Download product sheetAluminum square truss structure section of 29 cm on each side. To form T connections. 3 way. Manufactured with main tube of 50 mm diameter and 2 mm thick, and auxiliary tube of 16 mm diameter and 2 mm thick. Silver or black colour. P SERIES compatible.
Aluminum square truss structure section of 29 cm on each side. To form T connections. 3 way. Manufactured with main tube of 50 mm diameter and 2 mm thick, and auxiliary tube of 16 mm diameter and 2 mm thick. Silver or black colour. P SERIES compatible.
Product downloads
Product details
Key features
- Available in silver and black color.
- Other colors available upon request.
- Compatible with EC 29 P truss.
- Connections included.
Specifications
-
Main Tube Section50 x 2 mm
-
Main Tube AlloyEN AW 6082T6
-
Braces Section16 x 2 mm
-
Braces AlloyEN AW 6082T6
-
Surface Area Complete Truss12,06 cm² / 1,8693 in²
-
Coupling SystemCBC50P
-
N° ways3
-
Dimensions (H x W x D)290 x 710 x 500 mm / 11,42 x 27,95 x 19,69 in
-
Weight8 kg / 17,64 lbs
-
MaterialAluminum
-
ColorSilver
- More Less
Related products
-
FANTEK

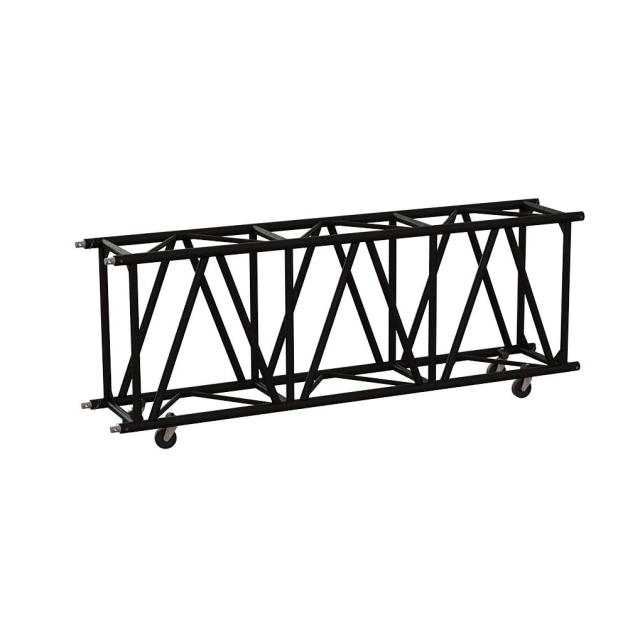

R1 TRUSS 100
1m Black Rectangular Truss (F70ER1100)
View product
-
FANTEK
FP29Q CR05
Circular Truss Section of 5 Meters of Diameter (total) in a Square Format Measuring 29 cm per Side (ECC29P5)
View product
-
FANTEK

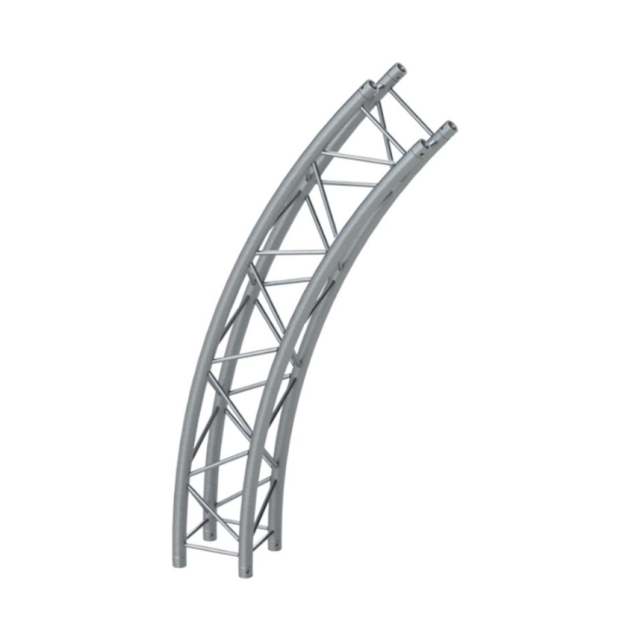

FP29Q CR09
Circular Truss Section of 9 Meters of Diameter (total) in a Square Format Measuring 29 cm per Side (ECC29P9)
View product
-
FANTEK

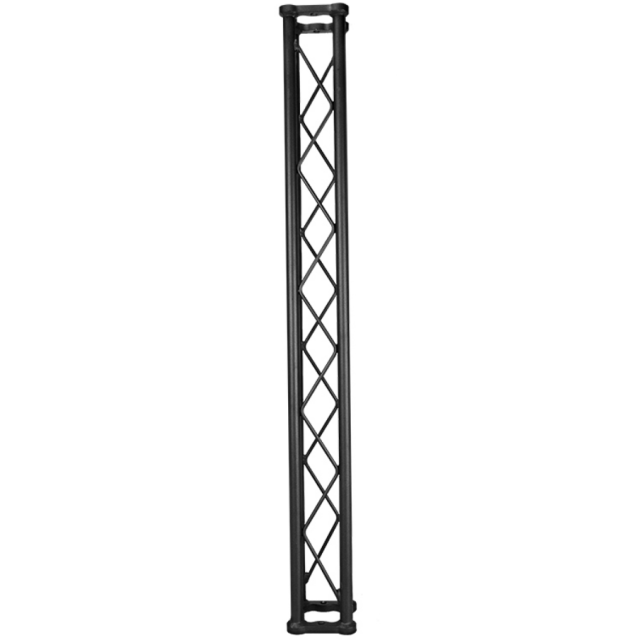

FK11 050B
0,5 Meters Mini Truss black (F70EST248)
View product
-
FANTEK

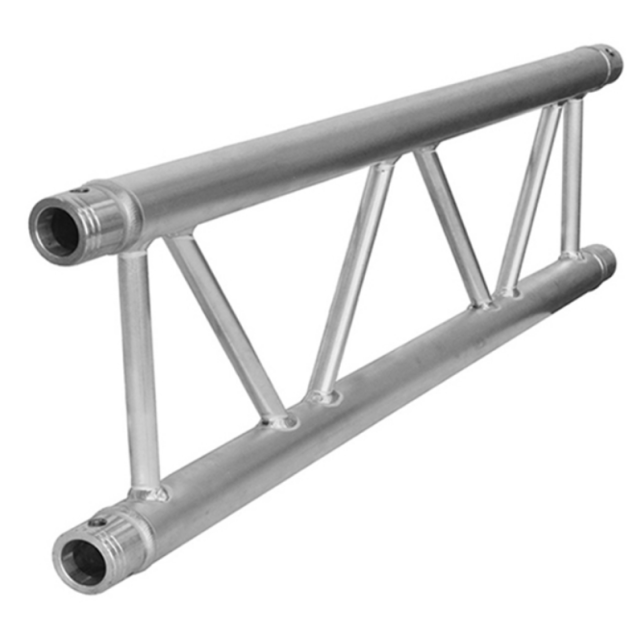

FP29P R050
0,5 Meters Parallel Truss Section (ES2905P)
View product
-
FANTEK

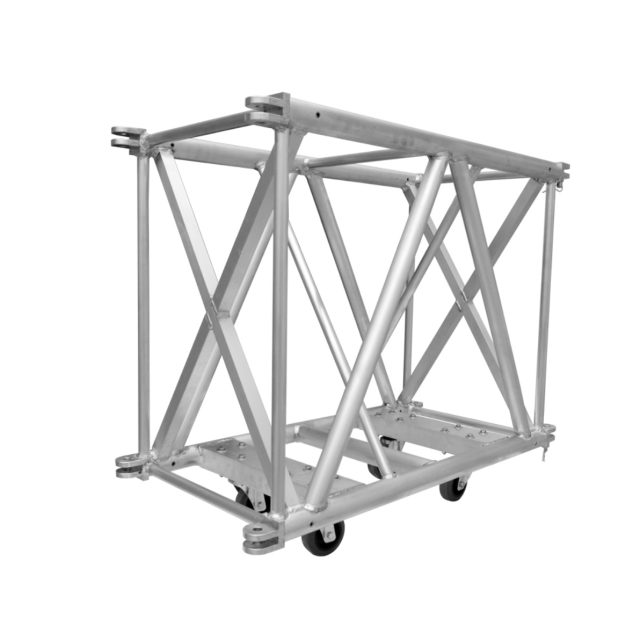

FK76R H300
