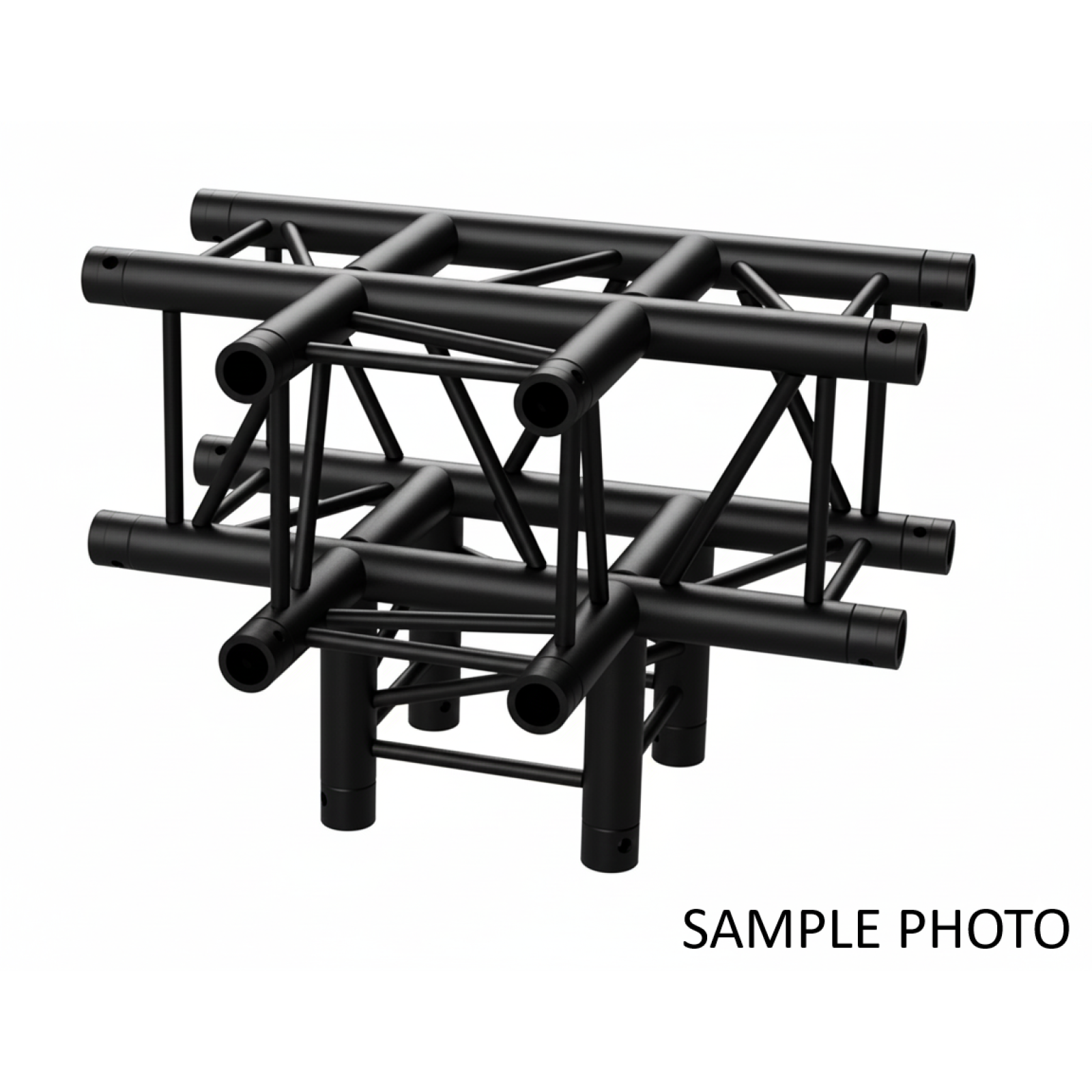

FP29Q C490B 4-Ways 90° "T" Junction Corner with 29 cm Side for Square Truss Black (29CTBPB)
Download product sheetAluminium square truss structure section of 29 cm on each side. To form T connections. 4 way. Manufactured with main tube of 50 mm diameter and 2 mm thick, and auxiliary tube of 16 mm diameter and 2 mm thick. Silver or black colour. P SERIES compatible.
Aluminium square truss structure section of 29 cm on each side. To form T connections. 4 way. Manufactured with main tube of 50 mm diameter and 2 mm thick, and auxiliary tube of 16 mm diameter and 2 mm thick. Silver or black colour. P SERIES compatible.
Product downloads
Product details
Key features
- Available in silver and black color.
- Other colors available upon request.
- Compatible with EC 29 P truss.
- Connections included.
Specifications
-
Main Tube Section50 x 2 mm
-
Main Tube AlloyEN AW 6082T6
-
Braces Section16 x 2 mm
-
Braces AlloyEN AW 6082T6
-
Surface Area Complete Truss12,06 cm² / 1,8693 in²
-
Coupling SystemCBC50P
-
N° ways4
-
Dimensions (H x W x D)500 x 710 x 500 mm / 19,69 x 27,95 x 19,69 in
-
Weight10,8 kg / 23,81 lbs
-
MaterialAluminum
-
ColorBlack
- More Less
