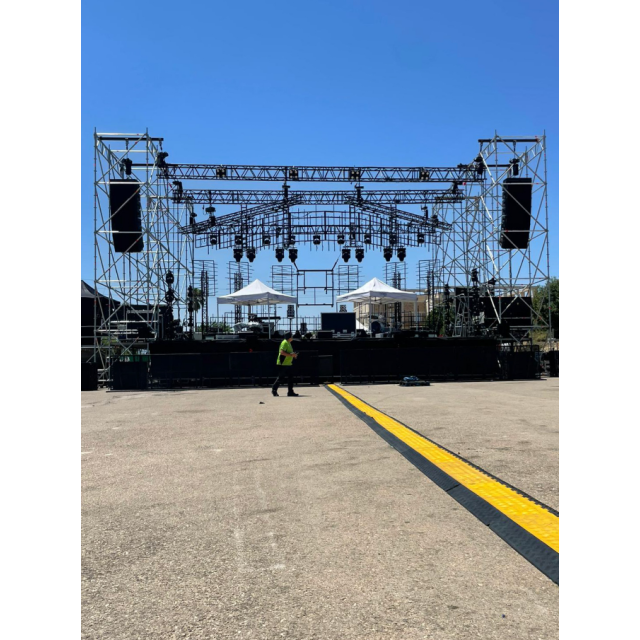

FK52Q H300 3 Meters Square Truss Section for Heavy Loads (EC52C3)

Download product sheet

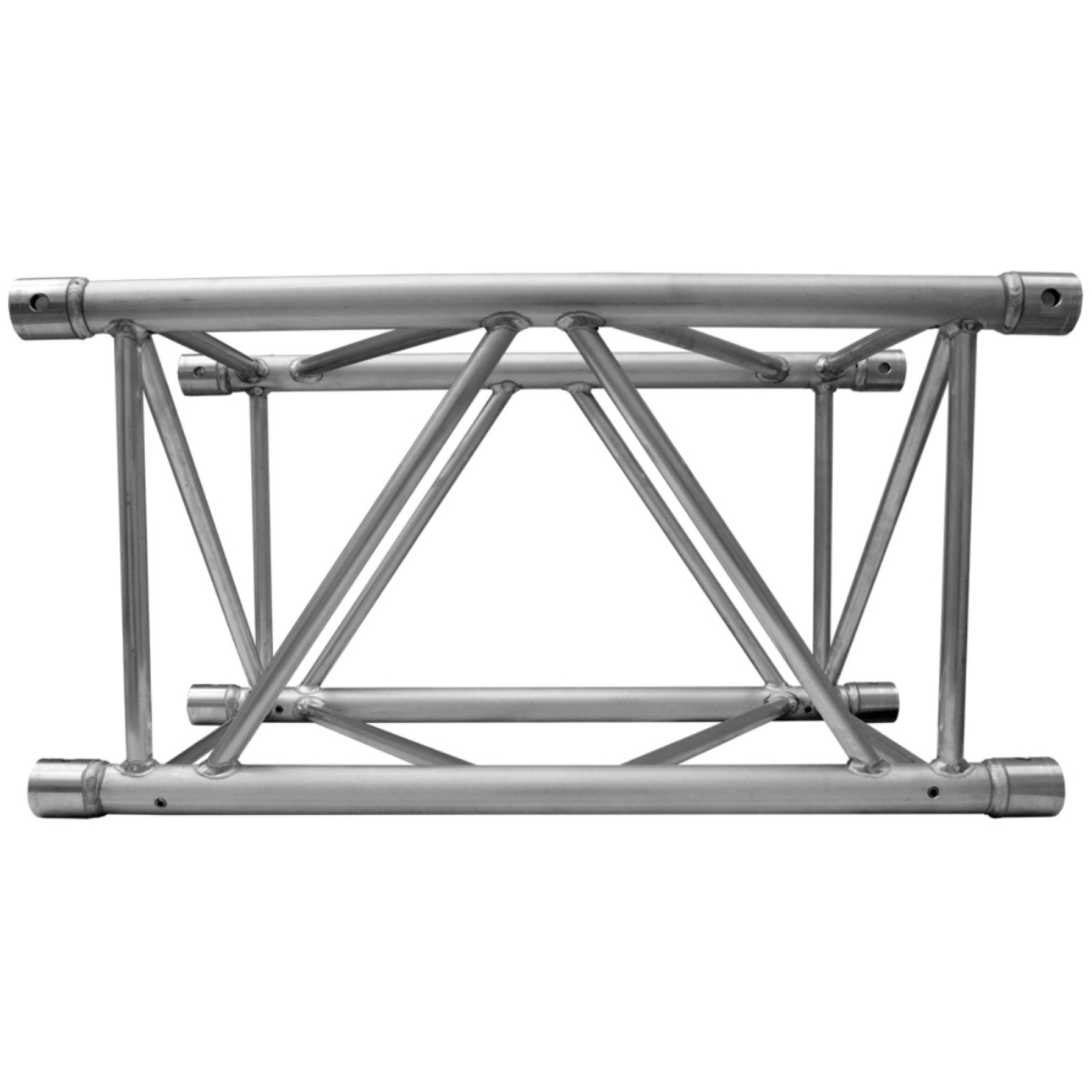

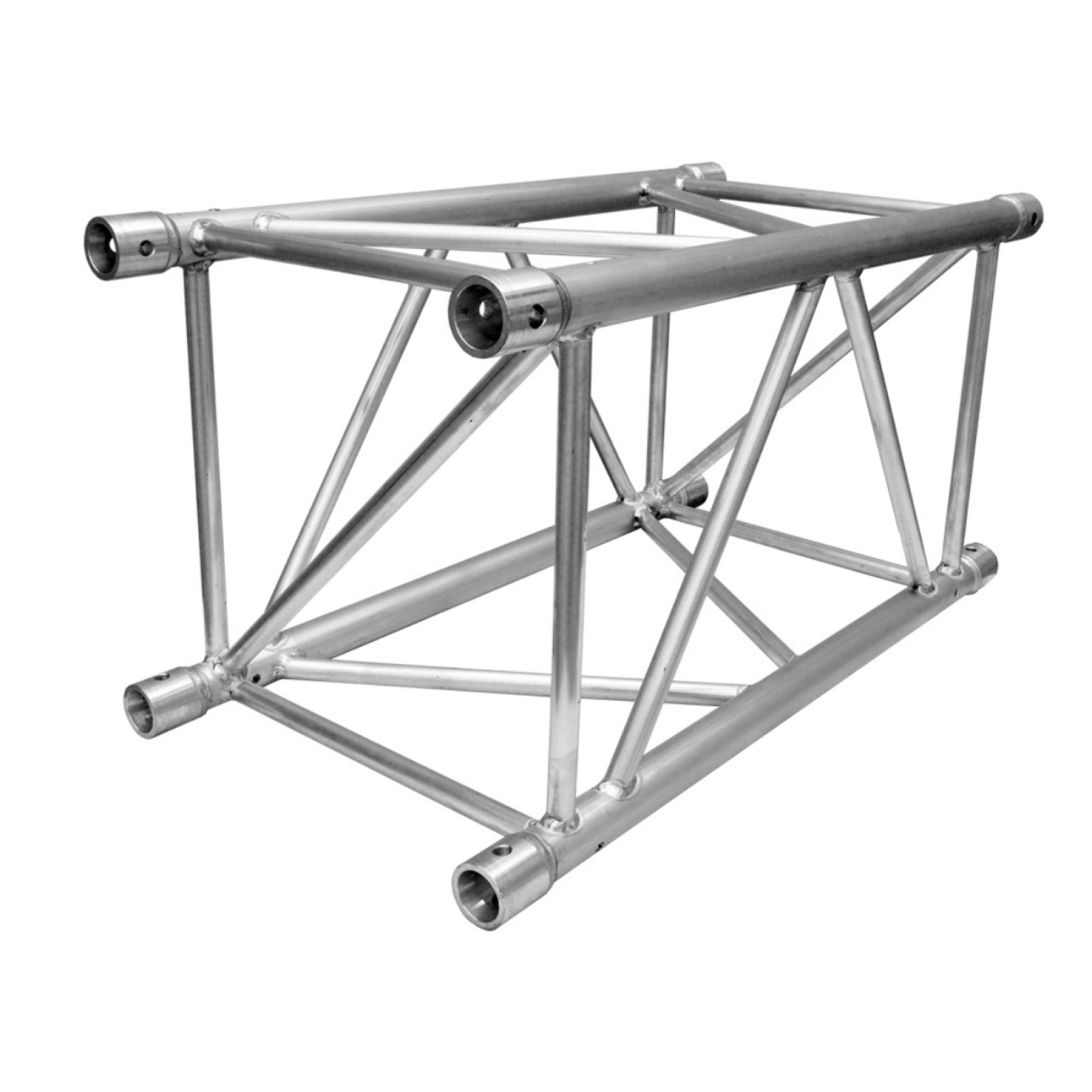

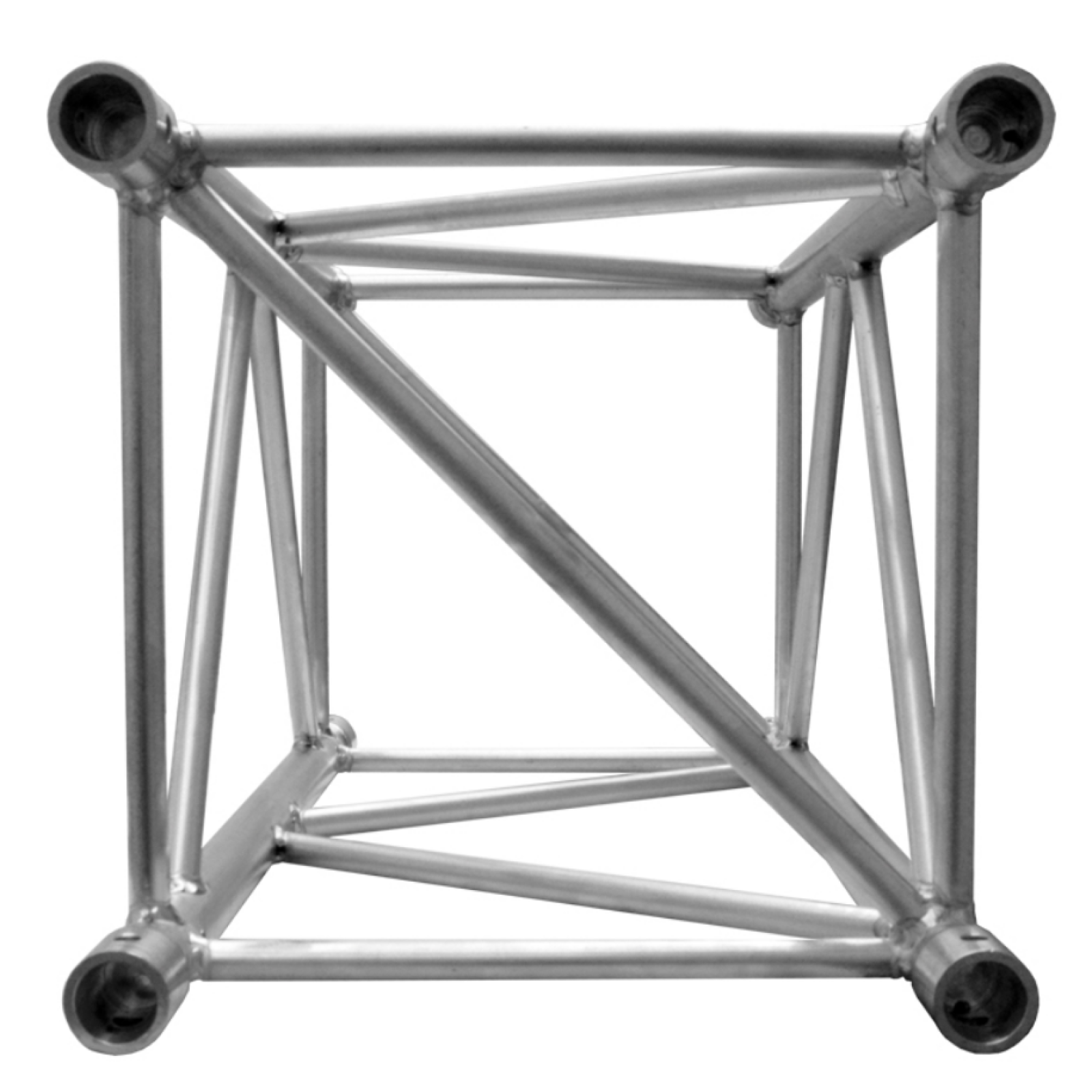

Square truss section with a side length of 52 cm (53 cm from female to female), made with a main tube 50 mm in diameter and 4 mm thick, and a secondary tube 30 mm in diameter and 3 mm thick. Particularly suitable for assemblies with high load requirements. CBC60 conical connection system (oversized). Available in different sizes. Includes 4 double cones, 4 pin... Read more

Square truss section with a side length of 52 cm (53 cm from female to female), made with a main tube 50 mm in diameter and 4 mm thick, and a secondary tube 30 mm in diameter and 3 mm thick. Particularly suitable for assemblies with high load requirements. CBC60 conical connection system (oversized). Available in different sizes. Includes 4 double cones, 4 pins, 4 threaded pins and 4 ‘R’ safety clips. Compatible with the FK SERIES.

Collapse text

Buy this product online

Search Google Shopping

Product downloads

Product details

Key features

  • Standard dimensions: 0,5 - 1 - 2 - 3 Meters / 1,64 - 3,28 - 6,56 - 9,84 Feet
  • Other sizes available upon request.
  • Available in silver and black color.
  • Other colours available upon request.

Specifications

  • Main Tube Section
    50 x 4 mm / 1,97 x 0,16 in
  • Main Tube Alloy
    EN AW 6082T6
  • Diagonal Tube Section
    30 x 3 mm / 1.18 x 0.118 in
  • Diagonal Tube Alloy
    EN AW 6082T6
  • Weight
    12,7 kg/m - 8.534 lb/ft
  • Area Section
    23.12 cm² / 3.5836 in²
  • Connection System
    CBC60
  • Weight
    31,5 kg / 69.446 lb
  • Volume
    0,8427 m³ / 29.7597 ft³
  • Material
    Aluminium
  • Color
    Black
  • More Less
