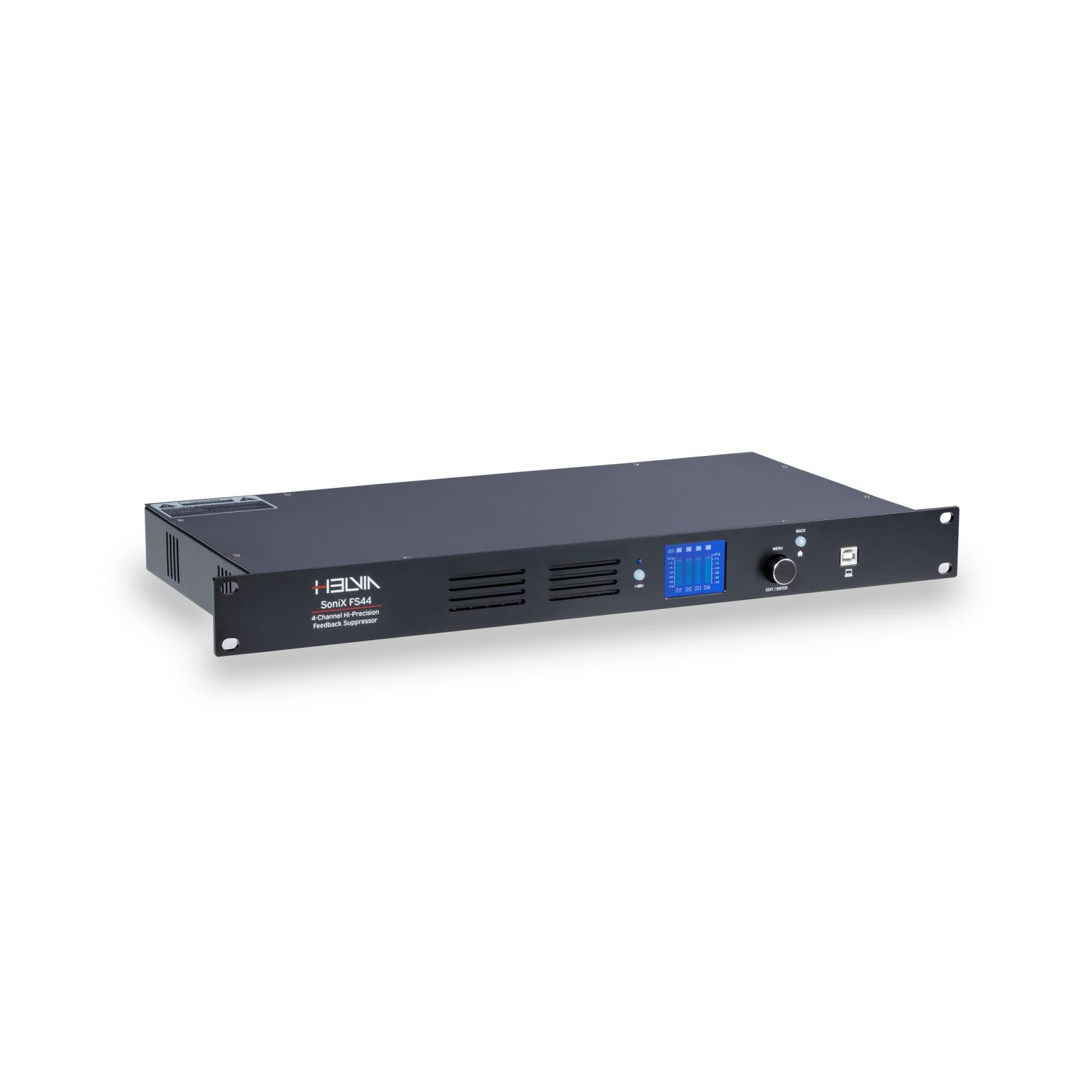

SONIX FS44 4-Channel Hi-Precision Feedback Suppressor

Download product sheet

SoniX FS44 is a Feedback Suppressor with 4 inputs and 4 outputs designed for all those conference applications and fixed installations where there are many microphones and many Larsen problems. This processor, thanks to its huge processing power, enables amazing results, even for users without in-depth knowledge of microphone pick-up techniques.

Using it is n... Read more

SoniX FS44 is a Feedback Suppressor with 4 inputs and 4 outputs designed for all those conference applications and fixed installations where there are many microphones and many Larsen problems. This processor, thanks to its huge processing power, enables amazing results, even for users without in-depth knowledge of microphone pick-up techniques.

Using it is not difficult. Simply connect the 4 inputs to 4 microphones or 4 groups of microphones, the outputs to your sound system and use the microphones as usual, starting the “Auto check” function. In just a few minutes, the algorithms analyze the audio spectrum of all sources and set the 24 filters to achieve the best possible result. Then you can refine it manually. The 24 notch filters can also be divided into static and dynamic, depending on the depth of intervention required according to the complexity of the acoustic environment. The “scenes” can be stored in 12 presets and recalled from panel or PC.

Collapse text

Product downloads

Highlights

Huge Processing Power

The SoniX FS44 is based on 4th generation 450MHz/32-bit SHARC processor. AD/DA conversion is 24-bit with 96kHz sampling rate. Each channel has 48V Phantom, Noise Gate, 6-band PEQ plus HPF and LPF, automatic Phase/Frequency Shifting correction and Limiter.

Smart Auto-Scan with 24 Customizable Notch Filters

The heart of SoniX FS44 processing is the 24 automatic notch filters for each channel with automatic analysis function. The mix of static or dynamic notch filters can be set manually based on the "problematic nature" of the acoustics in which the processor works.

All editing and functions are accessible from the front panel, thanks to the color TFT display and simple and intuitive interface. It is also available a PC software for Windows® that be connected via USB or RS-485.

19" Rack Standard
Adaptive Feedback Suppressor
PC Control Software
Phantom Power
RS-485 Communication
USB

Product details

Key features

  • ADI's 4th generation SHARC processor
  • Core clock of up to 450MHz
  • Built-in 24-segment 4-channel independent high-precision adaptive digital notch filters
  • Automatic phase and frequency shifting functions
  • 6-segment filters for each channel with 6-types of parametric filters/notch filters/high and low shelves/all-pass
  • Balanced Mic/Line Inputs with Phantom Power and Balanced Outputs
  • Limiter function for all 4 Channels
  • USB/RS485 remote connection function
  • PC software with multiple unit control
  • 12 Scenes with save and recall function
  • Password locking function
  • More Less

Specifications

  • Input Channel
    4 CH-XLR/TRS/LINE
  • Output Channel
    4 CH-XLR
  • Frequency Response
    20Hz-20kHz
  • Input Sensitivity
    >-50dB
  • Input impedance
    20kohm
  • Signal noise ratio
    >95dB @ Input potentiometer MIN
  • Auto Mix
    Routing Setup
  • X-over
    The high and low pass types/slopes/frequencies are selectable
  • EQ
    Different filter types can be selected in 6 segments
  • Output Level
    0dB
  • Scene
    12 scenes saving and calling types
  • Notch Num
    4X24 segments, with dynamic and static Settings available
  • Speed
    High, medium and low can be set
  • Compressor
    -48 ÷ +24dB
  • Panel Lock
    Panel locking function with Password
  • Display
    2.0” color TFT

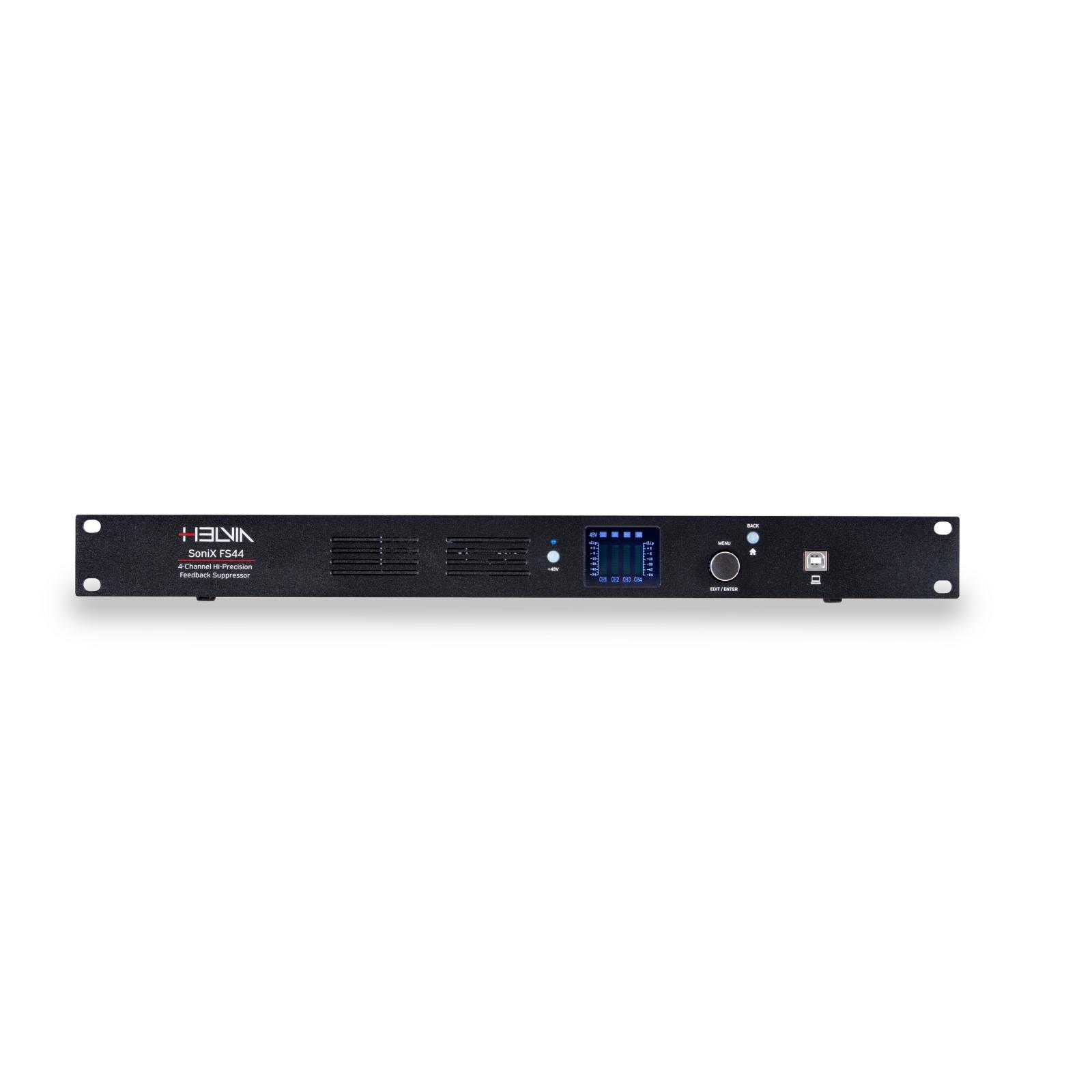

  • Front panel control
    USB interface, key encoding wheel Settings, 48V and BACK buttons

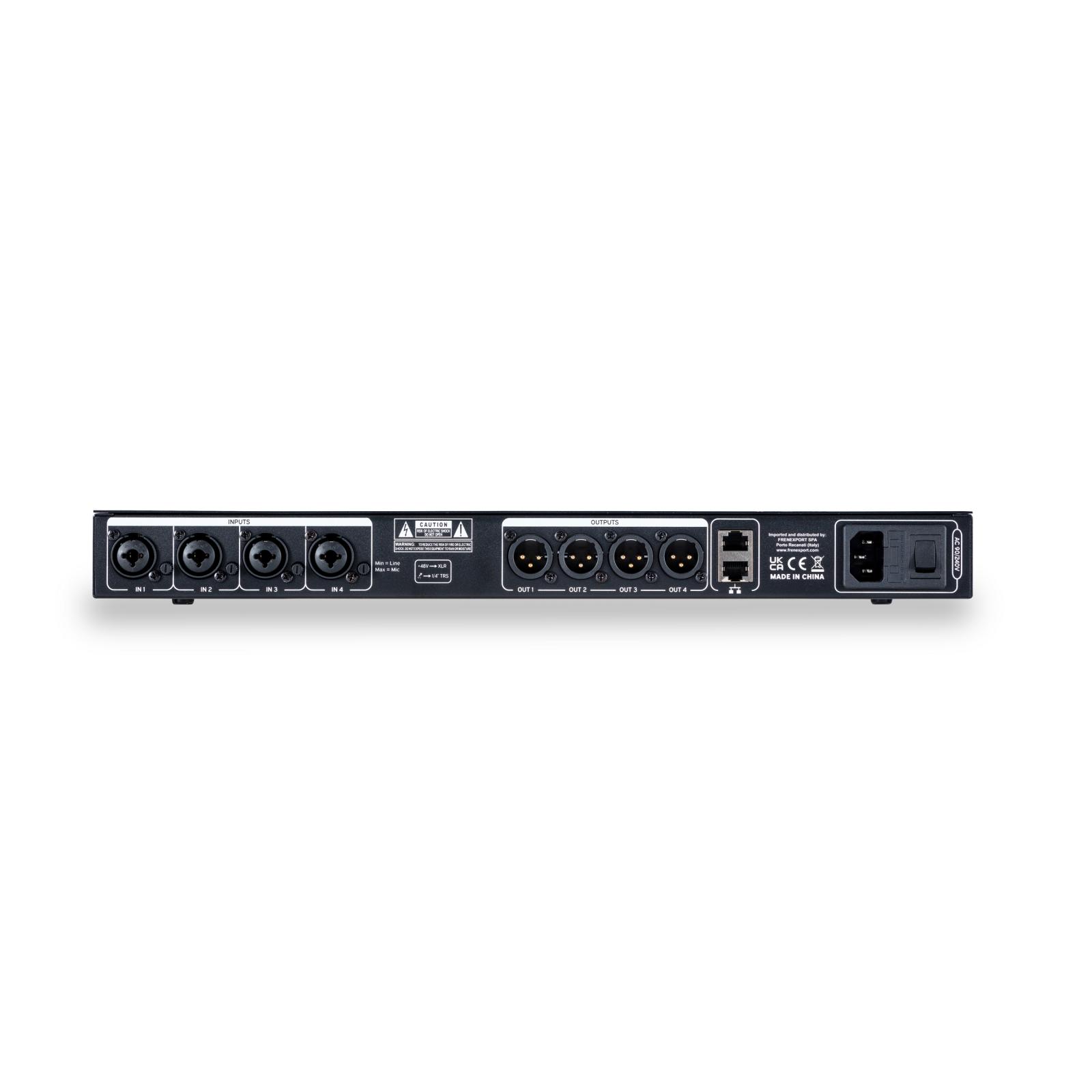

  • Rear panel control
    In/Out connectors, Power connector, RS485 interface
  • Power consumption
    <30W
  • Power supply
    AC90V ÷ AC240V / 50-60Hz
  • Product Size (WxDxH)
    483 x 226 x 45 mm (19 x 8.8 x 1.78 in.)
  • N.W / G.W.
    2.8Kg / 3.2Kg (6.17 / 7.05 lbs.)
  • More Less
