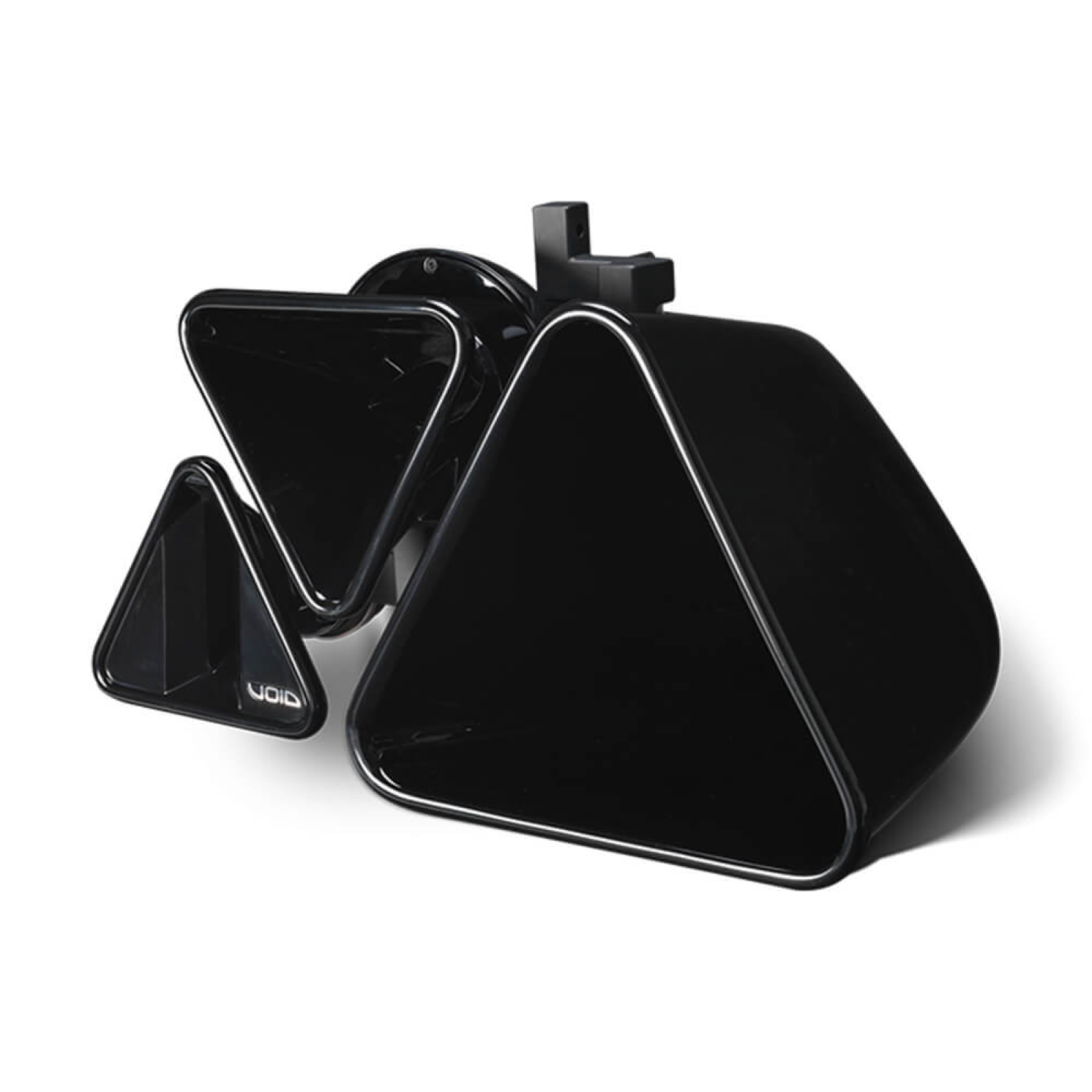

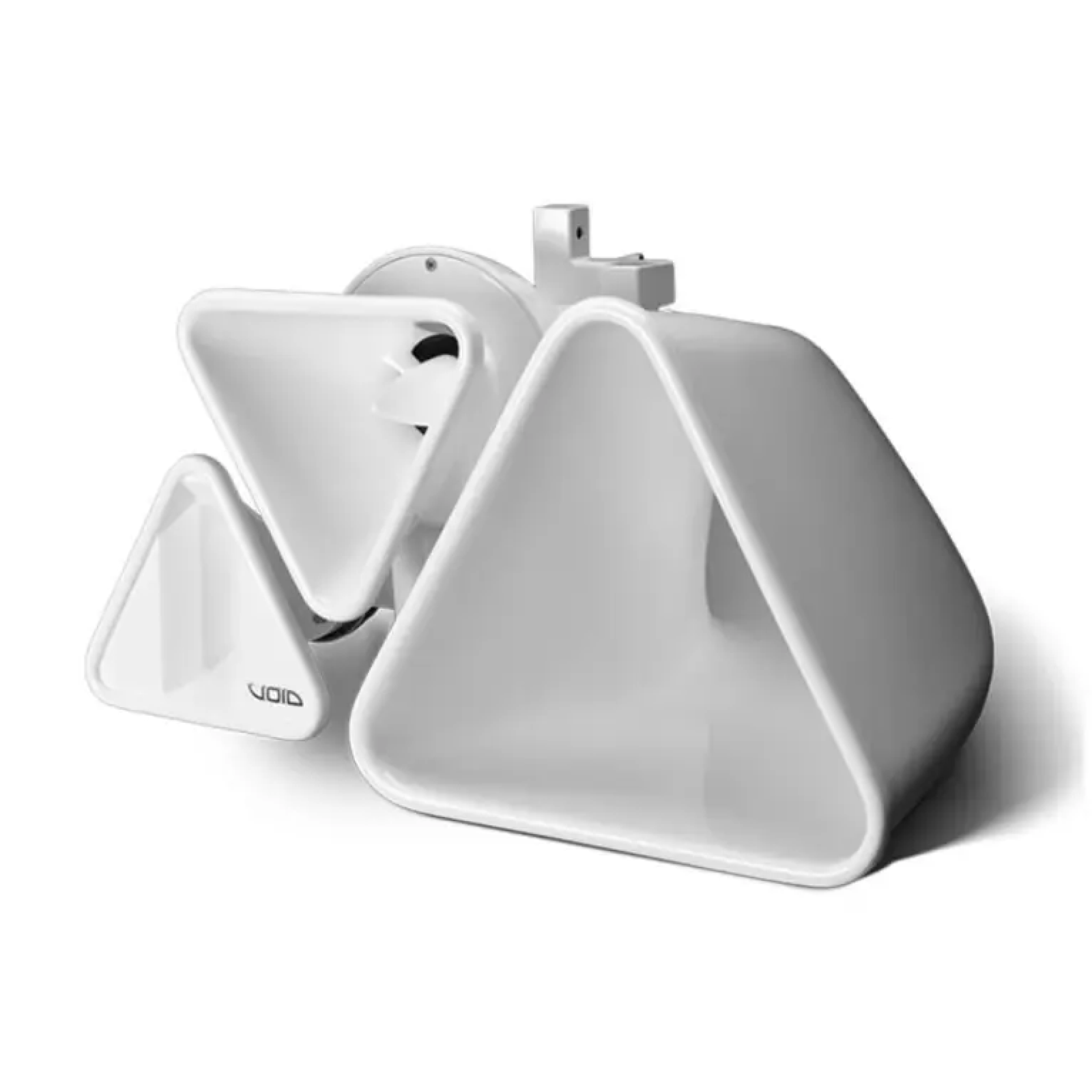

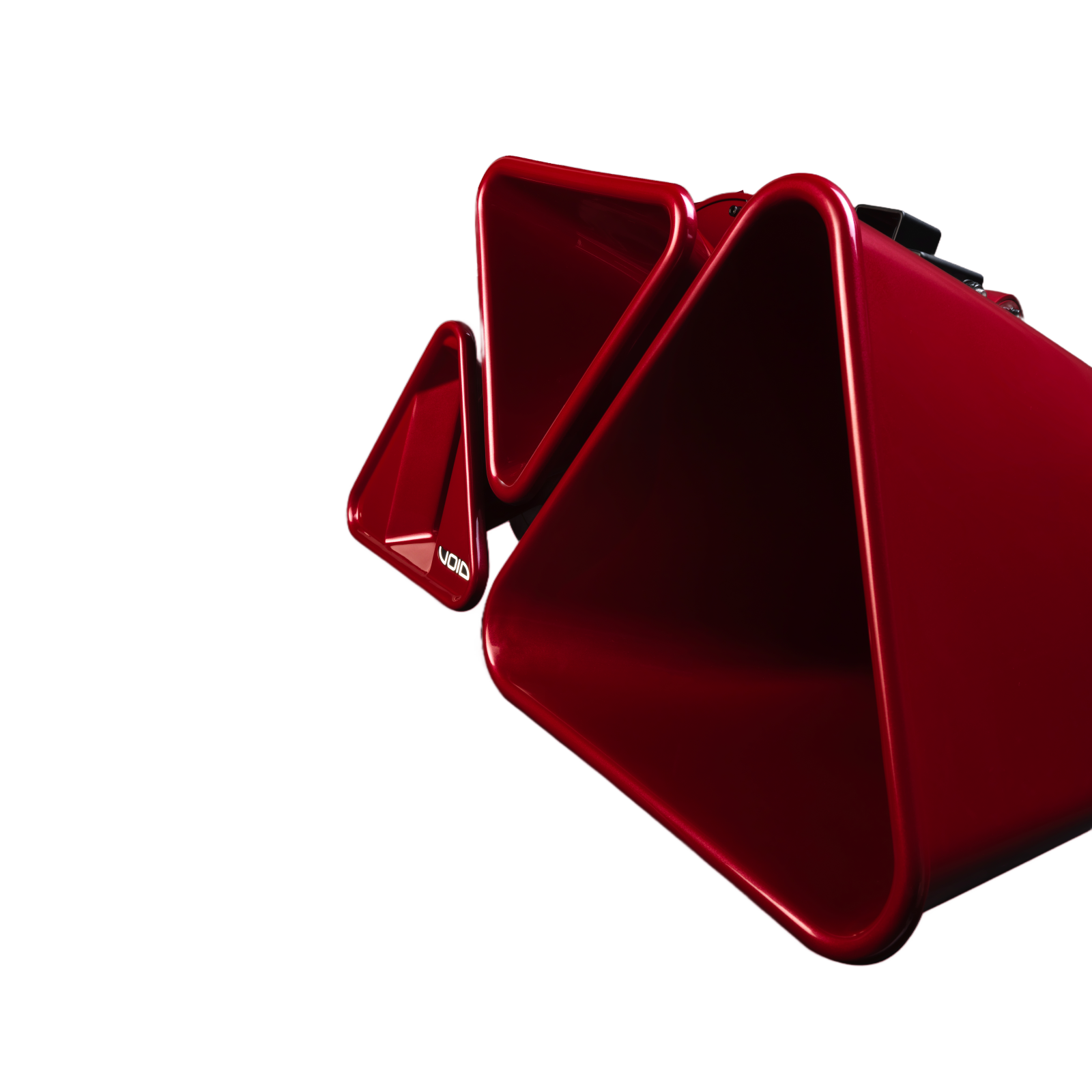

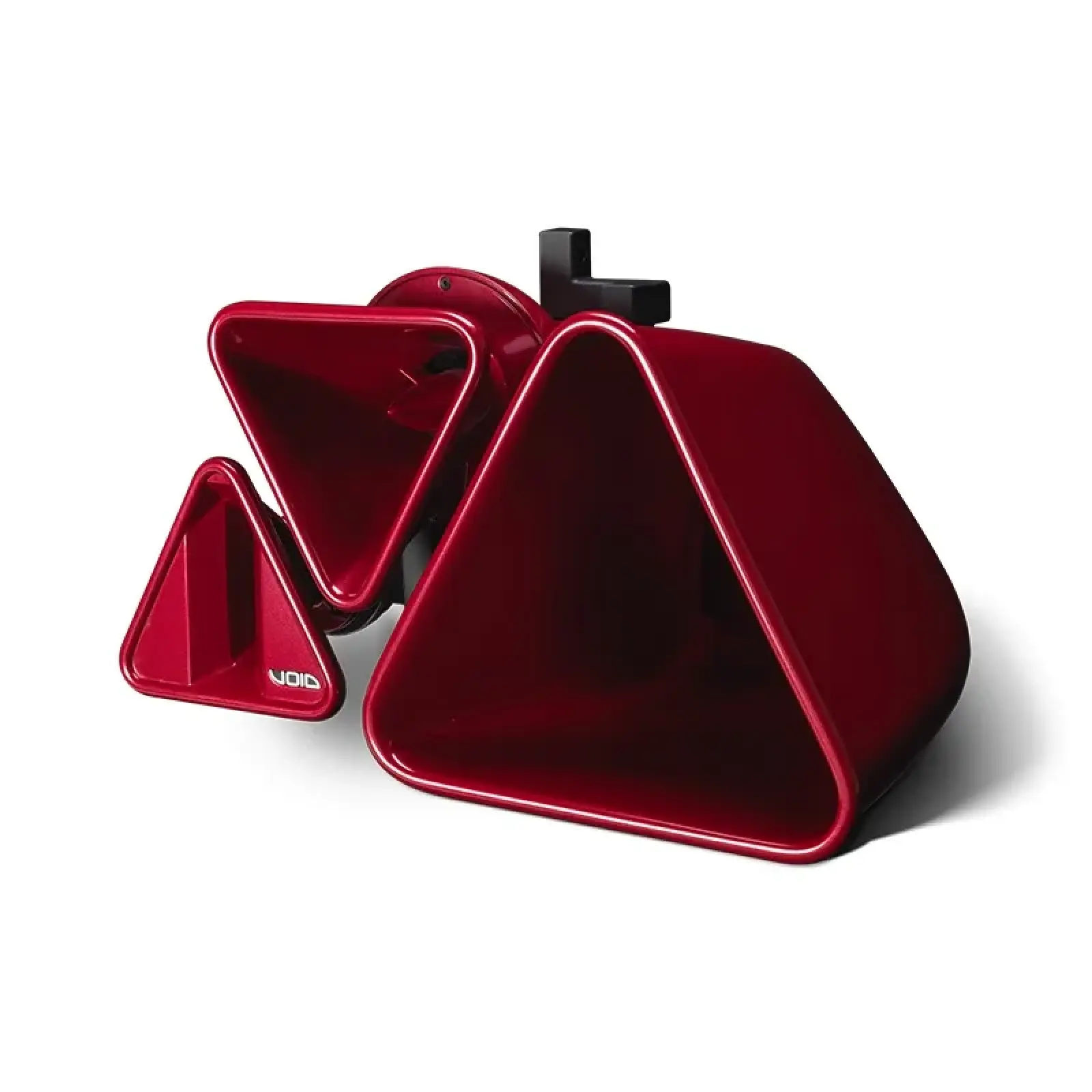

TriMotion Three-way design loudspeaker with 15", 8" and 1.5" drivers (custom colors available upon request)

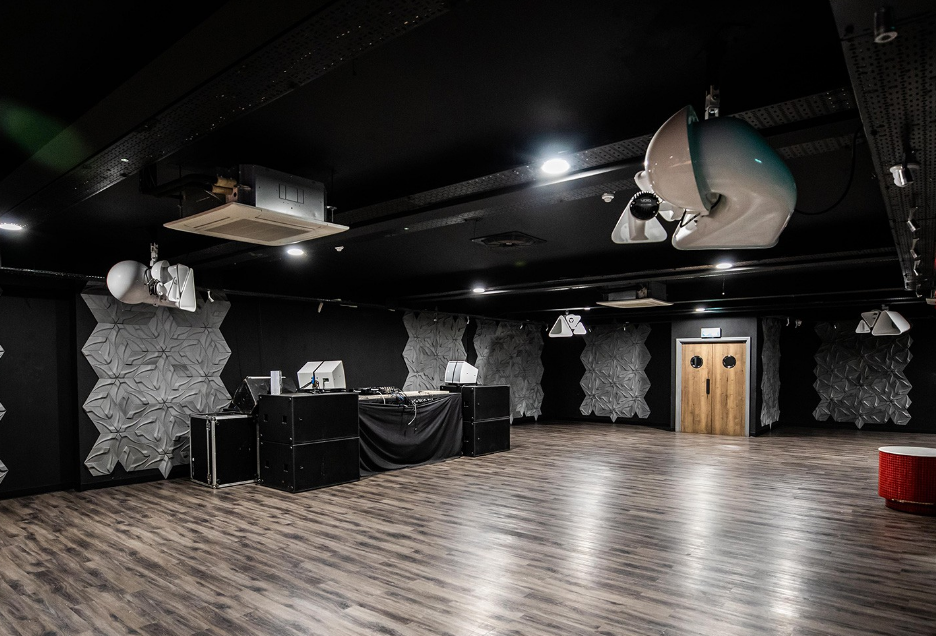

Download product sheetThe Tri Motion is more than a loudspeaker—it’s a statement of style and sonic excellence. Designed for premium spaces such as high-end clubs, designer restaurants, and VIP lounges, the Tri Motion stands out with its controlled, high-impact performance and visually captivating triangular form.
Its three-way configuration—featuring a 15” woofer, 8” midrange and... Read more
The Tri Motion is more than a loudspeaker—it’s a statement of style and sonic excellence. Designed for premium spaces such as high-end clubs, designer restaurants, and VIP lounges, the Tri Motion stands out with its controlled, high-impact performance and visually captivating triangular form.
Its three-way configuration—featuring a 15” woofer, 8” midrange and 1.5” HF compression driver—delivers crystal-clear reproduction across the spectrum. Triangular waveguides enhance directivity control (90°H x 60°V), ensuring precise sound coverage and improved audience focus.

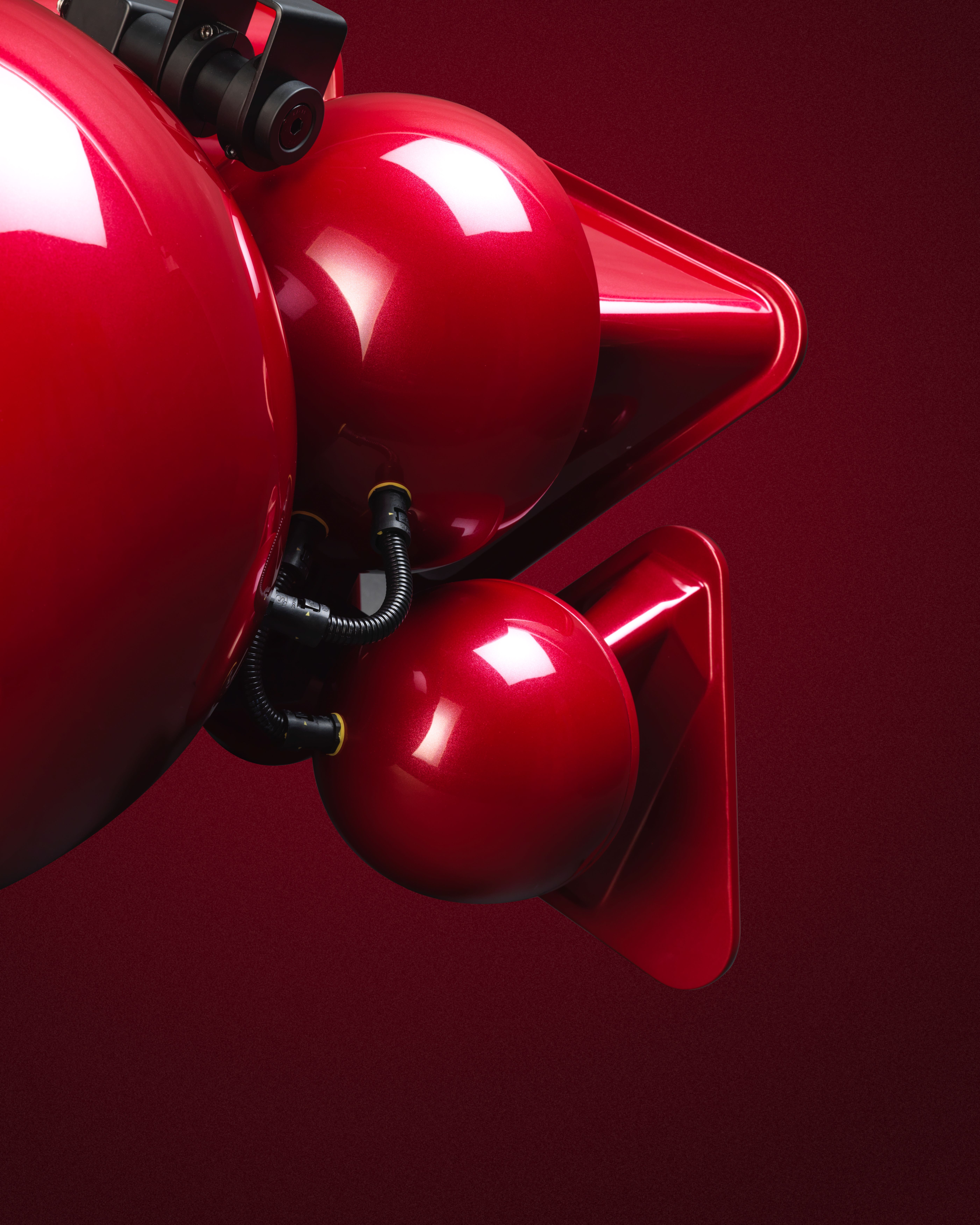

Thanks to its internal electronic HF protection, the Tri Motion maintains consistent reliability even at high outputs. Its low-resonance fibreglass composite enclosure ensures clean sonic output, while the integrated mounting system offers both flown and floor-mounted options.
With custom colour options available, it effortlessly blends into any high-design environment—serving as both a sonic centerpiece and a visual signature.
Collapse textHighlights
Low-resonance fibreglass composite construction
Three-way configuration with 15“, 8” and 1.5” drivers
The combination of a 15“ woofer, an 8” midrange and a 1.5” compression driver enables extremely detailed and dynamic reproduction throughout the entire frequency range. This configuration ensures a coherent and balanced response with deep bass, natural midrange and precise high frequencies, making it ideal for applications where definition and sonic clarity are paramount.

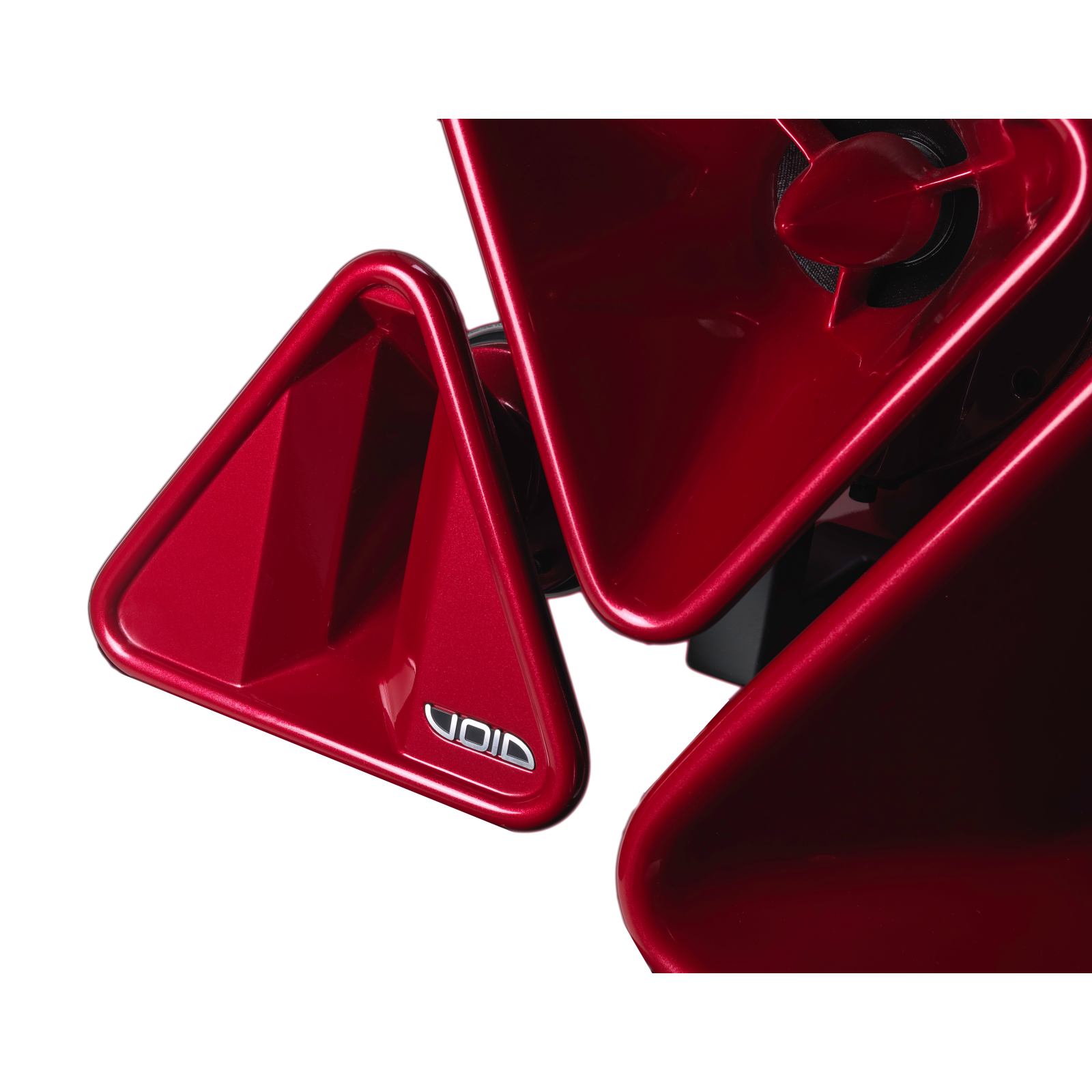

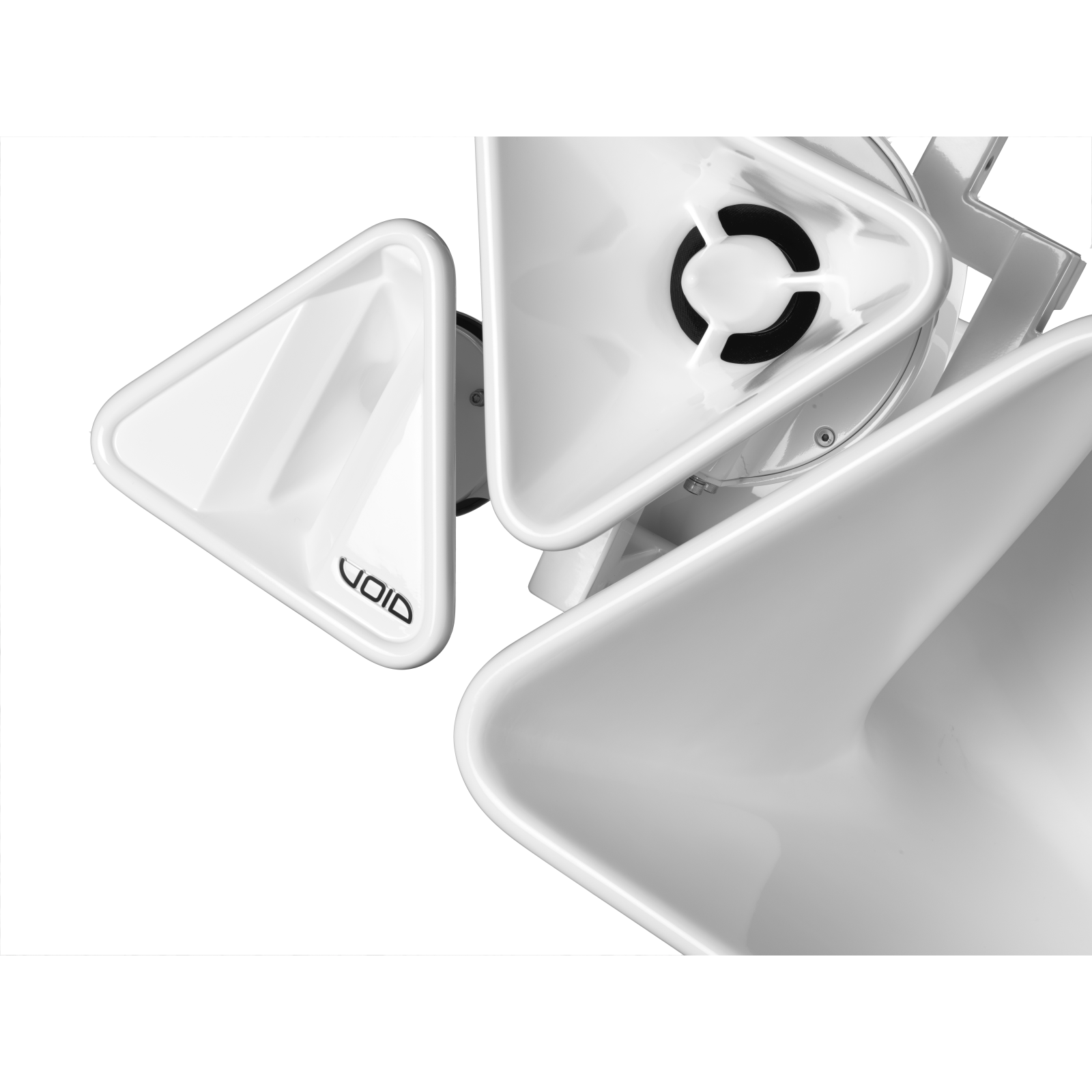

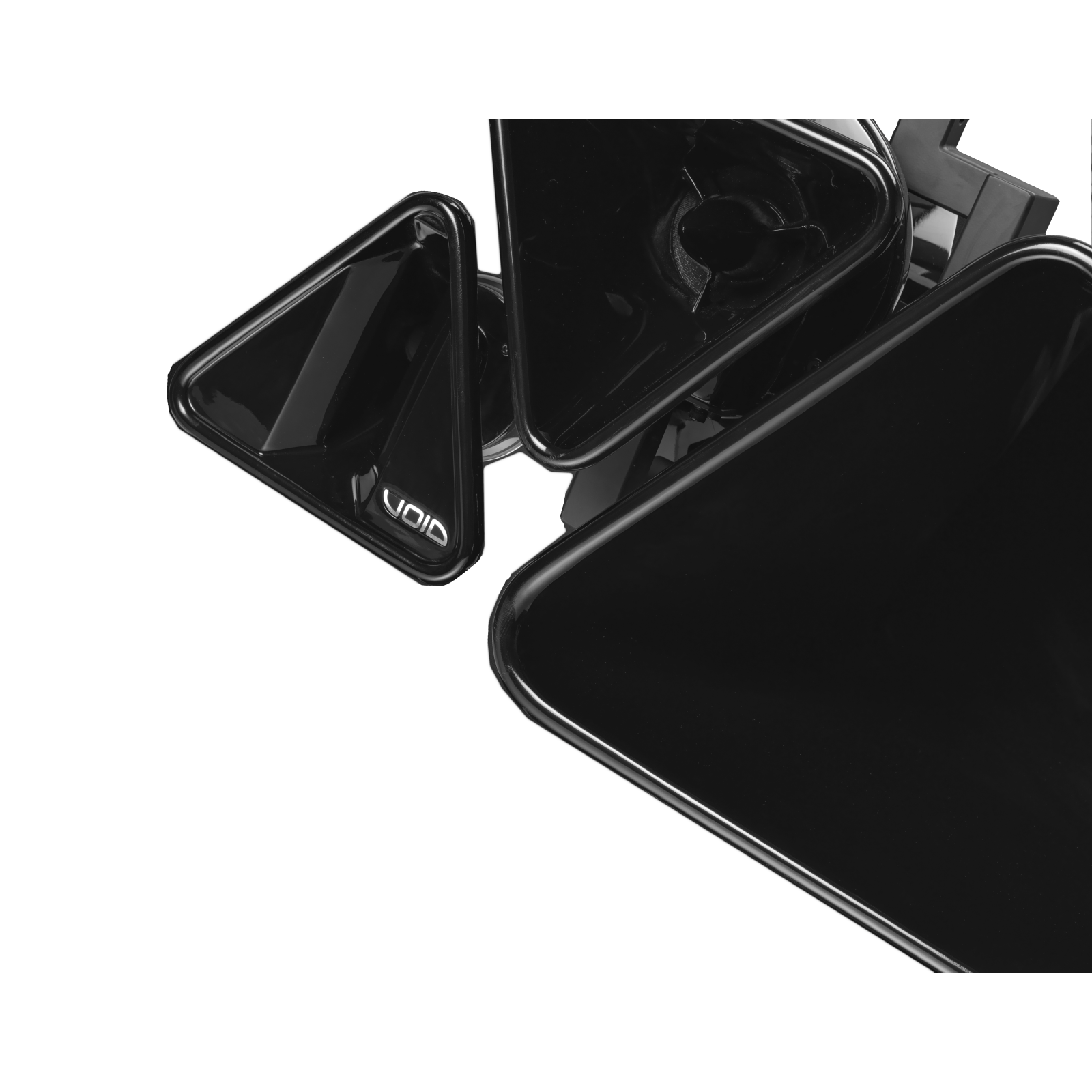

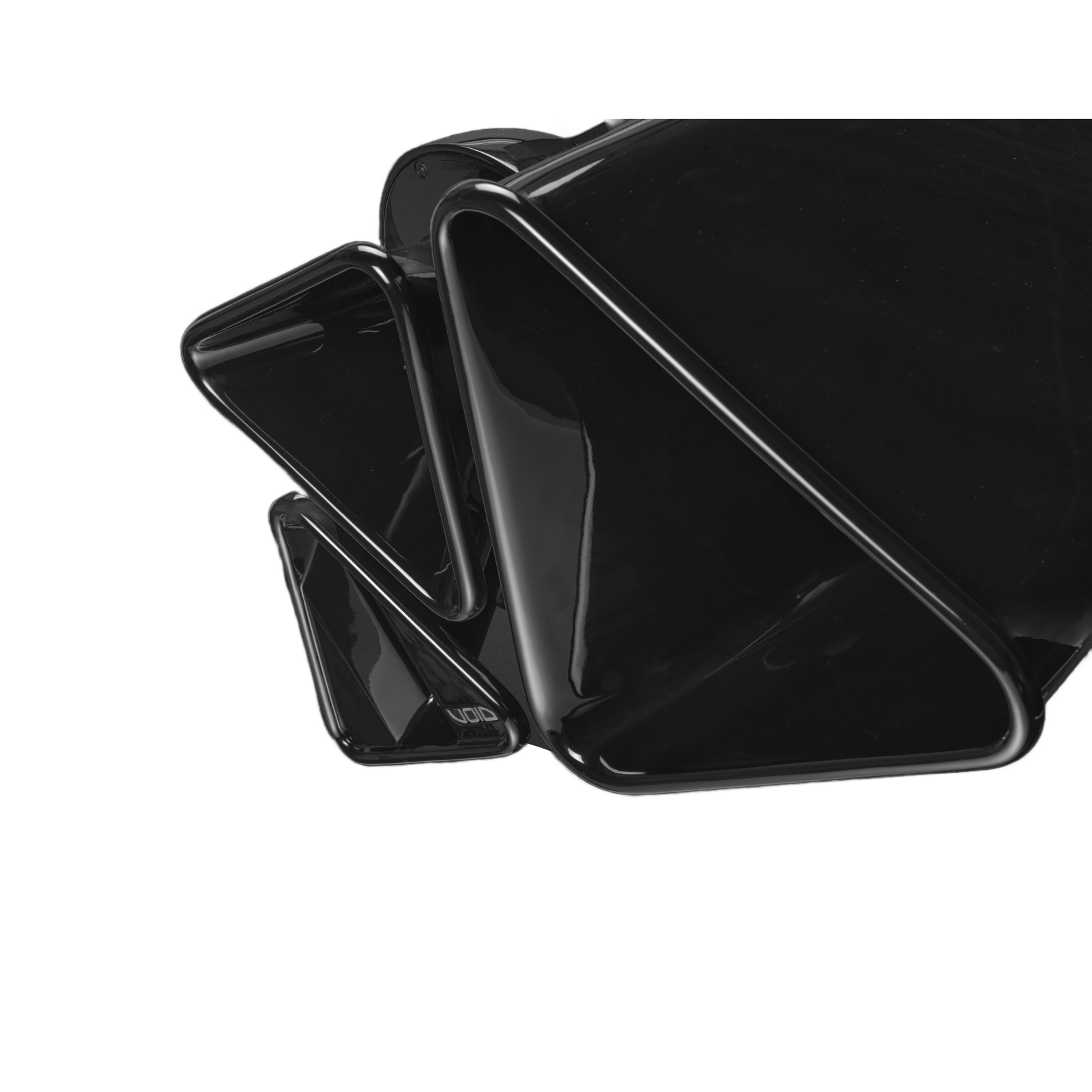

Triangular waveguides
Designed for direct dispersion control, the triangular profile waveguides ensure an even and predictable acoustic distribution with a 90° horizontal and 60° vertical pattern. This geometry reduces unwanted reflections and concentrates acoustic energy on the audience, being particularly effective in difficult or high-density environments.

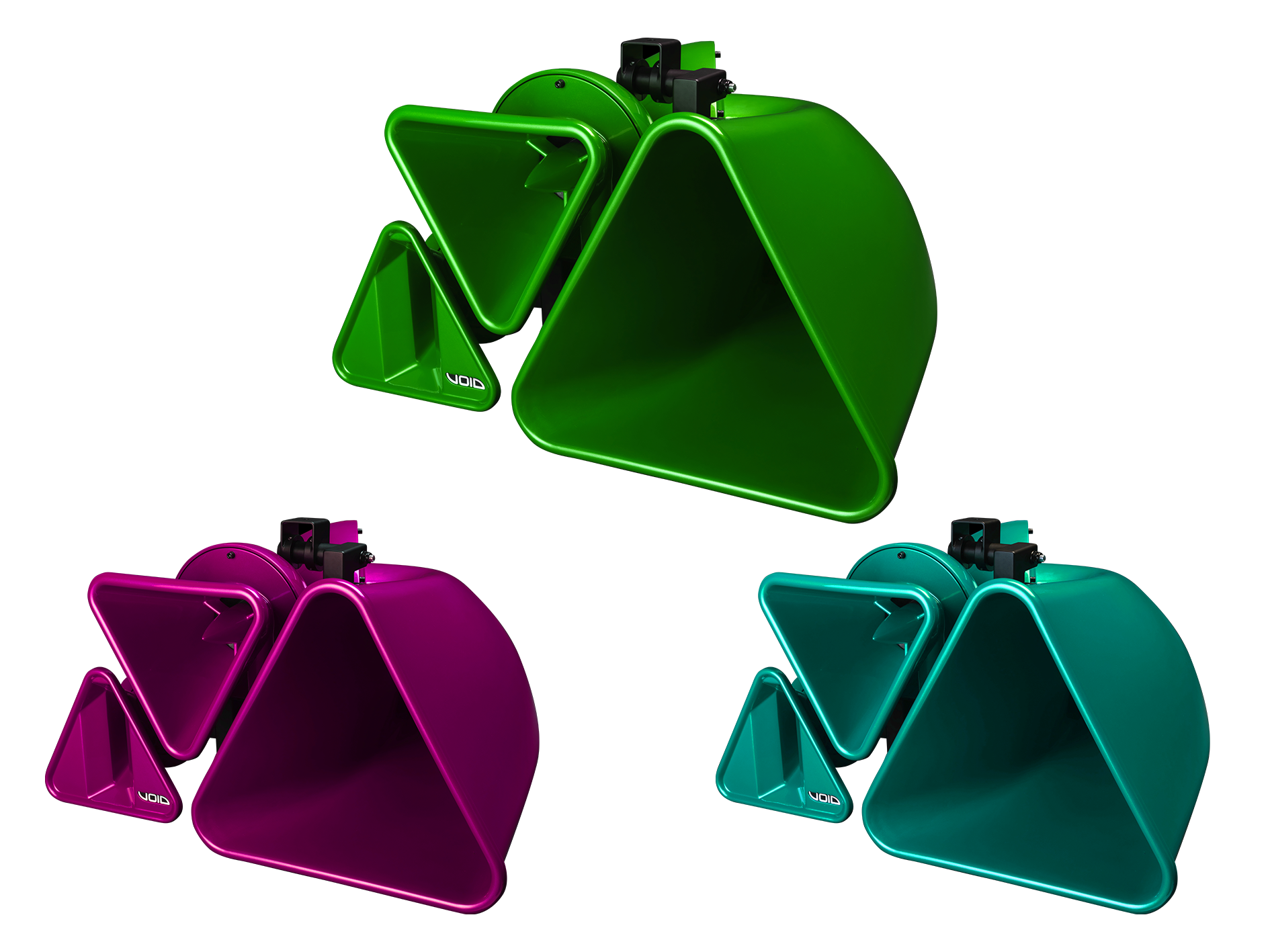

Custom colors available upon request
Product details
Key features
- Built-in electronic protection on high frequency: ensures reliability and operational safety even during prolonged use at high levels.
- High sound pressure (up to 141 dB peak): capable of handling large volumes accurately and without distortion, suitable for high-impact settings.

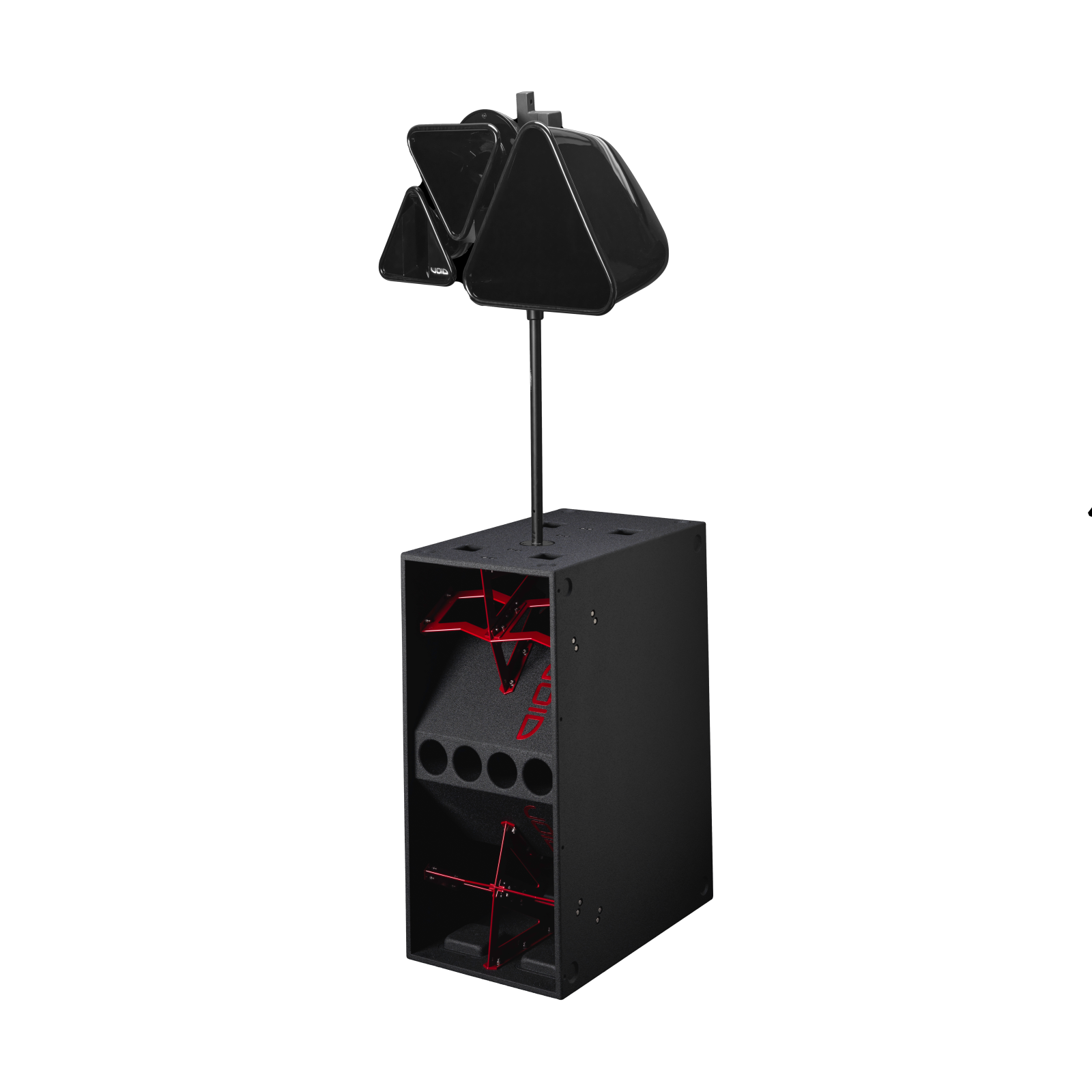

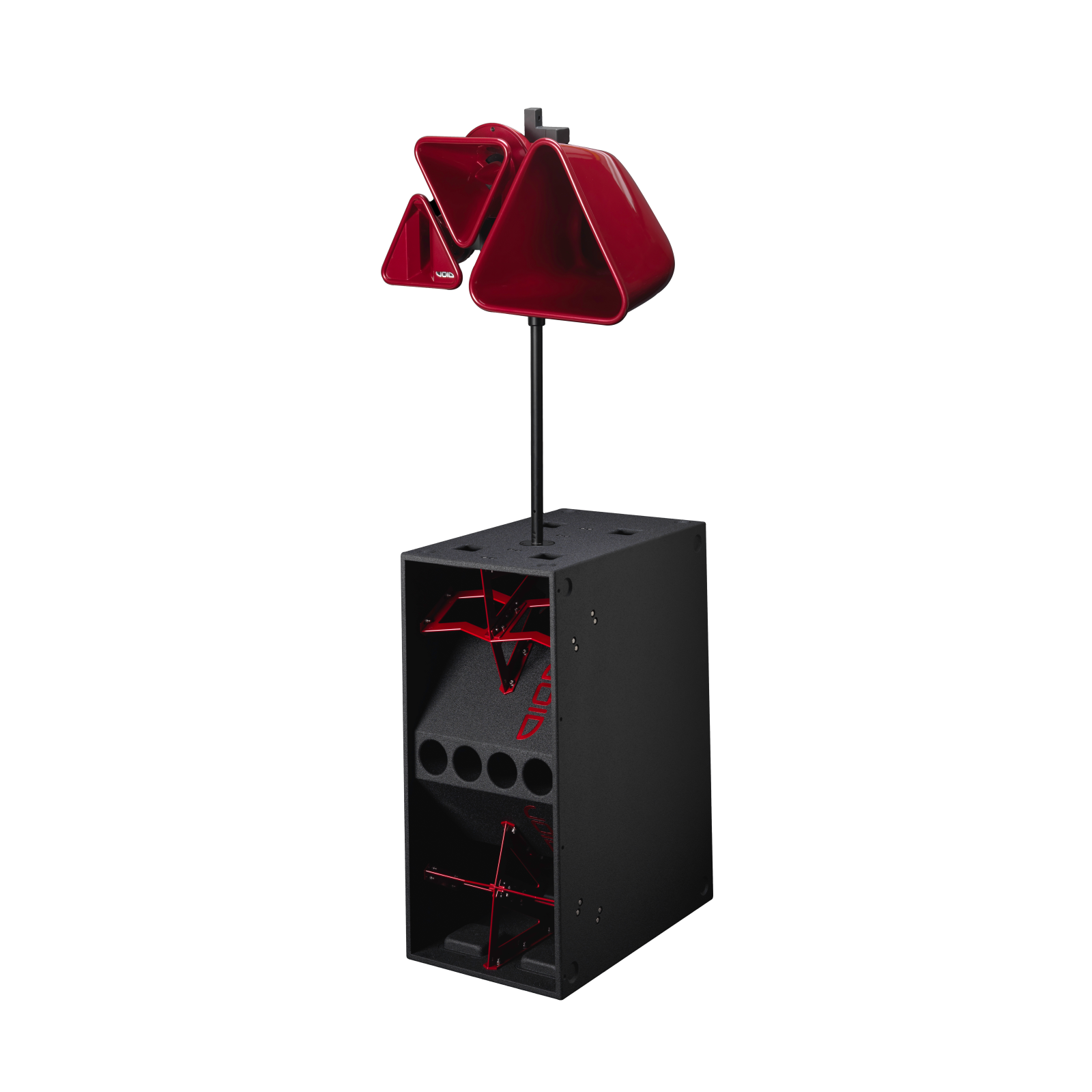

- Integrated suspension and mounting system: designed for versatile installations, it allows both suspended and floor-mounted use with appropriate accessories.
Specifications
-
Frequency Response120 Hz - 20 kHz ±3 dB
-
EfficiencyLF 107 dB 1W/1m | HMF 110 dB 1W/1m
-
Crossover PointsLF 120 Hz and 500 Hz | HMF 500 Hz - Passive 1.4 kHz
-
Nominal ImpedanceLF 8 Ω | HMF 8 Ω
-
Power HandlingLF 700 W AES | MHF 250 W AES
-
Maximum Output135 dB cont, 141 dB peak
-
Driver Configuration1x 15” LF | 1x 8” MF | 1x 1.5” HF compression driver
-
Dispersion90°H x 60°V
-
ProtectionInternal Electronic Control
-
Connectors2x 4-pole speakON NL4
-
Weight47.1 kg (103.8 lbs)
-
EnclosureFibreglass composite
-
RiggingIntegral mounting system
-

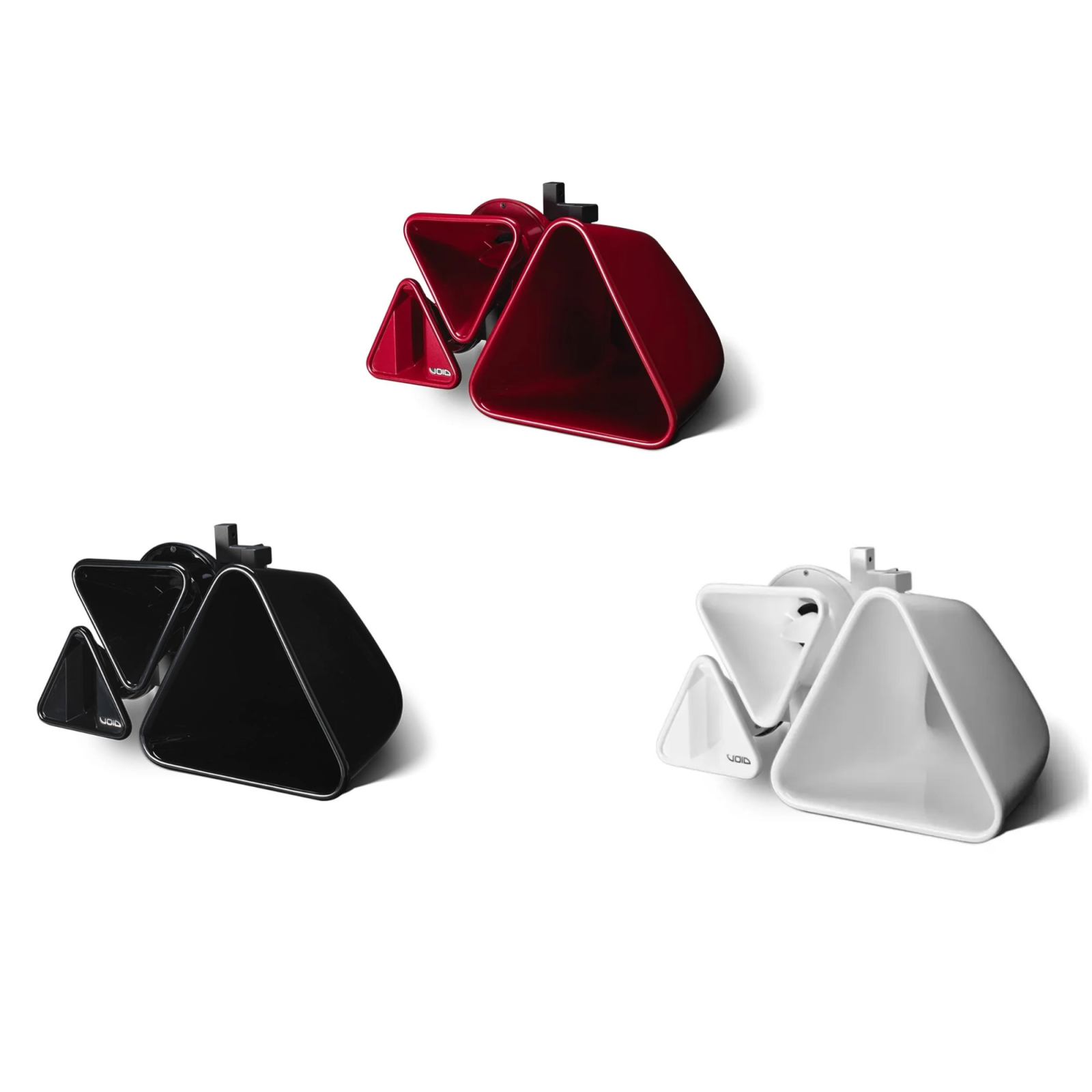

ColorsAvailable in the three Void standard colors Red, Black and White (custom colours available upon request
-
Dimensions (W x H x D)818.73mm x 467.75mm x 728.04mm
