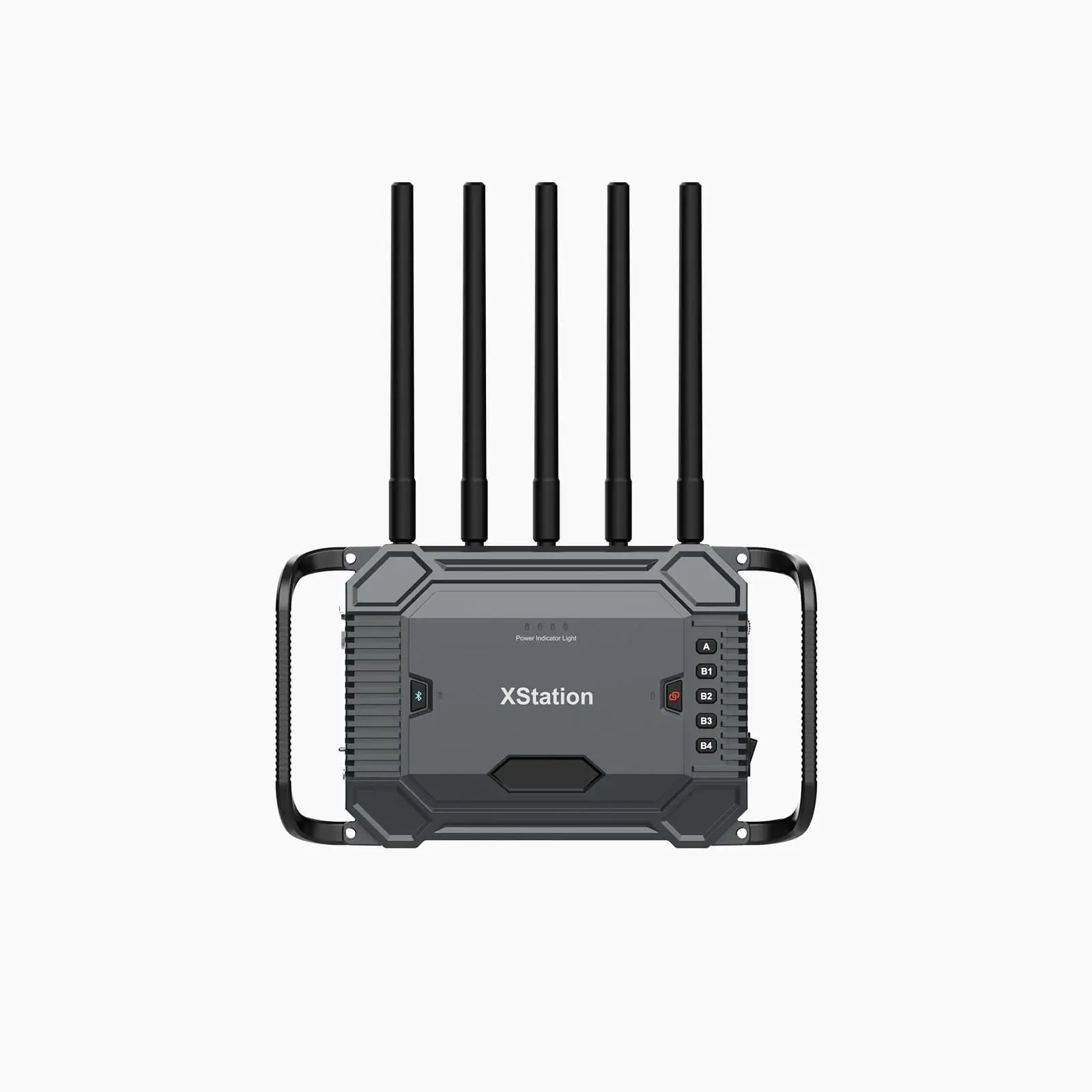

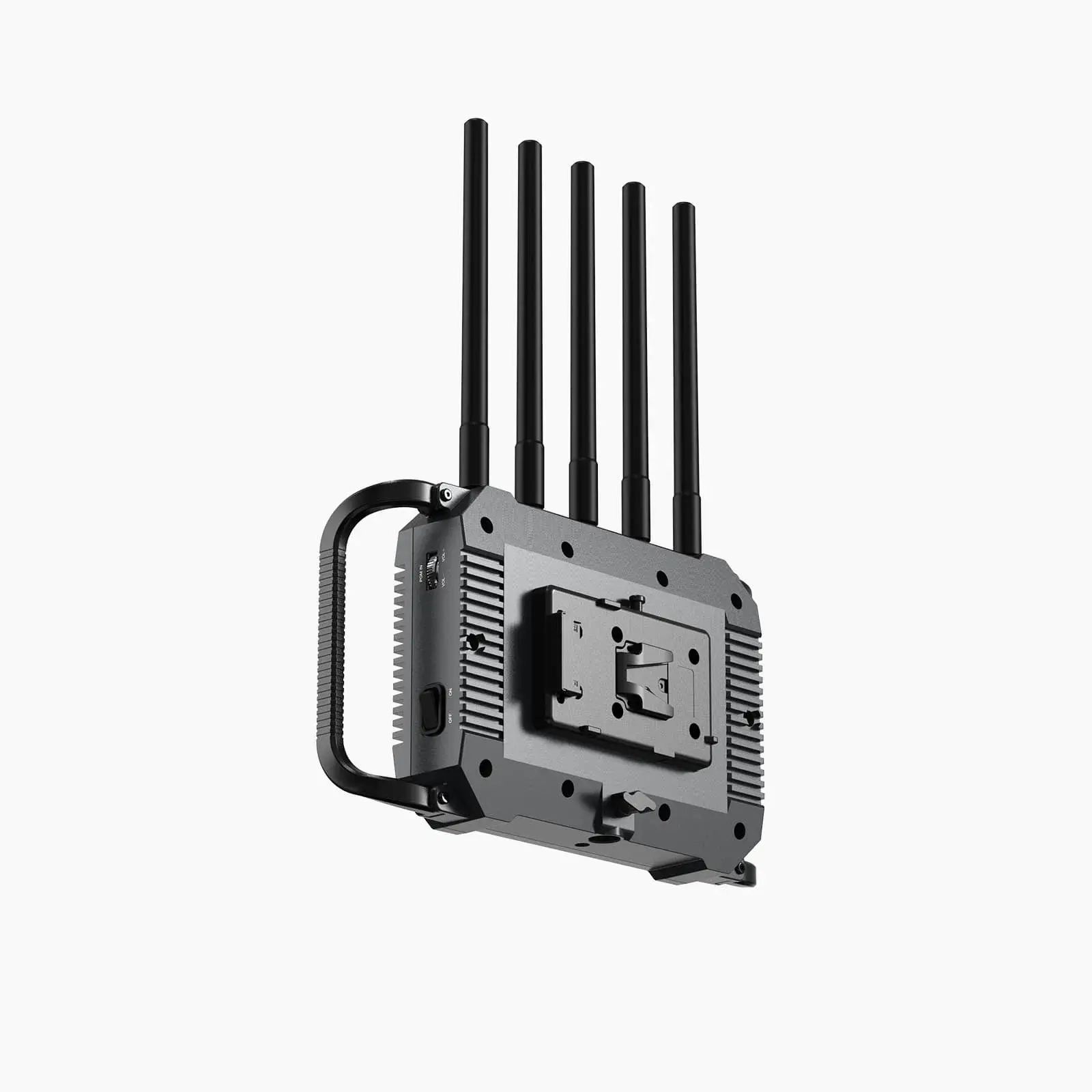

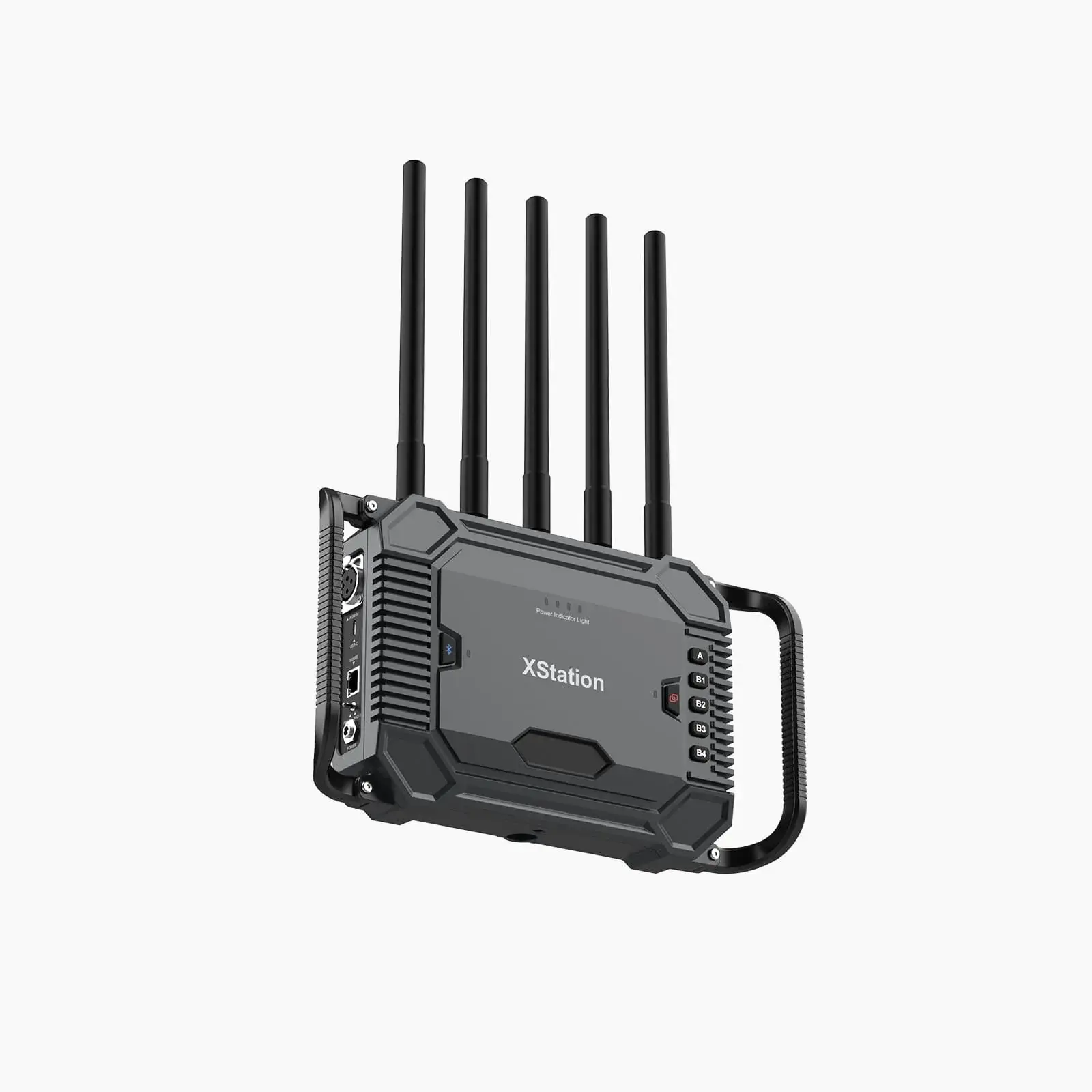

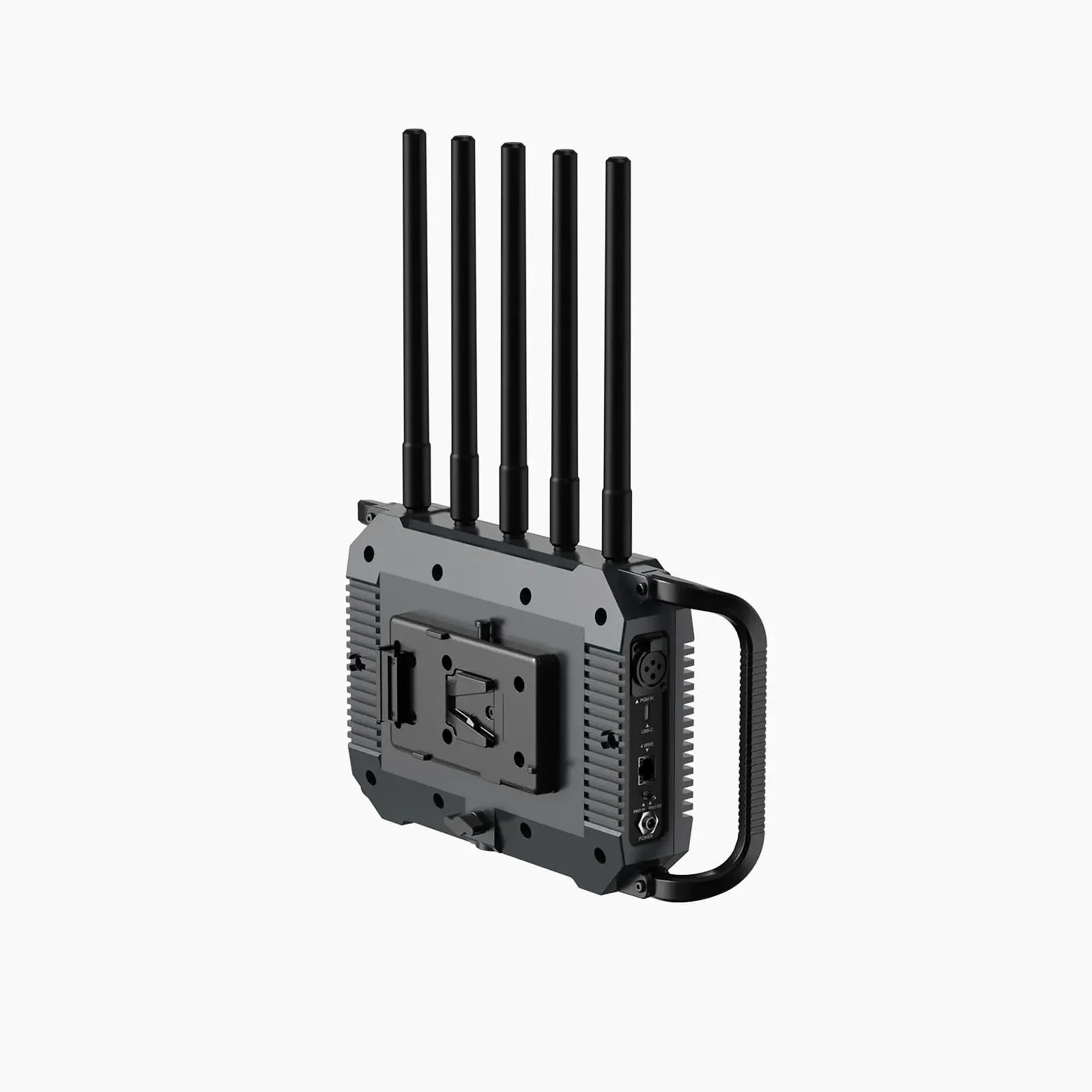

SYNCO XTALK XSTATION Wireless Intercom Base Station for Xtalk Master, 20 Users, 400m Range, 5 Groups, UAC Remote Communication, PGM Input, 4-Wire Compatibility and App Control

Download product sheet

The SYNCO XStation is a wireless intercom base station for the Xtalk Master, built to support larger teams and extended communication range. A single base station connects up to 20 headsets with a range of up to 400 m. Cascade two base stations to expand the system to 40 headsets with a communication range of up to 1,100 m.

By dividing the team into 5 groups, ... Read more

The SYNCO XStation is a wireless intercom base station for the Xtalk Master, built to support larger teams and extended communication range. A single base station connects up to 20 headsets with a range of up to 400 m. Cascade two base stations to expand the system to 40 headsets with a communication range of up to 1,100 m.

By dividing the team into 5 groups, it ensures your crew hears only what matters - eliminating cross-talk and distractions for focused coordination on complex productions.

This station delivers universal integration, featuring a 4-wire interface for external intercom systems, a UAC interface for remote communication, and a PGM input for program audio monitoring. With the SYNCO Audio App, your entire setup - from group routing to audio settings - is managed from a single, centralized interface.

Built for fast-paced film production, TV broadcasting, and live events, the SYNCO XStation features a hybrid V-Mount and DC power supply, a flexible 1/4" tripod mount, and clear LED indicators to guarantee continuous uptime and effortless deployment.

Collapse text

Product downloads

Battery Powered
Wireless Control

Product details

Key features

  • Scale up to 20 Users (40 users with 2 cascaded XStation)
  • 400m range (1100m with 2 cascaded XStation) for rock-solid connectivity
  • Efficient group management to hear only what is needed
  • UAC for Remote Communication
  • Monitor Program Audio (PGM) Input
  • Universal 4-wire Interface
  • Smart App Control for a centralized system management
  • Dual Power Supply switching between battery and DC
  • Standard 1/4" screw hole for mounting on tripods

Specifications

  • Range
    400m (LOS)
  • RF Frequency Band
    2.4GHz
  • Modulation
    GFSK
  • Transmit Power
    20dBm
  • RF Protocol
    Proprietary
  • Latency
    < 50ms
  • Frequency Response
    150Hz~7KHz
  • Audio Sample Rate
    8KHz, 16bit
  • SNR
    65dB
  • Power Supply
    V-Mount battery; DC
  • Power Consumption
    5W
  • Transmission Mode
    Full-duplex
  • Operating Temperature
    -15~45℃
  • More Less
