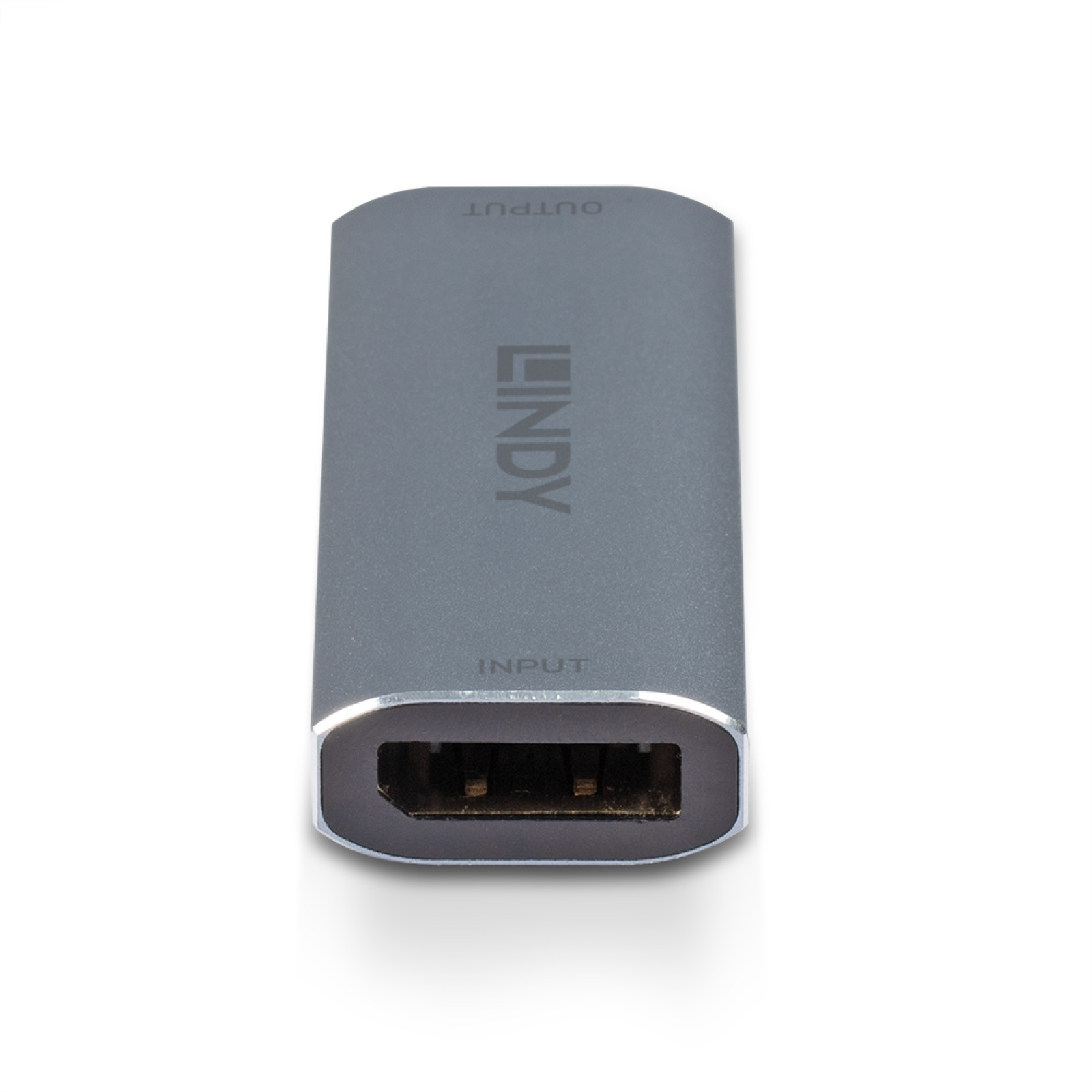

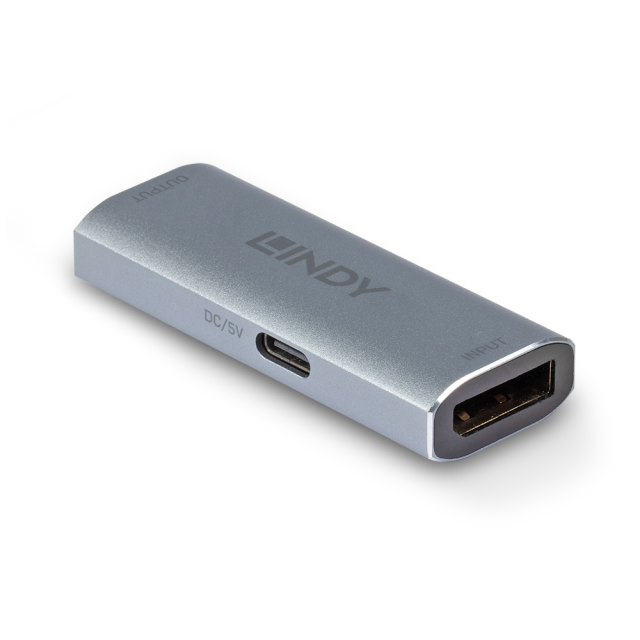

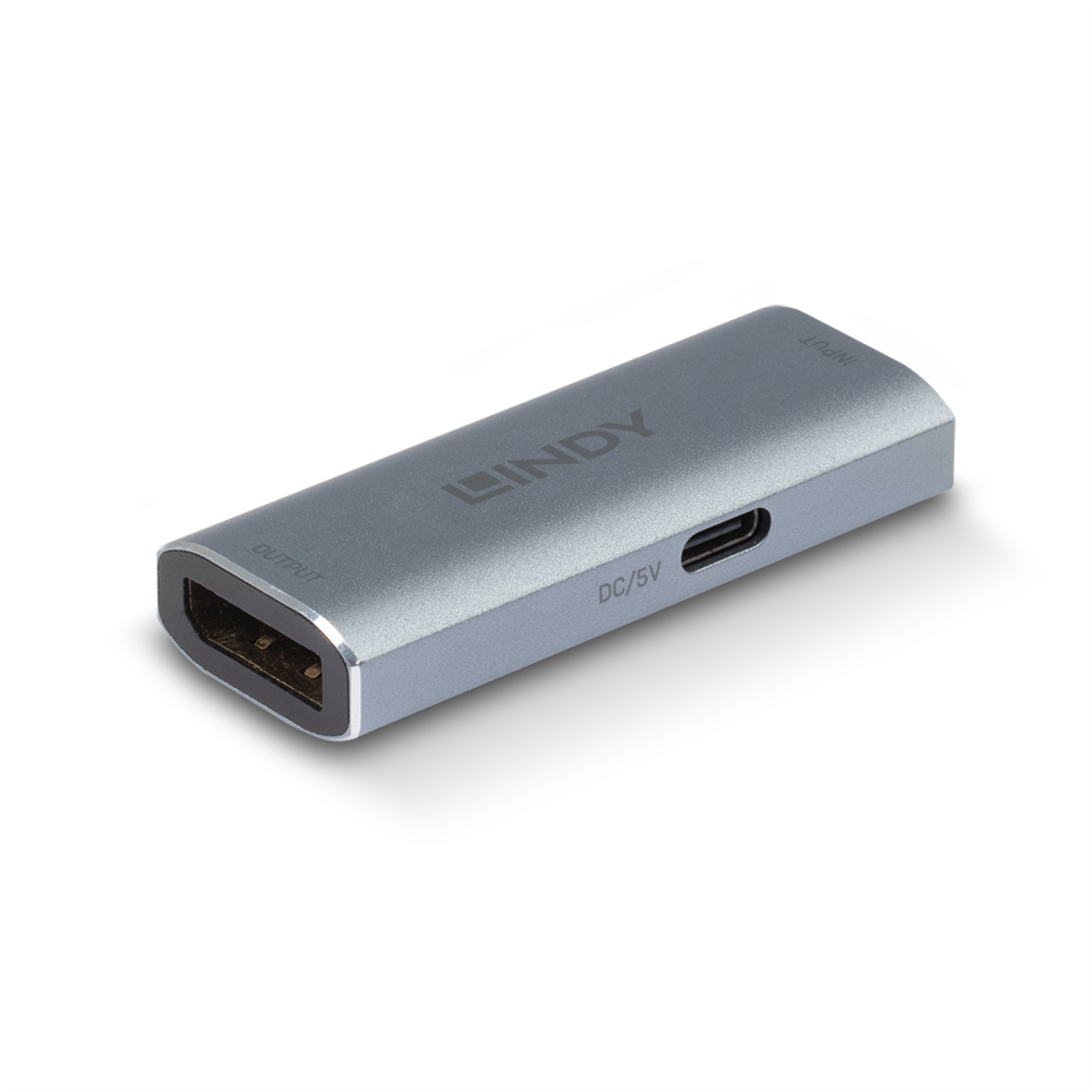

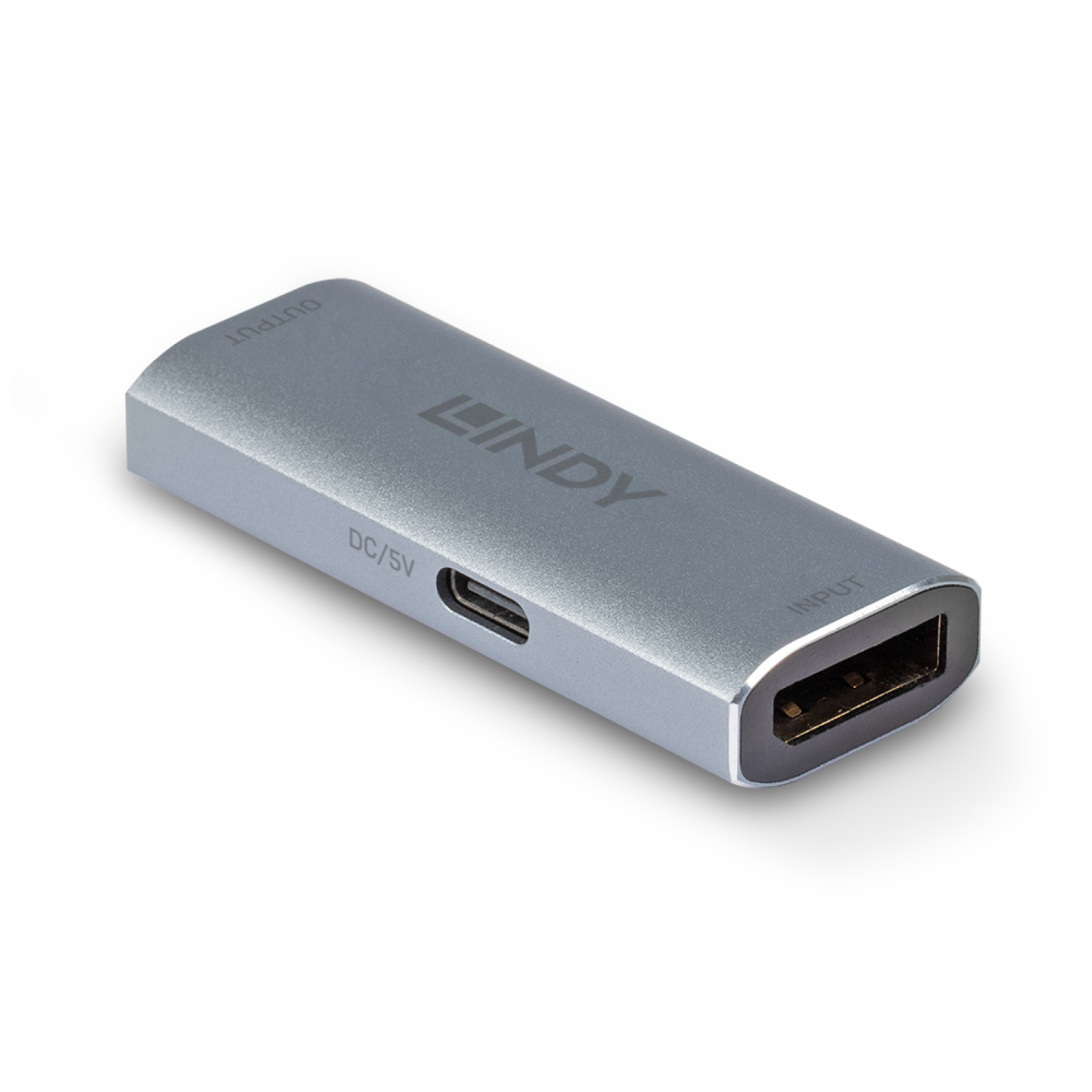

38421 DisplayPort 1.4 Repeater

Download product sheet

The Lindy DisplayPort 1.4 Repeater is an active solution for amplifying high quality DisplayPort signals up to distances of 20m, without any loss in image quality. Experience stunning video quality with our repeater, supporting up to 8K resolution at 60Hz (7680x4320) up to 10m for an immersive viewing experience; alternatively, experience smooth resolutions up... Read more

The Lindy DisplayPort 1.4 Repeater is an active solution for amplifying high quality DisplayPort signals up to distances of 20m, without any loss in image quality. Experience stunning video quality with our repeater, supporting up to 8K resolution at 60Hz (7680x4320) up to 10m for an immersive viewing experience; alternatively, experience smooth resolutions up to 4K (3840x2160) at 60Hz up to 20m.

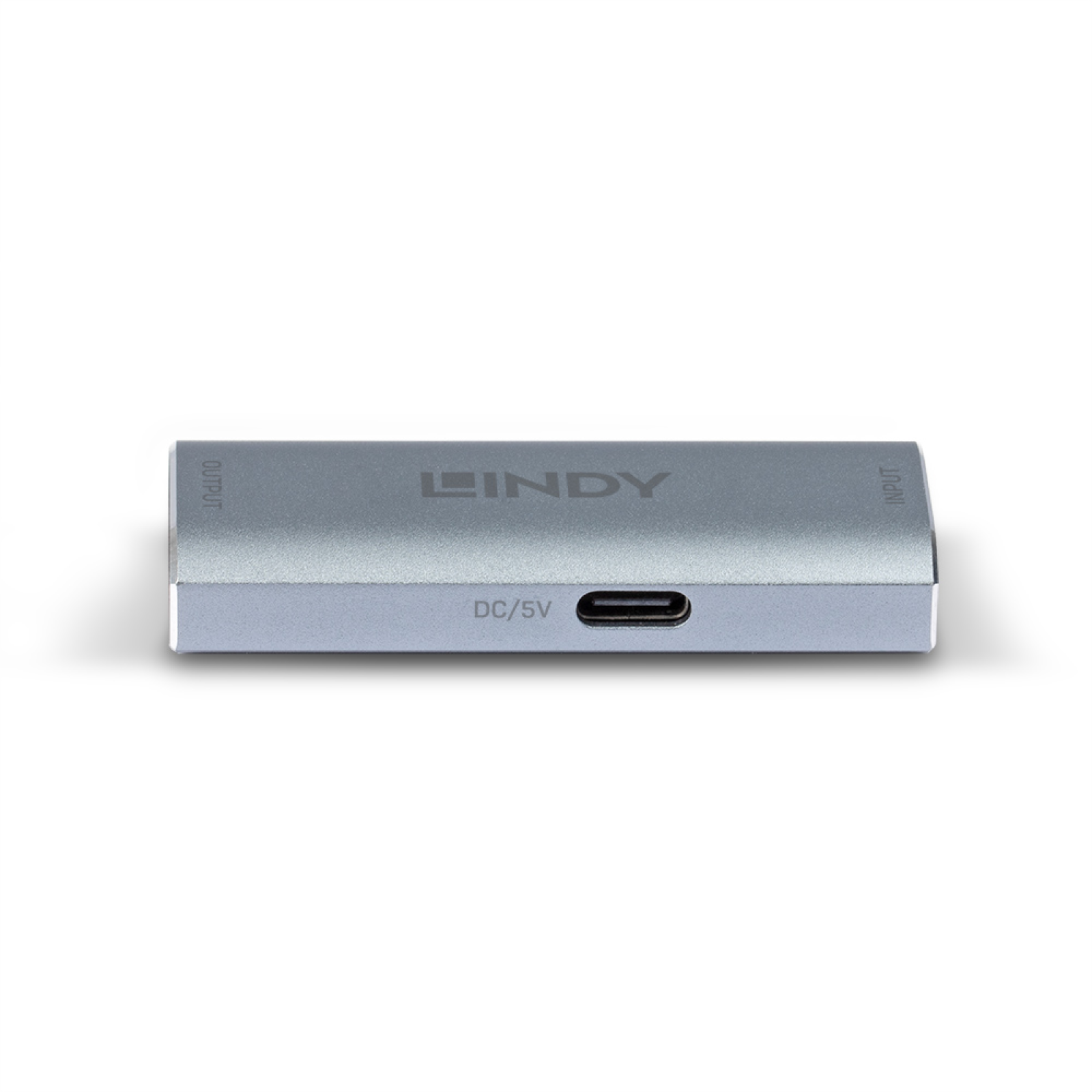

Equipped with a USB-C port, this repeater provides the flexibility to integrate external power when required. Elevate your setup with supplementary power support to ensure seamless, uninterrupted performance.

Enhance your professional AV/IT configurations with our repeater, crafted for seamless transmission over extended distances without signal deterioration. Enjoy superior signal amplification for noise-free, distortion-free experiences. Easily connect DisplayPort (DP) source devices such as graphics cards and laptops to DP displays across extended cable lengths with our single DP ports.

Collapse text

Product downloads

Product details

Key features

  • Extends DisplayPort 1.4 signals at distances of up to 20m
  • Supports resolutions up to 3840x2160@144Hz 4:4:4 12bit / 7680x4320@60Hz 4:4:4 8 bit
  • High Dynamic Range support provides deeper blacks, brighter whites and a wider colour gamut (HDR10+)
  • Plug and Play Installation - No drivers required
  • 2 Year Warranty

Specifications

  • AV Interface
    DisplayPort
  • Interface Standard
    DisplayPort 1.4
  • Supported Bandwidth
    32.4 Gbps
  • Maximum Distance (With Multiple Units)
    40m (131.23ft) - 3840x2160@60Hz; 15m (49.21ft) - 7680x4320@60Hz / 3840x2160@120Hz
  • Maximum Input Distance (Single Unit)
    10m (32.80ft) - 3840x2160@60Hz; 5m (16.4ft) - 7680x4320@60Hz / 3840x2160@120Hz
  • Maximum Output Distance (Single Unit)
    10m (32.80ft) - 3840x2160@60Hz; 5m (16.4ft) - 7680x4320@60Hz / 3840x2160@120Hz
  • Maximum Resolution
    7680x4320@60Hz 4:4:4 8bit
  • Transmission Medium
    2 x DisplayPort Cable
  • Special Features
    DPCP Compatible, HDR
  • Input
    DisplayPort (Female)
  • Output
    DisplayPort (Female)
  • Power
    USB Type C (Female)
  • Dimensions WxHxD
    23x10x60mm (0.90x0.39x2.36in)
  • Housing Material
    Aluminium
  • Net Weight
    0.041kg (0.09lb)
  • Operating Temperature
    5°C - 50°C (41°F - 122°F)
  • Storage Temperature
    -20°C - 60°C (-4°F - 140°F)
  • Humidity
    0-80% RH (non-condensing)
  • Colour
    Silver
  • More Less
