38152 4x4 4K UHD HDMI 1.4 Matrix, 4 Inputs & 4 Outputs

Download product sheet

Matrix for distributing content from multiple sources to multiple displays in any configuration.

This HDMI® 4K60 matrix supports connecting up to 4 HDMI® sources such as PCs, media players, etc., to 4 screens.

It supports resolutions up to 4K@60Hz for high-quality content display—making it an ideal solution for multimedia applications, digital signage, ret... Read more

Matrix for distributing content from multiple sources to multiple displays in any configuration.

This HDMI® 4K60 matrix supports connecting up to 4 HDMI® sources such as PCs, media players, etc., to 4 screens.

It supports resolutions up to 4K@60Hz for high-quality content display—making it an ideal solution for multimedia applications, digital signage, retail environments, and conference rooms.

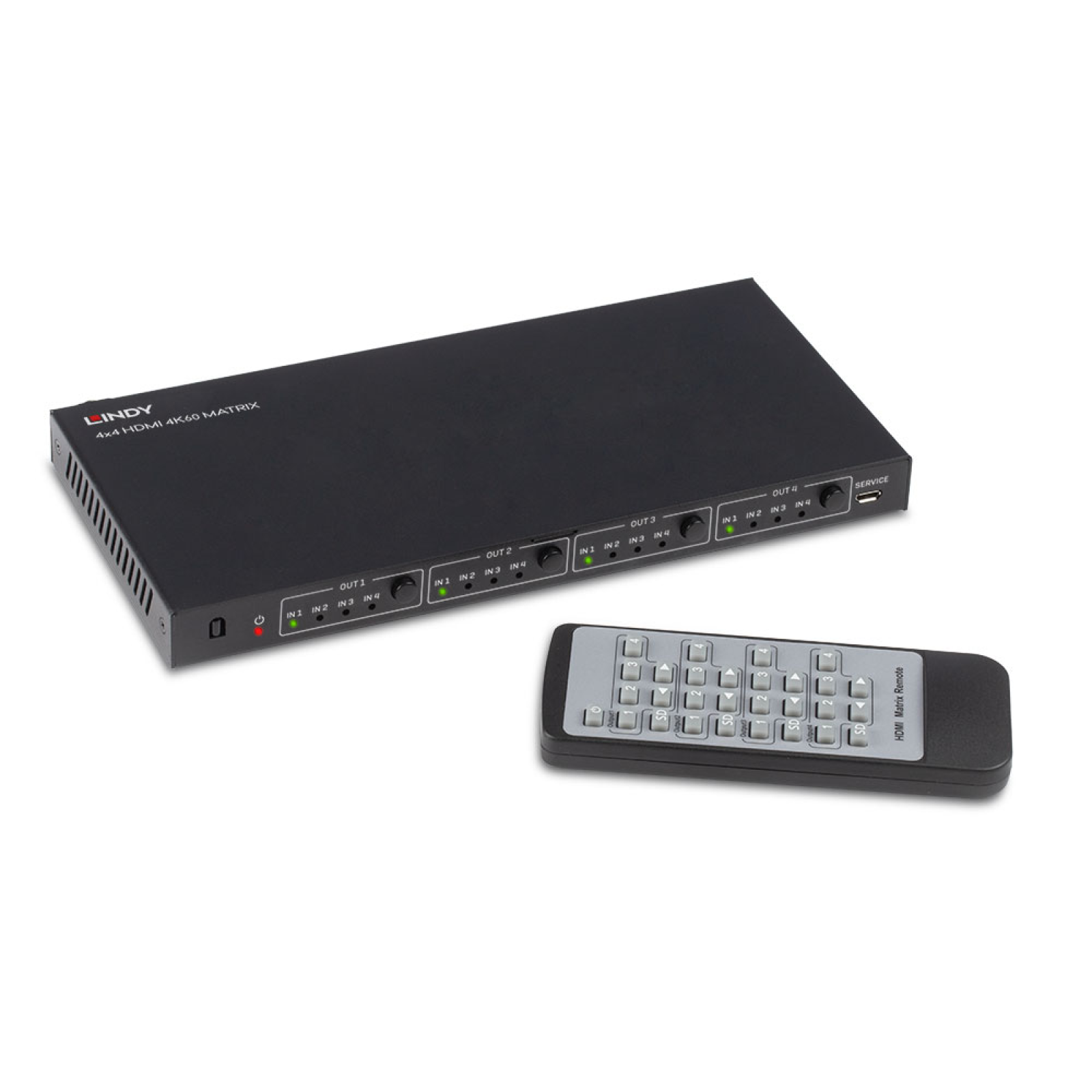

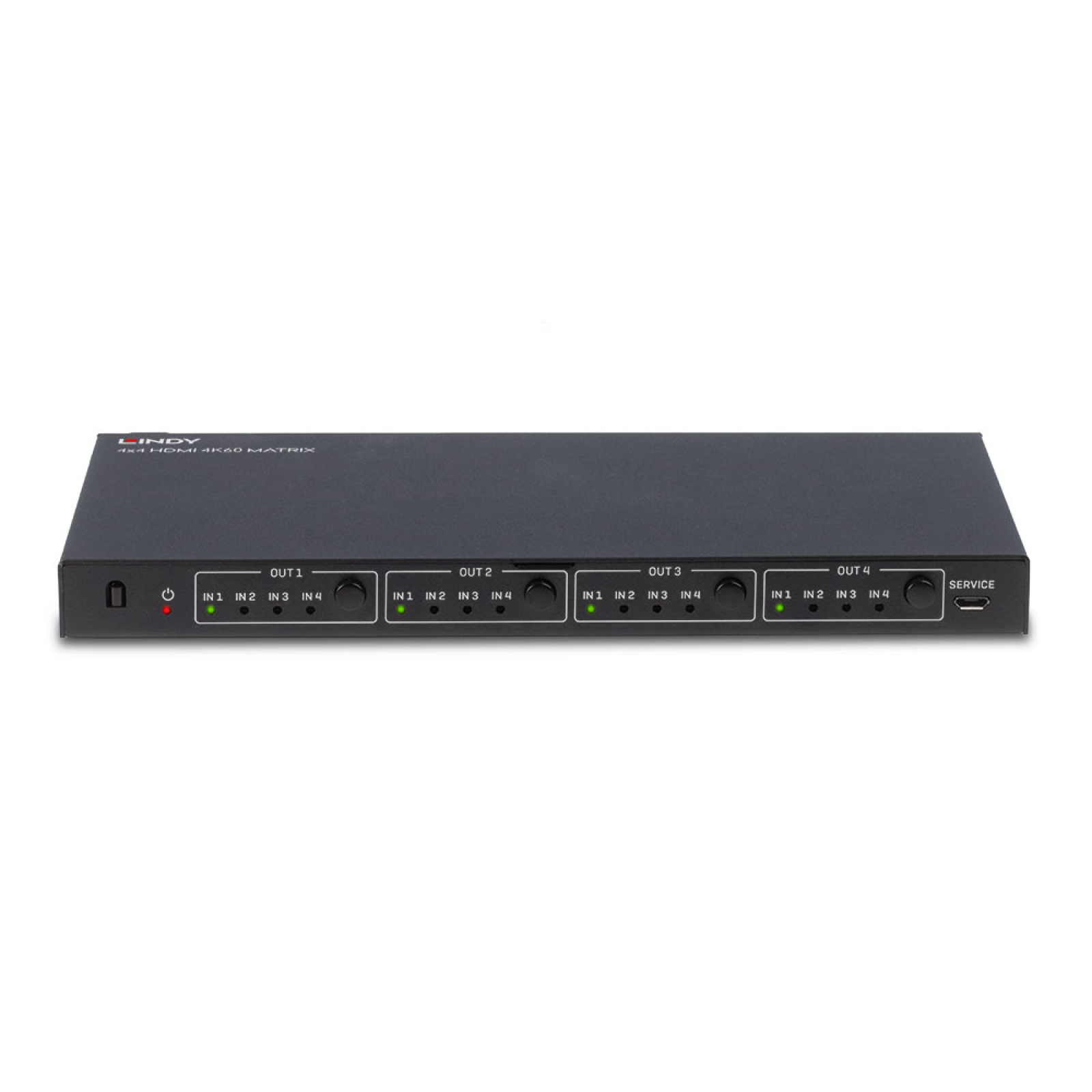

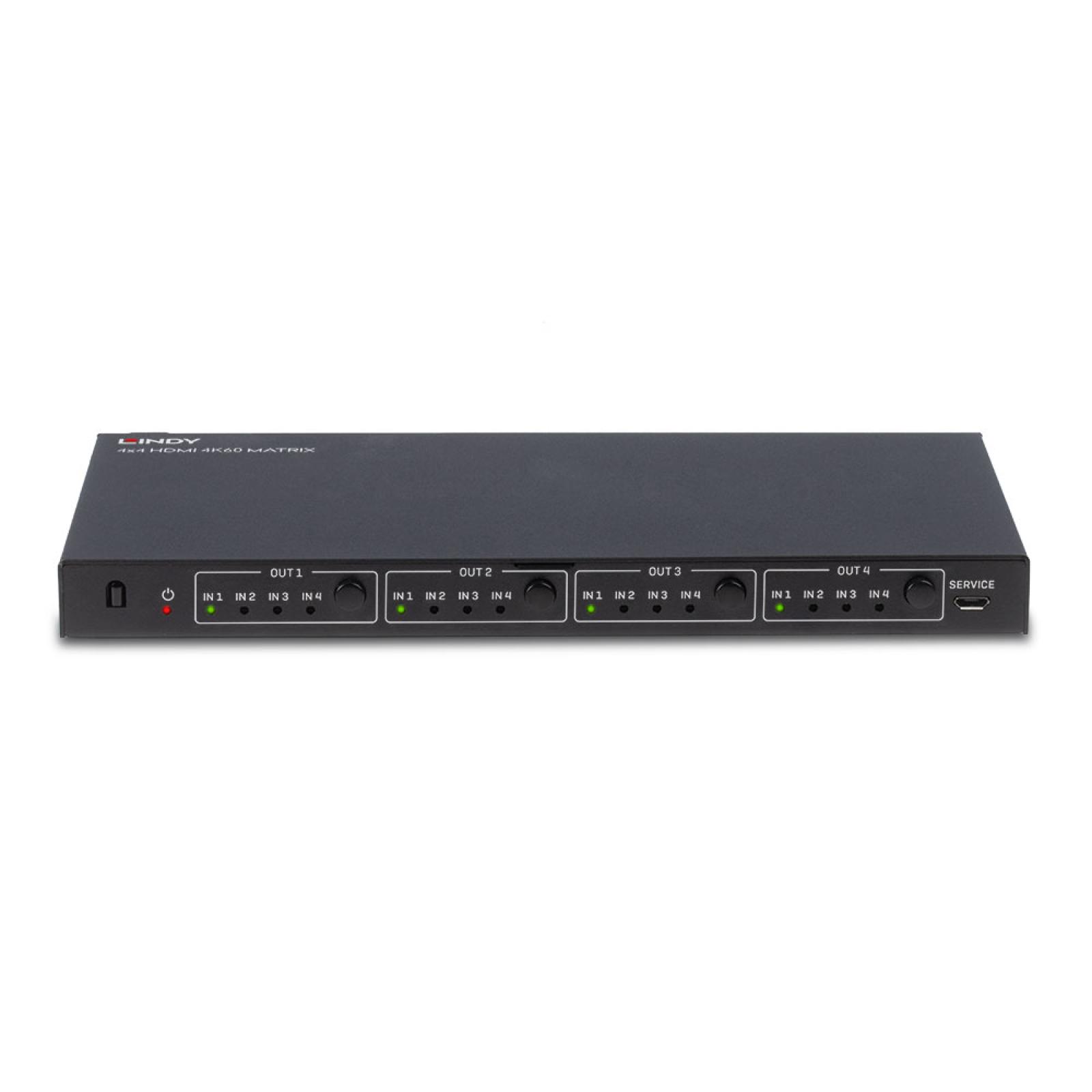

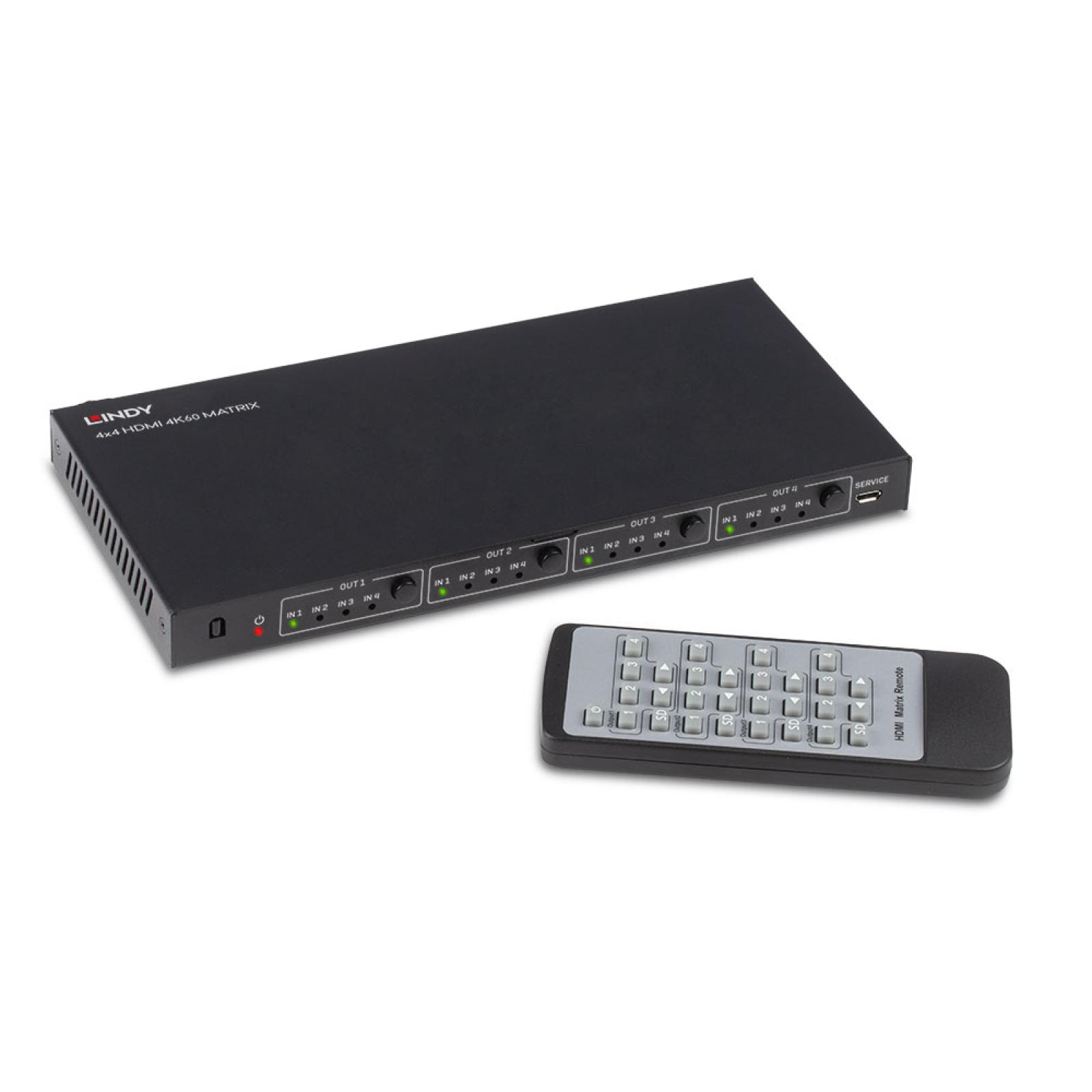

The matrix can be controlled in multiple ways, via the front panel buttons, IR ports using the included extension cables, and includes a mounting kit for installation in AV rack cabinets.

Collapse text

Product downloads

Product details

Key features

  • Connect up to 4×4K sources to 4×4K screens in any combination
  • Supports video resolutions up to 4K@60Hz, 4:4:4, 8-bit
  • Control via buttons, IR remote, and Web GUI for flexible management
  • EDID management for optimal video performance
  • 2-year warranty

Specifications

  • AV Interface
    HDMI®
  • Interface Standard
    HDMI® 2.0
  • Supported Bandwidth
    18 Gbps
  • Maximum Resolution
    4096×2160 @60Hz, 4:4:4, 8-bit
  • HDCP Support
    2.2
  • Audio Support
    Audio Pass-through
  • IR Support
    30–60 kHz
  • Control
    IR, Button
  • Special Features
    EDID Management

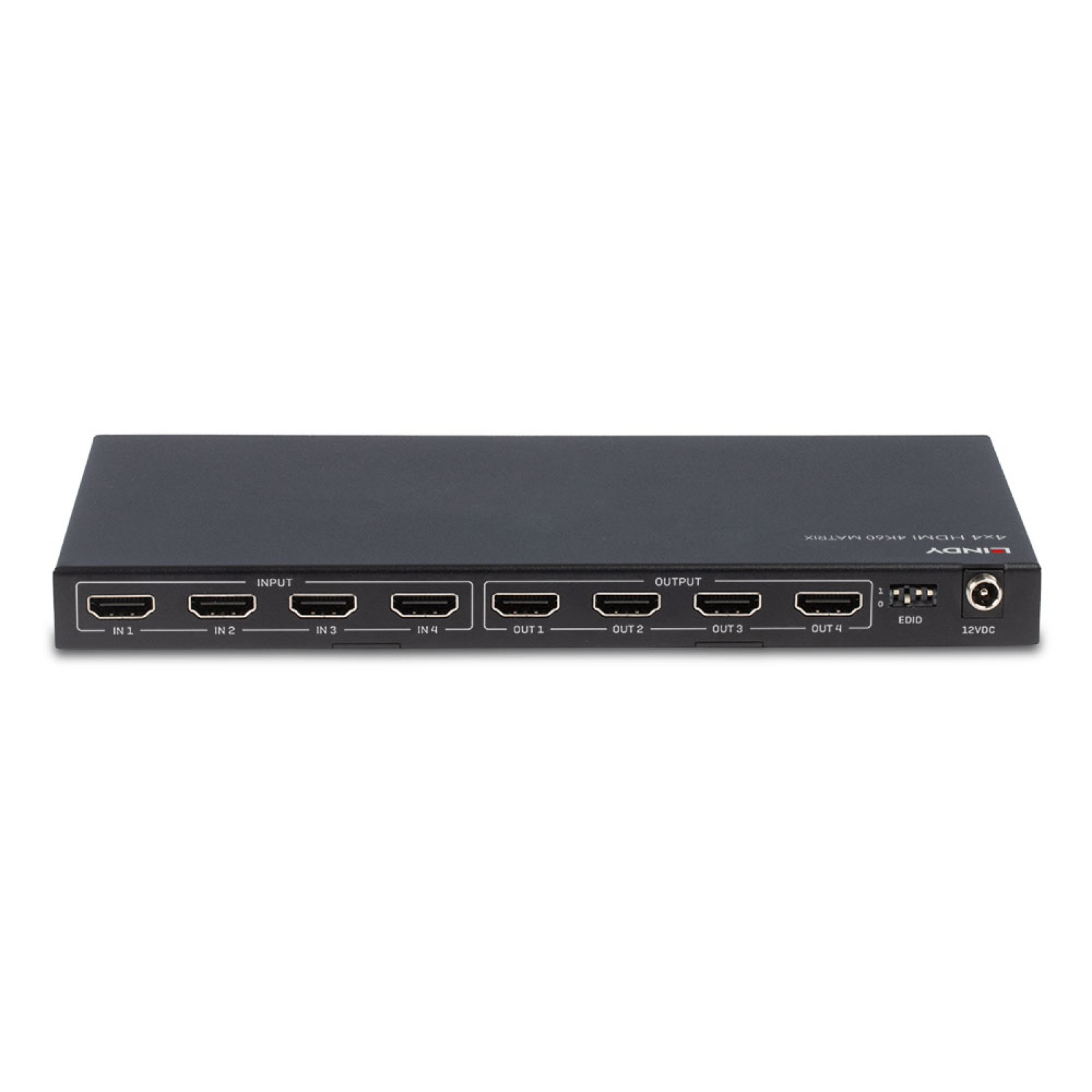

  • Inputs
    4 × HDMI® (Female)
  • Outputs
    4 × HDMI® (Female)
  • Control
    RS-232 (Female), 3.5mm (Female)
  • Power Input
    5.5/2.1 mm DC socket
  • Dimensions (W×D×H)
    220 × 105 × 19 mm (8.66 × 4.13 × 0.75 in)
  • Material
    Metal
  • Net Weight
    0.535 kg (1.18 lb)
  • Operating Temperature
    0°C – 40°C (32°F – 104°F)
  • Storage Temperature
    -20°C – 60°C (-4°F – 140°F)
  • Humidity
    20–90% RH (non-condensing)
  • Power Consumption
    12V DC, 2.5A
  • Color
    Black
