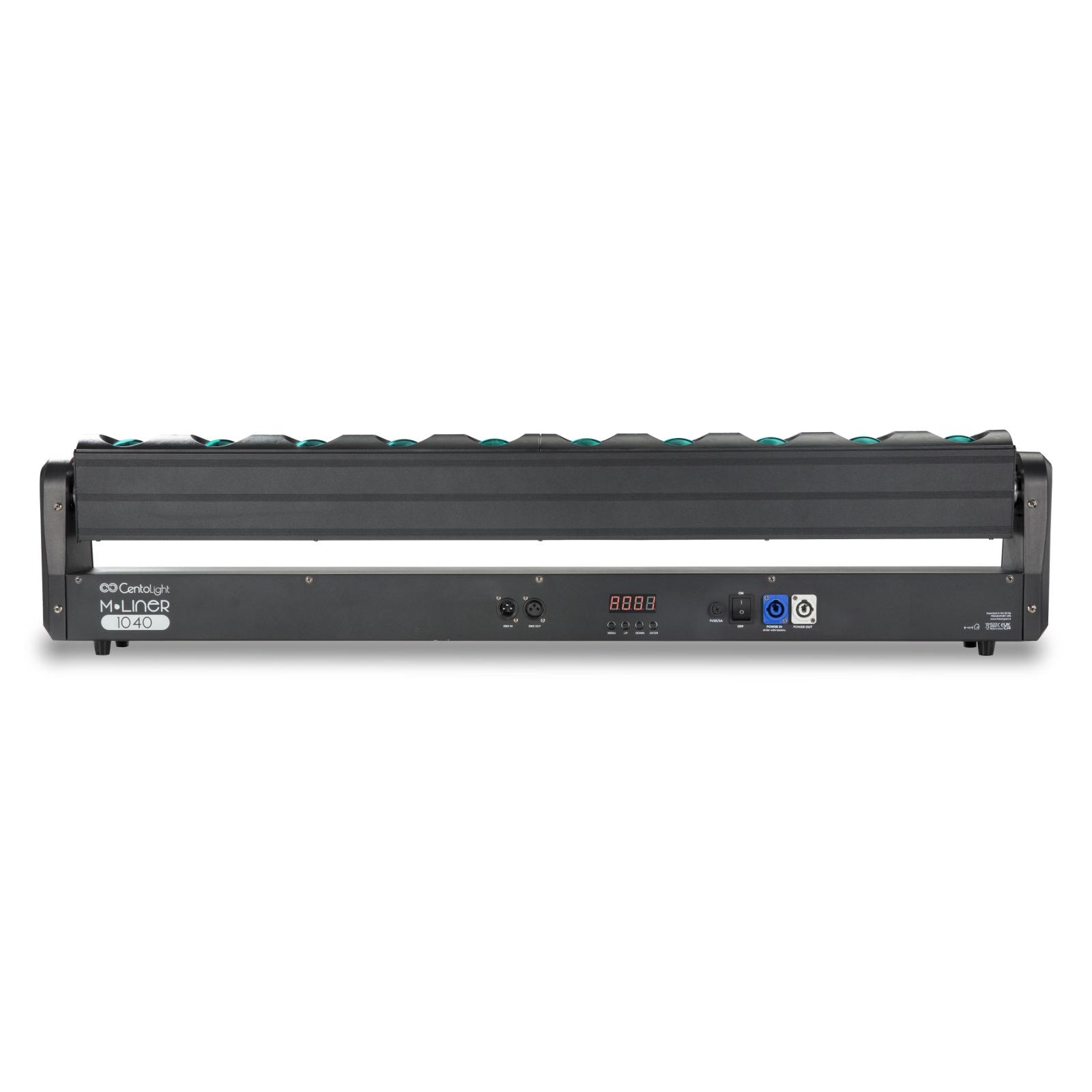

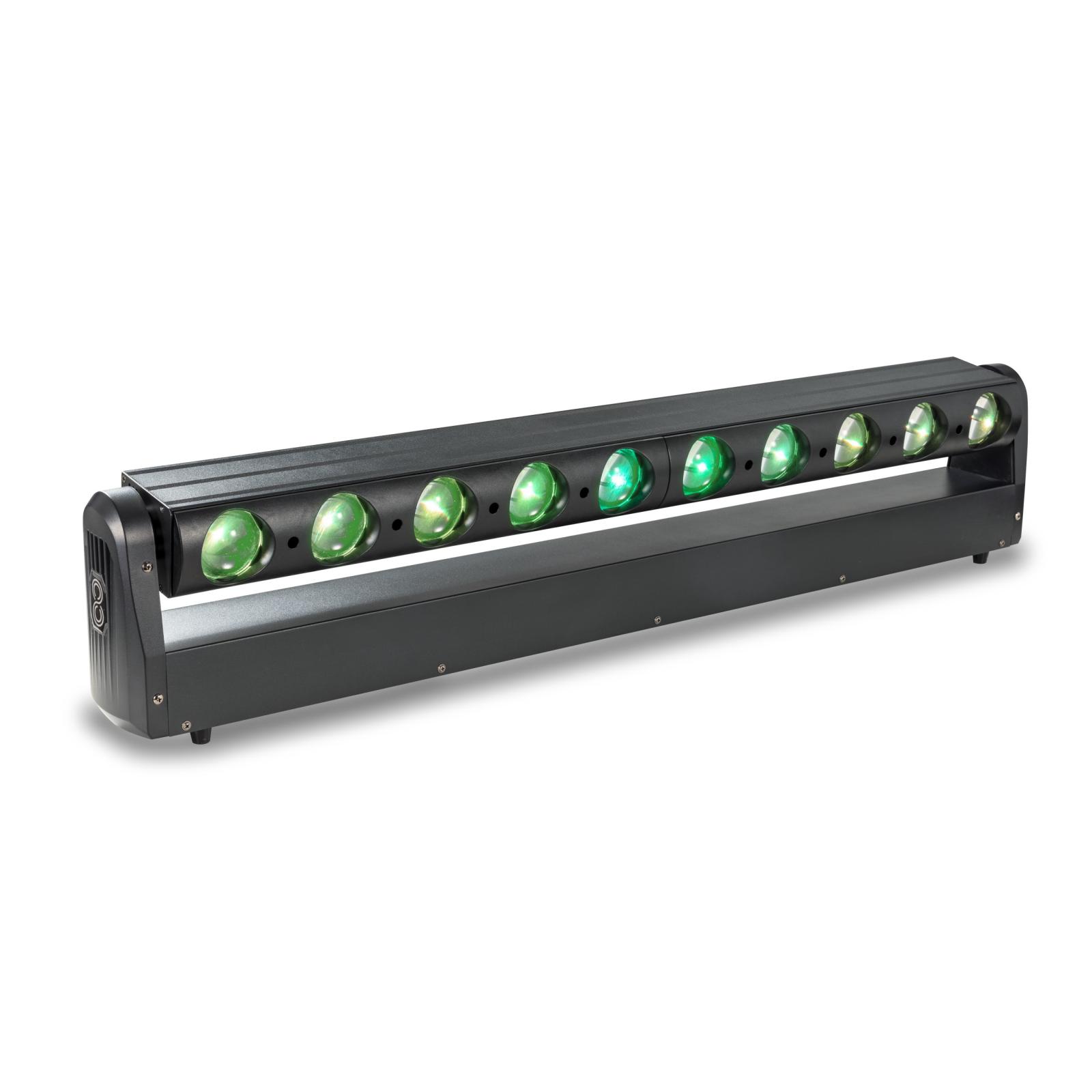

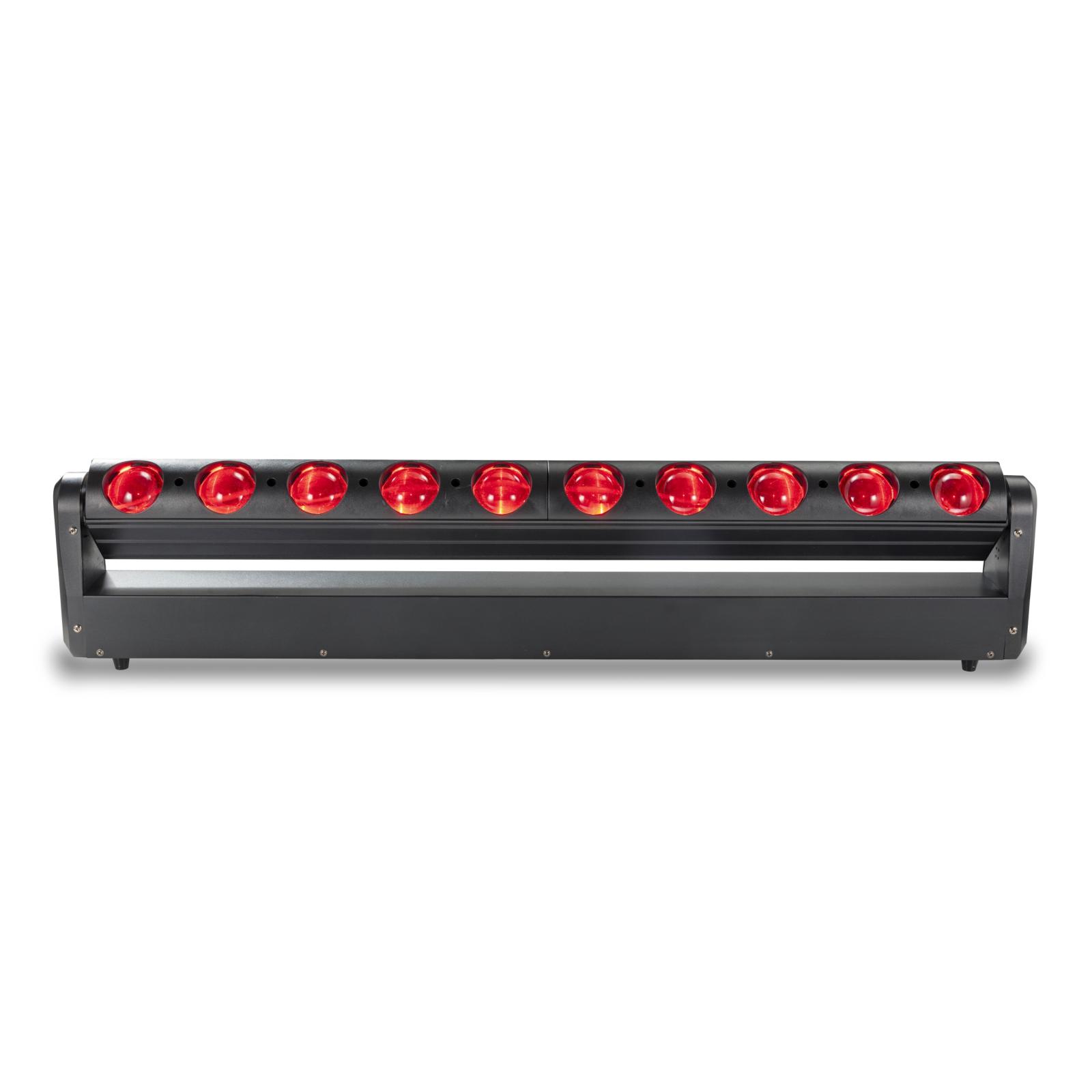

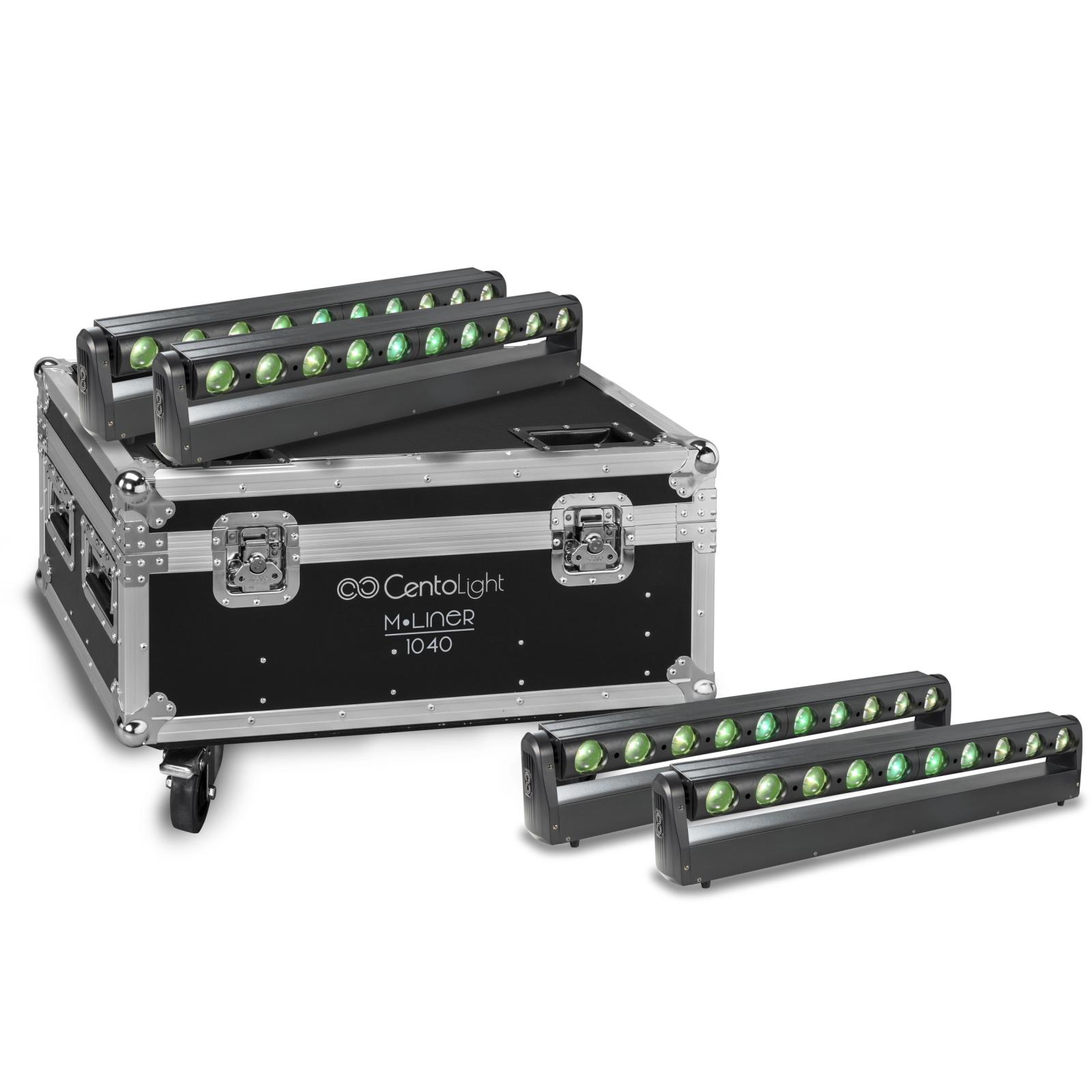

M-LINER 1040-SET 4 x Beam moving Bar 10 x 40 W LED With Pixel control
Download product sheetThe M - Liner 1040 is an ultra high power LED based moving head beam bar with smart and compact stylish fireproof housing with a smooth, fast and quiet TILT movement. The beam angle is 2°for each LED with sharp beam effect. It features 10*40W 4-in-1 RGBW LED sources with pixel mapping capability which not only allows you to create an endless range of color var... Read more
The M - Liner 1040 is an ultra high power LED based moving head beam bar with smart and compact stylish fireproof housing with a smooth, fast and quiet TILT movement. The beam angle is 2°for each LED with sharp beam effect. It features 10*40W 4-in-1 RGBW LED sources with pixel mapping capability which not only allows you to create an endless range of color variations, but also to use each LED of the array as a pixel in order to draw all kinds of graphic images that change dynamically both in shape and color. It provides variable speed shutter/strobe effect, virtual color macro effect, dynamic patterns, static patterns to it’s users for easy operation. It comes with kinds of DMX channel profiles. The M - Liner 1040 supports DMX, RDM (Remote Device Management).
The fixture’s exterior housing is beautifully balanced basing on a modern design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the M - Liner 1040 achieves more than just a striking look. The 2*1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy.It’s applicable for large scale live concerts, TV productions, road shows, clubs, etc.
Collapse textBuy this product online
-
MUSICALSTORE 2005 Out of stock
-
BananaMusic Out of stock
Product downloads
Media
Highlights
Pixel mapping capability
270° Smooth, fast and precise resolution for TILT movement with low noise operation
2,° Beam Angle
Product details
Key features
- 10 x 40W high efficency 4-IN-1 RGBW LED Life Span: 50000H
- 2,° Beam Angle
- 0-100% Smooth linear LED dimming with fine control
- 0-20Hz high speed strobe effect with variable speed
- Sophisticated 4 colors RGBW mixed
- Pixel mapping capability with each LEDs controllable individually
- Sharp beam effect
- Preset color macros and patterns with variable speed
- Preset foreground color options for patterns
- Flicker free operation for broadcast TV and FILM
- TILT movement: 230°(8/16 bit), photoelectric reset and automatic error correction
- DMX512 with RDM / Master-Slave / Auto / Sound modes
- High Efficient low noise self adjusting fan cooling system
- More Less
Specifications
-
Lamp10 x 40W high efficency 4-IN-1 RGBW LED
-
LED life50000 hours
-
Input voltageAC100-240V 50/60Hz
-
Power consumption960W
-
Control ModeDMX512, Master/slave, Sound, Auto Mode, RDM
-
DMX Channel Modes7/13/43 Channel
-
Beam angle2°
-
Dimmer0-100% Smooth linear LED with fine control
-
FocusHigh resolution motorized
-
ScanSmooth, fast and precise resolution for TILT movement 270° e 16Bit
-
Strobe0-25T/sec high speed
-
DisplayLED display with 4 control buttons
-
ColorsSophisticated 4 colors RGBW mixed
-
Pixel mappingavailable with each LEDs controllable individually
-
Presetcolor macros, patterns, foreground and Backgrond with variable speed
-
Lensehigh efficiency acrylic
-
HousingFlame-retardant plastic and Alluminium
-
Internal Running Temperature0 ÷ 40°C
-
Dimensions (WxDxH)1000(W) * 283.7(D) * 230(H)mm
-
Weight13.6 kg
-
Package Dimensions (WxDxH)590(W) * 1170(D) * 435(H)mm
-
Package Weight81.9 kg
- More Less
