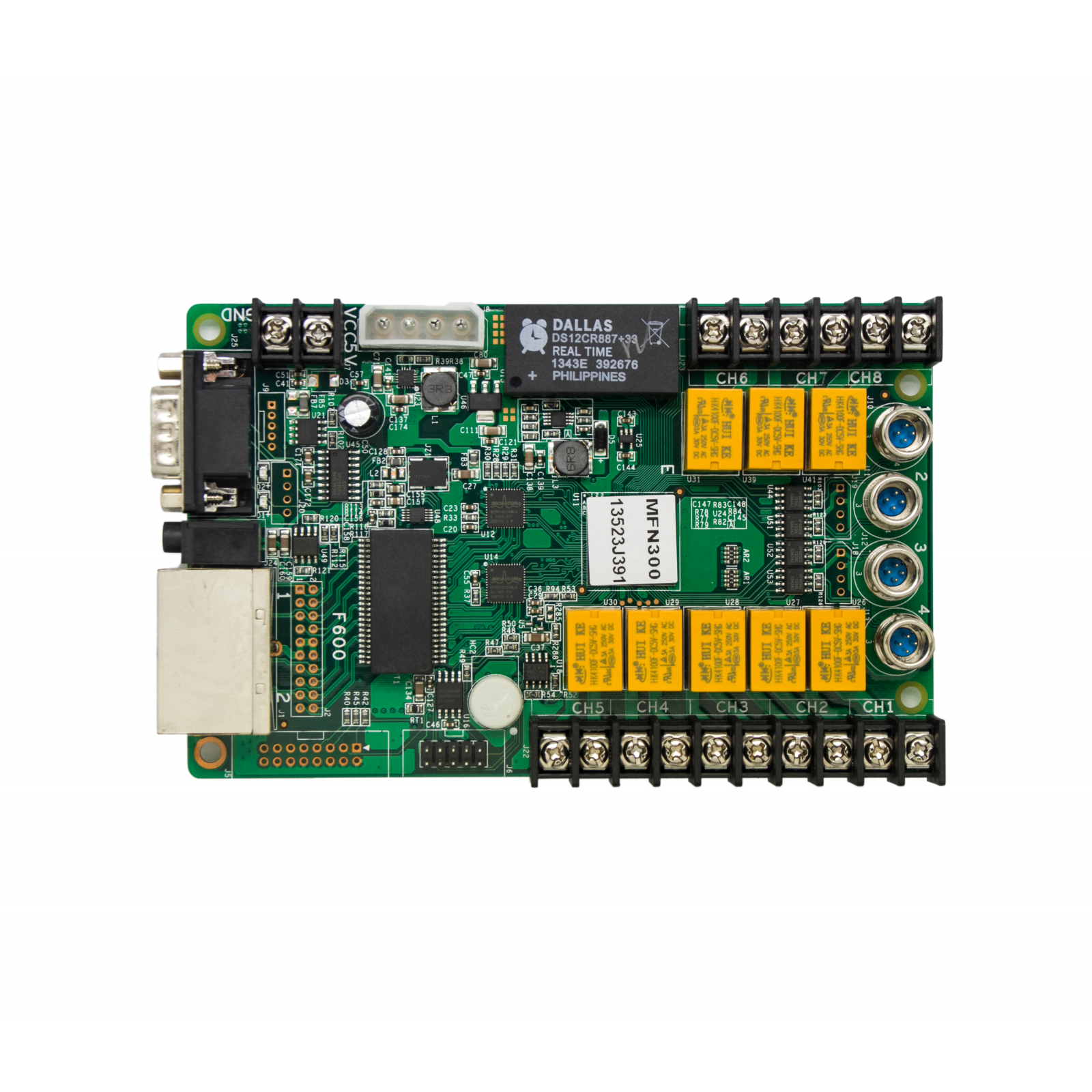

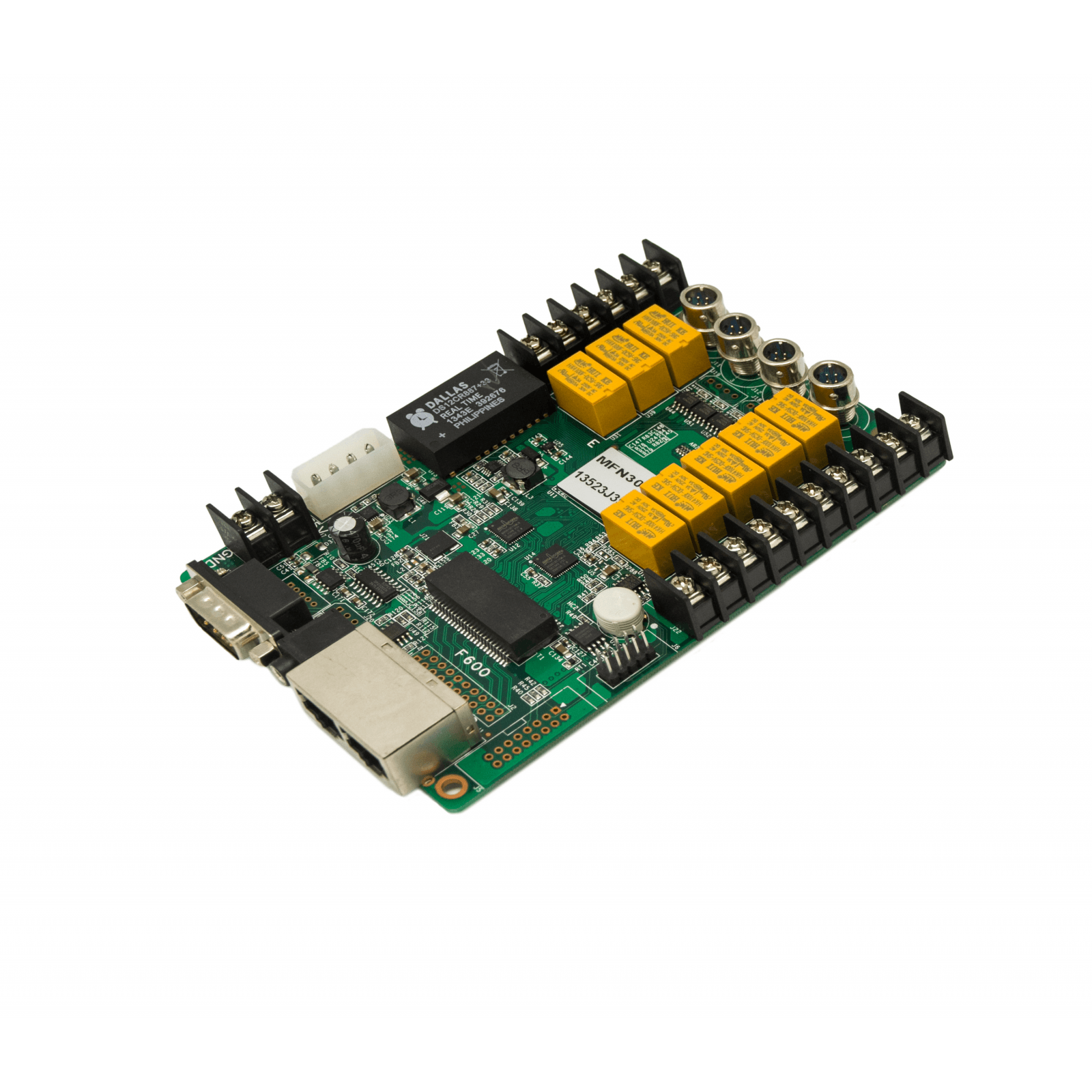

MFN300 Multifunction Card
Download product sheetThe Novastar MFN300 Multifunction card combines a wide range of functions in just one device.
The card offers connection options for light and temperature sensors, an RS232 connection, a 3.5mm audio output and eight integrated relay contacts. The device can be looped into the signal chain at any point.
The Novastar MFN300 Multifunction card combines a wide range of functions in just one device.
The card offers connection options for light and temperature sensors, an RS232 connection, a 3.5mm audio output and eight integrated relay contacts. The device can be looped into the signal chain at any point.
Product downloads
Product details
Key features
- 1x RS-232 Serial port
- 2x Gigabit Ethernet ports for connection before the first receiving card, between any two receiving cards, or after the last receiving card
- Timer function, able to replace a timer and delayer
- 4x Sensor ports to connect temperature sensors, or light sensor for automatic brightness adjustment
- 8x Power switch control relay contacts
- 1x TRS balanced 3.5mm audio output
Specifications
-
Input VoltageDC 3.3V to 5.5V
-
Rated Current0.38 A
-
Maximum Power Consumption2.5W
-
Working Temperaturefrom -20°C to +75°C
-
Storage Humidity0% RH to 90% RH, non condensing
-
Power switch control Rated VoltageAC 250V / DC 30V
-
Power switch control Rated Current3 A
-
Product Size144 x 94.8 x 20 mm ( 5.67 x 3.73 x 0.79 in)
-
Product Weight164.4 g ( 0.36 lbs.)
