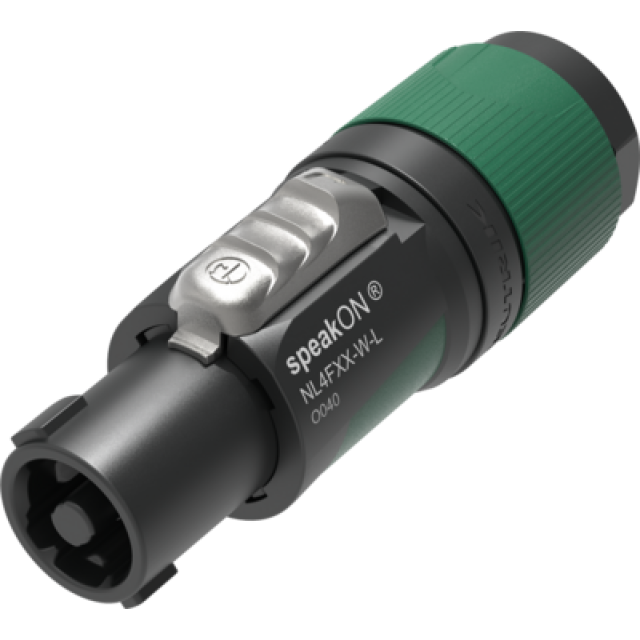

NL4FXX-W-L 4-pole speakON connector with screw terminals, for cables from 10 to 16 mm
Download product sheetThe Neutrik NL4FXX-W-L is a high-performance 4-pole speakON connector, designed to ensure secure and reliable connections in professional audio systems. Featuring screw terminals with stranded wire protection and a patented twist-lock mechanism, it is ideal for applications requiring high current handling, mechanical robustness, and certified safety compliance... Read more
The Neutrik NL4FXX-W-L is a high-performance 4-pole speakON connector, designed to ensure secure and reliable connections in professional audio systems. Featuring screw terminals with stranded wire protection and a patented twist-lock mechanism, it is ideal for applications requiring high current handling, mechanical robustness, and certified safety compliance.
Its ergonomic two-component housing, mechanical strain relief for 10 to 16 mm cables, and easy assembly make the NL4FXX-W-L both durable and installer-friendly. Fully compliant with IEC, UL, and CSA standards, it delivers top-tier performance in touring and fixed installation environments.
With silver-plated copper alloy contacts, robust housing materials, and advanced kink protection, it stands as a benchmark solution for professional-grade loudspeaker connections.
Collapse textProduct downloads
Media
Product details
Key features
- Unique Neutrik locking bushing and strain relief for cable diameters 10 mm to 16 mm
- IEC 61984, UL 1977 and CSA C22.2 No.182.3 certified
- Superior NEUTRIK quality standard, extremely robust and reliable
- Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
- Easy and reliable twist lock system
- Ergonomic design with slip-proof two-component molded housing
- Improved kink protection by two-component bushing
Specifications
-
TitleNL4FXX-W-L
-
Connector seriesspeakON 4 pole
-
Contact resistance≤ 2 mΩ
-
Dielectric strength2.8 kVac
-
Insulation resistance> 10 GΩ (initially)
-
Number of electrical contacts4
-
Rating EuropeIEC 61984: 37 A 250 V AC
-
Rating USAUL1977: 35 A 250 V AC
-
Rating CanadaCSA C22.2 No.182.3: 24 A 250 V AC
-
Cable O.D. :10 - 16 mm
-
Lifetimetypically 5’000 mating cycles
-
Wiresize (mm²)1.5 – 4 mm²
-
Wiresize (AWG)17 – 11 AWG
-
Locking deviceTwist lock
-
Terminationscrew type terminals
-
Contact platingAg
-
ContactsCopper Alloy
-
InsertPolyamide (PA6.6)
-
Locking elementZinc diecast
-
ShellPolyamide (PA6) / TPE
-
Strain reliefPolyketone
-
BushingPolypropylene / TPE
-
Temperature range-33 °C to +80 °C
-
Protection classIP20
-
Flammability acc. to UL94: V-0
