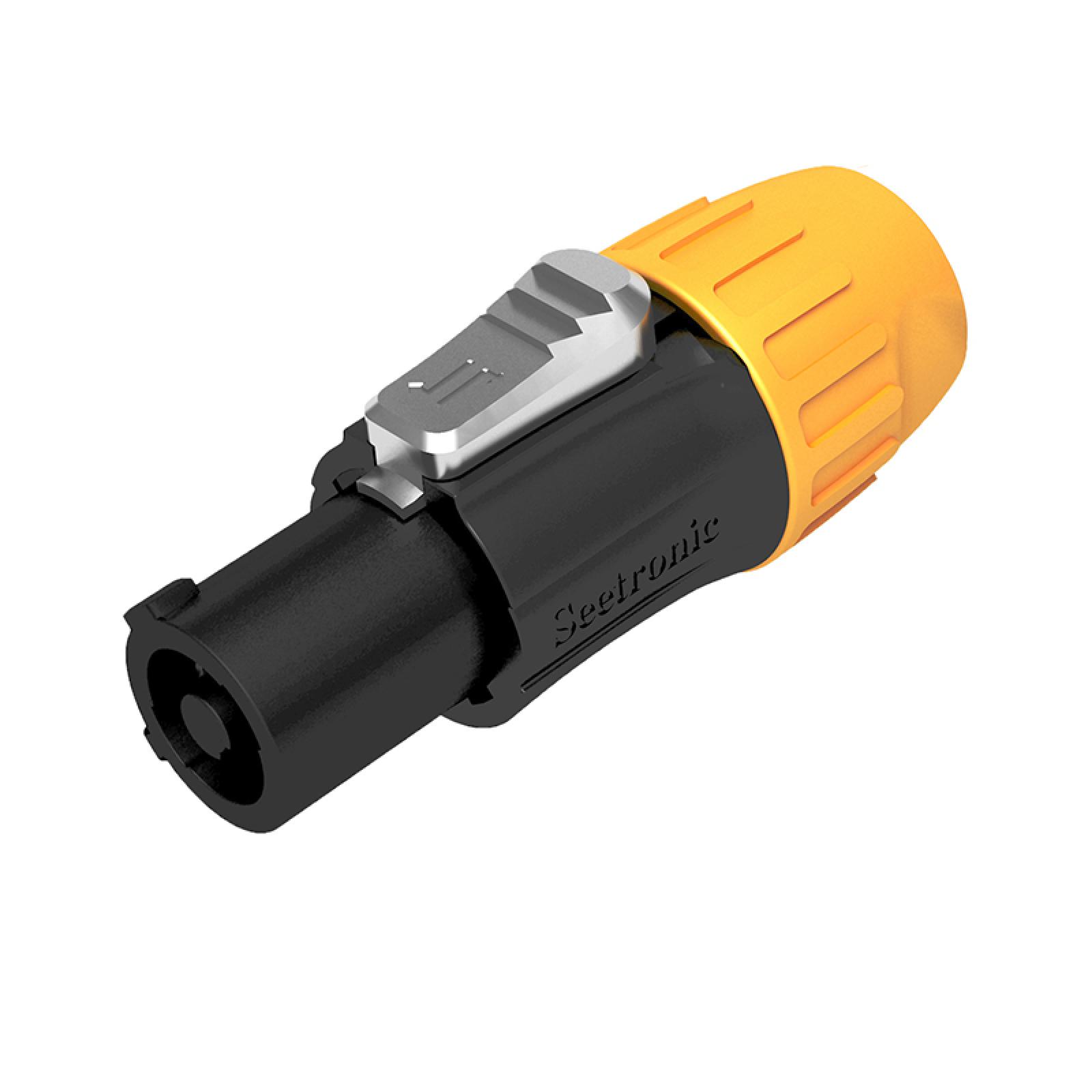

SAC3FCB-N-W SEETRONIC Outdoor Power Connector
Download product sheetSEETRONIC Outdoor Power Connector
SEETRONIC Outdoor Power Connector
Product downloads
Product details
Key features
- Lockable three-core power device AC connector with contacts for line, neutral and pre-adapted safety grounding
- High current capacity rated at 20A/250V AC
- Quick and easy locking system with firm latch lock which does not fall off
- IP65 waterproof grade
- Can be docked with SAC3FCA-N-W for linking cables
Specifications
-
Contacts2+PE
-
Rated current20A
-
Rated voltage250V AC
-
Contact resistance≤5mΩ
-
Dielectric strength4000V DC
-
Insulation resistance1000MΩ
-
Service life＞1000
-
Power lin2.5mm² (8mm-12mm)
-
Wire stripping length7-8mm
-
Type of teminalsscrew
-
ShellPA
-
ContactsCu alloy
-
Contact surfaceAg
-
Protection degreeIP65
-
Flame-retardant gradeUL94-V0
-
Temperature range-30°Cto+80°C
- More Less
