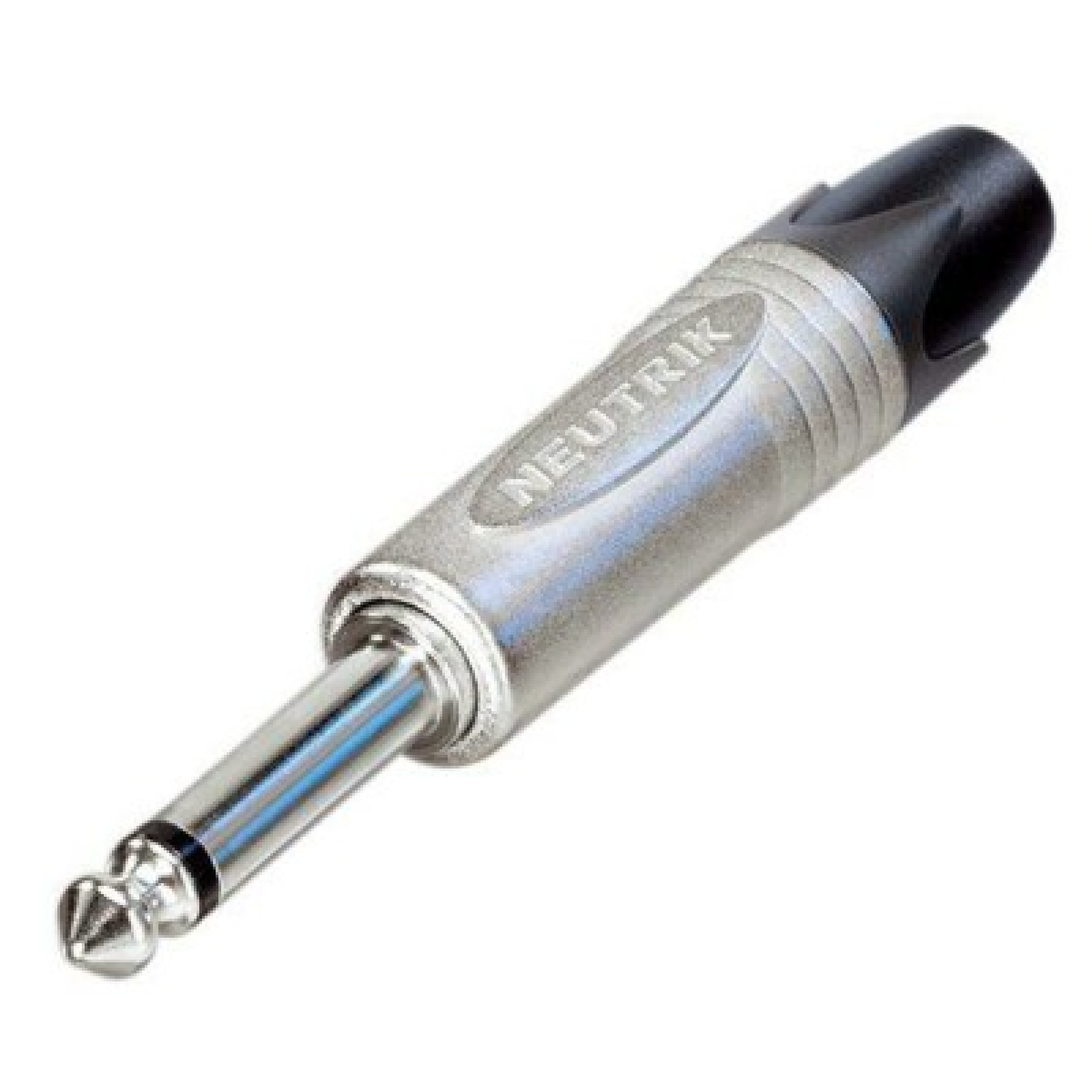

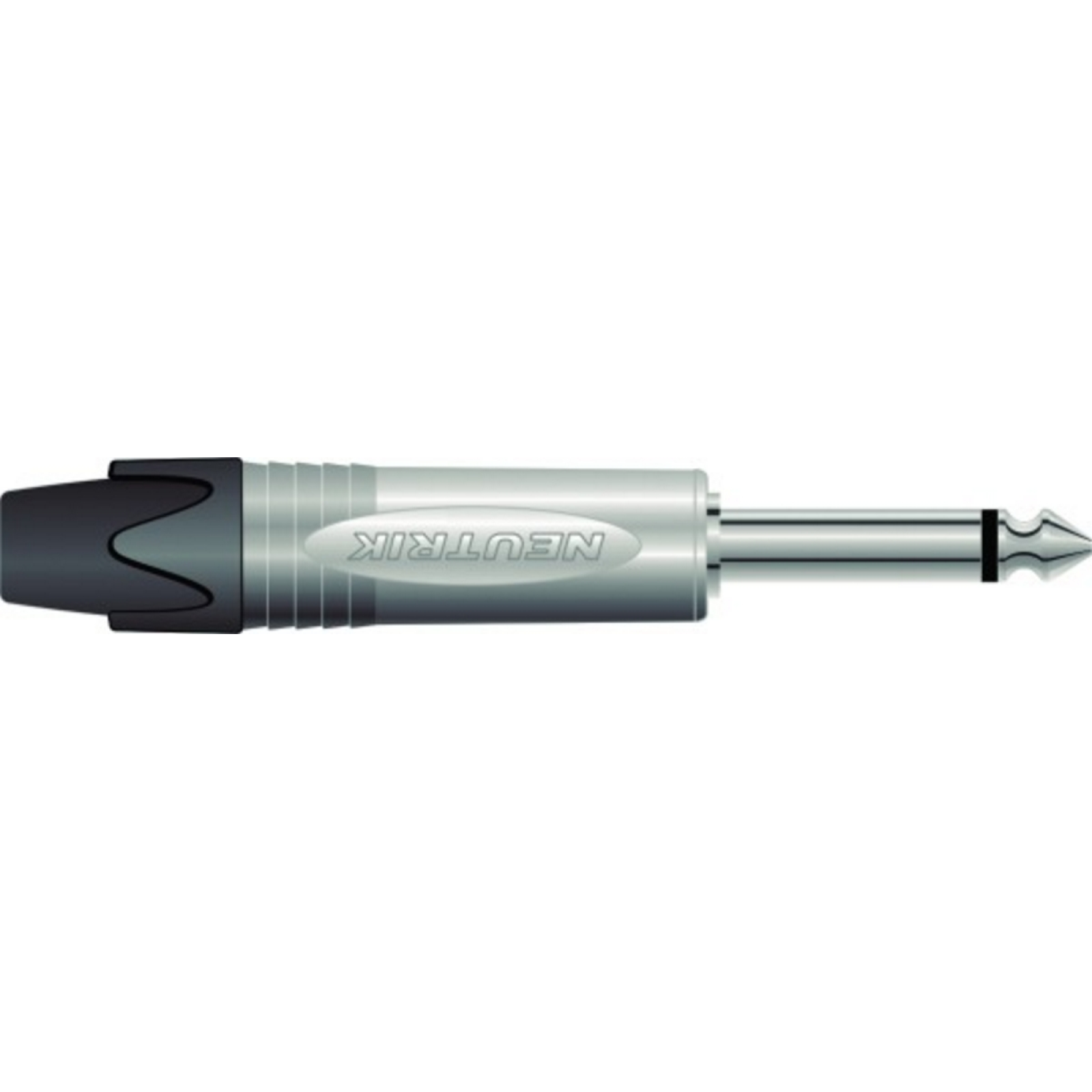

NP2X 1/4" Professional Phone Plug, 2 Pole, Nickel Contacts, Nickel Shell
Download product sheetThe heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).
The precise machined on... Read more
The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).
The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.
The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
Collapse textProduct downloads
Product details
Key features
- Extra slim 1/4" plug for highest packing density
- Robust diecast shell in stylish design
- Proven chuck type strain relief for reliable cable retention
- Sleek design for best handling convenience
- Precision machined one-piece contacts - avoid hook up of tip contact
Specifications
-
Connection Typeplug
-
Gendermale
-
Contact resistancedepends on mating connector mΩ
-
Dielectric strength1 kVdc
-
Insulation resistance> 2 (initial) GΩ ≥ 1 GΩ (after damp heat test)
-
Rated current per contactdepends on mating connector A
-
Rated voltage< 50 V
-
Cable Diameter4 - 7 mm
-
Lifetime> 1000 mating cycles
-
WiringSolder contacts
-
Wiresize1 mm²
-
Wiresize18 AWG
-
BushingPolyacetal (POM) + PU
-
Contact plating2 µm Ni (Su)
-
ContactsBrass (CuZn39Pb3)
-
InsertPolyamide (PA 6.6 30 % GR)
-
ShellZinc diecast (ZnAl4Cu1)
-
Shell platingNickel
-
Strain reliefPolyacetal (POM)
-
Standard complianceIEC 60603-11 / EIA RS-453
-
SolderabilityComplies with IEC 68-2-20
-
Temperature range-20 °C to +65 °C
