INSTA SUB8 BLACK 8” Compact Passive Subwoofer – Black
Download product sheetThe INSTA SUB8 is an ultra-compact 8 “passive subwoofer consisting of a Φ38 8” LF unit.
It can be fixed or hidden under furniture for placement.
The INSTA SUB8 is an ultra-compact 8 “passive subwoofer consisting of a Φ38 8” LF unit.
It can be fixed or hidden under furniture for placement.
Product downloads
Product details
Key features
- 8-inch passive subwoofer system
- Compact and powerful design
- 8-inch custom woofer

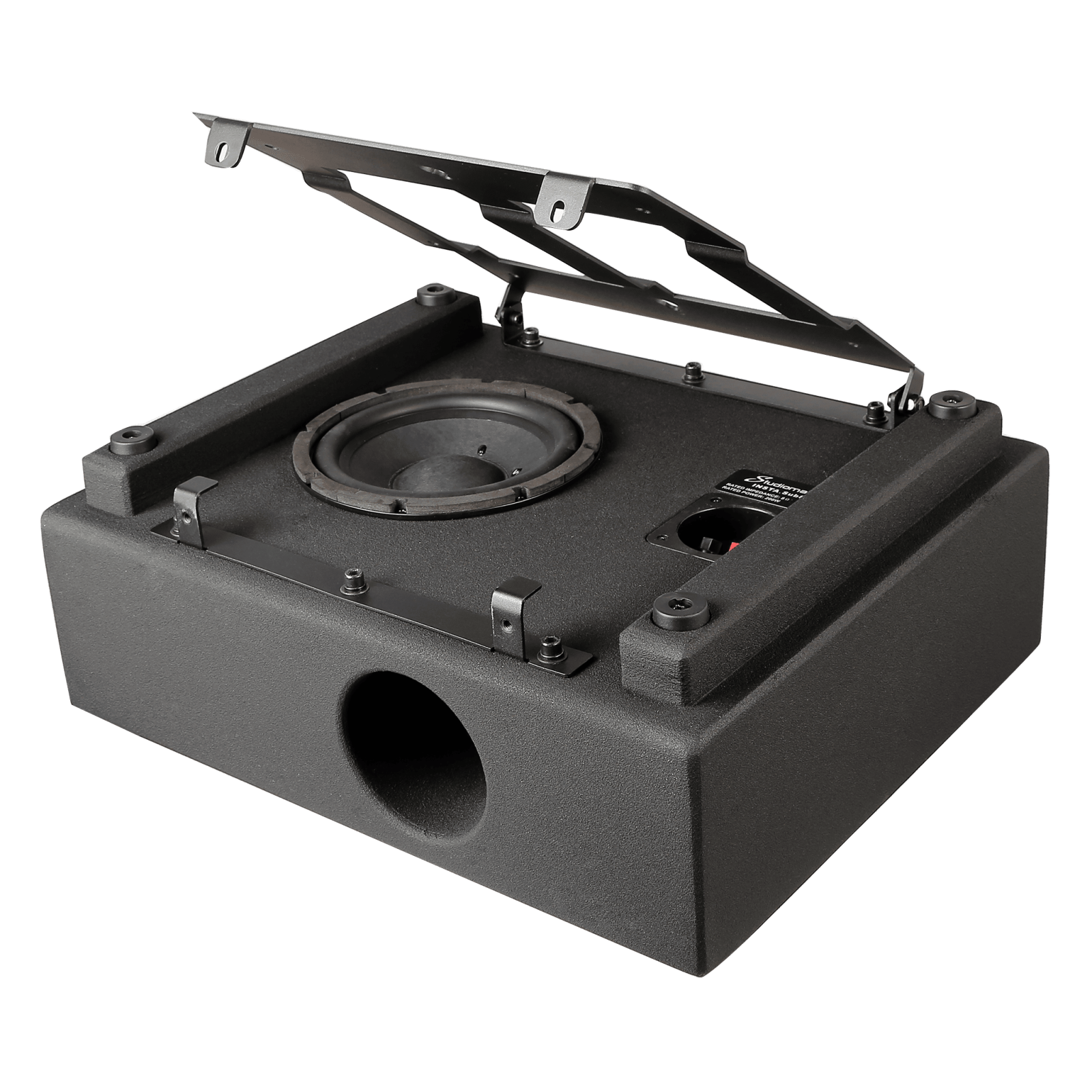

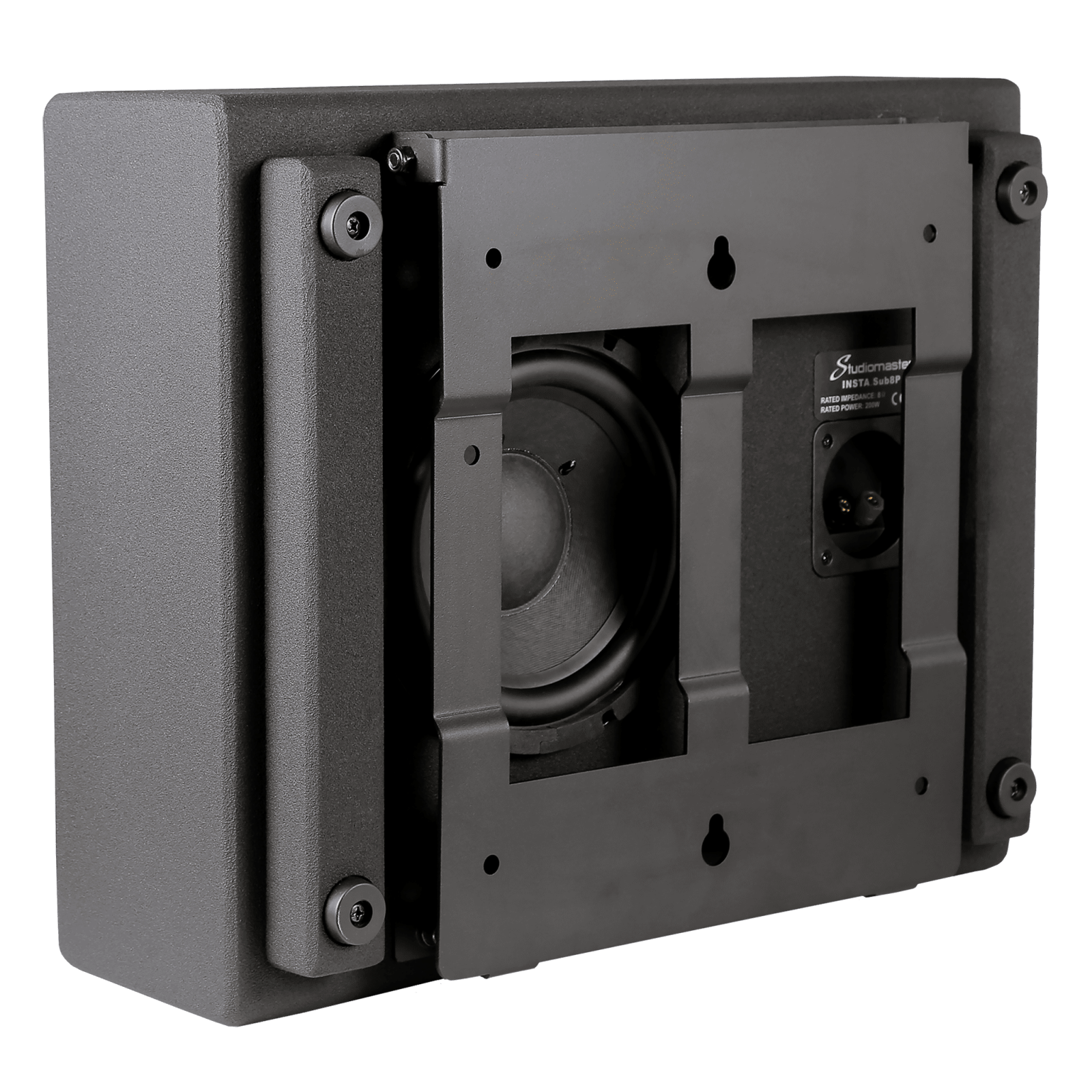

- Supports in-wall and floor-standing installation
- Aluminum modulation ring for reduced magnetic distortion
- 15 mm plywood cabinet
- Black color
Specifications
-
TypePassive bass reflex sub loudspeaker
-
Frequency response(-10dB)45Hz - 150Hz
-
Rated Power200W (RMS) / 800W (peak)
-
Nominal impedance8 ohms
-
Max SPL (@1m)114dB (peak)
-
Coverage (H × V)80° × 80°
-
LF Transducer8" / Φ38mm voice coil / 200W Ferrite magnet
-
Sensitivity(1m@1W)85dB
-
Connectors2 × Binding posts
-
Dimensions (W × H × D)515 × 200 × 425mm (including bracket)
-
Net weight12.5kg
