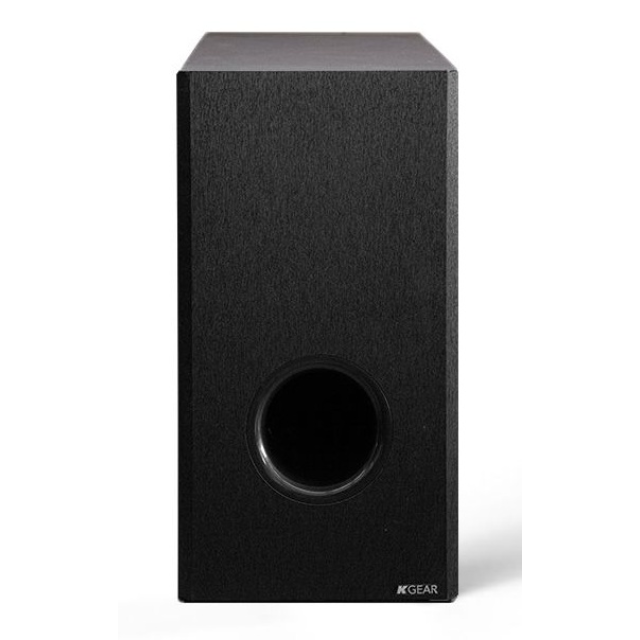

GS6 6" compact high-performance passive subwoofer
Download product sheetThe GS6 is a compact 6” passive subwoofer, ideal for permanent installations where size, style, and simplicity are a priority. Its modern, discreet design fits perfectly in indoor spaces such as retail stores, restaurants, hotels, bars, and homes.
GS6 is specially designed to pair with GF22, GF42, and GF82 loudspeakers, offering the perfect low-frequency exte... Read more
The GS6 is a compact 6” passive subwoofer, ideal for permanent installations where size, style, and simplicity are a priority. Its modern, discreet design fits perfectly in indoor spaces such as retail stores, restaurants, hotels, bars, and homes.
GS6 is specially designed to pair with GF22, GF42, and GF82 loudspeakers, offering the perfect low-frequency extension for your system. Its symmetrical load circuit allows for direct connection with most standard speakers.
Thanks to the integrated low-pass filter, GS6 connects directly to the same line as your satellite speakers, with no need for extra DSP or EQ. A quick, streamlined solution for clean and elegant installations. Power it using a GA201 or GA41 amplifier.
Despite its compact footprint, GS6 delivers deep, punchy bass that enhances any setup—whether for home audio or commercial use.
Collapse textProduct downloads
Highlights
A combination of power and compactness
The GS6 is all about effortless audio performance. Its plug-and-play design and powerful low-end make it an essential tool for audio pros who want clean, compact bass without complication.
Product details
Key features
- Compact design without sacrificing low frequency depth
- Compatibility with K-GEAR products, designed for GF22 and GF82 satellites
- Built-in low-pass filter, no need for external DSP
Specifications
-
TypePassive Subwoofer
-
Transducers6" ferrite woofer
-
Frequency Response55Hz - 140kHz (-6 dB)
-
Max SPL108dB
-
Power handling120 W
-
Nominal Impedance4 Ohm
-
CoverageOmni
-
Dimensions (W x H x D)170 x 310 x 310 mm (6,7 x 12,2 x 12,2 in)
-
Weight3,2 kg (7 lb)
-
MaterialBirch Plywood
-
ColorBlack
-
ConnectorsPhoenix connector with speaker relaunch (4-pin euroblock)
-
IP RatingIP43
- More Less
