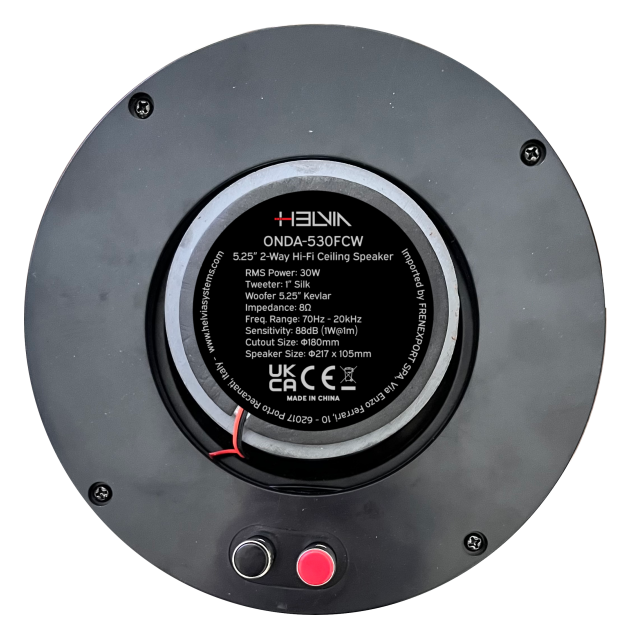

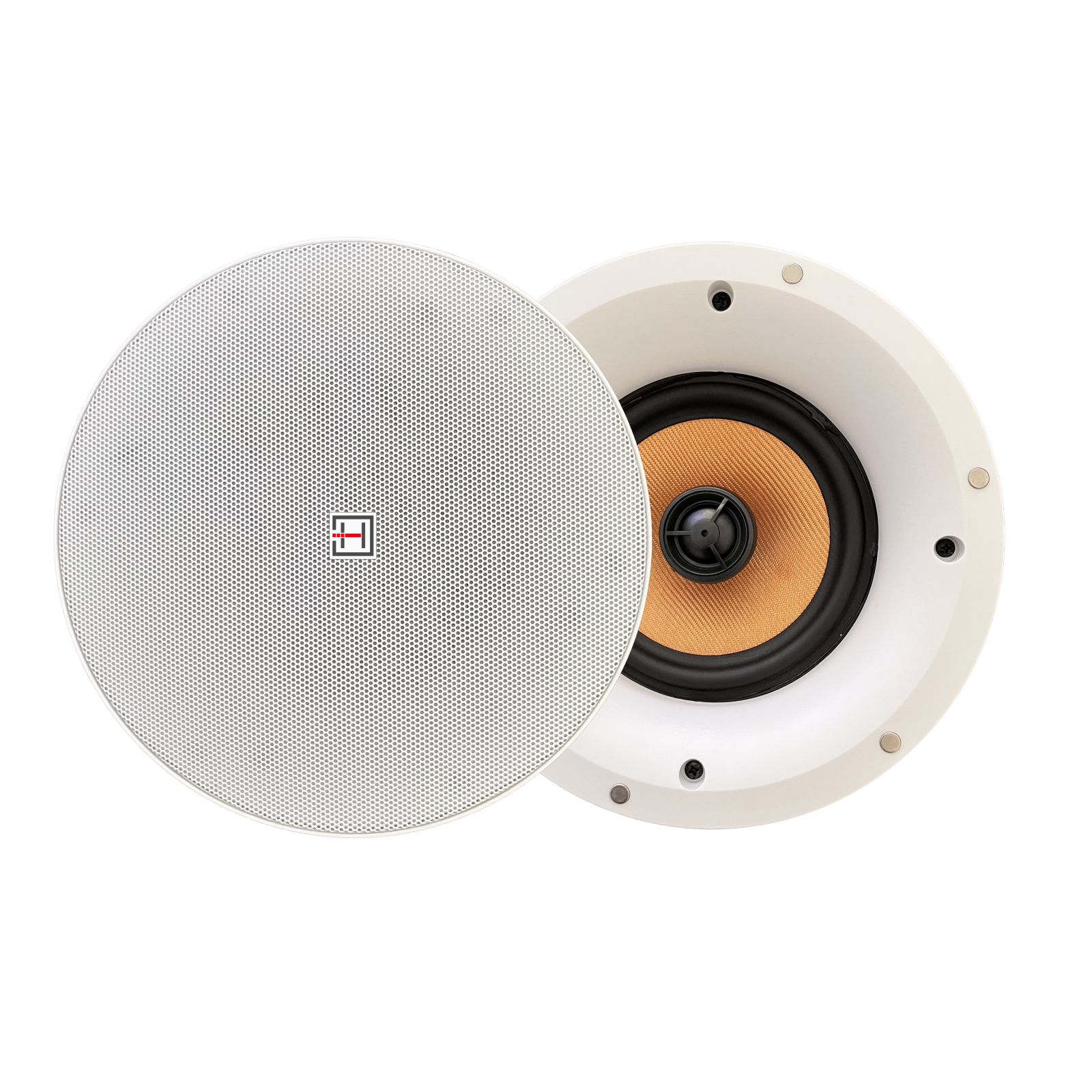

ONDA-530FCW 30W 8ohm 2-Way Hi-Fi Ceiling Speaker with Frameless Grille

Download product sheet

The ONDA-FCW series offers Hi-Fi coaxial speakers designed for all applications requiring superior audio quality, even at high sound pressure levels.

The Kevlar woofers with variable diameters of 5.25”, 6.5” and 8”, the 1” adjustable silk dome tweeters, and the integrated precision crossover give this line of ceiling speakers crystal-clear, precise, and exten... Read more

The ONDA-FCW series offers Hi-Fi coaxial speakers designed for all applications requiring superior audio quality, even at high sound pressure levels.

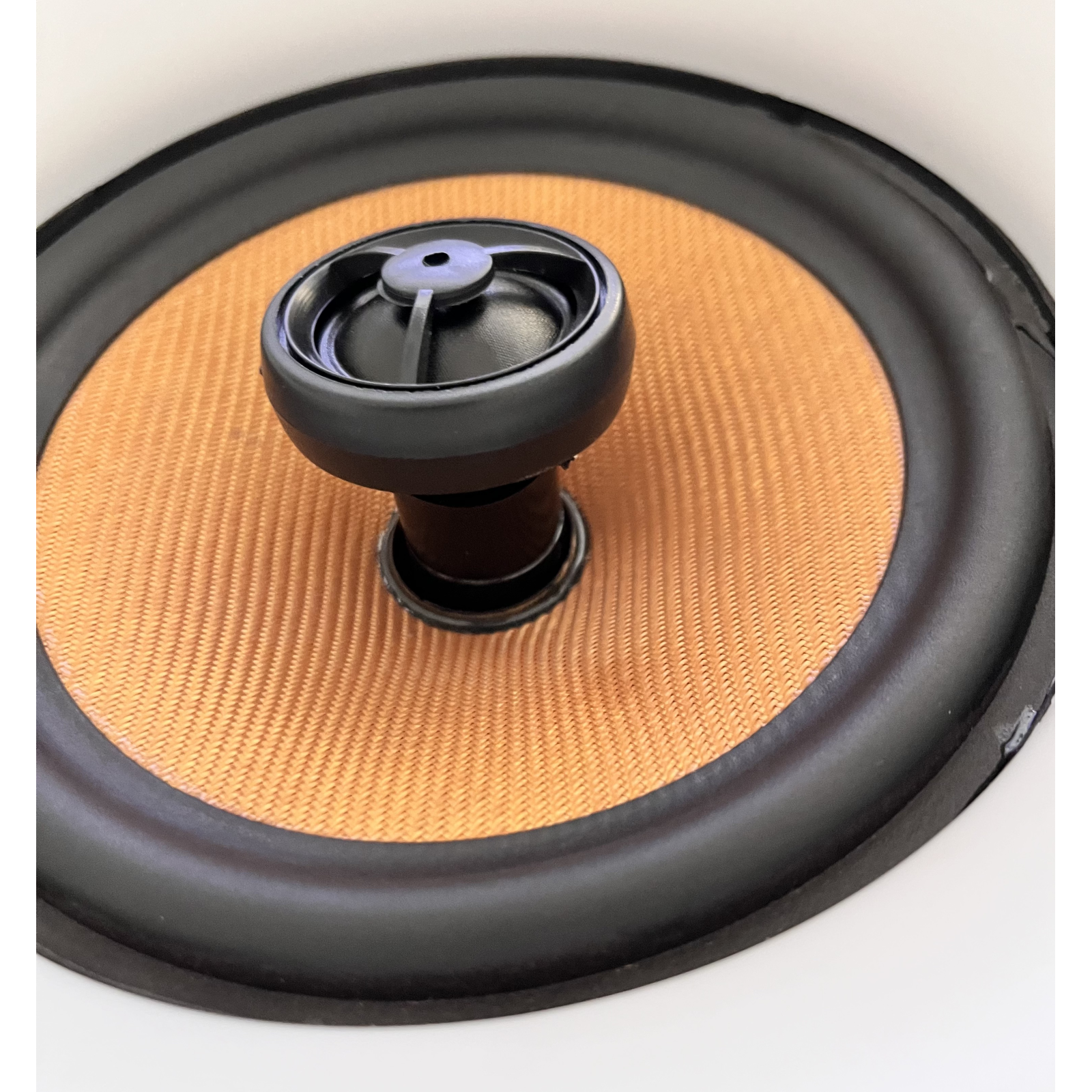

The Kevlar woofers with variable diameters of 5.25”, 6.5” and 8”, the 1” adjustable silk dome tweeters, and the integrated precision crossover give this line of ceiling speakers crystal-clear, precise, and extended sound across the entire frequency range, even at high sound pressure levels. Power outputs range from 30W to 50W RMS depending on the woofer diameter; impedance is 8 ohms.

The chassis of the ONDA-FCW ceiling speakers is made of high-quality ABS; the frameless metal grille with magnetic attachments gives these speakers an elegant and refined look.

Installation is extremely simple, thanks to the quick-mounting system with 4 screws. They are available in white but can be painted any color.

Collapse text

Product downloads

Coaxial Speaker
Crossover
Frameless
Low Impedance
Quick-Fit System

Product details

Key features

  • 2-Way Coaxial Loudspeakers
  • 5.25” Kevlar Cone Woofer
  • 1” Silk-Dome Tweeter with adjustable angle
  • Precision Crossover
  • 30W RMS Power
  • 8-ohm Impedance
  • Frameless Metal Grille with Magnets
  • Quick-Fit Mounting System

Specifications

  • RMS Power
    30W
  • LF Transducer
    5.25” Kevlar Cone Woofer
  • HF Transducer
    1” Silk Dome Tweeter
  • Impedance
    8Ω
  • Frequency Range
    70Hz – 20kHz
  • Sensitivity
    90dB (1W@1m)
  • Cutting Ø
    185mm (7.28”)
  • Speaker Size
    Ø217,50 x 96.00 mm (Ø8.56” x 3.78”)
  • Speaker Weight
    1,28kg (2.82 lbs.)
  • Packing Size (WxDxH)
    225 x 225 x 130 mm (8.86 x 8.86 x 5.12 inches)
  • Packing Weight
    1,37kg (3.02 lbs.)
