GALA-520FW 70V/100V 2-Way 5.25” Ceiling Speaker with Frameless Grille, White

Download product sheet

GALA FW Series offers powerful and accurate coaxial loudspeakers with woofer diameters ranging from 5,25” to 8”, and powers from 20W to 40W RMS. They can be used with standard 70/100V professional amplifiers and provide transparent and brilliant sound. They are therefore suitable for any application of music distribution.

The housing of GALA FW speakers is ma... Read more

GALA FW Series offers powerful and accurate coaxial loudspeakers with woofer diameters ranging from 5,25” to 8”, and powers from 20W to 40W RMS. They can be used with standard 70/100V professional amplifiers and provide transparent and brilliant sound. They are therefore suitable for any application of music distribution.

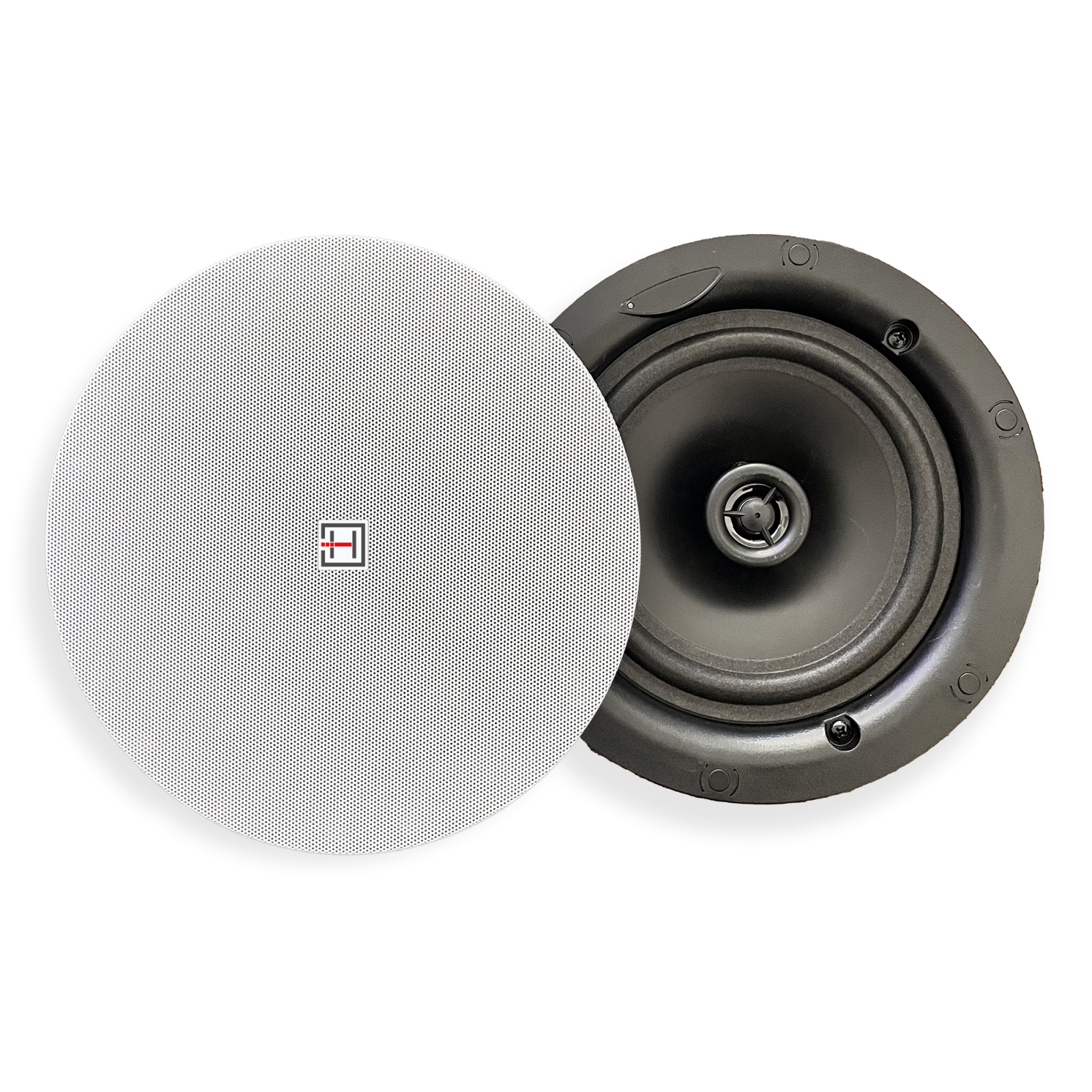

The housing of GALA FW speakers is made of high-quality ABS. They also feature 0.5” Mylar-dome tweeters, polypropylene enforced woofers, and metal frameless grille with magnets, which give these speakers an elegant and refined look.

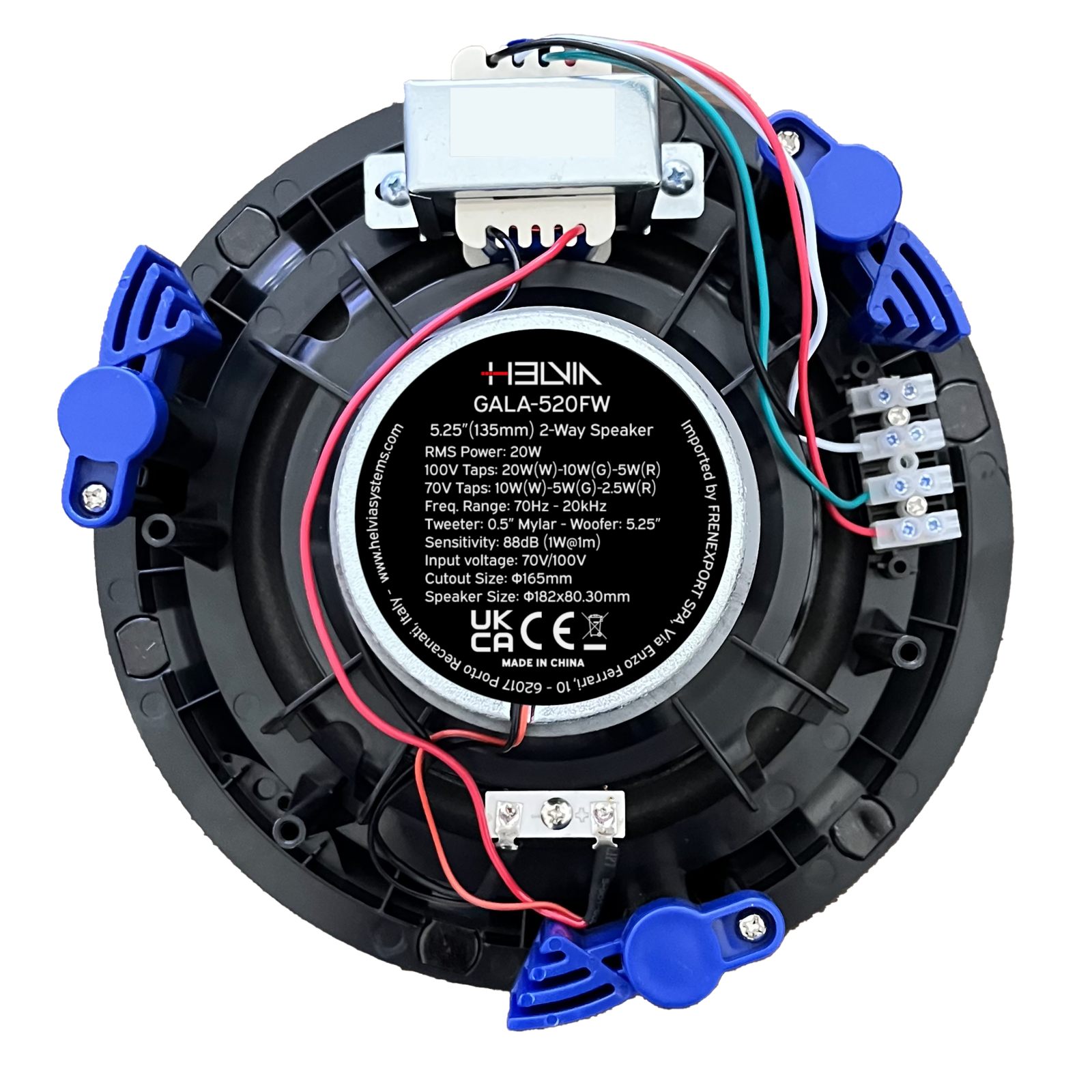

Installation is very easy, thanks to the quick mounting system with 4 screws. These screws are hidden behind the grill and offer an elegant and minimalist design. The built-in line transformers allow use with 70/100V lines and offer three power taps to better adapt to different speaker arrangement and amplifier powers. They come in white color.

Collapse text

Product downloads

70V-100V Line
Coaxial Speaker
Frameless
Quick-Fit System

Product details

Key features

  • 2-Way Coaxial Loudspeakers
  • Lightweight but Sturdy Frame
  • 5.25” PP Woofer
  • 0.5” Mylar Dome Tweeter
  • 20W RMS Power
  • Built-in 70/100V Line Transformer with 3 Taps
  • Frameless Metal Grille with Magnets
  • Quick-Fit Mounting System

Specifications

  • Output RMS Power
    20W
  • LF Transducer
    5.25” Woofer
  • HF Transducer
    0.5” Tweeter, Mylar Dome
  • Line Transformer
    70/100V
  • Tapping Powers
    20W-10W-5W (100V), 10W-5W-2.5W (70V)
  • Frequency Range
    70Hz – 20kHz
  • Sensitivity
    88dB (1W@1m)
  • Cutting Ø
    165mm (6.5”)
  • Speaker Size
    Ø182 x 80.30 mm (Ø7.16” x 3.16”)
  • Speaker Weight
    0.95kg (2.09 lbs.)
  • Packing Size (WxDxH)
    195 x 195 x 90 mm (7.67 x 7.67 x 3.54 inches)
  • Packing Weight
    1.08kg (2.38 lbs.)
