CIRRUS6 Passive in-ceiling loudspeaker with 100V/70V transformer and 6.5” + 0.75” coaxial driver

Download product sheet

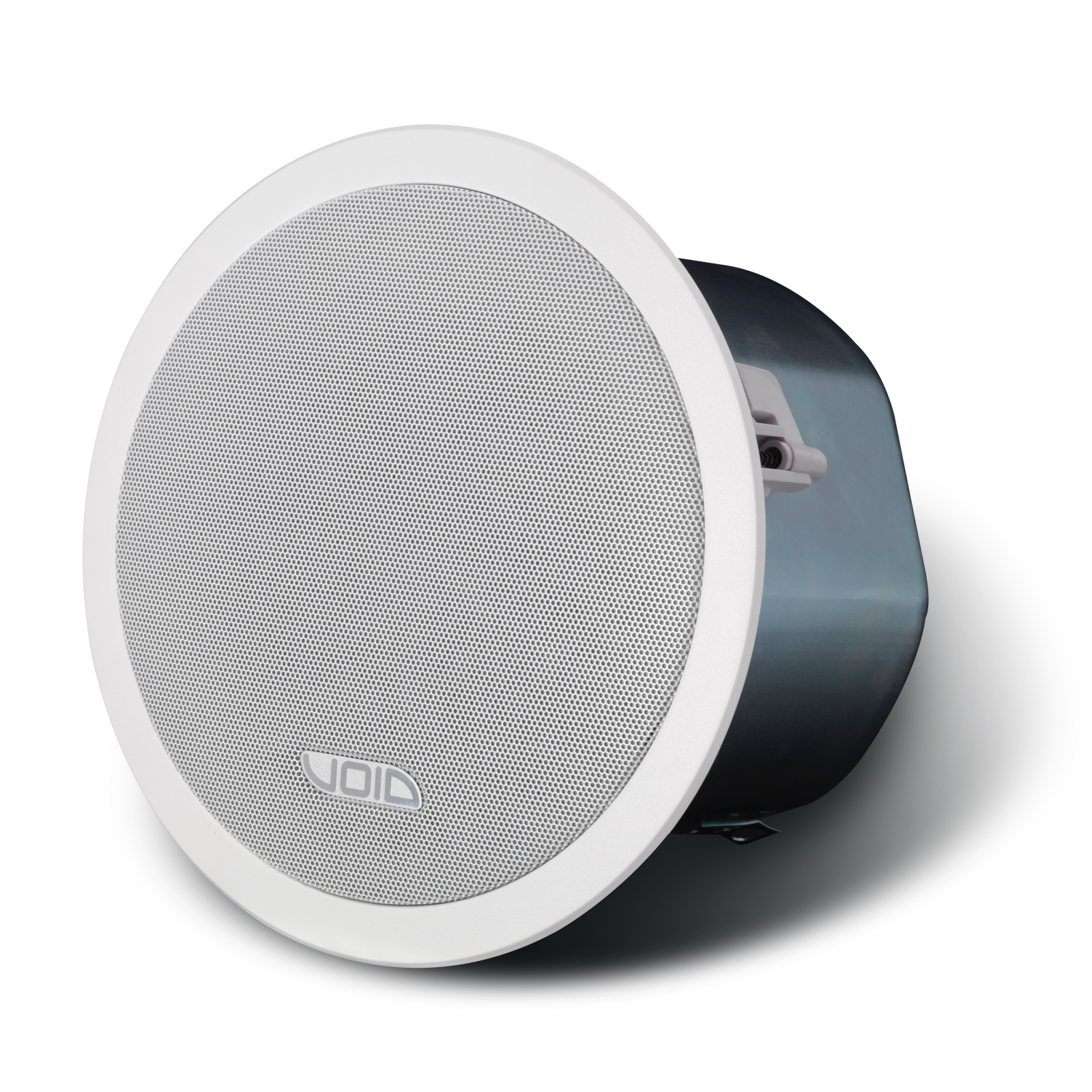

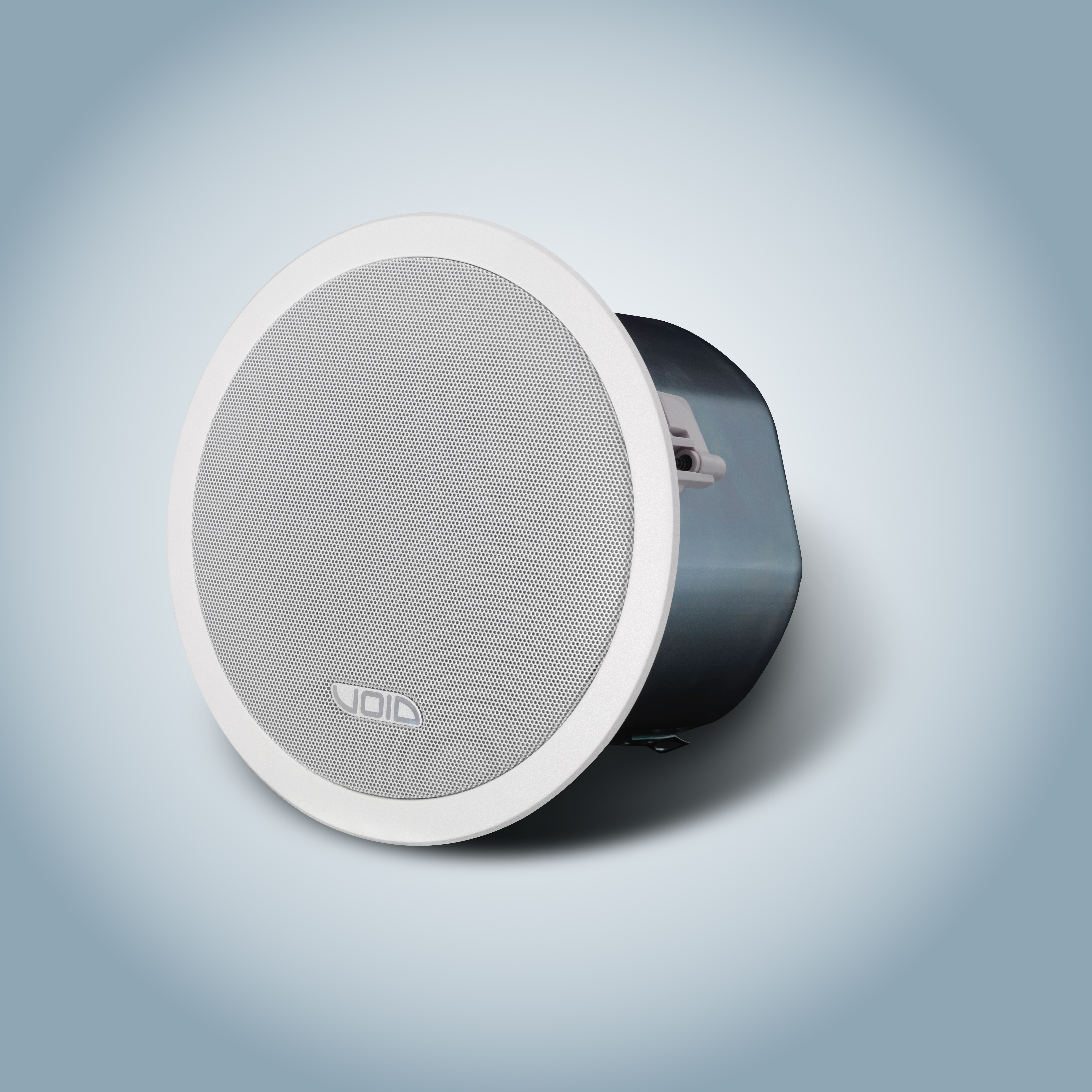

The Cirrus 6.1 is a two-way passive ceiling speaker, equipped with an internal 100V/70V line transformer and a coaxially mounted 6.5” LF + 0.75” HF driver. Designed for spaces where discreet aesthetics are as important as sound quality, it features a minimal, paintable white ABS baffle and an ultra-compact profile. The system provides an extended frequency res... Read more

The Cirrus 6.1 is a two-way passive ceiling speaker, equipped with an internal 100V/70V line transformer and a coaxially mounted 6.5” LF + 0.75” HF driver. Designed for spaces where discreet aesthetics are as important as sound quality, it features a minimal, paintable white ABS baffle and an ultra-compact profile. The system provides an extended frequency response up to 20 kHz and a consistent 110° dispersion, delivering clear and balanced sound coverage across wide areas.

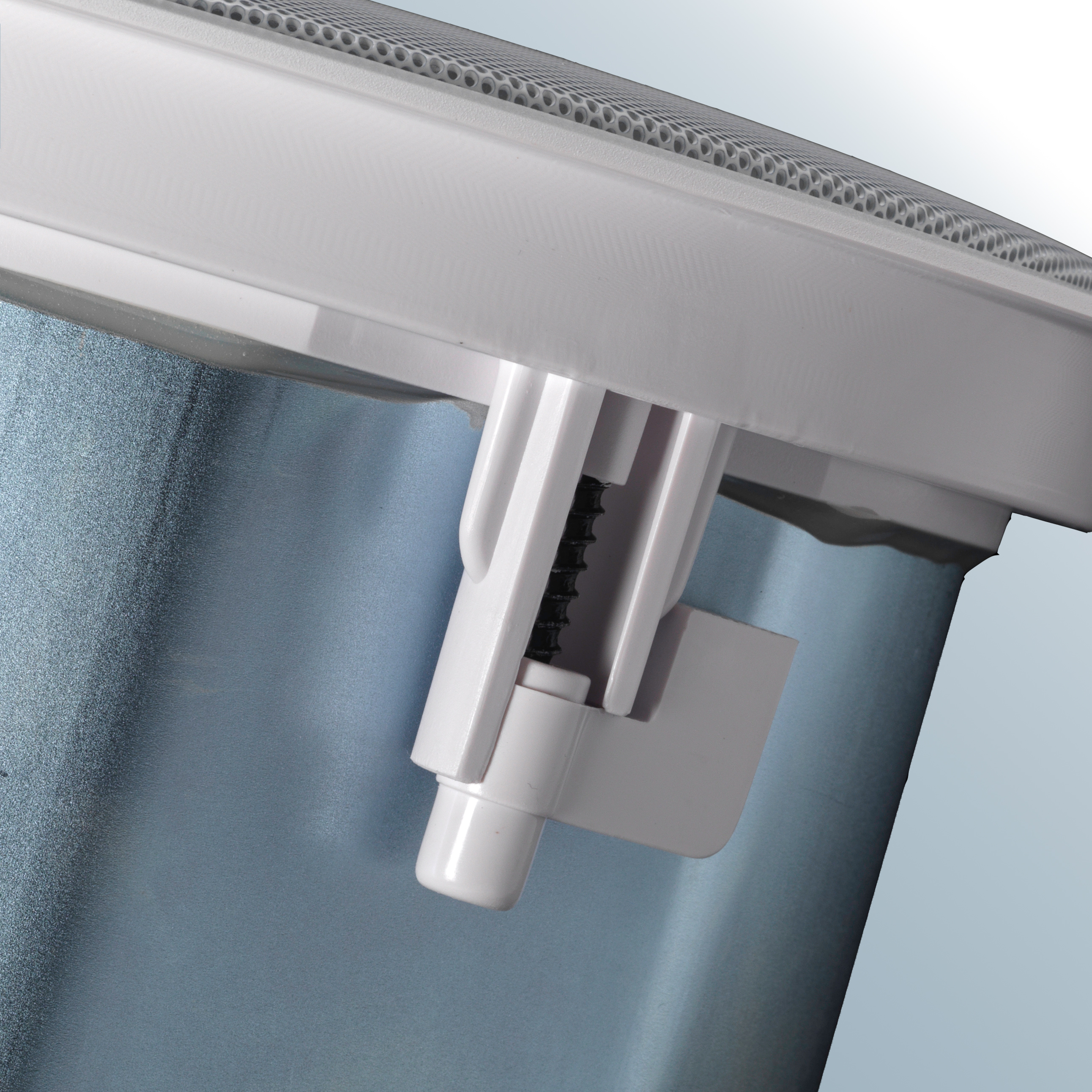

Engineered for fast and secure installation with half-turn, spring-loaded clips and load-spreading ceiling brackets, the Cirrus 6.1 is ideal for hotels, restaurants, bars, wellness and retail spaces, where powerful yet unobtrusive sound is required. The selectable low impedance setting and multiple voltage taps make it a highly flexible option for both distributed and hybrid systems.

Collapse text

Highlights

Total Flexibility for Distributed Systems

With an integrated 70/100V line transformer and selectable power taps (up to 30W), the Cirrus 6.1 seamlessly adapts to any commercial installation, simplifying system design and future expansion. Whether used in a multi-zone hotel setup or a networked retail environment, its constant voltage compatibility and onboard tap selector ensure maximum efficiency, control, and consistent audio coverage—even across long cable runs.

Easely paintable white ABS enclosure

The standard white ABS enclosure can be easily painted to match any architectural aesthetic or room color scheme. This allows the Cirrus 6.1 to blend seamlessly into refined or customized environments, making it ideal for installations where visual impact must remain discreet.

Astonishingly Powerful

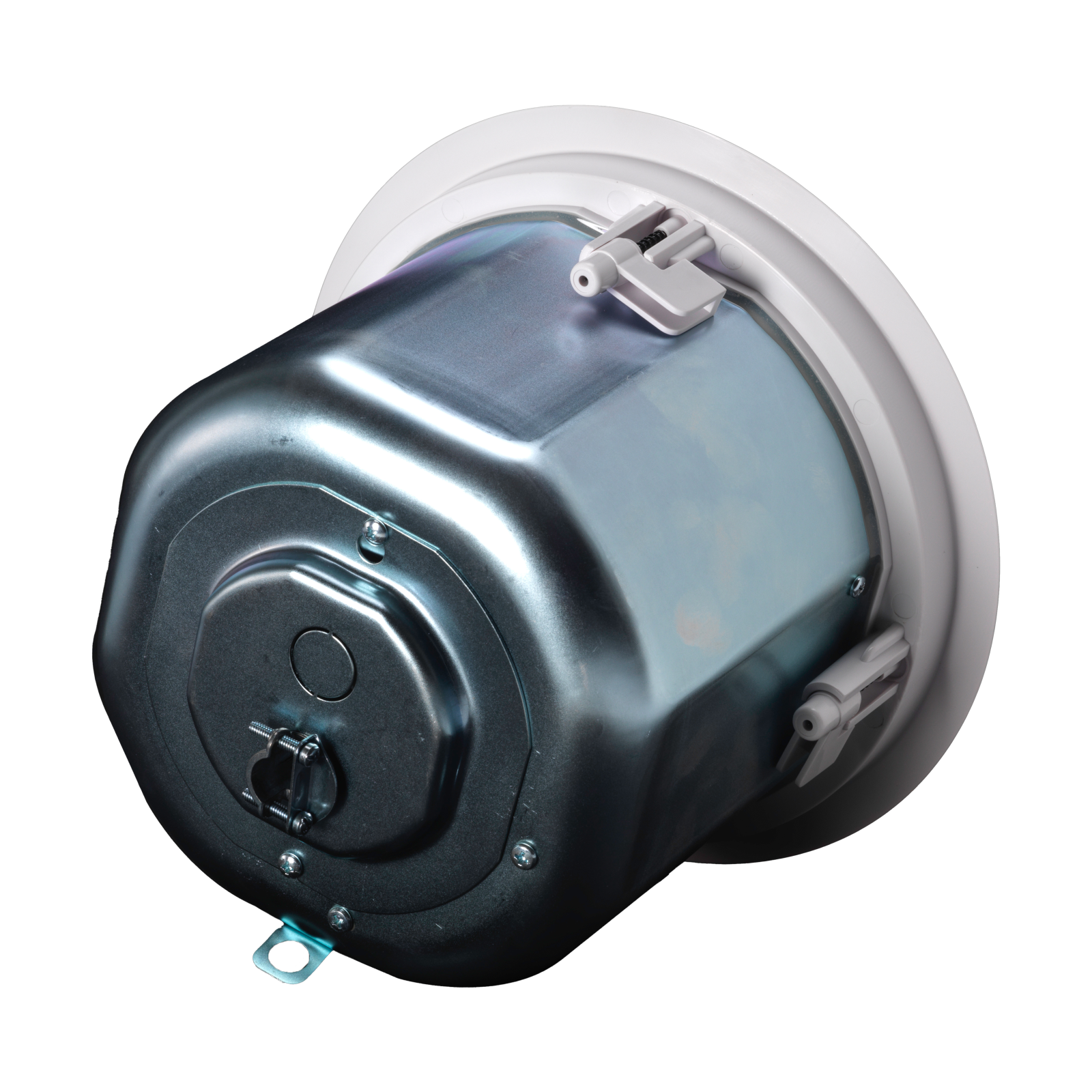

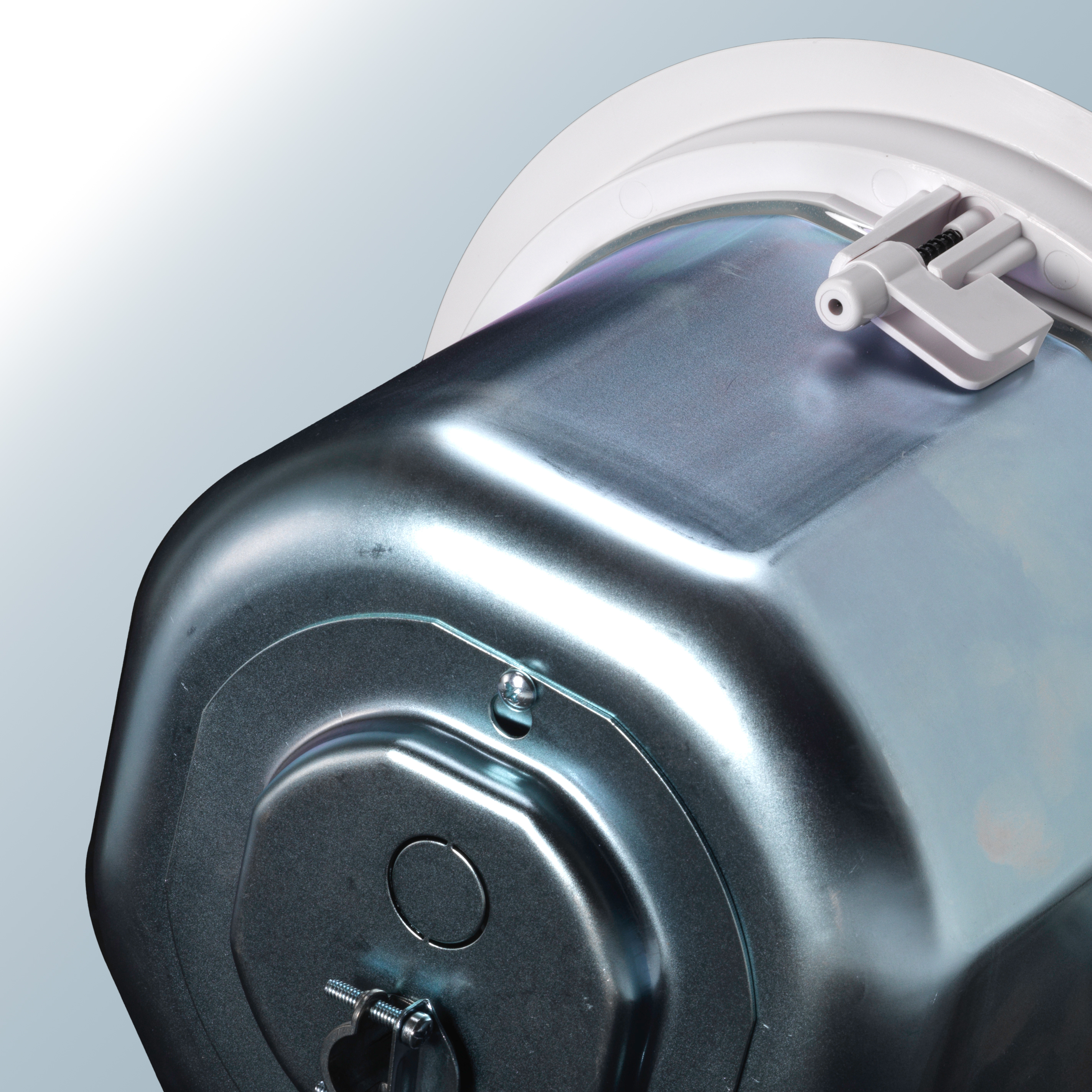

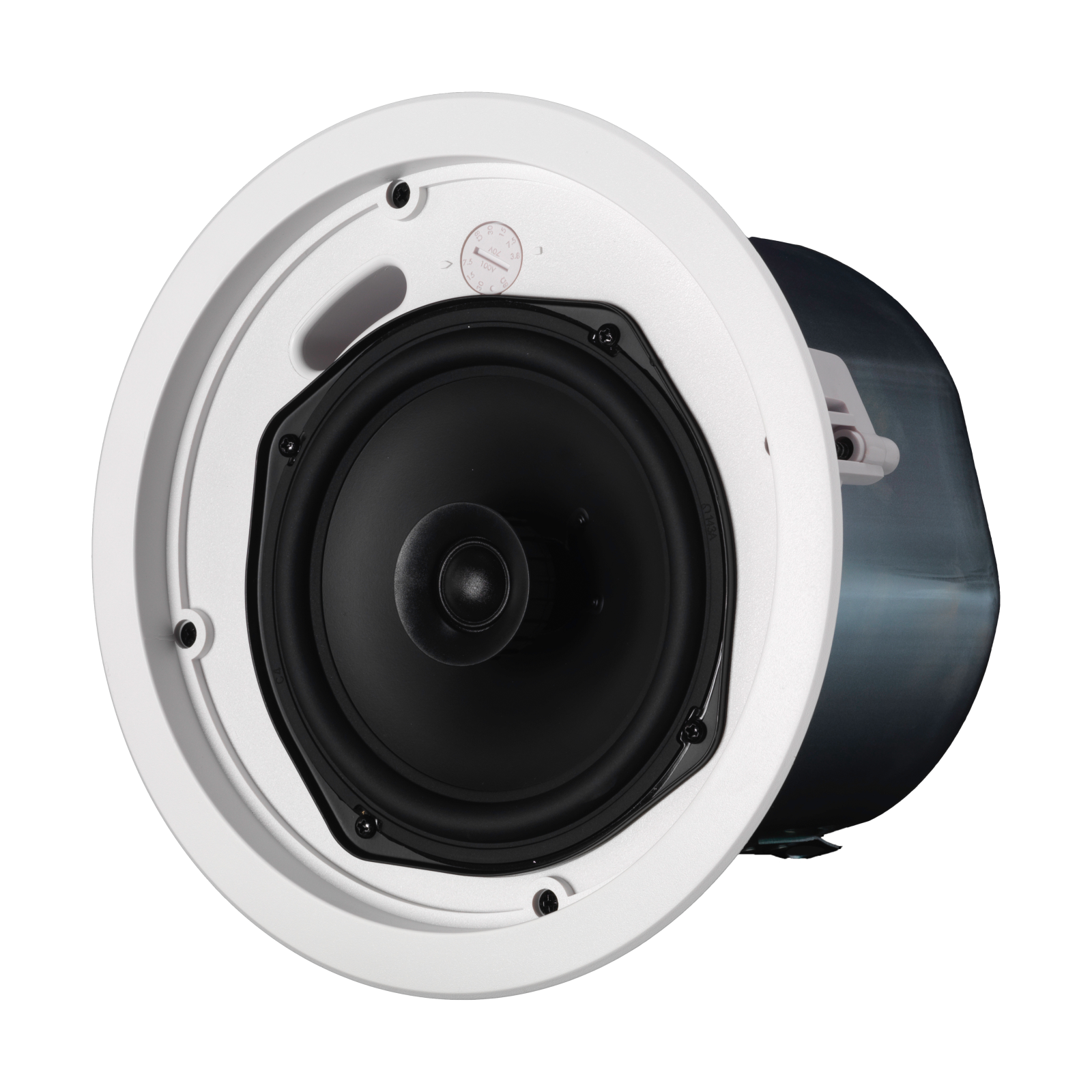

Featuring a 6.5” low frequency driver and a 0.75” coaxially mounted high frequency driver, the Cirrus 6.1 operates as a two-way full range passive ceiling speaker delivering astonishingly powerful audio despite its extremely compact dimensions. It also includes load-spreading installation brackets for use on false ceilings.

Product details

Key features

  • Internal 70/100 V line transformer
  • Selectable voltage taps and low impedance setting
  • Wide conical 110° dispersion pattern
  • Paintable white ABS enclosure
  • 6.5" low frequency driver
  • 0.75" coaxially mounted high frequency driver
  • Quick and easy ceiling mount fixings
  • Applications: hotels, restaurants, commercial environments

Specifications

  • Frequency Response
    96Hz ~ 18KHz (-3dB) / 62Hz ~ 20KHz (-10dB)
  • Efficiency
    90dB 1w/1m
  • Crossover Points
    3.3 kHz passive
  • Nominal Impedance
    8 Ω
  • Power Handling
    100 W AES
  • Voltage Taps
    30 W, 15 W, 7.5 W @100 V | 30 W, 15 W, 7.5 W and 3.8 W @70 V
  • Maximum Output
    110 dB cont, 116 dB peak
  • Dimensions (W x H)
    251mm x 205mm
  • Weight
    3.5 Kg (7.7 lbs)
  • Driver Configuration
    1x 6.5” LF | 1x 0.75” HF
  • Dispersion
    110°
  • Connectors
    Removable locking connector with screw-down terminals | Two input terminals and two loop-thru output terminals | Max. wire 12 AWG (2.5 mm2)
  • Enclosure
    ABS baffle
  • Mounting
    Backing plate and tiles rails (included)
  • Colors
    White
  • Construction Note
    Mounting hole 224 mm (8.8”) diameter
