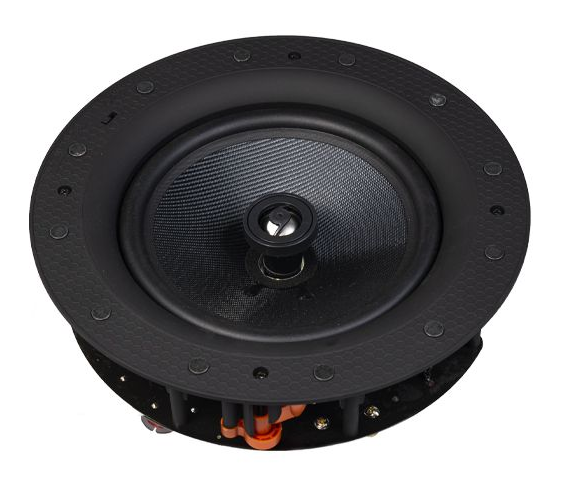

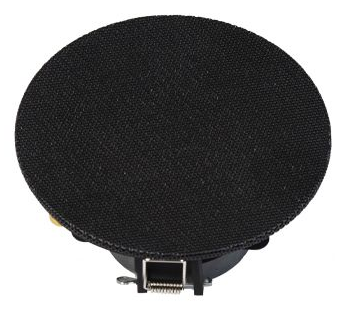

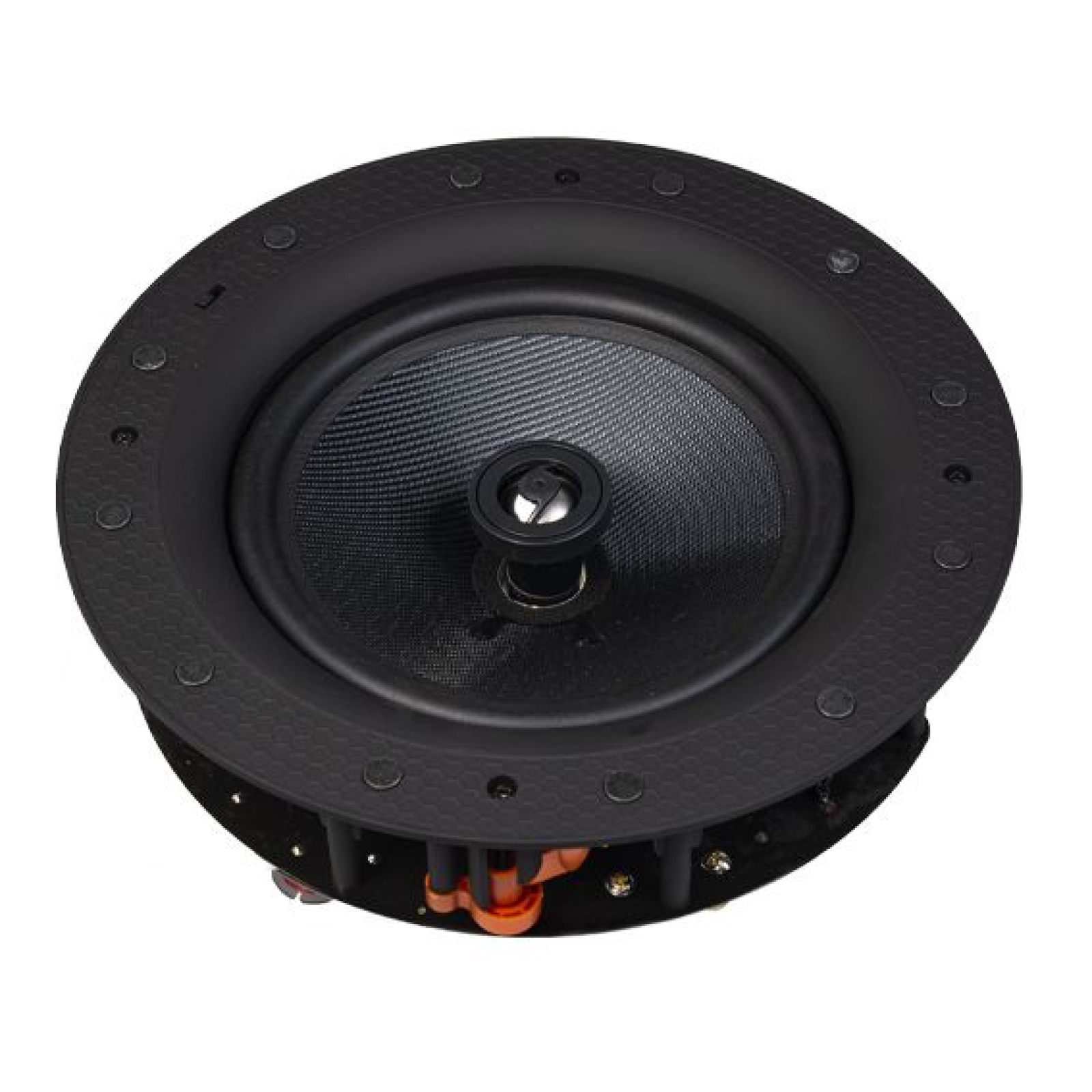

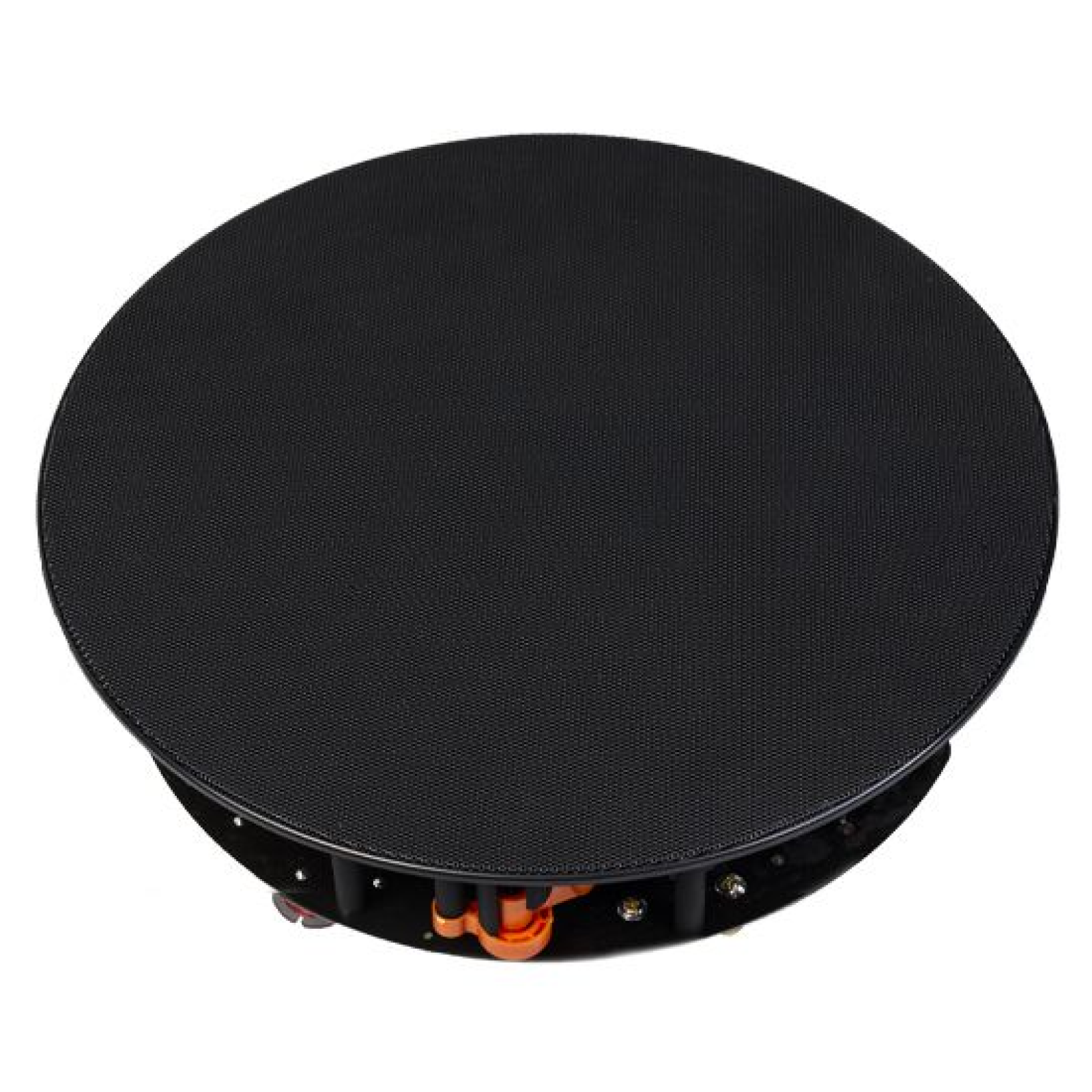

GC5-RNB 5.25" Passive ceiling/wall-mounted Speaker (round grille, black)
Download product sheetThe GC5 is a 2-way passive in-wall or in-ceiling speaker, ideal for both residential and professional settings. Featuring a 5.25" coaxial woofer and a 0.75" titanium dome tweeter, it delivers natural, balanced sound with a 70 Hz–20 kHz frequency range, 130° coverage, and SPL up to 109 dB.
Its compact design and paintable magnetic grille (round or square) allo... Read more
The GC5 is a 2-way passive in-wall or in-ceiling speaker, ideal for both residential and professional settings. Featuring a 5.25" coaxial woofer and a 0.75" titanium dome tweeter, it delivers natural, balanced sound with a 70 Hz–20 kHz frequency range, 130° coverage, and SPL up to 109 dB.
Its compact design and paintable magnetic grille (round or square) allow seamless integration in homes, hotels, bars, offices, or other public spaces.
Based on the infinite baffle principle, it works without a back box and is ideal for drywall, wood, or tile installations. With just 75 mm depth and a weight of 1.08 kg, it ensures easy mounting and strong performance. Its 8-ohm impedance makes it suitable for compact hi-fi systems.
The GC5 pairs perfectly with KGEAR amplifiers and subwoofers such as the GC8S or GS6, offering a complete and scalable solution for discreet yet powerful audio setups.
Collapse textProduct downloads
Highlights
Adjustable tweeter for customized listening
The RN (round) version of the GC5 integrates an adjustable tweeter, which allows you to precisely direct the high frequencies towards the listening area, for a sound that is always clear and detailed, even in irregular environments or with unconventional configurations. A rare feature in in-wall speakers, which transforms architectural integration into a tailor-made audio experience.
Frameless design for seamless architectural integration
Product details
Key features
- High-performance coaxial system: 5.25” woofer with ferrite magnet and 0.75” titanium dome tweeter, for detailed, natural and balanced audio reproduction across the entire frequency range.
- Wide sound coverage (130°): ensures uniform sound dispersion, ideal for medium to large sized residential or commercial environments.
- High sound pressure (SPL max 109 dB): offers power and clarity even in installations where a large listening area is required.
- Infinite Baffle Design: Optimized for installation in drywall, wood or other building materials without the need for a back box, for maximum simplicity and acoustic consistency.
Specifications
-
TypePassive loudspeaker
-
Transducers5,25” coax ferrite magnet woofer 0,75” titanium dome tweeter
-
Frequency Response70 Hz - 20 kHz (-10dB)
-
Max SPL109 dB
-
Rated Power80 W
-
Coverage130°
-
ConnectorsSpring terminals
-
Nominal Impedance8 Ω
-
Dimensions (W x H x D)196x179x75 mm (7.7x7x3 in)
-
Weight1.08KG (2.4lbs)
-
MaterialABS
-
ColorsBlack
