VENU 10v2 Compact Passive Two-Way 10” Loudspeaker with rotatable asymmetrical horn (black)
Download product sheetThe Venu 10 V2 is a compact passive loudspeaker designed to deliver high audio performance and versatile installation options. Featuring a 10” low frequency driver and a 1” compression driver mounted on a rotatable elliptical horn, it offers an extended frequency response from 65 Hz to 20 kHz ±3 dB with 97 dB sensitivity, delivering clear, detailed sound acros... Read more
The Venu 10 V2 is a compact passive loudspeaker designed to deliver high audio performance and versatile installation options. Featuring a 10” low frequency driver and a 1” compression driver mounted on a rotatable elliptical horn, it offers an extended frequency response from 65 Hz to 20 kHz ±3 dB with 97 dB sensitivity, delivering clear, detailed sound across a wide range of environments.

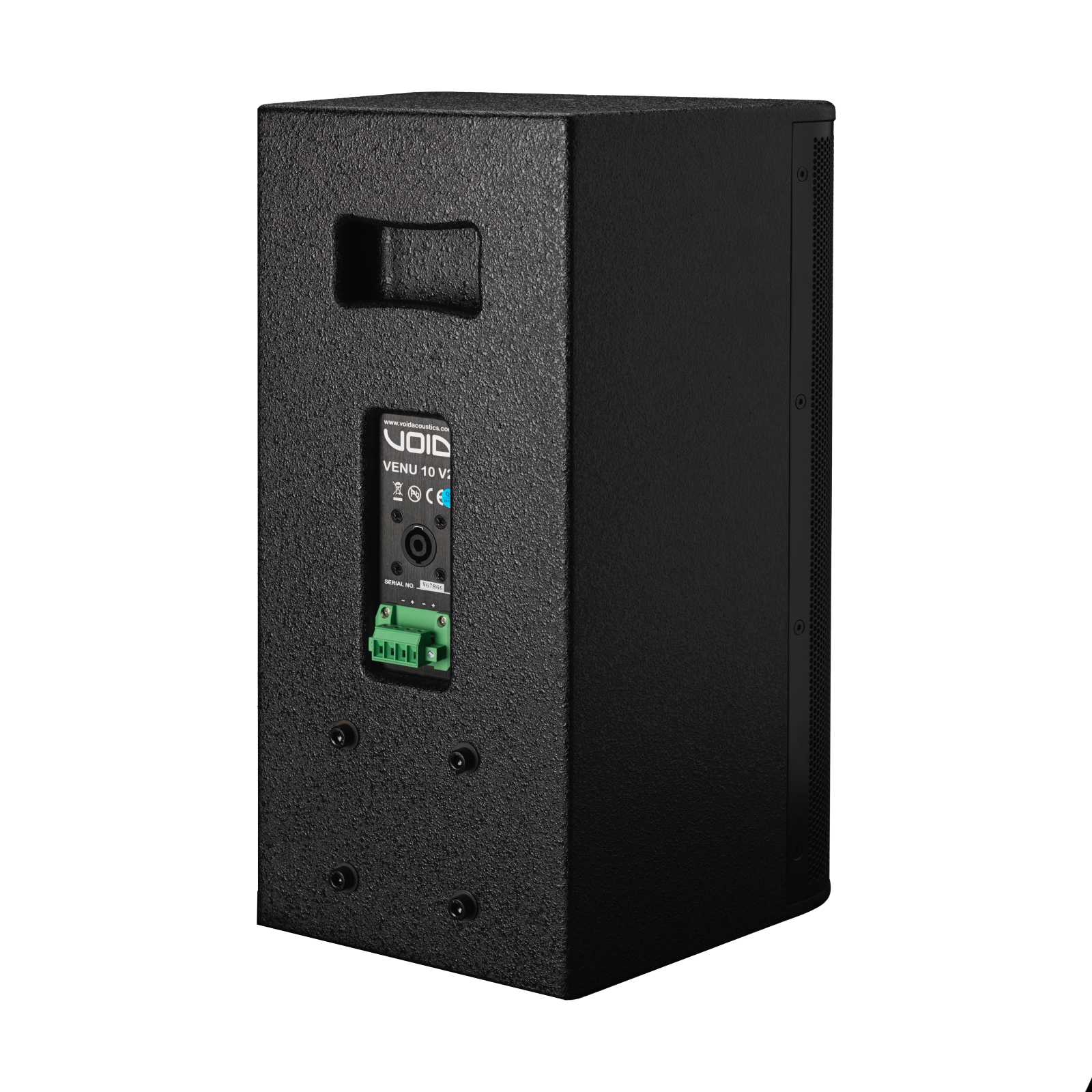

Its robust enclosure, made entirely from 15 mm multi-laminate birch plywood, is finished with a durable textured polyurethane “TourCoat.” The Venu 10 V2 is designed for easy and secure installation with dual speakON™ and Phoenix connectors featuring link-through, plus integrated M8 flying points. An optional top hat allows for touring applications.
Ideal for hotels, restaurants, bars, and lounges, this speaker combines high-quality sound with a discreet and customizable design, including color options.
Collapse textProduct downloads
Media
Highlights
Extended frequency response 65 Hz - 20 kHz ±3 dB for detailed and natural sound reproduction
Rotatable high-frequency horn for optimal directivity and adaptable coverage
Custom colors available upon request

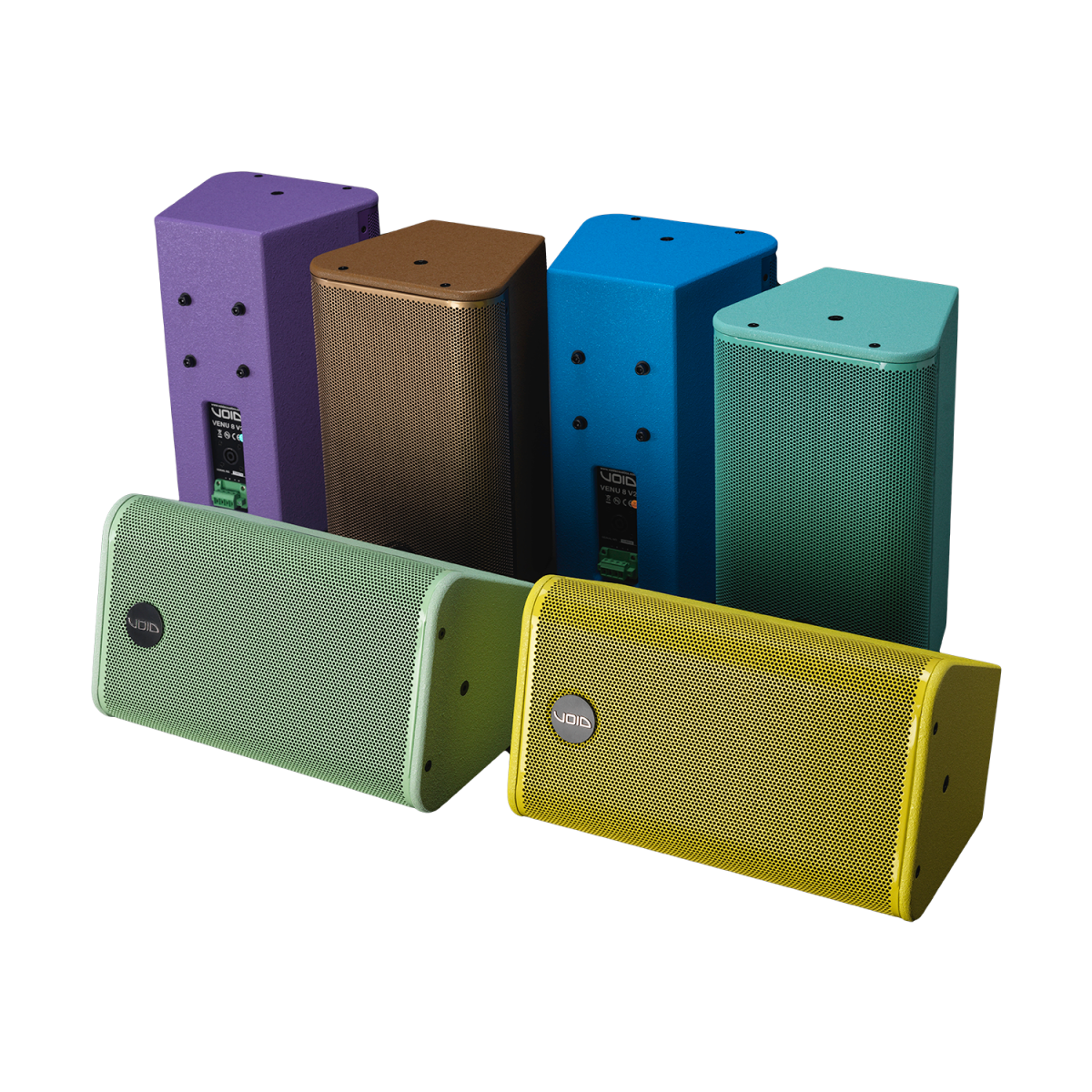

The Venu 10 is ingeniously enhanced in aesthetics as well as functionality thanks to its colour customisation providing the chance to own a bespoke product that will compliment any location (the colors visible in the image are examples for illustrative purposes)
Product details
Key features
- SpeakON™ and Phoenix connectors with link-through for fast, reliable installation
- Electronic HF protection for increased long-term reliability
- Integrated M8 flying points for flexible and secure suspension
- Custom colors available upon request
- Durable 15 mm birch plywood enclosure with textured polyurethane finish
Specifications
-
Frequency Response65 Hz - 20 kHz ±3 dB
-
Efficiency97 dB 1W/1m
-
Crossover Points2.1 kHz passive
-
Nominal Impedance8 Ω
-
Power Handling350 W AES
-
Maximum Output122 dB cont, 128 dB peak
-
Driver Configuration1x 10” LF, 1x 1” HF compression driver
-
Dispersion90°-40°H x 60°V rotatable
-
Connectors1x Phoenix with link out and 1x speakON™ with link out
-
Weight16 kg (35.3 lbs)
-
Dimensions (W x H x D)301mm x 469mm x 260mm
-
Enclosure15 mm birch plywood
-
FinishTextured polyurethane
-
GrillePerforated steel with foam filter
-
RiggingYoke bracket positions 4 x M8 fixing points for type 80 plate Optional top hat
-
ColorsBlack (custom colors available upon request)
