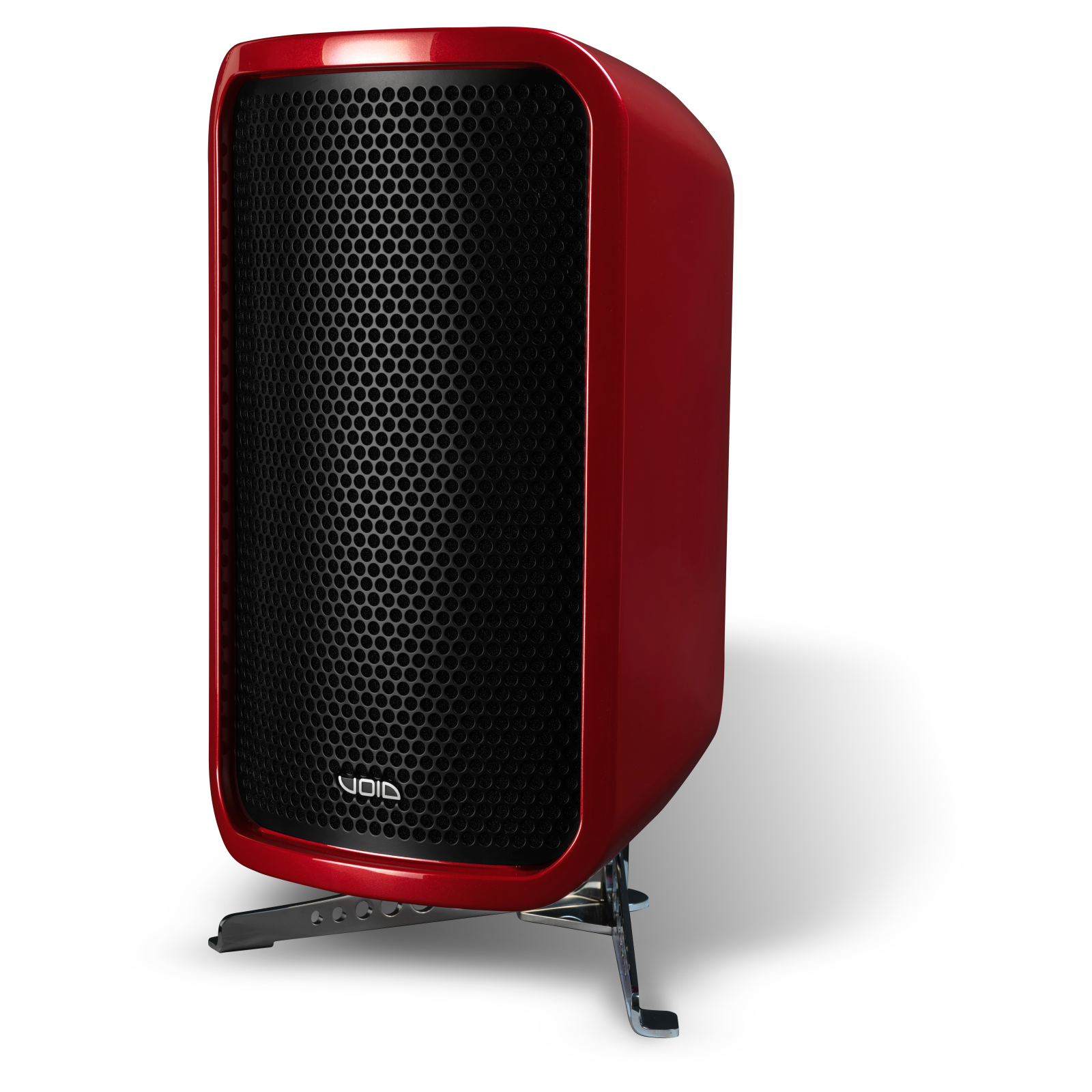

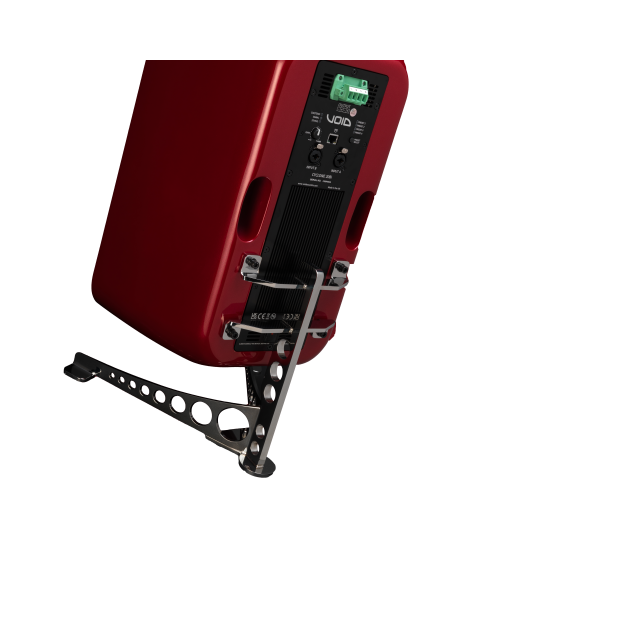

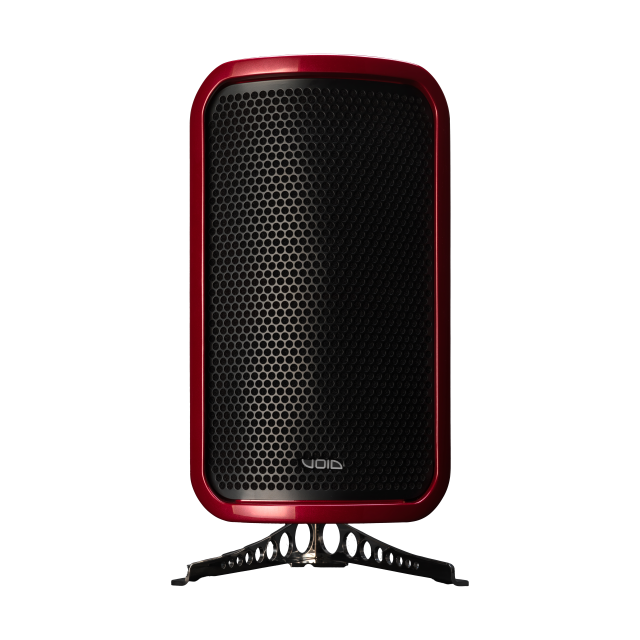

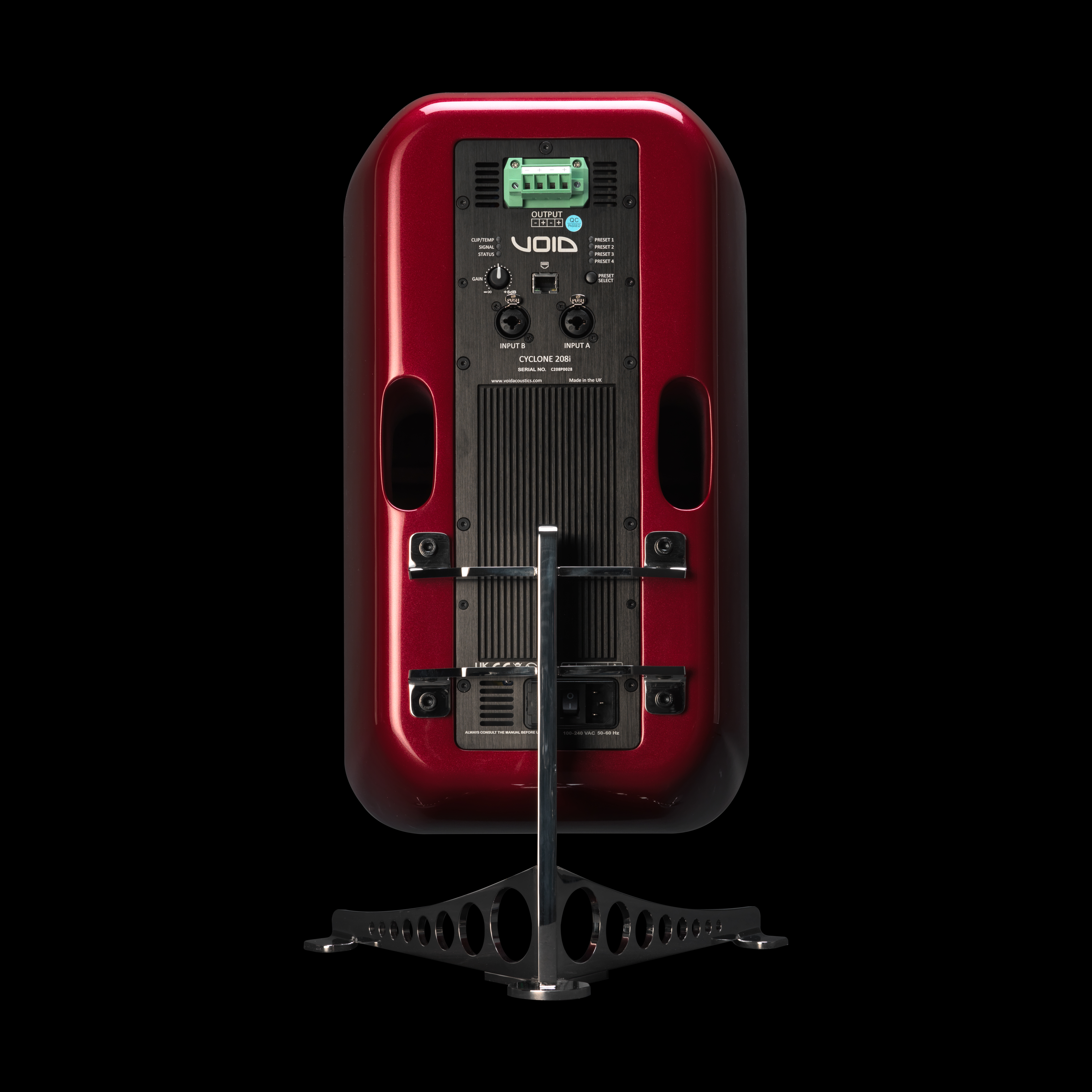

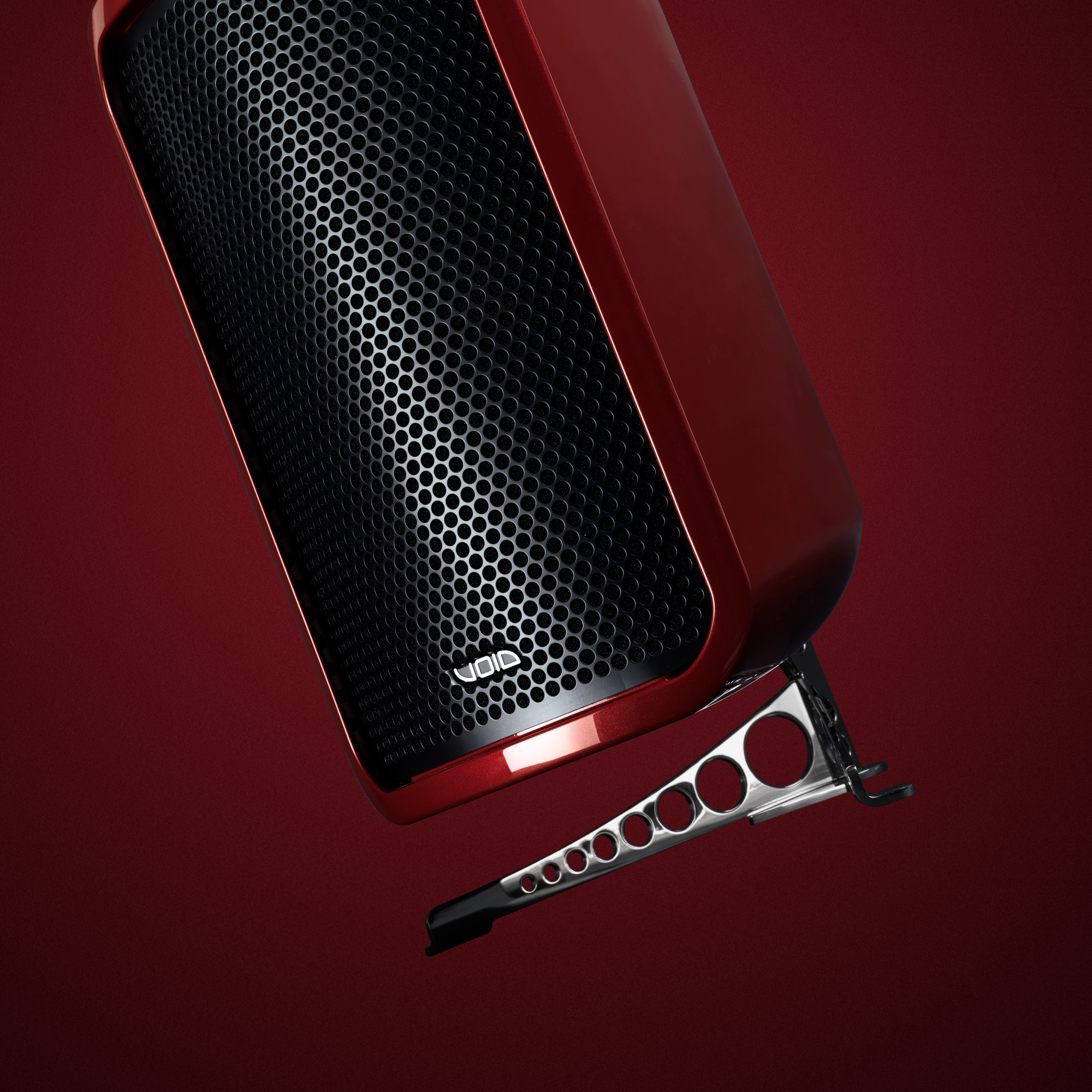

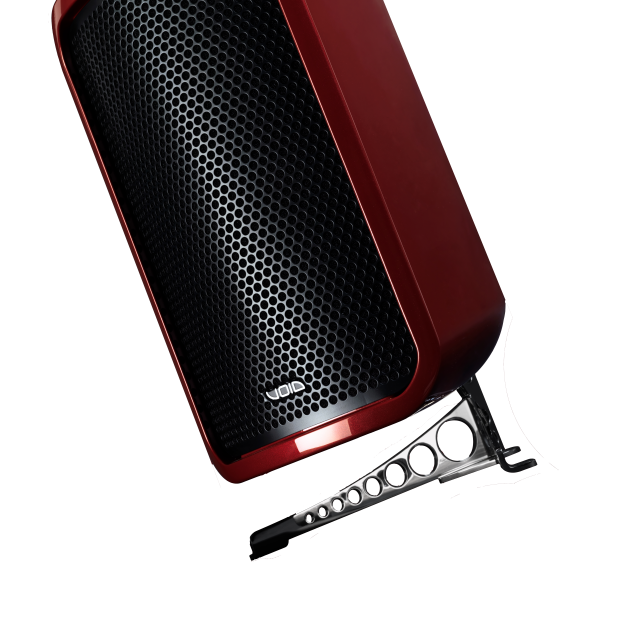

CYC 208i RED Active reflex subwoofer with dual 8” woofers and amplifier module, 600 W, 24-bit DSP, IP-rated (red)
Download product sheetThe Cyclone 208i is a compact, self-powered subwoofer with a 24-bit / 48 kHz DSP designed to pair seamlessly with Cyclone 4 or Cyclone 55, delivering high-performance low-end in limited-space installations. Its 600 W amplifier module provides two 150 W outputs at 4 Ω, enabling direct power for a pair of passive satellites.
The onboard DSP allows access to fou... Read more
The Cyclone 208i is a compact, self-powered subwoofer with a 24-bit / 48 kHz DSP designed to pair seamlessly with Cyclone 4 or Cyclone 55, delivering high-performance low-end in limited-space installations. Its 600 W amplifier module provides two 150 W outputs at 4 Ω, enabling direct power for a pair of passive satellites.
The onboard DSP allows access to four internal presets, while full control is available via ArmoníaPlus software, ensuring a fast and reliable setup. The low-resonance fibreglass cabinet, UV-resistant, houses two high-excursion 8” drivers, capable of delivering deep, articulate bass up to 125 dB peak SPL.
The Cyclone 208i is a powerful and elegant choice for restaurants, hotels, bars, corporate and retail spaces, offering premium sound quality in a compact footprint.
Collapse textProduct downloads
Highlights
Integrated amplification and advanced DSP in an ultra-compact subwoofer
An all-in-one platform that combines a 600 W amplifier module, 24-bit / 48 kHz DSP processing, and 150 W Phoenix outputs on 4 Ω, ensuring precise frequency response control, maximum energy efficiency, and plug & play installation, even in multichannel systems.
Advanced audio processing with remote DSP control

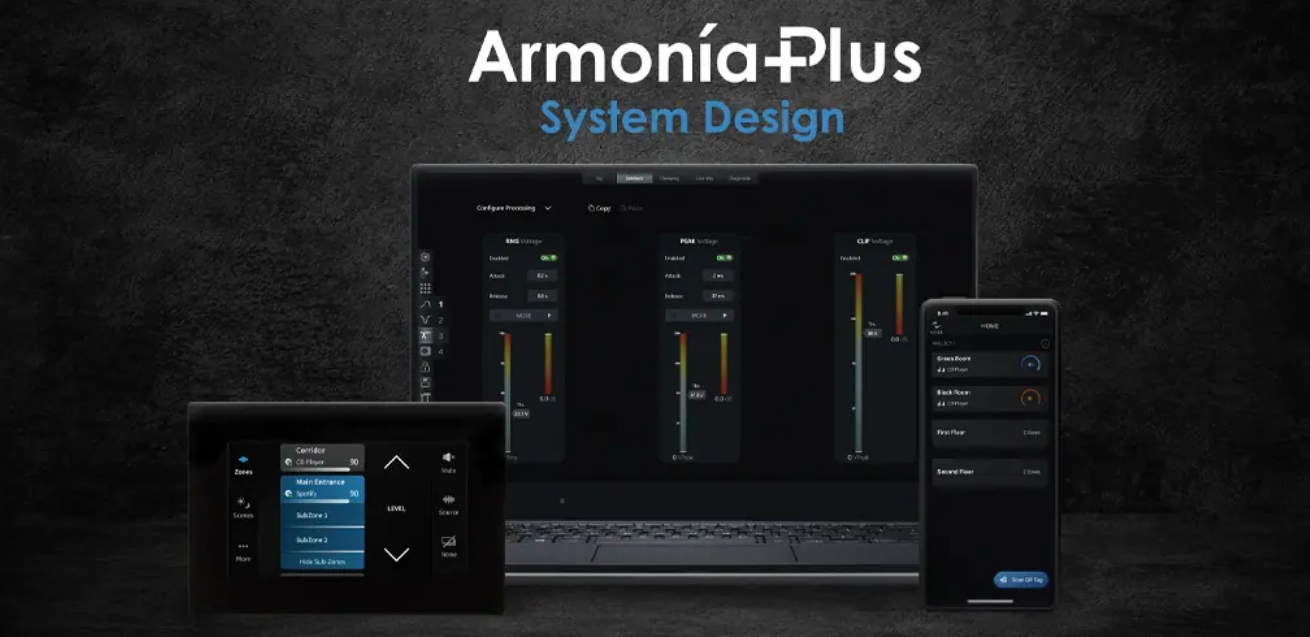

24-bit / 48 kHz DSP with 4 recallable internal presets, compatible with Void preset library and fully remotely manageable via ArmoníaPlus software via Ethernet connection: allows in-depth control of equalization, crossover and dynamic protections, adapting system behavior to different configurations or listening environments.
Anti-resonance fiberglass structure for greater clarity and IP10 protection

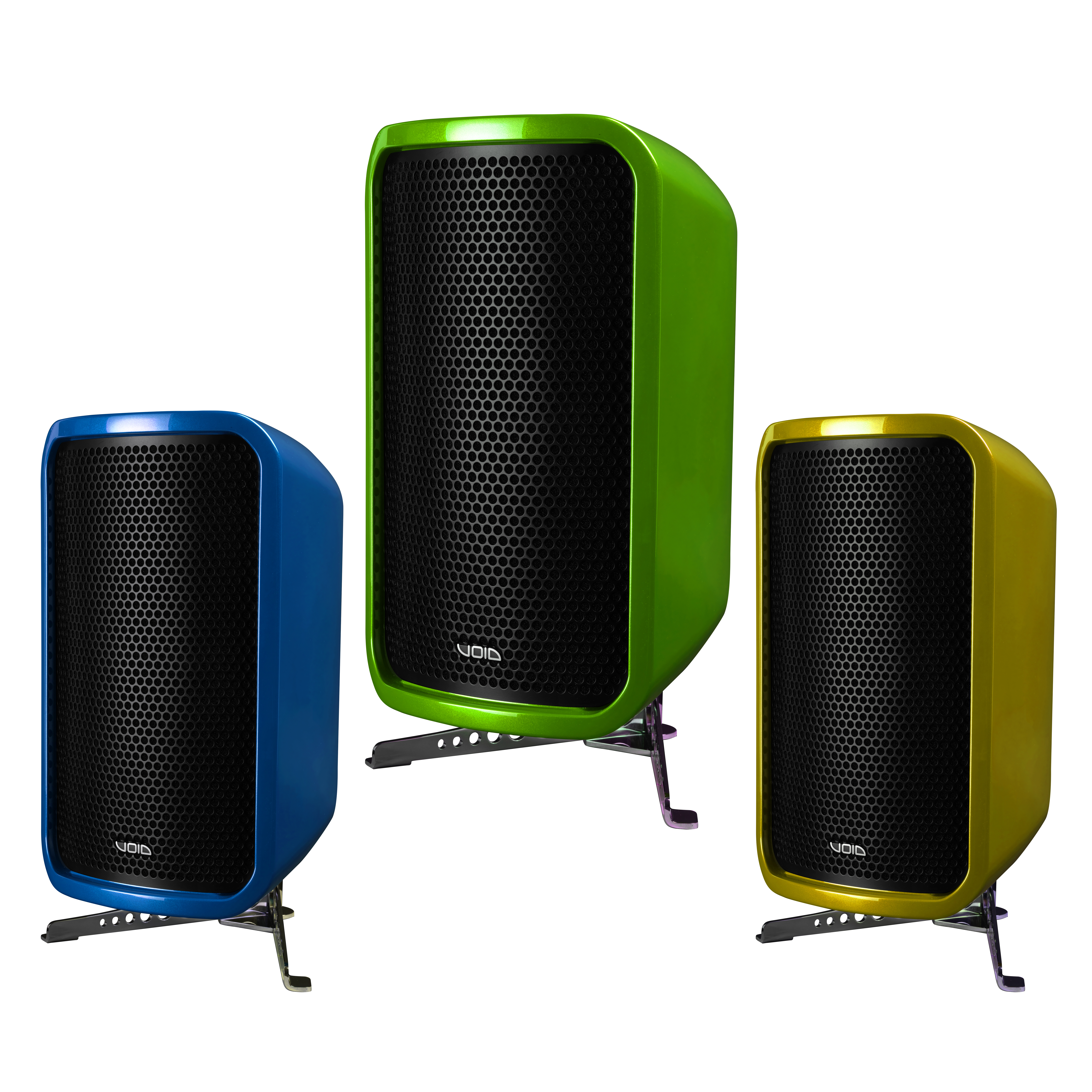

Custom colors available upon request
Product details
Key features
- 24-bit / 48 kHz DSP with 4 onboard recallable presets
- Compatible with Void preset library and ArmoníaPlus control
- Low-resonance composite fibreglass reflex enclosure
- Long-excursion 8“ transducers with 2” voice coil, designed to deliver powerful and controlled low-frequency response even at high sound pressure levels.
Specifications
-
Frequency Response42 Hz - 120 Hz ±3 dB
-
Maximum Output119 dB cont, 125 dB peak
-
Crossover Points80 Hz - 120 Hz active
-
Driver Configuration2x 8” LF
-
PowerIEC C13
-
InputXLR Combo and 1/4” jack
-
AD/DA converter24-bit, 48 kHz
-
Onboard Presets4
-
Amplifier300 W (for LF), 2x 150 W (4 Ω)
-
Nominal power requirementAC 100 V - 240 V, 50/60 Hz with PFC
-
ConsumptionStandby < 0.5 W | Idle 10 W | 1/4 of max output power @ 4 Ω 150 W
-
MountingGround stack bracket
-
GrillePerforated steel with foam filter
-
EnclosureFibreglass composite
-
FinishSmooth cellulose
-
Dimensions (W x H x D)347mm x 513mm x 299.20 mm
-
Weight19.5 kg (42.99 lbs)
-
IP RatingIP10
-
ColorsRed
- More Less
